NVIDIA GeForce RTX 3090 Ti 24GB Founders Edition

Video Card

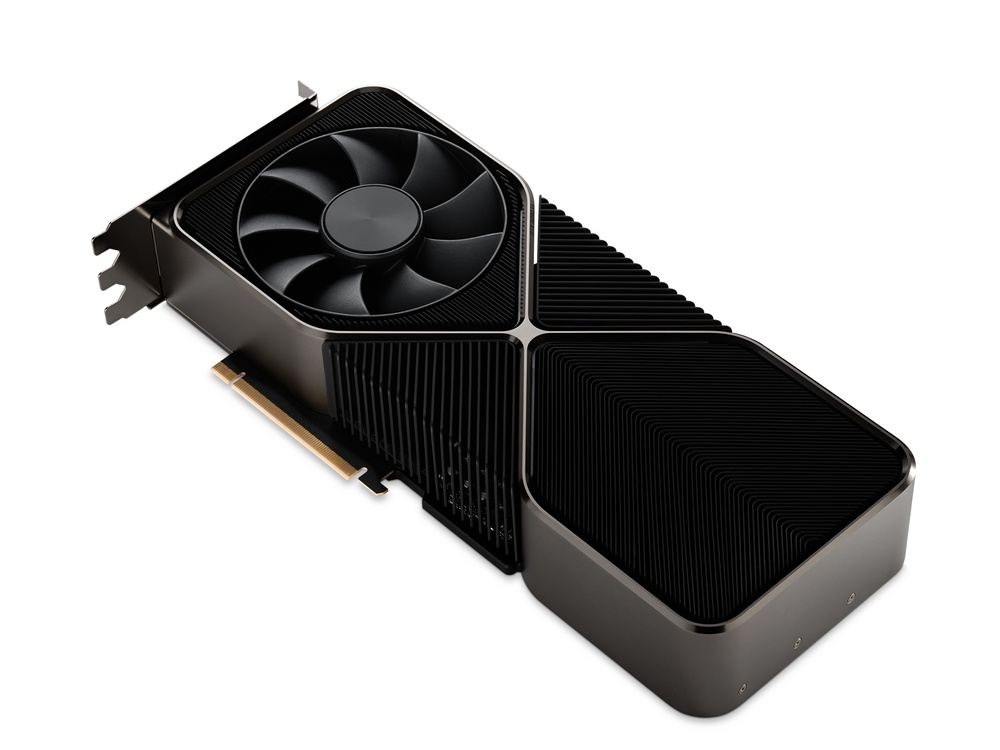

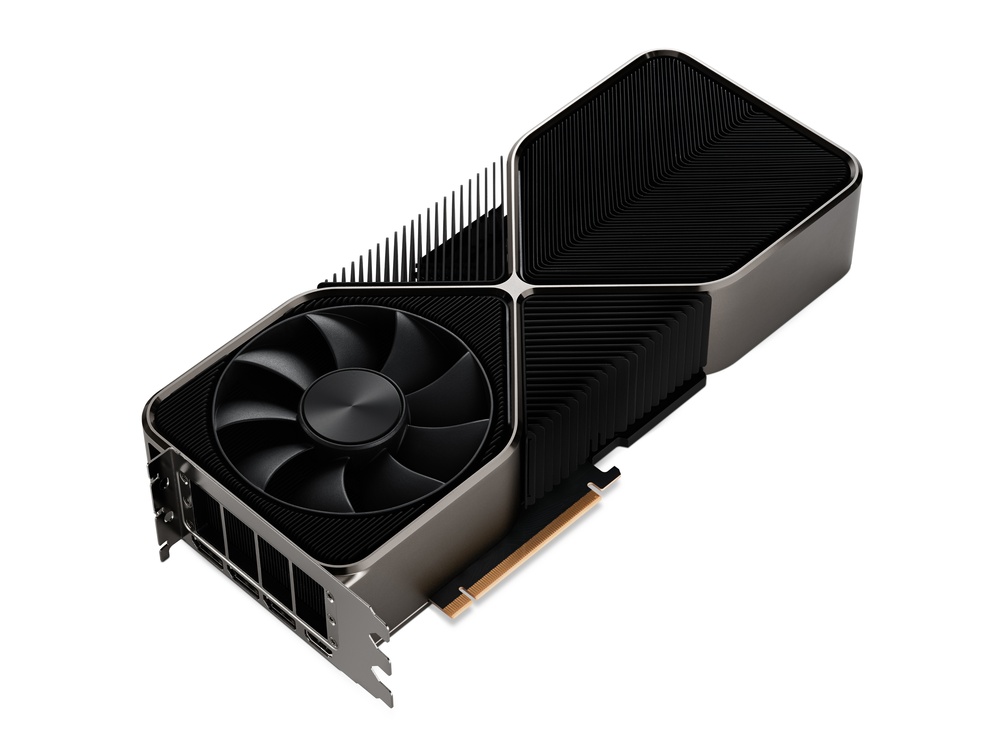

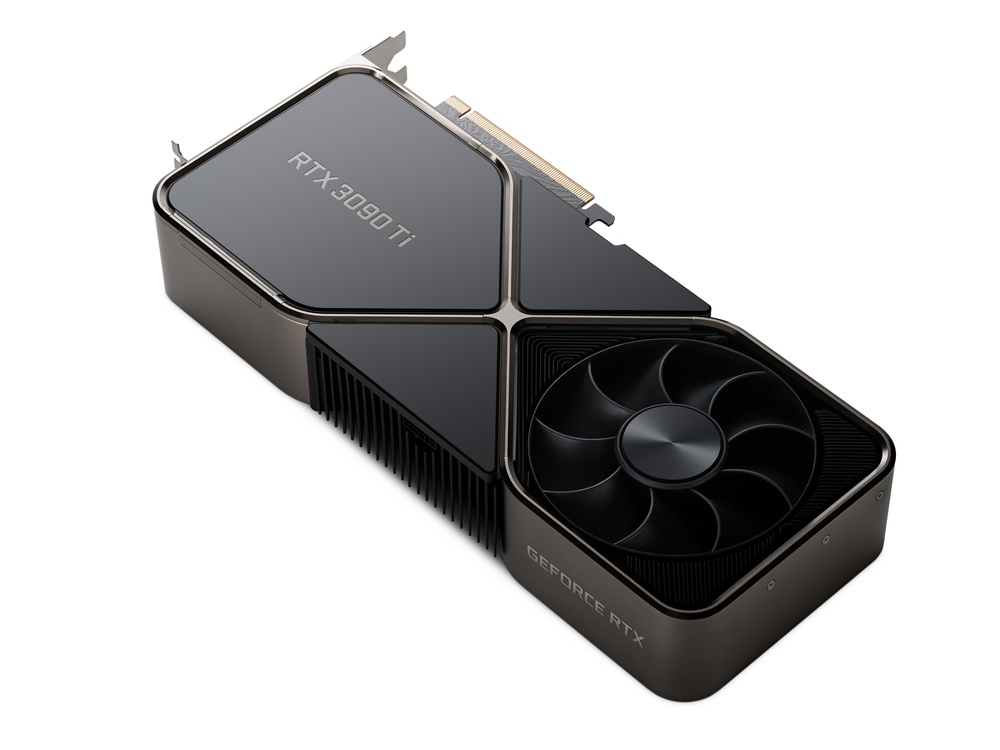

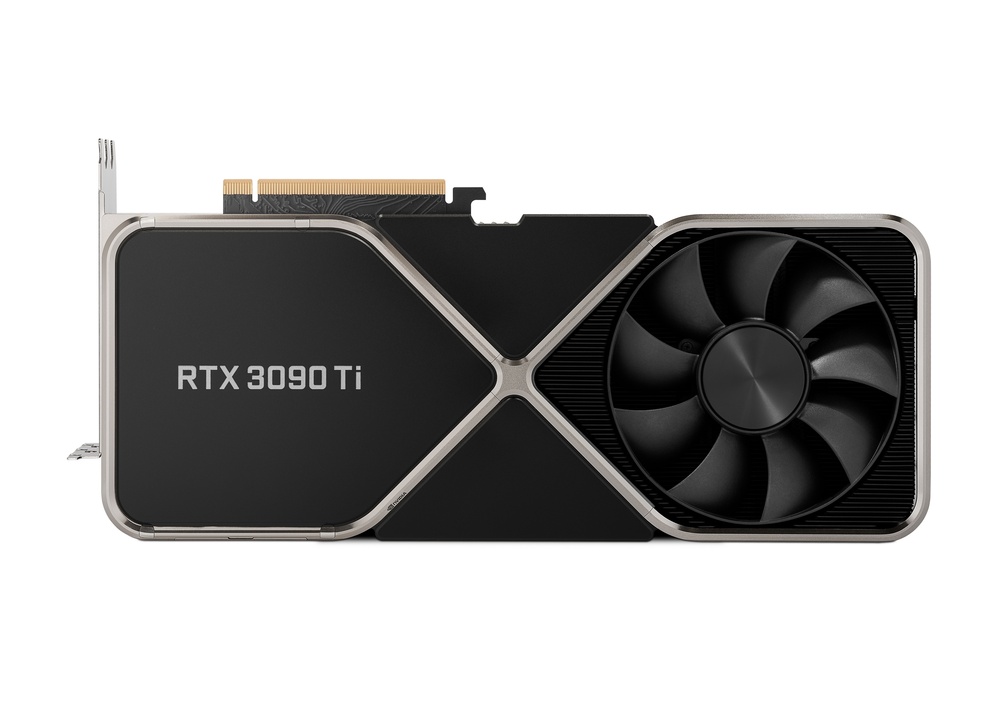

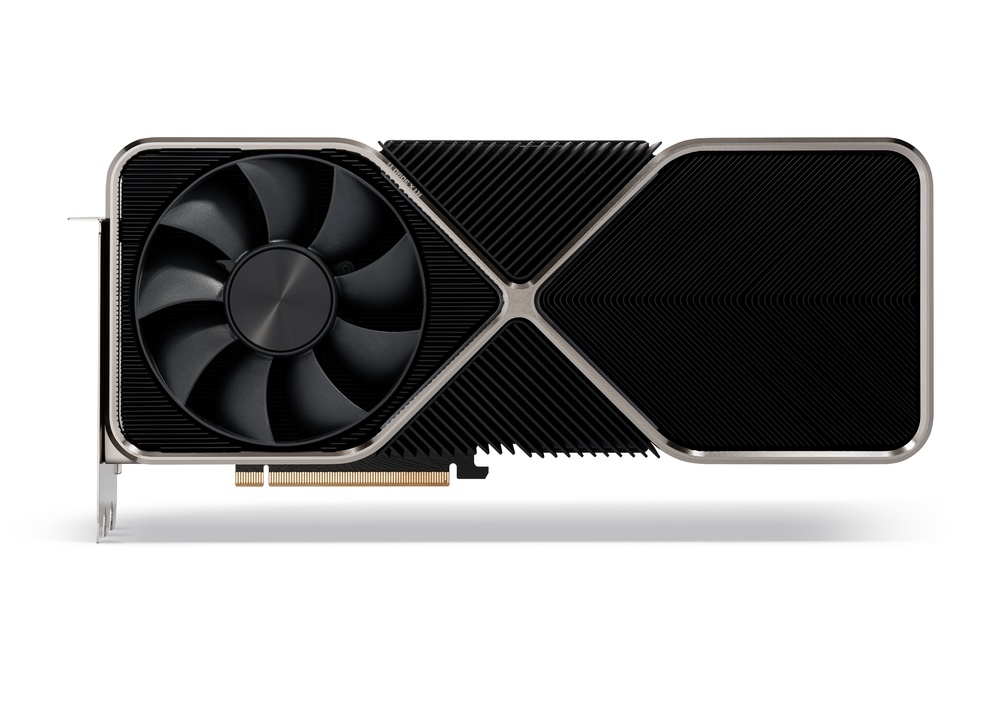

NVIDIA GeForce RTX 3090 Ti 24GB Founders Edition Picture 73791NVIDIA GeForce RTX 3090 Ti 24GB Founders Edition Picture 73792NVIDIA GeForce RTX 3090 Ti 24GB Founders Edition Picture 73793NVIDIA GeForce RTX 3090 Ti 24GB Founders Edition Picture 73794NVIDIA GeForce RTX 3090 Ti 24GB Founders Edition Picture 73795
NVIDIA's GeForce RTX 3090 Ti is one of the last (and fastest) consumer graphics cards to be based on their Ampere architecture, which in turn was the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. In terms of performance, this model is only slightly faster than the RTX 3090 it shares part of its name with - gaining 3 to 9% in our various benchmark tests. However, there is a trade-off for this performance boost: greatly increased power usage and heat output.

This variant, directly from NVIDIA, uses a unique dual-fan cooling layout. It is a great design for keeping a single card relatively cool and quiet, by venting some heat out the back of the computer while circulating the rest upward within the case. However, it puts off a lot of heat and is wider than traditional cards - so this version is a poor choice for use in multi-GPU systems. If you want to run two or more cards, using models with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: NVIDIA 9001G1362505000

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3090 Ti
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology NVLink (GeForce RTX 3000)
Lite Hash Rate No
GPU Specifications
Core Speed 1,670 MHz
Boost Speed 1,860 Mhz
Stream Processors 10752
Memory Specifications
Video Memory 24GB
Memory Type GDDR6X
Memory Speed 21,000 MHz
Memory Bus Width 384-bit
Bandwidth 1,008 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 3

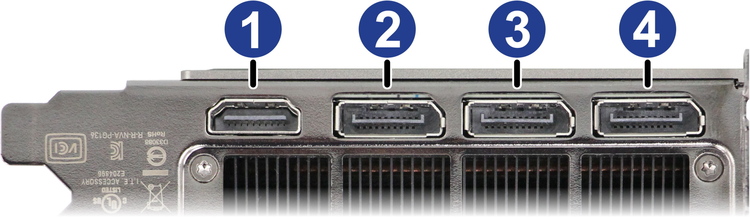

Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Plug 3 8-pin PCI-E
Uses Power Adapter Yes
Dimensions
Length 313 mm (12.3 in)
Height 138 mm (5.4 in)
Width 62 mm (2.4 in)
Net Weight 2.2 kg (4.9 lbs)
