NVIDIA GeForce RTX 4070 Ti 12GB

Video Card

NVIDIA GeForce RTX 4070 Ti 12GB Main Picture

NVIDIA GeForce RTX 4070 Ti 12GB Picture 78627NVIDIA GeForce RTX 4070 Ti 12GB Picture 78628NVIDIA GeForce RTX 4070 Ti 12GB Picture 78629
NVIDIA's GeForce RTX 4070 Ti is the third consumer graphics card in their GeForce RTX 40-series, which is based on the Ada Lovelace architecture. This generation brings substantial increases to overall performance, but without a corresponding increase in power usage - giving it excellent efficiency and resulting in generally cool and quiet operation. It includes less VRAM (12GB) and fewer CUDA cores compared to the more expensive RTX 4080 and 4090, but still has the same pair of upgraded video encoders with support for the AV1 codec. For more detailed performance info, check out our RTX 4070 Ti Content Creation Review.

Most versions of the RTX 4070 Ti use a multi-fan cooling layout with a large, multi-slot heatsink. That is a great approach for keeping these cards cool and quiet, but it is frankly overkill considering how little power they use. Unfortunately that physical size also means most cases, even mid-towers, will only be able to accommodate one of them - but some larger towers may be able to handle two.

Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).


Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 4000
Model 4070 Ti
Motherboard Connection PCI Express x16
Interface PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
TGP 285 W
GPU Specifications
Core Speed 2,310 MHz
Boost Speed 2,610 Mhz
Stream Processors 7,680
Memory Specifications
Video Memory 12GB
Memory Type GDDR6X
Memory Speed 21,000 MHz
Memory Bus Width 192-bit
Additional Information
Cooling System Quiet Fan and Heatsink
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 3+

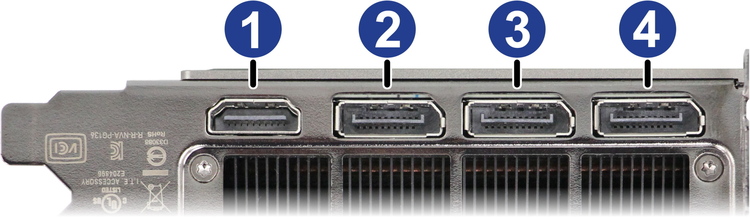

Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 16-Pin PCIe 5.0
Length 305 mm (12.0 in)
Height 138 mm (5.4 in)
Width 65 mm (2.6 in)
Net Weight 1.154 kg (2.5 lbs)
