NVIDIA RTX 4000 Ada Generation 20GB PCI-E

Video Card

NVIDIA RTX 4000 Ada Generation 20GB PCI-E Main Picture


NVIDIA RTX 4000 Ada Generation 20GB PCI-E Picture 82134NVIDIA RTX 4000 Ada Generation 20GB PCI-E Picture 82135
The RTX 4000 Ada Generation is a mid-range workstation graphics card built on NVIDIA's Ada Lovelace architecture. Despite the similar model name and VRAM capacity, it is faster than the compact RTX 4000 SFF Ada variant. This version has a much larger cooler and higher power input, allowing the GPU to achieve better performance. It also offers an increase in both processing speed and onboard memory capacity over the previous-generation RTX A4000 - all while retaining a rare, single-slot cooler design that takes up less space than most other video cards.

Like its smaller sibling, the RTX 4000 Ada supports up to four monitors at 4K resolution (or two at 8K) at the same time. Four DisplayPort outputs are present, which can be adapted to HDMI if needed via aftermarket cables.

Model: NVIDIA VCNRTX4000ADA-PB

Specifications

Chipset Manufacturer NVIDIA
Product Line Pro Viz
Series Ada Lovelace
Motherboard Connection PCI Express x16
Interface PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
TGP 130 W
GPU Specifications
Stream Processors 6,144
Tensor Cores 192
Memory Specifications
Video Memory 20GB
Memory Type GDDR6
Memory Bus Width 160-bit
Bandwidth 360 GB/s
Performance
Single Precision Floating Point (Peak) 26.7 Tflops
Additional Information
Cooling System Blower Type
Removable Backplate No
Slot Width 1
Quadro Sync Support Quadro Sync II

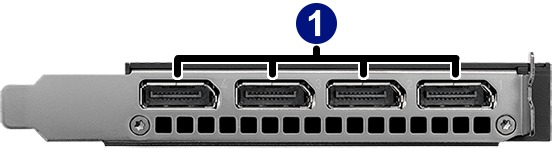

Outputs
Port 1 DisplayPort 1.4a
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 16-Pin PCIe 5.0
Dimensions
Length 242 mm (9.5 in)
Height 112 mm (4.4 in)
Width 21 mm (0.8 in)
Net Weight 0.532 kg (1.2 lbs)
