NVIDIA RTX 6000 Ada Generation 48GB PCI-E

Video Card

NVIDIA RTX 6000 Ada Generation 48GB PCI-E Main Picture


NVIDIA RTX 6000 Ada Generation 48GB PCI-E Picture 78801NVIDIA RTX 6000 Ada Generation 48GB PCI-E Picture 76447
The RTX 6000 Ada Generation is NVIDIA's first workstation graphics card to use their new Ada Lovelace architecture. It offers raw performance similar to the more mainstream GeForce RTX 4090 but with a focus on support for professional applications and double the onboard VRAM (48GB). As with most workstation GPUs, like NVIDIA's former Quadro series, the single-fan cooler on the RTX 6000 Ada is ideally suited for use in multi-GPU systems - but noisier, especially under load, than most multi-fan consumer video cards.

In addition to extreme performance for professional 3D applications, the RTX 6000 Ada Generation also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) at the same time. Adapters to HDMI and DVI are also included, one of each type, for those who need to use a screen that lacks direct DisplayPort input; additional adapters can be purchased separately.

Model: NVIDIA VCNRTX6000ADA-PB

Specifications

Chipset Manufacturer NVIDIA
Product Line Pro Viz
Series Ada Lovelace
Motherboard Connection PCI Express x16
Interface PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
TGP 320 W
GPU Specifications
Stream Processors 18,176
Tensor Cores 568
Memory Specifications
Video Memory 48GB
Memory Type GDDR6 ECC
Memory Bus Width 384-bit
Bandwidth 960 GB/s
Performance
Single Precision Floating Point (Peak) 91.1 Tflops
Additional Information
Cooling System Blower Type
Removable Backplate No
Slot Width 2

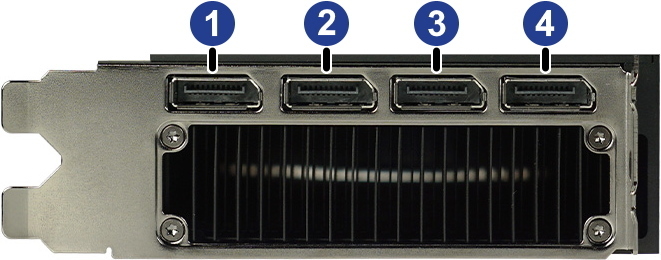

Outputs
Port 1 DisplayPort 1.4a
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 16-Pin PCIe 5.0
Dimensions
Length 267 mm (10.5 in)
Height 112 mm (4.4 in)
Width 42 mm (1.7 in)
Net Weight 1.180 kg (2.6 lbs)
