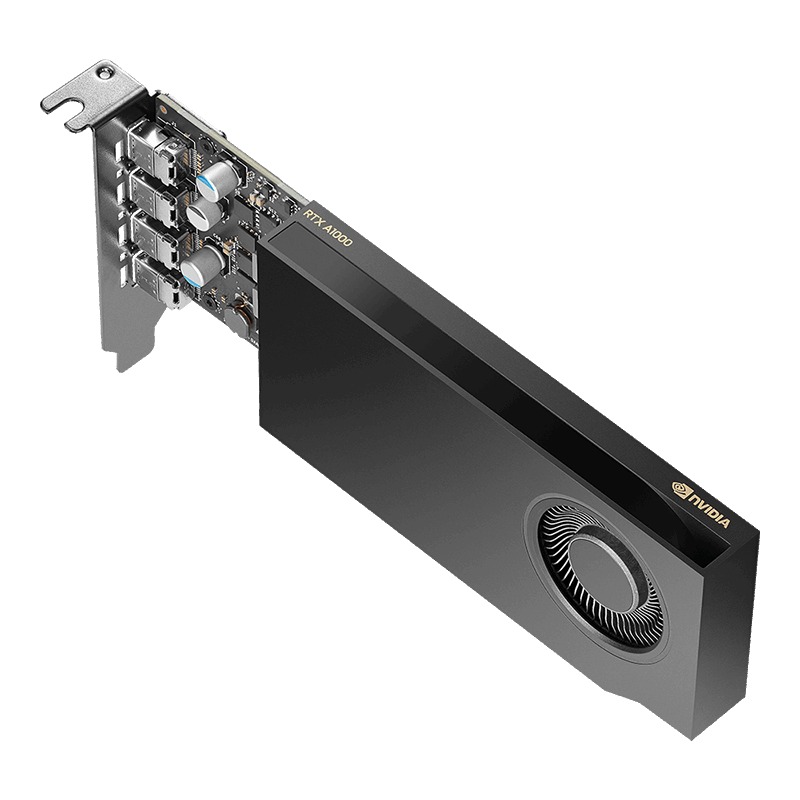

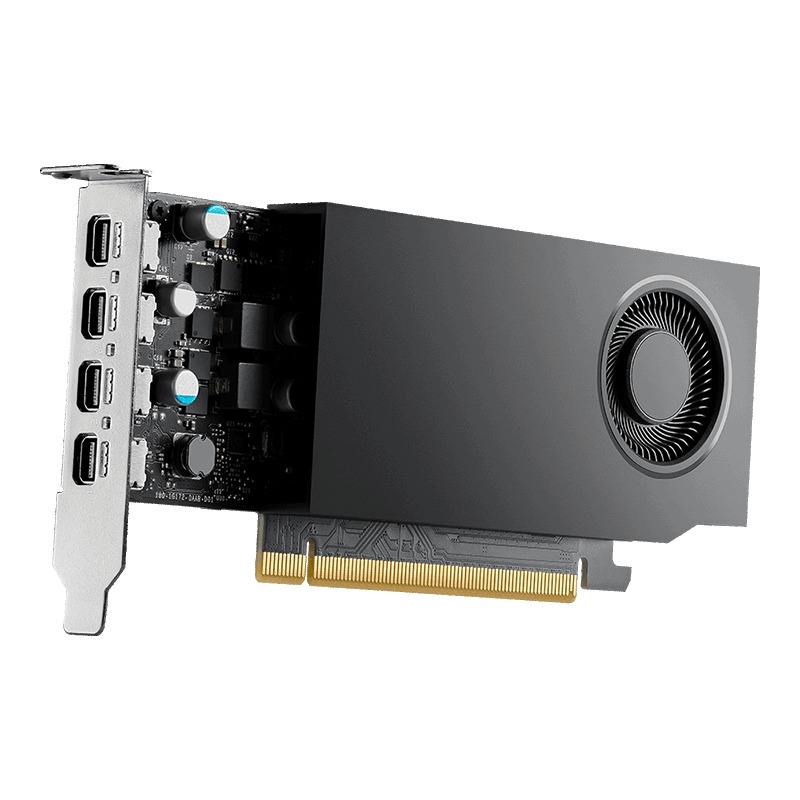

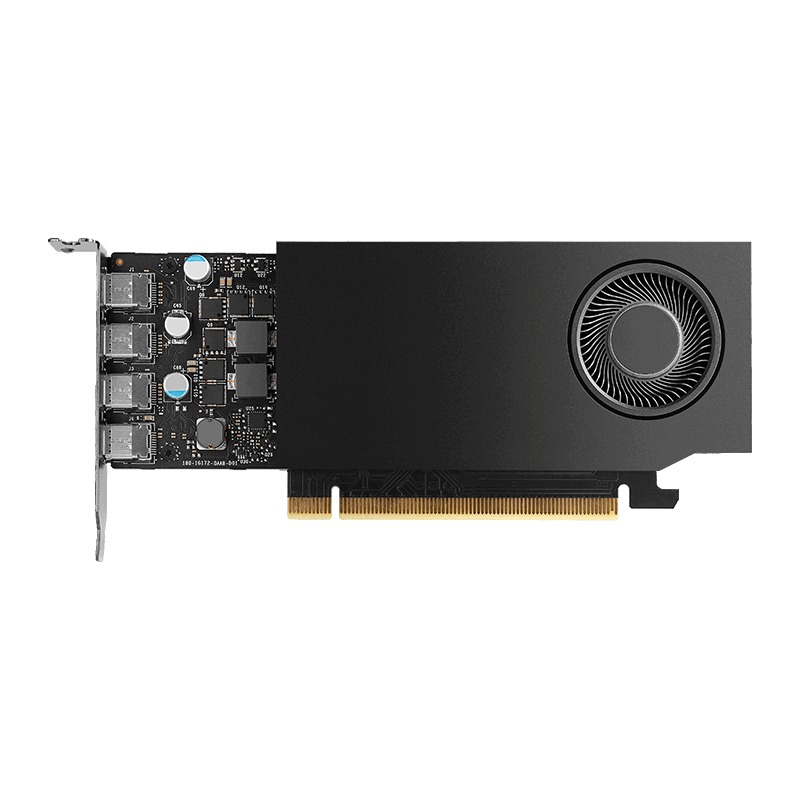

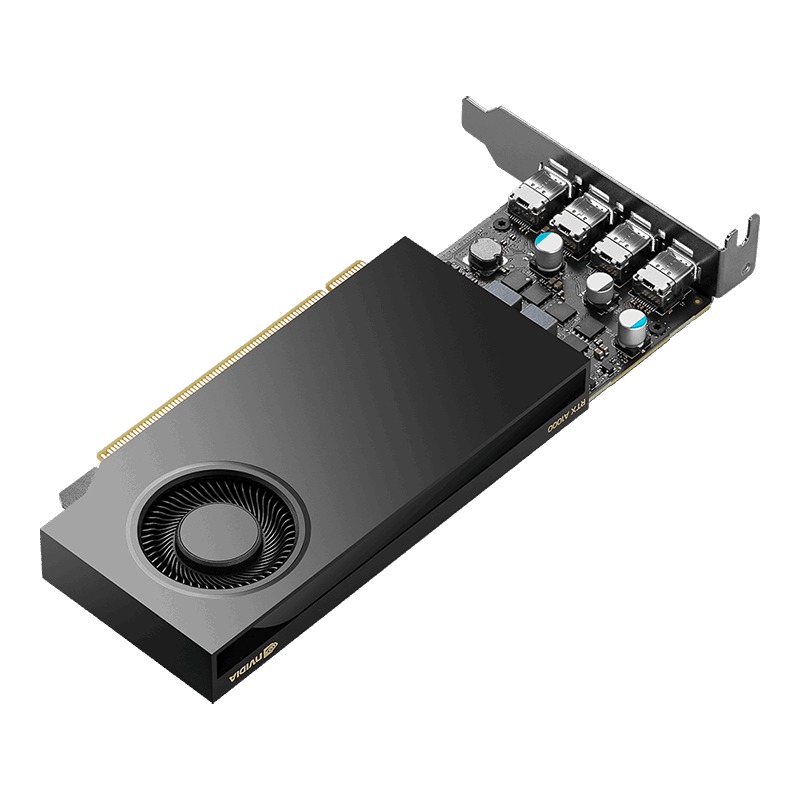

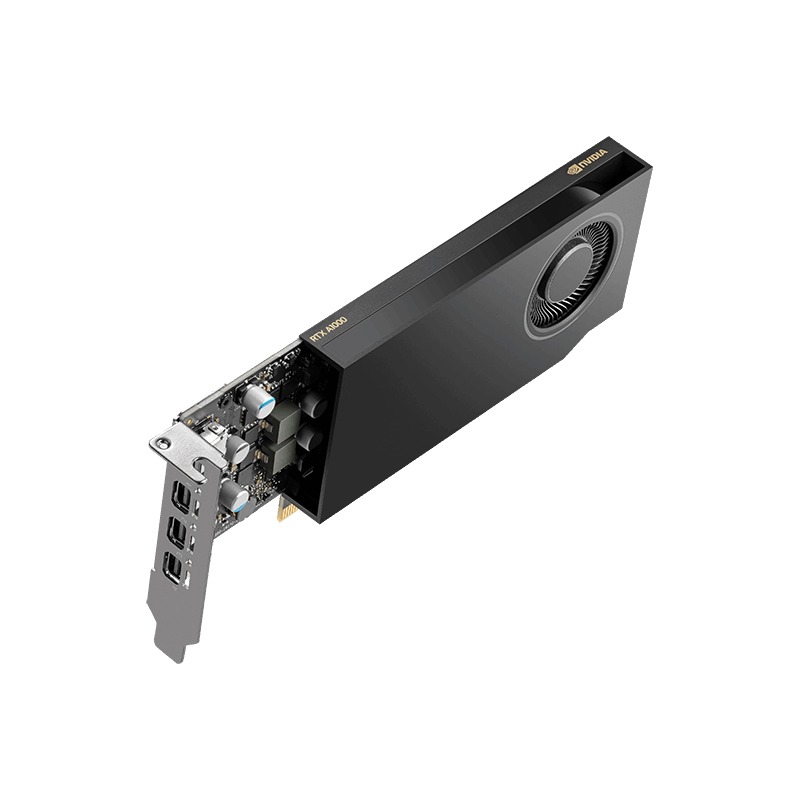

The NVIDIA RTX A1000 is a low-profile, professional-grade video card. It has mid-range 3D performance and specializes in multi-display situations thanks to four separate outputs. That means you can drive up to four displays by using only one card slot and driver, or stack multiple A1000 cards in a system to expand that to eight or even more outputs. It is perfect for stock/day traders or any other professional users who need multiple monitor support without high-end 3D graphics performance.
As described above, this card has four Mini DisplayPort connections - and adapters are included to full size DisplayPort as well. Adapters to HDMI can be purchased separately if needed, but may impact the maximum per-screen resolution.
As described above, this card has four Mini DisplayPort connections - and adapters are included to full size DisplayPort as well. Adapters to HDMI can be purchased separately if needed, but may impact the maximum per-screen resolution.
Model: NVIDIA VCNRTXA1000-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Pro Viz |
| Series | Ampere Workstation |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 4.0 x8 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
| TGP | 50 W |
GPU Specifications | |
| Core Speed | 727 MHz |
| Boost Speed | 1462 Mhz |
| CUDA Cores | 2304 |
| AI Cores | 72 |
| RT Cores | 18 |
Memory Specifications | |
| Video Memory | 8GB |
| Memory Type | GDDR7 |
| Memory Speed | 12000 MHz |
| Memory Bus Width | 128-bit |
| Bandwidth | 192 GB/s |
Performance | |
| Double Precision Floating Point (Peak) | 0.105 Tflops |
| Single Precision Floating Point (Peak) | 6.737 Tflops |
| Half Precision Floating Point (Peak) | 6.737 Tflops |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 12.8 |
| OpenGL Support | 4.6 |
| Slot Width | 1 |
| Quadro Sync Support | No |

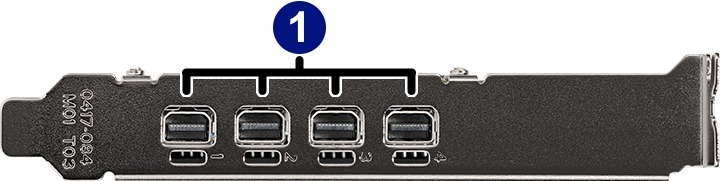

Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | None |
Dimensions | |
| Length | 163 mm (6.4 in) |
| Height | 69 mm (2.7 in) |
| Width | 21 mm (0.8 in) |
| Net Weight | 0.432 kg (1.0 lbs) |
