Video Card

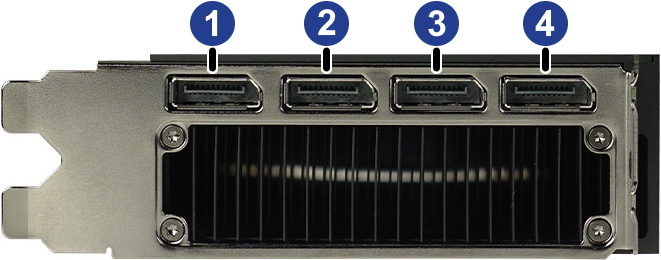

[ Rear Ports ]

NVIDIA RTX A6000 48GB PCI-E Picture 67623NVIDIA RTX A6000 48GB PCI-E Picture 67624NVIDIA RTX A6000 48GB PCI-E Picture 67625NVIDIA RTX A6000 48GB PCI-E Picture 67628
The RTX A6000 is the first Ampere-based workstation graphics card from NVIDA. It offers raw performance similar to the more mainstream GeForce RTX 3090, but with a focus on support for professional applications and double the onboard VRAM (48GB). As with most workstation GPUs, like NVIDIA's former Quadro series, the single-fan cooler on the A6000 is ideally suited for use in multi-GPU systems - but noisier, especially under load, than most multi-fan consumer video cards.

In addition to extreme performance for professional 3D applications, the RTX A6000 also supports four DisplayPort monitors at up to 4K resolution (or two at 8K) the same time. Adapters to HDMI and DVI are also included, one of each type, for those who need to use a screen that lacks direct DisplayPort input; additional adapters can be purchased separately.

Chipset Manufacturer  nVidia
Product Line  Quadro
Series  Ampere Workstation
Motherboard Connection  PCI Express 4.0 x16
Maximum Digital Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (RTX A)
GPU Specifications
Stream Processors  10752
Tensor Cores  336
Memory Specifications
Video Memory  48GB
Memory Type  GDDR6 ECC
Memory Bus Width  384-bit
Bandwidth  768 GB/s
Single Precision Floating Point (Peak)  38.7 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  11
OpenGL Support  4.5
Slot Width  2
Port 1  DisplayPort 1.4a
Port 2  DisplayPort 1.4a
Port 3  DisplayPort 1.4a
Port 4  DisplayPort 1.4a
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Length  267 mm (10.5 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)
Net Weight  1.17 kg (2.6 lbs)

  • Includes:
    • DisplayPort to DVI-D SL adapter
    • DisplayPort to HDMI adapter
    • Dual 8-pin PCIe to 8-pin EPS power adapter

Configure a custom computer with the NVIDIA RTX A6000 48GB PCI-E.
