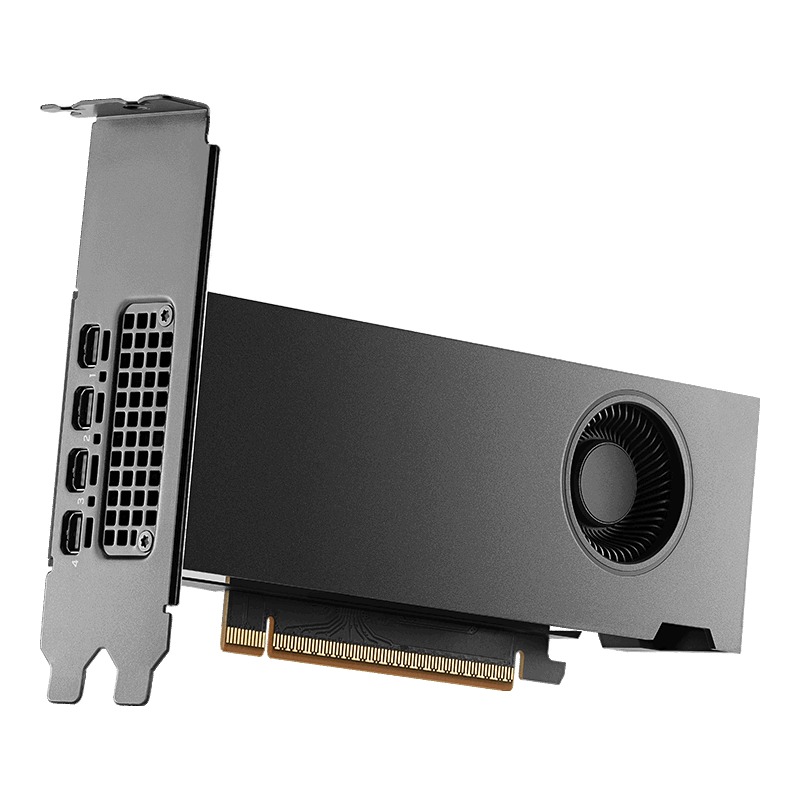

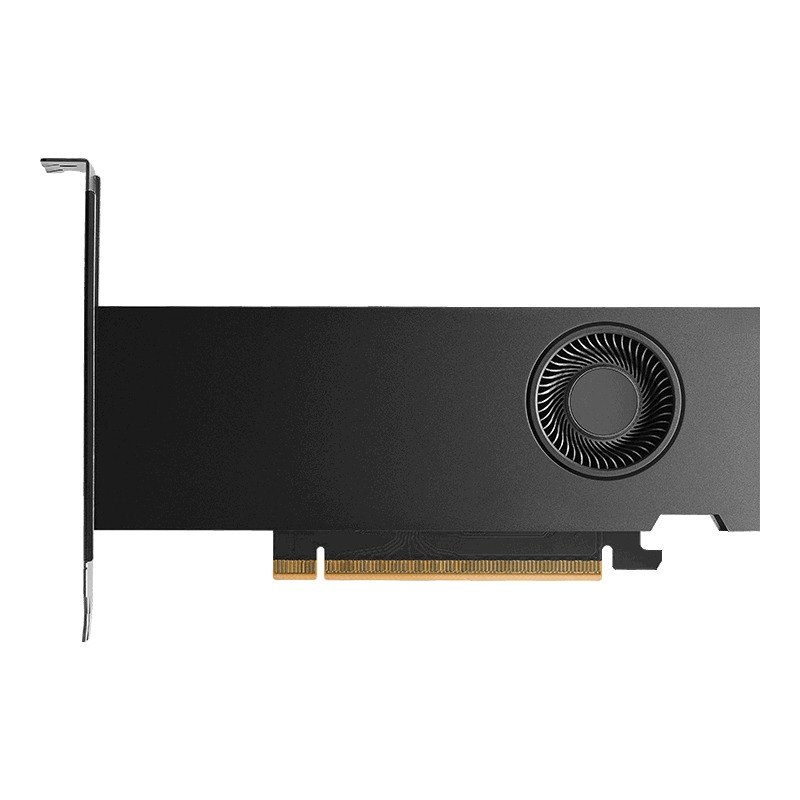

The NVIDIA RTX PRO 4000 SFF Blackwell is a mid-range professional video card tailored for systems with limited space or available power. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series - and in fact it has the same amount of CUDA cores and VRAM as the normal RTX PRO 4000. However, it is a physically smaller card: half height and a few inches shorter, though also double-width. This card also uses half as much power, which means the cores and memory run at lower clock speeds, putting actual performance much closer to the RTX PRO 2000 than the full-size 4000 version.

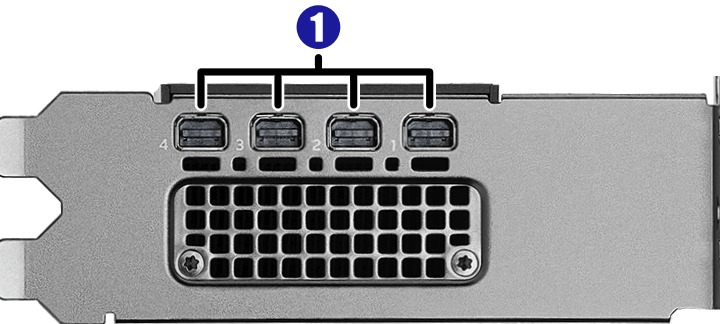

As with most other professional graphics cards from NVIDIA, the RTX PRO 4000 SFF Blackwell uses a blower-style cooling setup. With the smaller size, the four typical video outputs are provided via Mini DisplayPort 2.1 outputs - which can easily be adapted to full-size DP or even HDMI if needed.
As with most other professional graphics cards from NVIDIA, the RTX PRO 4000 SFF Blackwell uses a blower-style cooling setup. With the smaller size, the four typical video outputs are provided via Mini DisplayPort 2.1 outputs - which can easily be adapted to full-size DP or even HDMI if needed.
Model: NVIDIA VCNRTXPRO4000BLP-BLK
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Pro Viz |
| Series | Blackwell |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 5.0 x8 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
| TGP | 70 W |
GPU Specifications | |
| CUDA Cores | 8960 |
| AI Cores | 280 |
| RT Cores | 70 |
Memory Specifications | |
| Video Memory | 24GB |
| Memory Type | GDDR7 ECC |
| Memory Bus Width | 192-bit |
| Bandwidth | 432 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 24 Tflops |
Additional Information | |
| Cooling System | Blower Type |
| Slot Width | 2 |
| Quadro Sync Support | No |
| Integrated GPU Brace Mounting | Yes |
Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
Dimensions | |
| Length | 168 mm (6.6 in) |
| Height | 69 mm (2.7 in) |
| Width | 42 mm (1.7 in) |
| Net Weight | 0.336 kg (0.7 lbs) |
