NVIDIA RTX PRO 4500 Blackwell 32GB PCI-E

Video Card

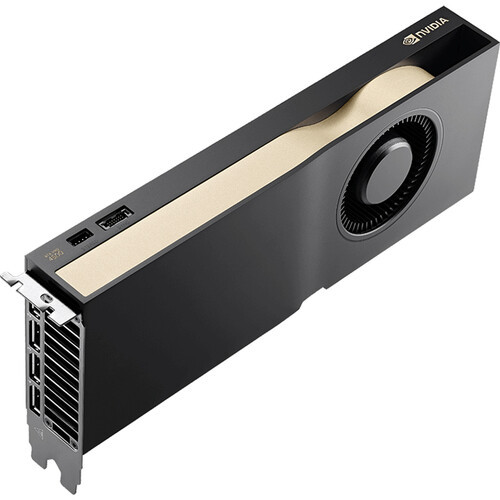

NVIDIA RTX PRO 4500 Blackwell 32GB PCI-E Main Picture


The RTX PRO 4500 Blackwell is a professional video card from NVIDIA. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series. However, it has limited maximum power consumption which translates into lower clock speeds. It offers less performance than the more expensive RTX PRO 6000 and 5000 models, but is still quite fast and offers 32GB of onboard memory, matching the top-end of the GeForce line!

As with most other professional graphics cards from NVIDIA, the RTX PRO 4500 Blackwell uses a blower-style cooling setup. This makes it ideal for multi-GPU configurations in desktop and rackmount workstations, but can mean higher noise output under load than multi-fan video cards. Four DisplayPort 2.1 outputs are provided, supporting multiple high-res monitors.

Model: NVIDIA VCNRTXPRO4500B-PB

Specifications

Chipset Manufacturer NVIDIA
Product Line Pro Viz
Series Blackwell
Motherboard Connection PCI Express x16
Interface PCI Express 5.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
TGP 200 W
GPU Specifications
CUDA Cores 10,496
AI Cores 328
RT Cores 82
Memory Specifications
Video Memory 32GB
Memory Type GDDR7 ECC
Memory Bus Width 256-bit
Bandwidth 896 GB/s
Additional Information
Cooling System Blower Type
Slot Width 2
Integrated GPU Brace Mounting Yes

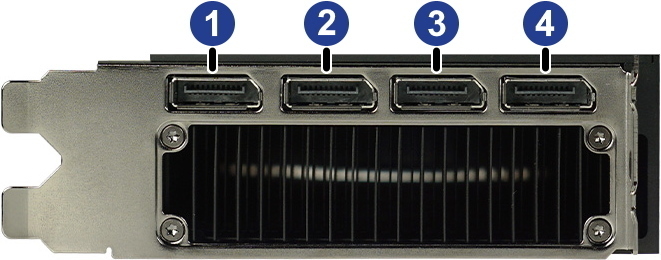

Outputs
Port 1 DisplayPort 2.1b
Port 2 DisplayPort 2.1b
Port 3 DisplayPort 2.1b
Port 4 DisplayPort 2.1b
Power Connectors
Plug 1 16-Pin PCIe 5.0
Dimensions
Length 267 mm (10.5 in)
Height 112 mm (4.4 in)
Width 40 mm (1.6 in)
Net Weight 1.070 kg (2.4 lbs)
