NVIDIA RTX PRO 5000 Blackwell 48GB PCI-E

Video Card

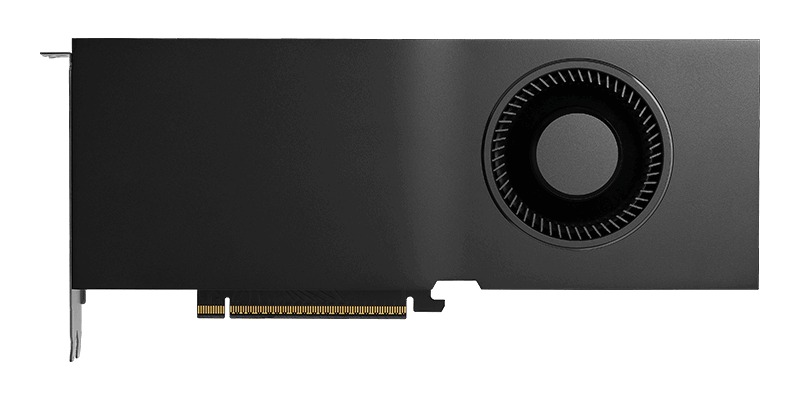

NVIDIA RTX PRO 5000 Blackwell 48GB PCI-E Main Picture


The NVIDIA RTX PRO 5000 Blackwell is a high-end professional video card from NVIDIA. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series. However, it has limited maximum power consumption which translates into lower clock speeds. It offers less performance than the top-end RTX PRO 6000, but is still very fast and offers a huge 48GB of onboard memory. That is the same amount of VRAM as the prior generation's RTX 6000 Ada, and more than the GeForce RTX 5090.

As with most other professional graphics cards from NIVIDA, the RTX PRO 5000 Blackwell uses a blower-style cooling setup. This makes it ideal for multi-GPU configurations in desktop and rackmount workstations, but can mean higher noise output under load than multi-fan video cards. Four DisplayPort 2.1 outputs are provided, supporting multiple high-res monitors.

Specifications

Chipset Manufacturer NVIDIA
Product Line Pro Viz
Series Blackwell
Motherboard Connection PCI Express x16
Interface PCI Express 5.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
TGP 300 W
GPU Specifications
CUDA Cores 14,080
AI Cores 440
RT Cores 110
Memory Specifications
Video Memory 48GB
Memory Type GDDR7 ECC
Memory Bus Width 384-bit
Bandwidth 1344 GB/s
Additional Information
Cooling System Blower Type
Removable Backplate No
Slot Width 2

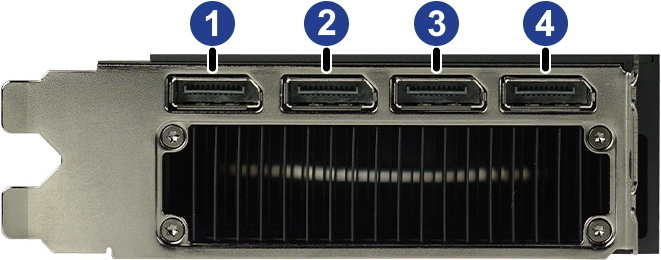

Outputs
Port 1 DisplayPort 2.1b
Port 2 DisplayPort 2.1b
Port 3 DisplayPort 2.1b
Port 4 DisplayPort 2.1b
Power Connectors
Plug 1 12V-2x6
Dimensions
Length 267 mm (10.5 in)
Height 112 mm (4.4 in)
Width 40 mm (1.6 in)
Net Weight 1.219 kg (2.7 lbs)
