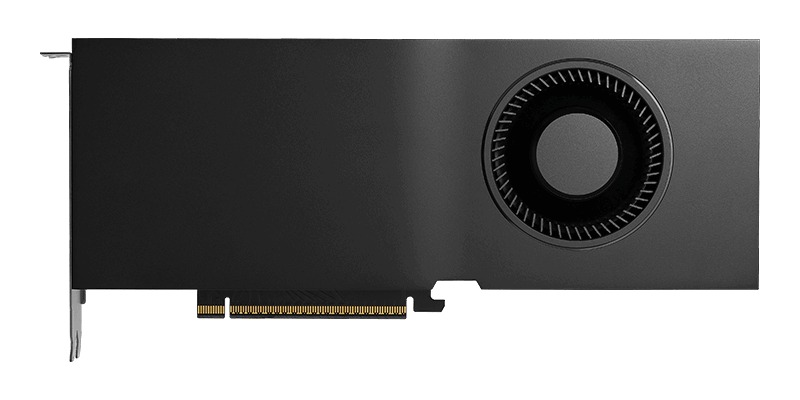

The NVIDIA RTX PRO 5000 Blackwell is a high-end professional video card. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series. However, it has limited maximum power consumption, which translates into lower clock speeds. It offers less performance than the top-end RTX PRO 6000, but is still very fast, and this variant sports 50% more memory than the standard RTX PRO 5000: 72GB instead of 48GB. Aside from that, the two versions are functionally identical - though of course the increased VRAM also results in a higher price tag, approaching that of the faster 6000 Blackwell.
As with most other professional graphics cards from NVIDIA, the RTX PRO 5000 Blackwell uses a blower-style cooling setup. This makes it ideal for multi-GPU configurations in desktop and rackmount workstations, but can mean higher noise output under load than multi-fan video cards. Four DisplayPort 2.1 outputs are provided, supporting multiple high-res monitors.
As with most other professional graphics cards from NVIDIA, the RTX PRO 5000 Blackwell uses a blower-style cooling setup. This makes it ideal for multi-GPU configurations in desktop and rackmount workstations, but can mean higher noise output under load than multi-fan video cards. Four DisplayPort 2.1 outputs are provided, supporting multiple high-res monitors.
Model: NVIDIA VCNRTXPRO5000B72-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Pro Viz |
| Series | Blackwell |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 5.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| TGP | 300 W |
GPU Specifications | |
| CUDA Cores | 14,080 |
| AI Cores | 440 |
| RT Cores | 110 |
Memory Specifications | |
| Video Memory | 72GB |
| Memory Type | GDDR7 ECC |
| Memory Bus Width | 384-bit |
| Bandwidth | 1344 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| Removable Backplate | No |
| Slot Width | 2 |
| Integrated GPU Brace Mounting | Yes |
Outputs | |
| Port 1 | DisplayPort 2.1b |
| Port 2 | DisplayPort 2.1b |
| Port 3 | DisplayPort 2.1b |
| Port 4 | DisplayPort 2.1b |
Power Connectors | |
| Plug 1 | 12V-2x6 |
Dimensions | |
| Length | 267 mm (10.5 in) |
| Height | 112 mm (4.4 in) |
| Width | 40 mm (1.6 in) |
| Net Weight | 1.219 kg (2.7 lbs) |
