NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB PCI-E

Video Card

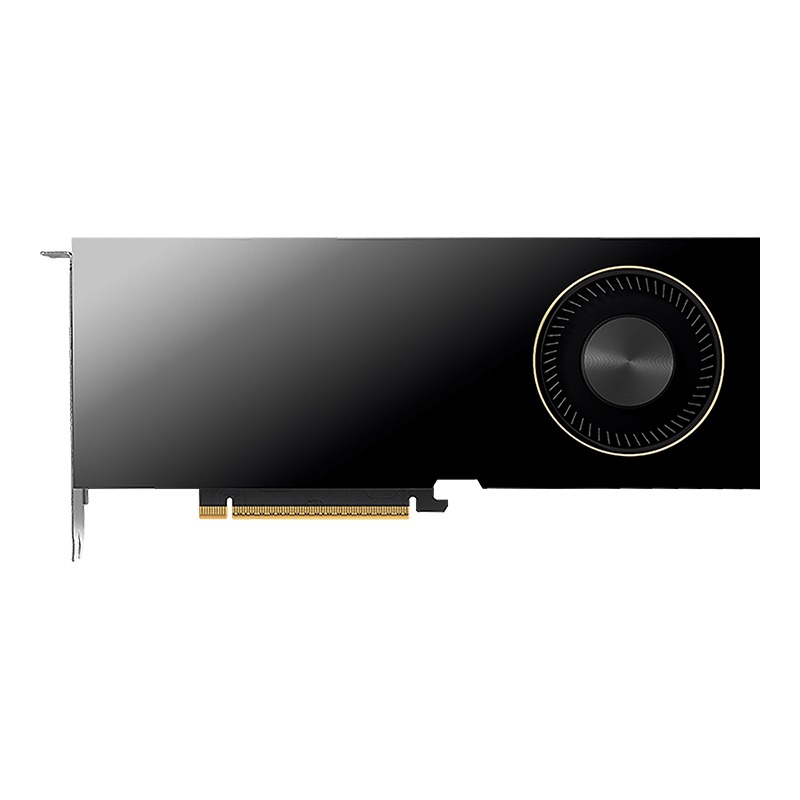

NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB PCI-E Main Picture

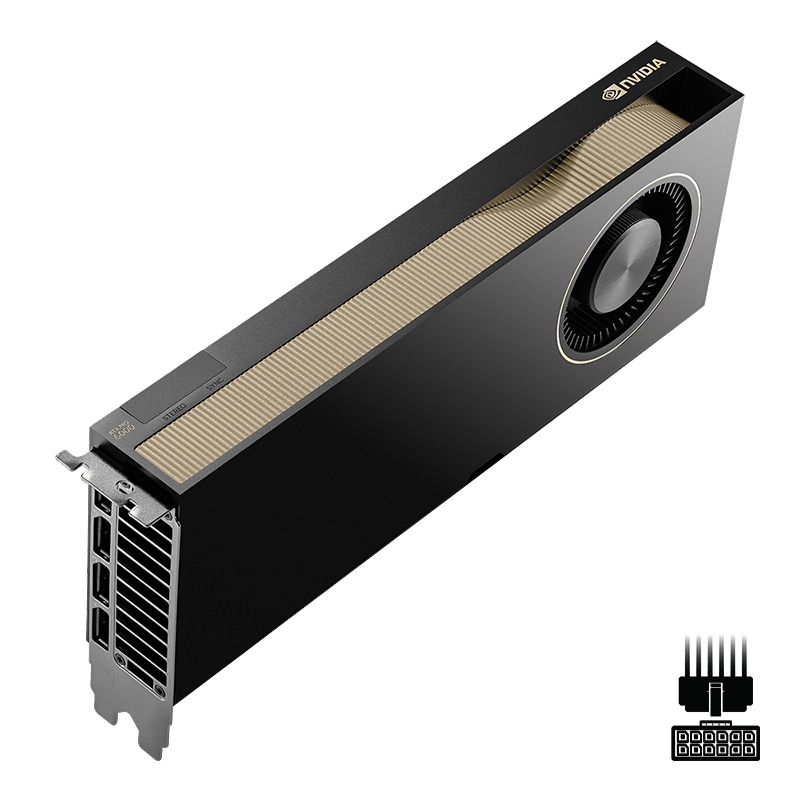

NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition 96GB PCI-E Picture 90423
The NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition is a top-end model in this generation of professional video cards from NVIDIA. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series. However, it has limited maximum power consumption, which translates into lower clock speeds. Because of that, it offers less performance than the GeForce RTX 5090 but maintains a focus on support for professional applications and sports three times the onboard VRAM (96GB vs 32 on the 5090). Four DisplayPort 2.1 outputs are provided, to support multiple high-res monitors.

Similar to previous generations, the Max-Q Workstation Edition uses a blower-style cooling setup. This - combined with the reduced power usage - makes it ideal for multi-GPU configurations in desktop and rackmount workstations. If you are just looking for a single card, though, the "normal" (non Max-Q) RTX PRO Blackwell Workstation Edition model offers higher performance and a cooler design that is better suited for single-GPU systems. There is also a Server variant that can provide better performance and is designed for use in rackmount servers with strong airflow built-in to the chassis.

Model: NVIDIA VCNRTXPRO6000BQ-PB

Specifications

Chipset Manufacturer NVIDIA
Product Line Pro Viz
Series Blackwell
Motherboard Connection PCI Express x16
Interface PCI Express 5.0 x16
Maximum Digital Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
TGP 300 W
GPU Specifications
CUDA Cores 24,064
AI Cores 752
RT Cores 188
Memory Specifications
Video Memory 96GB
Memory Type GDDR7 ECC
Memory Bus Width 512-bit
Bandwidth 1792 GB/s
Performance
Single Precision Floating Point (Peak) 110 Tflops
Additional Information
Cooling System Blower Type
Removable Backplate No
Slot Width 2
Integrated GPU Brace Mounting Yes

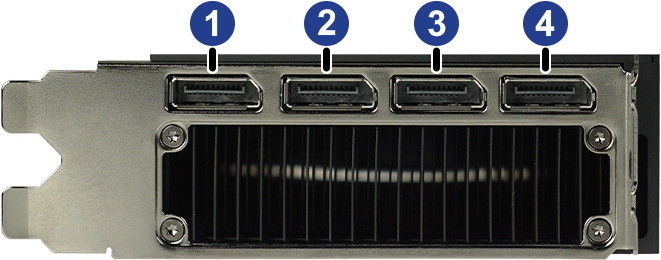

Outputs
Port 1 DisplayPort 2.1b
Port 2 DisplayPort 2.1b
Port 3 DisplayPort 2.1b
Port 4 DisplayPort 2.1b
Power Connectors
Plug 1 12V-2x6
Dimensions
Length 267 mm (10.5 in)
Height 112 mm (4.4 in)
Width 40 mm (1.6 in)
Net Weight 1.23 kg (2.7 lbs)
