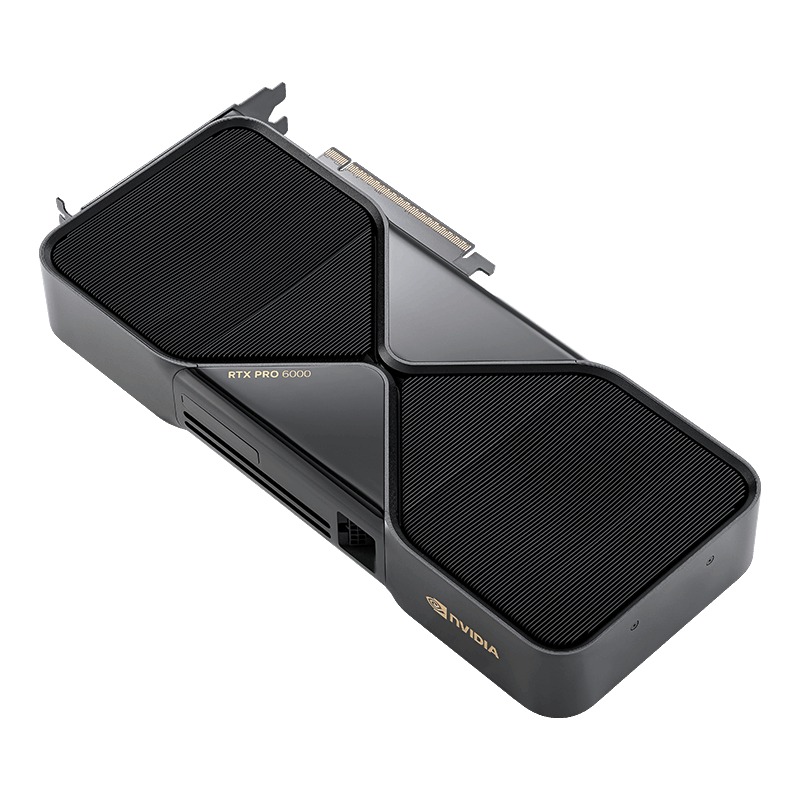

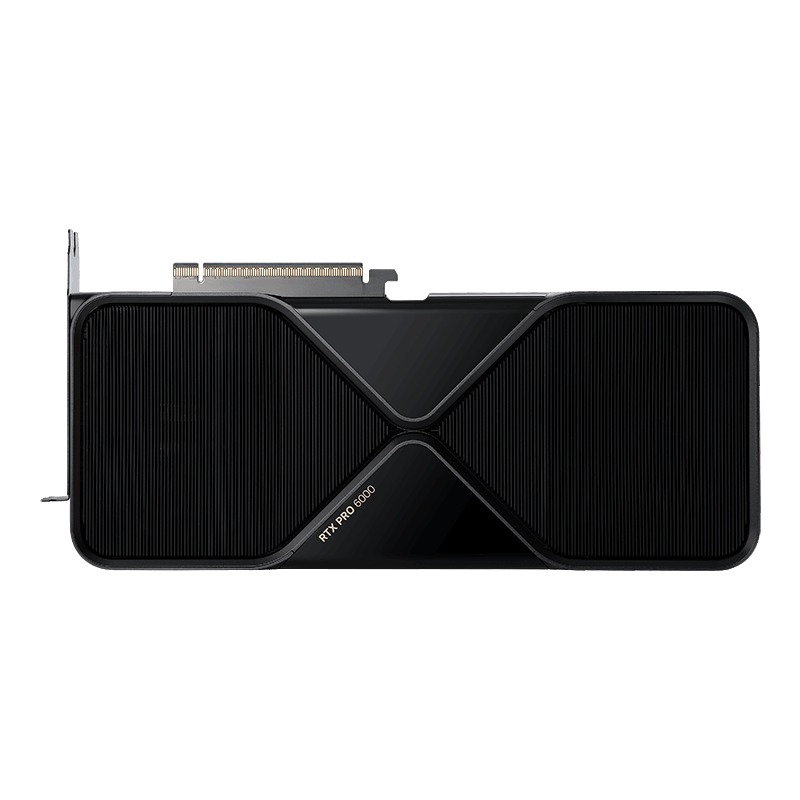

The NVIDIA RTX PRO 6000 Blackwell Workstation Edition is the top-end model in this generation of professional video cards from NVIDIA. As the name suggests, it uses their new Blackwell architecture - the same tech underlying the GeForce RTX 50 Series. Because of that, it offers raw performance similar to the GeForce RTX 5090 but with a focus on support for professional applications and three times the onboard VRAM (96GB vs 32 on the 5090). Four DisplayPort 2.1 outputs are provided, to support multiple high-res monitors.

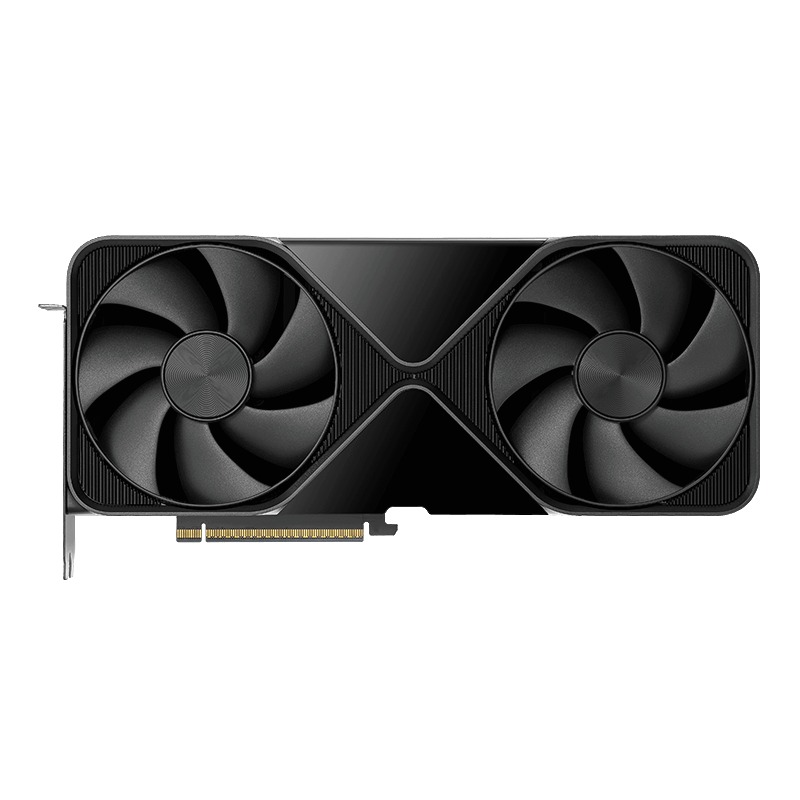

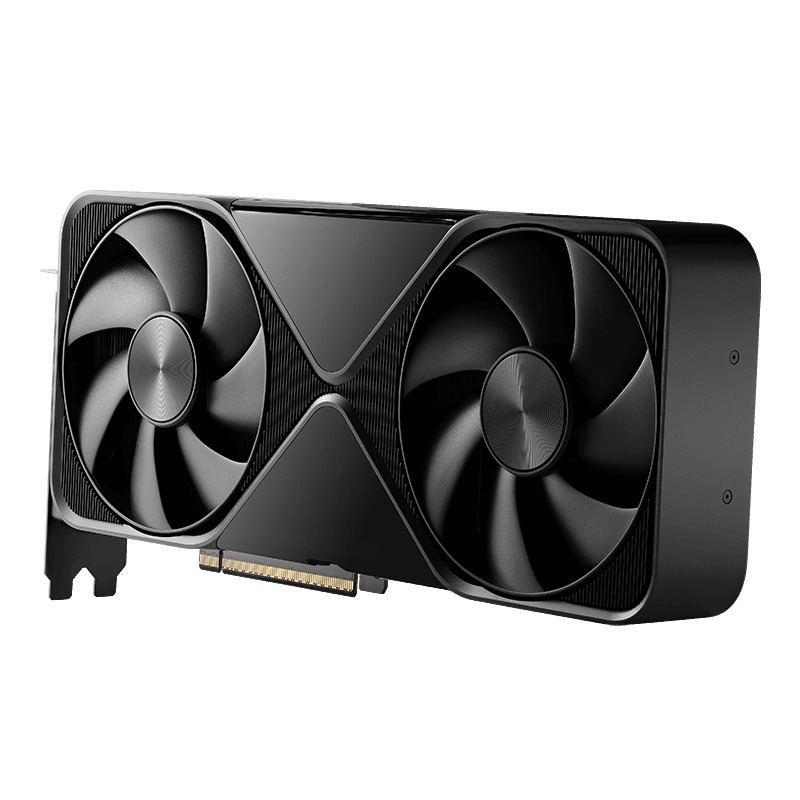

In a break from past NVIDIA pro-series video cards, this Workstation Edition uses the same type of cooling system as the RTX 5090. That means it is NOT suitable for most multi-GPU configurations, though in some specially designed systems it may be possible to use two of them. For multi-card configurations, NVIDIA also produces a Max-Q Workstation model with reduced power limits and a more traditional, blower-style cooling setup. There is also a Server variant that is designed for use in rackmount servers with strong airflow built-in to the chassis.
In a break from past NVIDIA pro-series video cards, this Workstation Edition uses the same type of cooling system as the RTX 5090. That means it is NOT suitable for most multi-GPU configurations, though in some specially designed systems it may be possible to use two of them. For multi-card configurations, NVIDIA also produces a Max-Q Workstation model with reduced power limits and a more traditional, blower-style cooling setup. There is also a Server variant that is designed for use in rackmount servers with strong airflow built-in to the chassis.
Model: NVIDIA VCNRTXPRO6000B-PB
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | Pro Viz |
Series | Blackwell |
Motherboard Connection | PCI Express x16 |
Interface | PCI Express 5.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
TGP | 600 W |
GPU Specifications | |
CUDA Cores | 24,064 |
AI Cores | 752 |
RT Cores | 188 |
Memory Specifications | |
Video Memory | 96GB |
Memory Type | GDDR7 ECC |
Memory Bus Width | 512-bit |
Bandwidth | 1792 GB/s |
Performance | |
Single Precision Floating Point (Peak) | 125 Tflops |
Additional Information | |
Cooling System | Open Air Type |
Removable Backplate | No |
Slot Width | 2 |

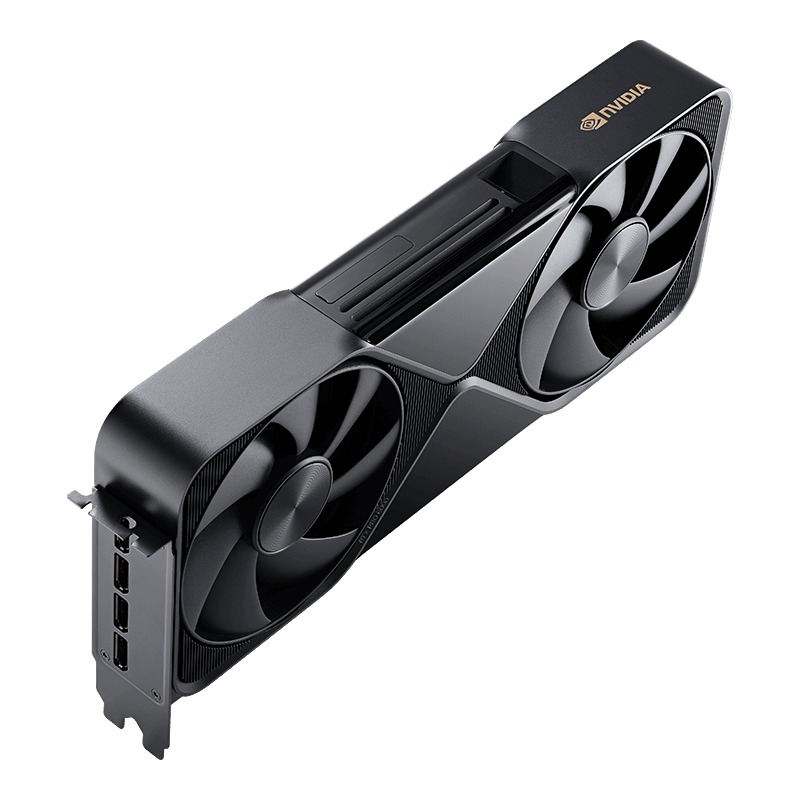

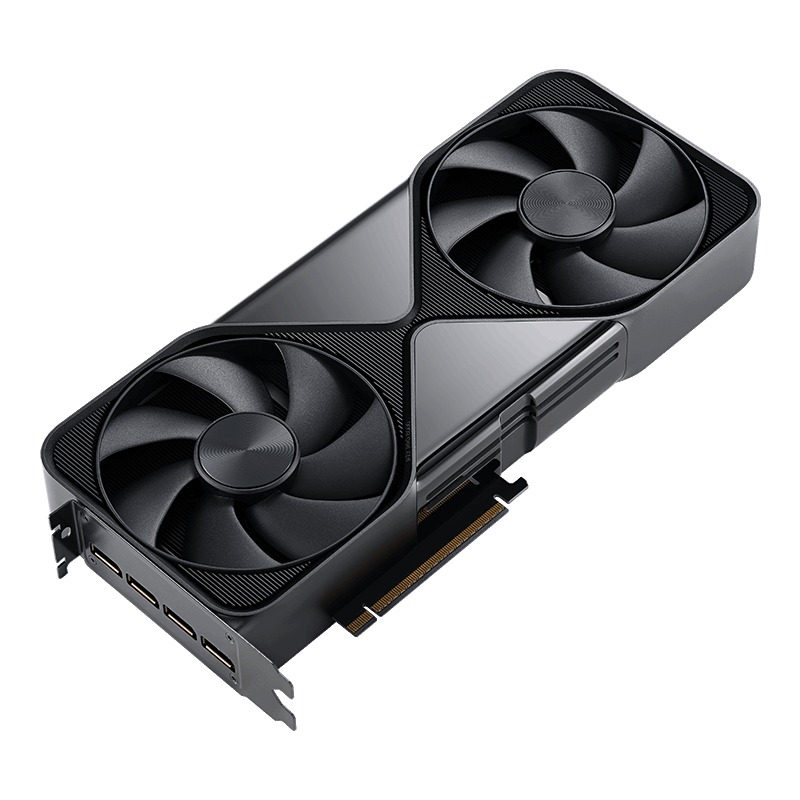

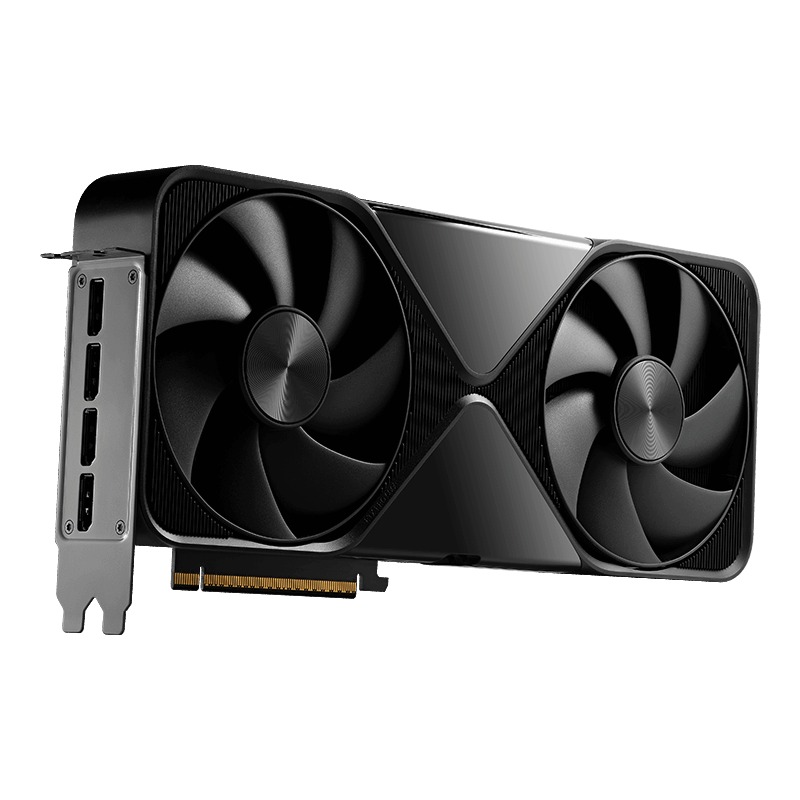

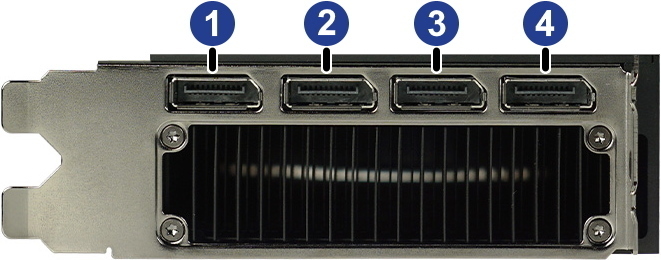

Outputs | |
Port 1 | DisplayPort 2.1b |
Port 2 | DisplayPort 2.1b |
Port 3 | DisplayPort 2.1b |
Port 4 | DisplayPort 2.1b |
Power Connectors | |

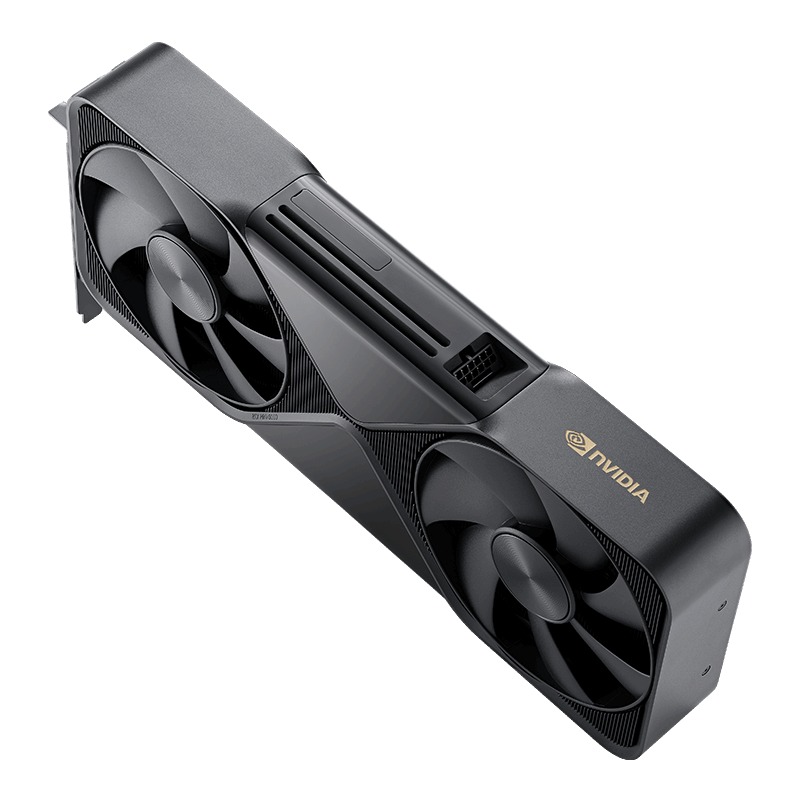

Plug 1 | 12V-2x6 |
Dimensions | |
Length | 304 mm (12.0 in) |
Height | 137 mm (5.4 in) |
Width | 42 mm (1.7 in) |
Net Weight | 1.860 kg (4.1 lbs) |
