Video Card

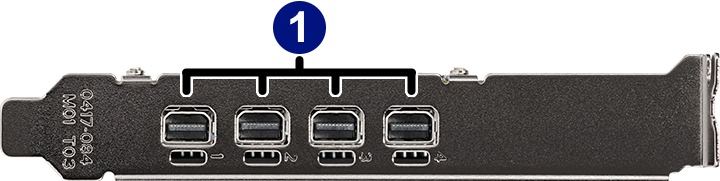

[ Rear Ports ]

NVIDIA T1000 PCI-E 4GB Picture 69967NVIDIA T1000 PCI-E 4GB Picture 69968NVIDIA T1000 PCI-E 4GB Picture 69969NVIDIA T1000 PCI-E 4GB Picture 69970
The NVIDIA T1000 is a low-profile, professional-grade video card. It has mid-range 3D performance, and specializes in multi-display situations thanks to four separate outputs. That means you can drive up to four displays by using only one card slot and driver, or stack multiple T1000 cards in a system to expand that to eight or even more outputs. It is perfect for stock/day traders or any other professional users who need multiple monitor support without high-end 3D graphics performance.

As described above, this card has four Mini DisplayPort connections - one adapter is included to full size DisplayPort as well. Adapters to DVI or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200).

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Stream Processors  896
Memory Specifications
Video Memory  4GB
Memory Type  GDDR6
Memory Bus Width  128-bit
Bandwidth  160 GB/s
Single Precision Floating Point (Peak)  2.50 Tflops
Additional Information
Cooling System  Small Fan and Heatsink
Slot Width  1
Port 1  Mini DisplayPort
Port 2  Mini DisplayPort
Port 3  Mini DisplayPort
Port 4  Mini DisplayPort
Power Connectors
Plug 1  None
Net Weight  0.432 kg (1.0 lbs)

Configure a custom computer with the NVIDIA T1000 PCI-E 4GB.
