Video Card

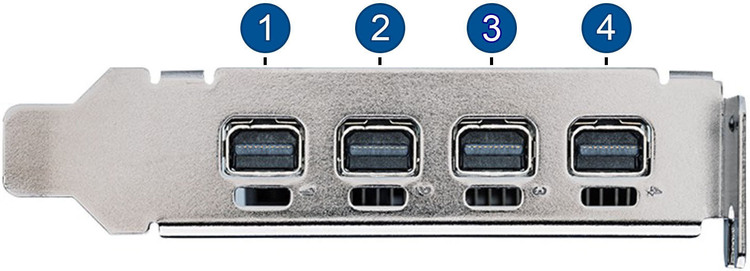

[ Rear Ports ]

NVIDIA T600 PCI-E 4GB Picture 70630NVIDIA T600 PCI-E 4GB Picture 70635NVIDIA T600 PCI-E 4GB Picture 70631NVIDIA T600 PCI-E 4GB Picture 70632NVIDIA T600 PCI-E 4GB Picture 70633NVIDIA T600 PCI-E 4GB Picture 70634NVIDIA T600 PCI-E 4GB Picture 70636

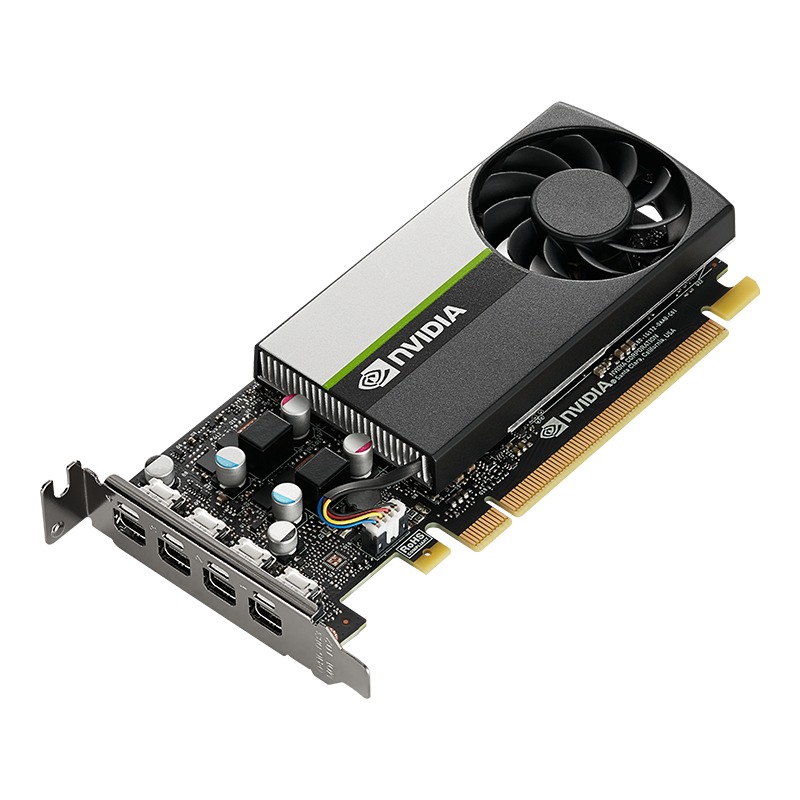

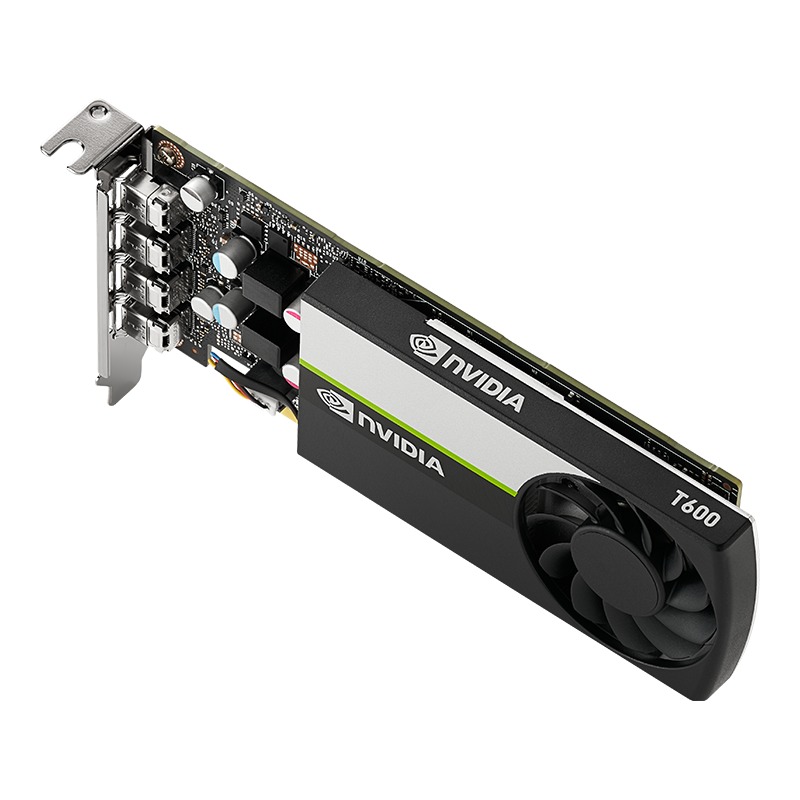

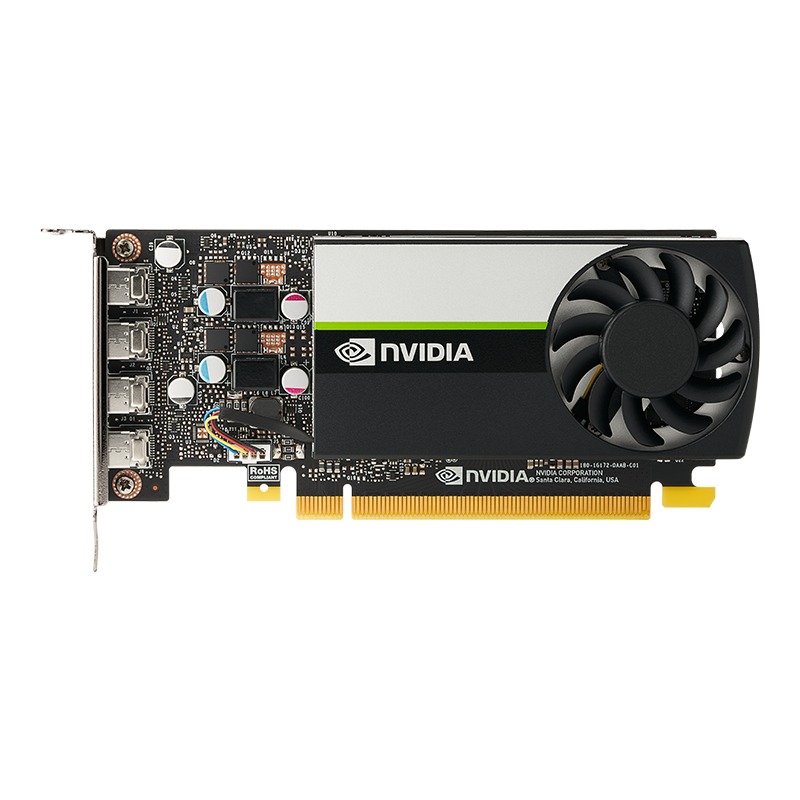

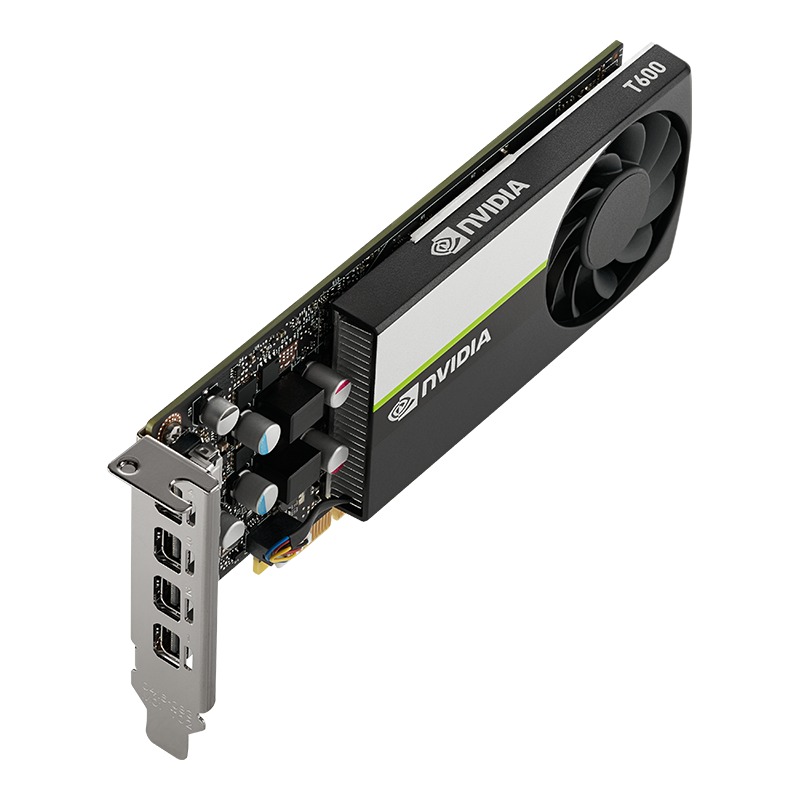

The NVIDIA T600 is an entry-level, Tesla-based professional graphics card. It offers a small performance boost over the earlier P600 generation, along with an increased amount of VRAM, while the number of video outputs has styed at 4. That lets the T600 run up to four monitors, though with the limited video memory the resolution of the monitors should be kept at a moderate level.

As described above, this card has four Mini DisplayPort connections - and includes one adapter to full size DisplayPort as well. Additional adapters to DP, DVI, or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200).

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Stream Processors  640
Memory Specifications
Video Memory  4GB
Memory Type  GDDR6
Memory Bus Width  128-bit
Bandwidth  160 GB/s
Single Precision Floating Point (Peak)  1.709 Tflops
Additional Information
Cooling System  Small Fan and Heatsink
Slot Width  1
Port 1  Mini DisplayPort
Port 2  Mini DisplayPort
Port 3  Mini DisplayPort
Port 4  Mini DisplayPort
Power Connectors
Plug 1  None
Length  144.78 mm (5.7 in)
Height  69 mm (2.7 in)
Net Weight  0.281 kg (0.6 lbs)

Configure a custom computer with the NVIDIA T600 PCI-E 4GB.
