PNY GeForce RTX 2070 SUPER 8GB Blower Fan

Video Card

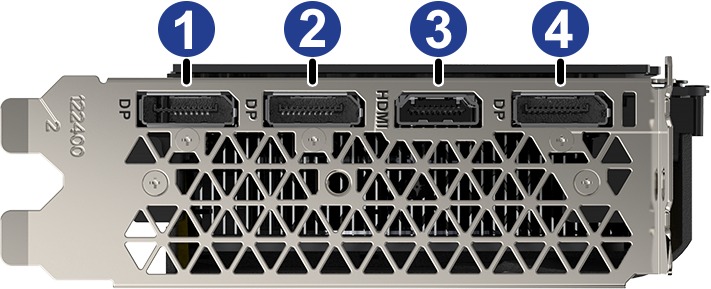

[ Rear Ports ]

PNY GeForce RTX 2070 SUPER 8GB Blower Fan Picture 57170PNY GeForce RTX 2070 SUPER 8GB Blower Fan Picture 57171PNY GeForce RTX 2070 SUPER 8GB Blower Fan Picture 57172PNY GeForce RTX 2070 SUPER 8GB Blower Fan Picture 57173PNY GeForce RTX 2070 SUPER 8GB Blower Fan Picture 57174
NVIDIA's GeForce RTX 2070 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance substantially over the vanilla RTX 2070, with performance closer to the RTX 2080 at a much lower price point. Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

This particular variant, from PNY, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.

Finally, in regards to connectivity, the RTX 2070 SUPER supports up to four monitors with HDMI 2.0b and three DisplayPort 1.4.

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (GeForce RTX)
GPU Specifications
Core Speed  1605 MHz
Boost Speed  1770 Mhz
Stream Processors  2560
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Port 1  DisplayPort
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  6-pin PCI-E
Length  267 mm (10.5 in)
Height  116 mm (4.6 in)
Width  42 mm (1.7 in)

Has GTX style rear mounting holes.
