PNY GeForce RTX 4090 XLR8 24GB

Video Card

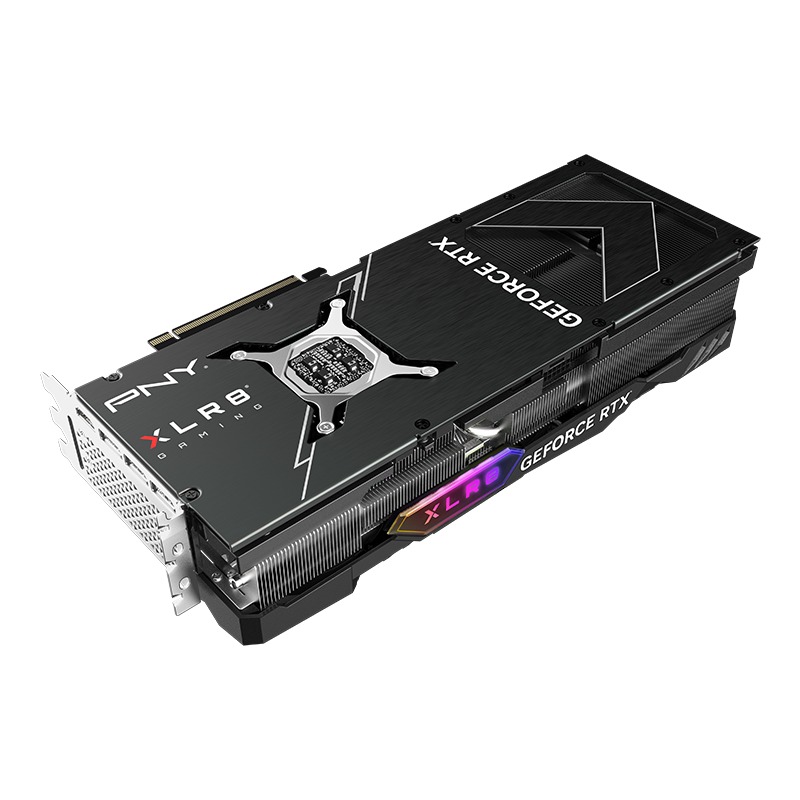

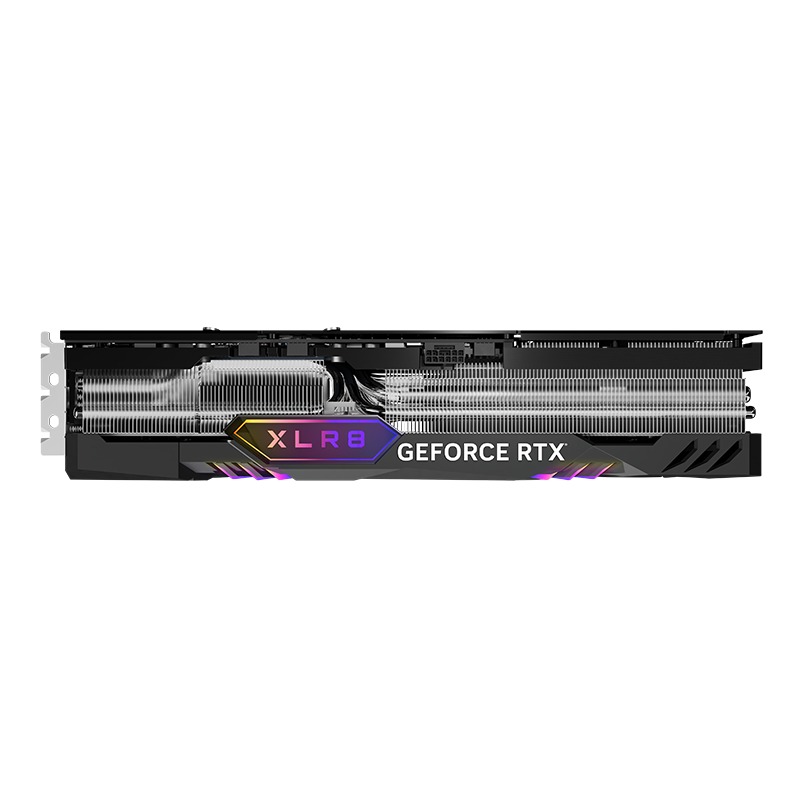

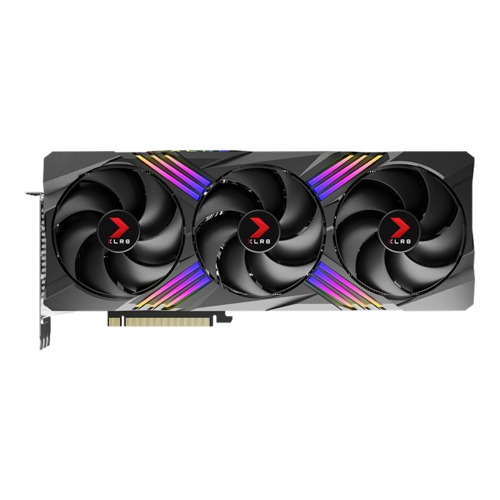

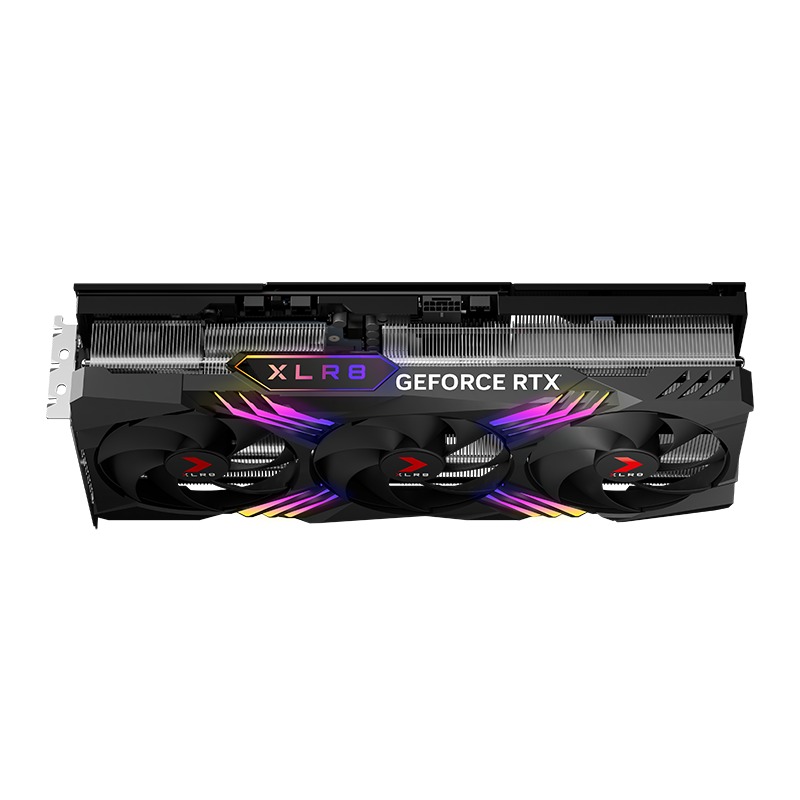

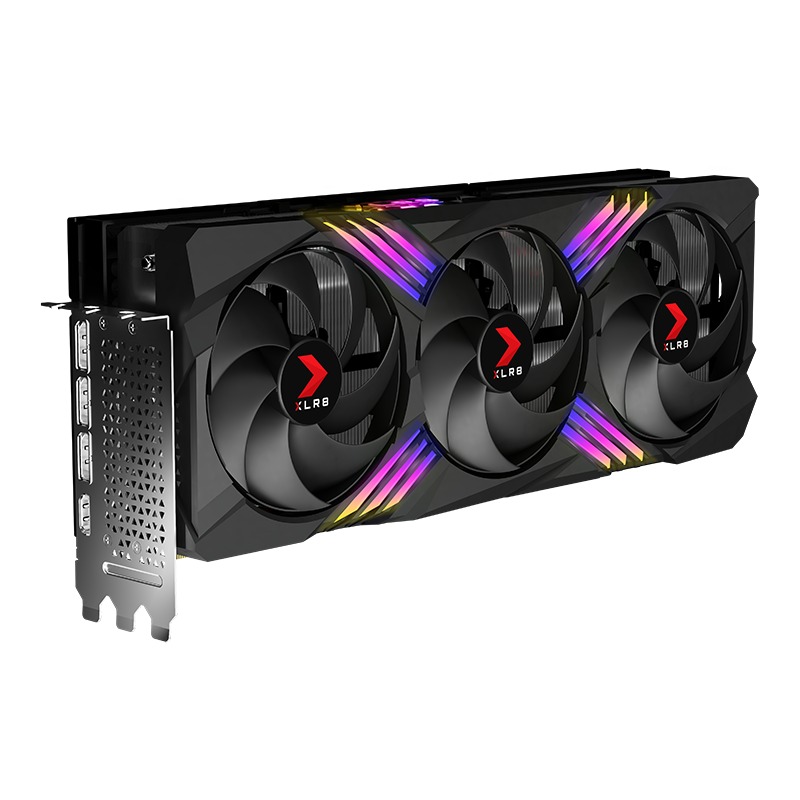

PNY GeForce RTX 4090 XLR8 24GB Main Picture


PNY GeForce RTX 4090 XLR8 24GB Picture 77447PNY GeForce RTX 4090 XLR8 24GB Picture 77448PNY GeForce RTX 4090 XLR8 24GB Picture 77449PNY GeForce RTX 4090 XLR8 24GB Picture 77450
NVIDIA's GeForce RTX 4090 is the first consumer graphics card in their GeForce RTX 40-series, which is based on the Ada Lovelace architecture, and includes a host of improvements to both the number and speed of its various cores. In terms of performance, this GPU is up to twice as fast as the previous-gen RTX 3090 - but that comes at the cost of higher power draw, similar to the RTX 3090 Ti. It shares the same 24GB of memory that those cards offered as well, along with a pair of upgraded video encoders with added support for the AV1 codec. For more detailed information, check out our RTX 4090 Content Creation Review.

This version of the RTX 4090 is from PNY and uses a triple-fan cooling layout. That is great for keeping a single card running cool and relatively quiet, but results in most of the heat the card generates being pumped back into the computer. It is also a lot larger than traditional video cards, making it less than ideal for multi-GPU systems. In most chassis only one will be able to fit and be cooled properly, but some larger tower cases may be able to handle two of them. Small form factor and even mini tower cases may not be able to fit it at all.

Finally, in regards to connectivity, there are one HDMI 2.1a and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: NVIDIA VCG409024TFXXPB1

Specifications

Chipset Manufacturer nVidia
Product Line GeForce
Series RTX 4000
Model 4090
Motherboard Connection PCI Express x16
Interface PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology Not Available
TGP 450 W
GPU Specifications
Core Speed 2,230 MHz
Boost Speed 2,520 Mhz
Stream Processors 16,384
Memory Specifications
Video Memory 24GB
Memory Type GDDR6X
Memory Bus Width 384-bit
Additional Information
Cooling System Quiet Fan and Heatsink
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 3+
Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Plug 3 8-pin PCI-E
Plug 4 8-pin PCI-E
Uses Power Adapter Yes
Dimensions
Length 332 mm (13.1 in)
Height 137 mm (5.4 in)
Width 71 mm (2.8 in)
Net Weight 1.973 kg (4.3 lbs)
