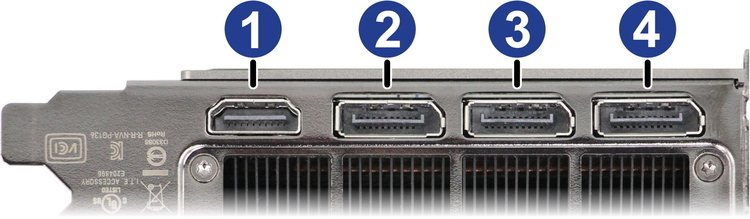

PNY GeForce RTX 5060 Ti Dual Fan 16GB Ports
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
DisplayPort 2.1 Out Port: Outputs digital video and audio at up to 4k 480hz or 8k 165hz with DSC.
DisplayPort 2.1 Out Port: Outputs digital video and audio at up to 4k 480hz or 8k 165hz with DSC.
DisplayPort 2.1 Out Port: Outputs digital video and audio at up to 4k 480hz or 8k 165hz with DSC.
NVIDIA's GeForce RTX 5060 Ti is a consumer graphics card in the GeForce RTX 50 Series, which is based on NVIDIA's Blackwell architecture. While this GPU brings only a modest increase in performance over the previous RTX 4060 Ti, and is about 40% slower than the next step up (RTX 5070), it does include many of the same major feature upgrades the RTX 50 Series is known for. There are improved video encoding and decoding capabilities, with added support for 4:2:2 chroma subsampling, as well as new generations of CUDA, tensor, and ray tracing cores. This card also benefits from the same brand-new, high-speed GDDR7 memory as the higher-end 50 Series models.

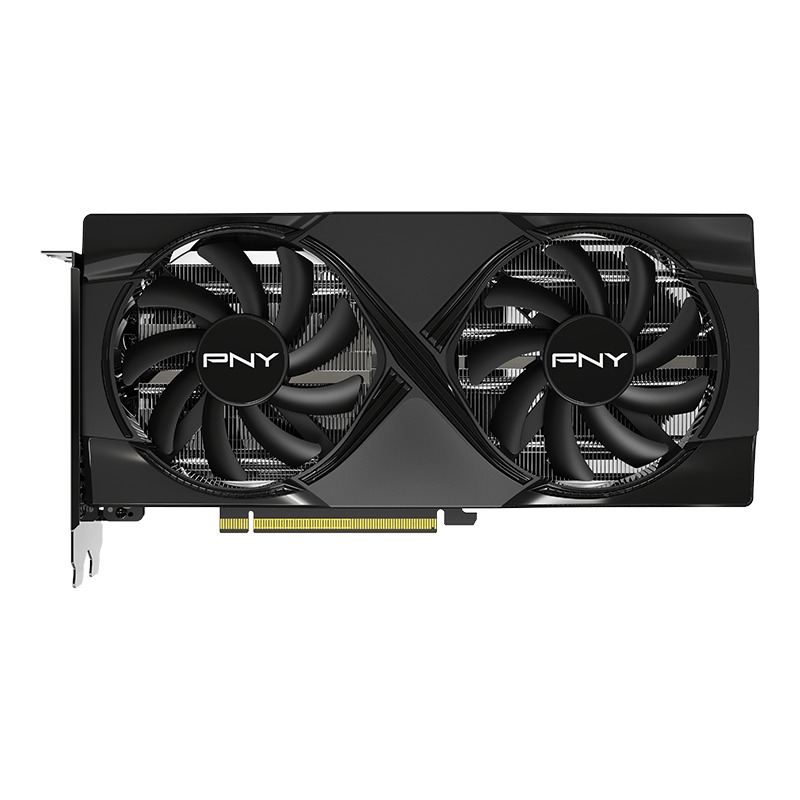

This variant of the RTX 5060 Ti, from PNY, uses a dual-fan cooling layout, making it more compact than many other video cards.
Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 2.1 plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
This variant of the RTX 5060 Ti, from PNY, uses a dual-fan cooling layout, making it more compact than many other video cards.
Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 2.1 plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).
Model: PNY VCG5060T16DFXPB1
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | GeForce |
| Series | RTX 50 Series |
| Model | 5060 Ti |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 5.0 x16 |
| Maximum Digital Resolution | 7680x4320 |
| Maximum HDMI Resolution | 7680x4320 |
| Maximum DisplayPort Resolution | 7680x4320 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
| Multi-GPU Technology | Not Available |
| TGP | 180 W |
GPU Specifications | |
| Core Speed | 2300 MHz |
| Boost Speed | 2572 Mhz |
| CUDA Cores | 4608 |
| AI Cores | 144 |
| RT Cores | 36 |
Memory Specifications | |
| Video Memory | 16GB |
| Memory Type | GDDR7 |
| Memory Bus Width | 128-bit |
| Bandwidth | 448 GB/s |
Performance | |
| Double Precision Floating Point (Peak) | 0.37 Tflops |
| Single Precision Floating Point (Peak) | 23.70 Tflops |
| Half Precision Floating Point (Peak) | 23.70 Tflops |
Additional Information | |
| Cooling System | Open Air Type |
| DirectX Support | DirectX 12 |
| CUDA Support | 12.8 |
| OpenGL Support | 4.6 |
| Removable Backplate | No |
| Slot Width | 2 |
| Quadro Sync Support | No |
| Max Temp. | 88 C |
| Integrated GPU Brace Mounting | No |
Outputs | |
| Port 1 | HDMI 2.1 |
| Port 2 | DisplayPort 2.1b |
| Port 3 | DisplayPort 2.1b |
| Port 4 | DisplayPort 2.1b |
Power Connectors | |
| Plug 1 | 8-pin PCI-E |
Dimensions | |
| Length | 245 mm (9.6 in) |
| Height | 120 mm (4.7 in) |
| Width | 40 mm (1.6 in) |
| Net Weight | 1 kg (2.2 lbs) |
