PNY Quadro GP100 PCI-E 16GB

Video Card

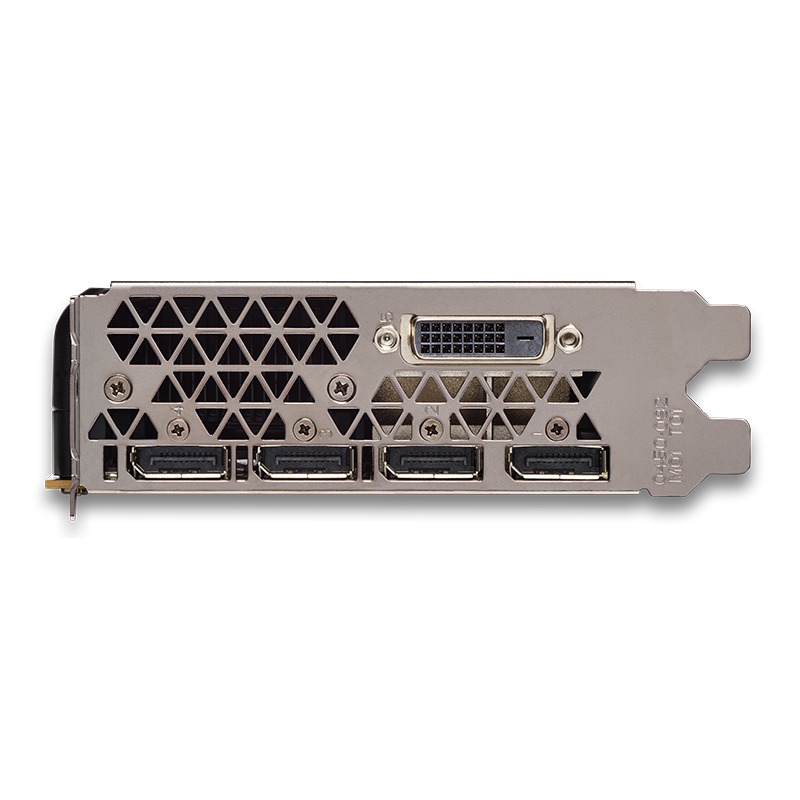

[ Rear Ports ]

PNY Quadro GP100 PCI-E 16GB Picture 42189PNY Quadro GP100 PCI-E 16GB Picture 42190PNY Quadro GP100 PCI-E 16GB Picture 42192PNY Quadro GP100 PCI-E 16GB Picture 42191PNY Quadro GP100 PCI-E 16GB Picture 42277
The NVIDIA Quadro GP100 is the first of its kind of video card: effectively a Tesla P100 but with graphics output capabilities. That is why it is included under the Quadro banner, but even the model number conveys its relation to the Tesla line. Unlike other current Quadro cards, the GP100 has unhindered double-precision floating point performance (FP64) - 5 Tflops! - as well as half precision (FP16) and integer modes.

The GP100 has 16GB of high bandwidth memory (HBM), offering a staggering 720GB/s of bandwidth. It also includes NVIDIA's new NVLINK technology so that if you use two GP100 cards they can communicate directly with each other in a much faster way than PCI-Express or SLI allow. For video output, the GP100 has one DVI and four DisplayPort connections. Despite having five outputs, the maximum number of supported displays is four like most other Pascal based cards.
Model: PNY VCQGP100-PB

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Stream Processors  3584
Memory Specifications
Video Memory  16GB
Memory Type  High Bandwidth Memory (HBM)
Bandwidth  720 GB/s
Double Precision Floating Point (Peak)  5 Tflops
Single Precision Floating Point (Peak)  10 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.1
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Port 1  Dual-Link DVI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Length  266.7 mm (10.5 in)
Height  111.76 mm (4.4 in)

Supports NVLink (2-way)


3 Years
