PNY Quadro K620 PCI-E 2GB

Video Card

PNY Quadro K620 PCI-E 2GB Picture 32517PNY Quadro K620 PCI-E 2GB Picture 32518PNY Quadro K620 PCI-E 2GB Picture 32519PNY Quadro K620 PCI-E 2GB Picture 32521PNY Quadro K620 PCI-E 2GB Picture 32522
The NVIDIA Quadro K620 is an entry-level, Maxwell-based professional graphics card - one of the first Quadro cards to switch to that new GPU architecture. It also offers double the video memory and processing power of its predecessor, the K600, with 2 GB of graphics memory on a 128-bit bus and 384 stream processor cores.

In addition to moderate performance for professional 3D applications the Quadro K620 can run up to two screens at the same time (one dual-link DVI and one DisplayPort, with an adapter to single-link DVI). A wide range of standards are also supported by this card: DirectX 11, OpenGL 4.4, CUDA 5.0, and OpenCL (to name a few).
William George (Customer Service)
William George (Customer Service) Says:
This is a good choice if you need basic graphics output to go alongside Tesla GPU accelerators. It is also viable for entry level CAD workstations, especially with primary 2D or simple 3D workloads.
Model: PNY VCQK620-PB

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 2.0 x16
Maximum DVI Resolution  2560x1600
Maximum DisplayPort Resolution  3840x2160
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Stream Processors  384
Memory Specifications
Video Memory  2GB
Memory Type  DDR3
Memory Bus Width  128-bit
Bandwidth  29 GB/s
Additional Information
Cooling System  Small Fan and Heatsink
DirectX Support  DirectX 11.2
CUDA Support  5.0
OpenGL Support  4.4

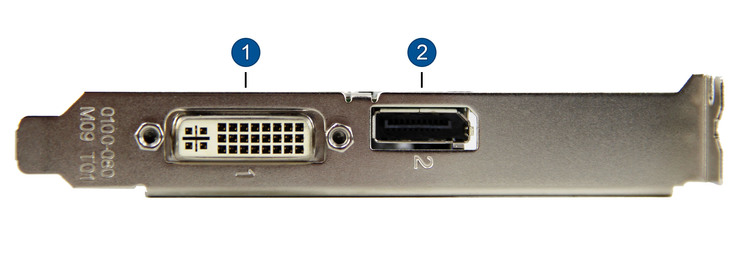

Outputs
Port 1  Dual-Link DVI
Port 2  DisplayPort
Power Connectors
Plug 1  None
Dimensions
Length  160 mm (6.3 in)
Height  111.15 mm (4.4 in)

The NVIDIA Quadro K620 offers impressive power-efficient 3D application performance and capability. 2GB of DDR3 GPU memory with fast bandwidth enables you to create large, complex 3D models, and a flexible single-slot and low-profile form factor makes it compatible with even the most space and power-constrained chassis. Plus, an all-new display engine drives up to four displays with DisplayPort 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color.

Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization and simulation, or spectacular visual storytelling—and get results to market faser.




Configure a custom workstation with the PNY Quadro K620 PCI-E 2GB.
