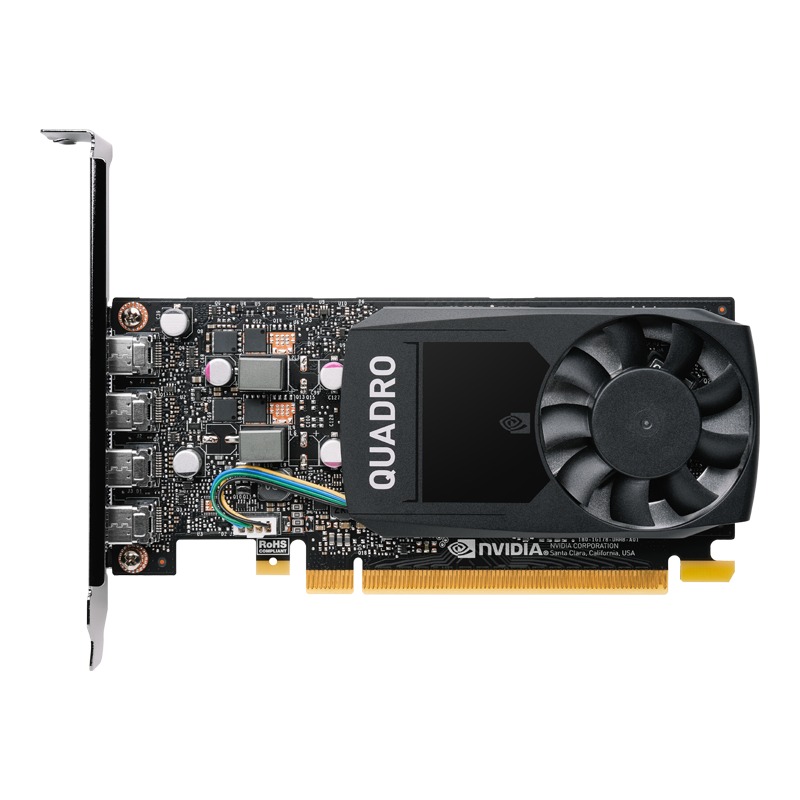

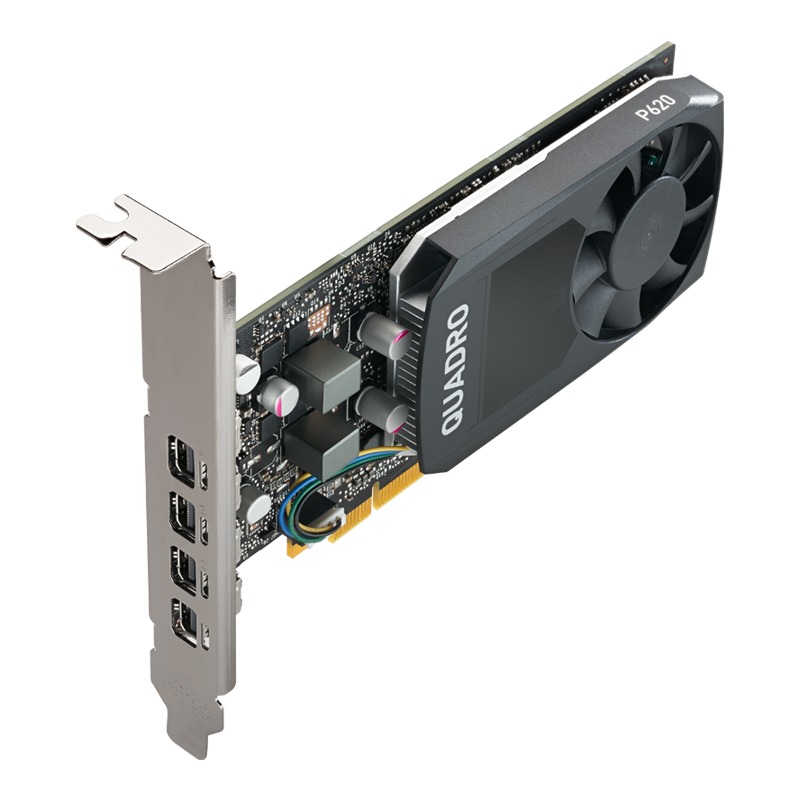

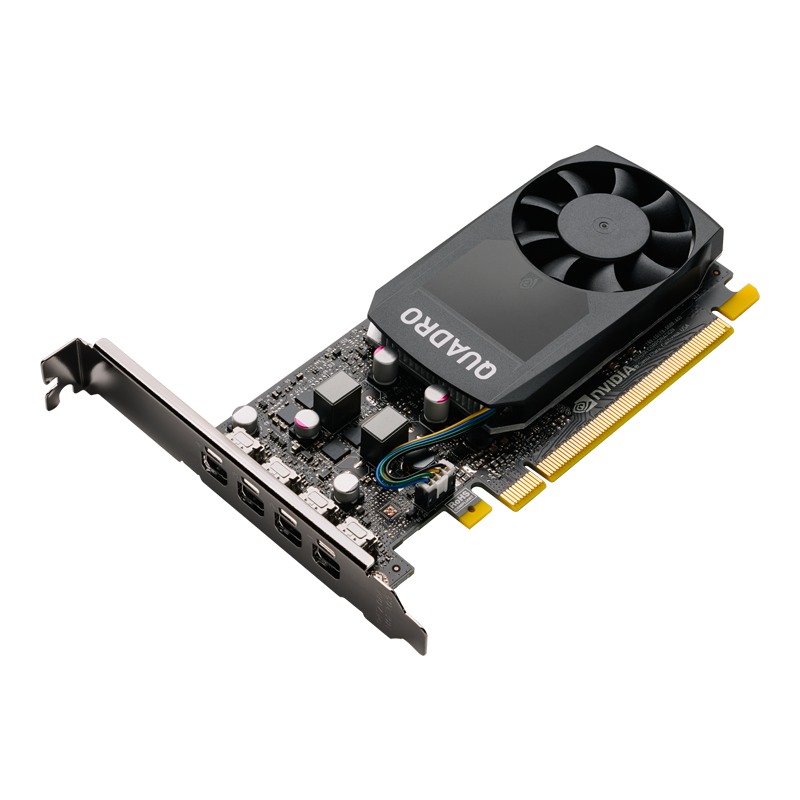

PNY Quadro P620 V2 PCI-E 2GB

Video Card

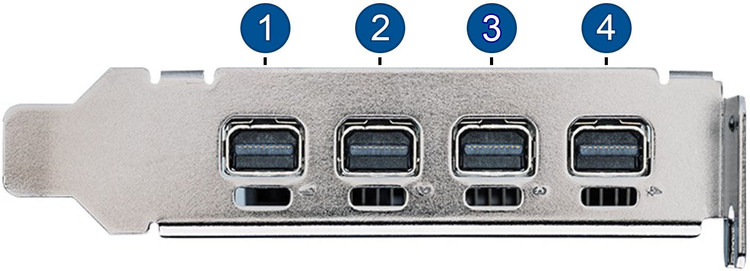

[ Rear Ports ]

PNY Quadro P620 V2 PCI-E 2GB Picture 67888PNY Quadro P620 V2 PCI-E 2GB Picture 67889PNY Quadro P620 V2 PCI-E 2GB Picture 67890PNY Quadro P620 V2 PCI-E 2GB Picture 67887
The NVIDIA Quadro P620 is an entry-level, Pascal-based professional graphics card. It offers a small performance boost over the earlier P600 model, though the amount of video memory and monitor outputs remained the same. That lets the P620 run up to four displays, though with the limited video memory the resolution of each screen should be kept at a moderate level.

As alluded to previously, this card has four Mini DisplayPort connections - and adapters to full size DisplayPort are included as well. Adapters to DVI or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200). A wide range of standards are also supported by this card: DirectX 11, OpenGL 4.4, CUDA 5.0, and OpenCL (to name a few).
Model: PNY VCQP620V2-PB

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  5120x2880
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  Not Available
GPU Specifications
Stream Processors  512
Memory Specifications
Video Memory  2GB
Memory Type  GDDR5
Memory Bus Width  128-bit
Bandwidth  80 GB/s
Performance
Single Precision Floating Point (Peak)  1.386 Tflops
Additional Information
Cooling System  Small Fan and Heatsink
DirectX Support  DirectX 12
OpenGL Support  4.5
Removable Backplate  No
Slot Width  1
Outputs
Port 1  Mini DisplayPort
Port 2  Mini DisplayPort
Port 3  Mini DisplayPort
Port 4  Mini DisplayPort
Power Connectors
Plug 1  None
Dimensions
Length  144.78 mm (5.7 in)
Height  69 mm (2.7 in)
