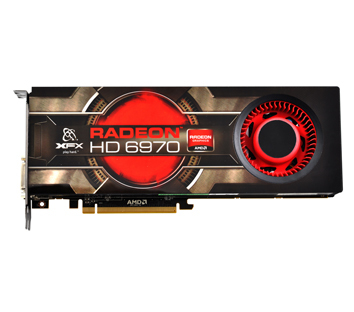

Model: ATI HD-697A-CNFC
Specifications
| Chipset Manufacturer | ATI |
| Product Line | Radeon HD |
| Interface | PCI Express 2.0 x16 |
| Maximum HDMI Resolution | 1920x1200 |
| Maximum DisplayPort Resolution | 2560x1600 |
| Maximum DVI Resolution | 2560x1600 |
| Maximum Monitors Supported | 6 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Core Speed | 880 MHz |
| Stream Processors | 1536 |
Memory Specifications | |
| Video Memory | 2GB |
| Memory Type | GDDR5 |
| Memory Speed | 1375 MHz |
| Memory Bus Width | 256-bit |
| Bandwidth | 176 GB/s |
Additional Information | |
| Cooling System | Blower Type |
| DirectX Support | DirectX 11 |
Outputs | |
| Port 1 | Dual-Link DVI |
| Port 2 | DVI |
| Port 3 | HDMI |
| Port 4 | Mini DisplayPort |
| Port 5 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | 6-pin PCI-E |
| Plug 2 | 8-pin PCI-E |
