At Puget Systems, we have a library of screenshots of the BIOS screens for the majority of the desktop computers we build. We share these screenshots here to the public, as a helpful reference for anyone who can benefit from them! Below you will find BIOS screenshots we have on file for the ASUS ROG STRIX B850-I GAMING WIFI motherboard.

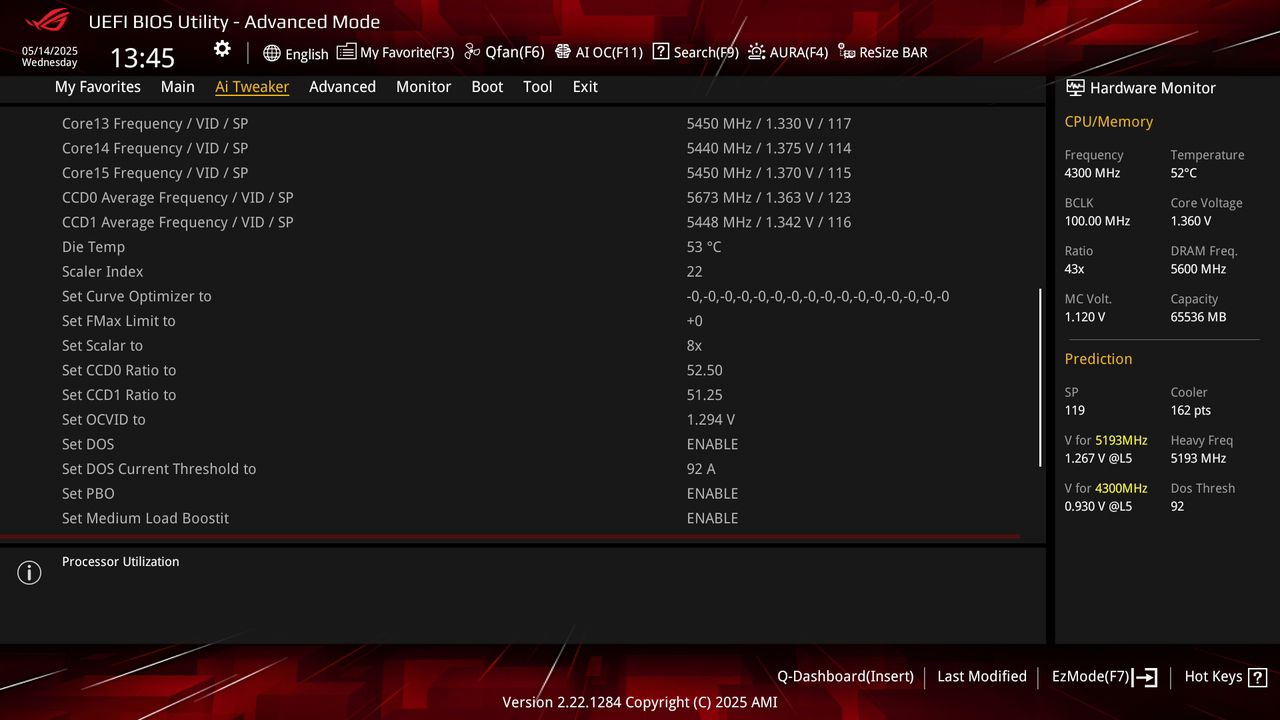

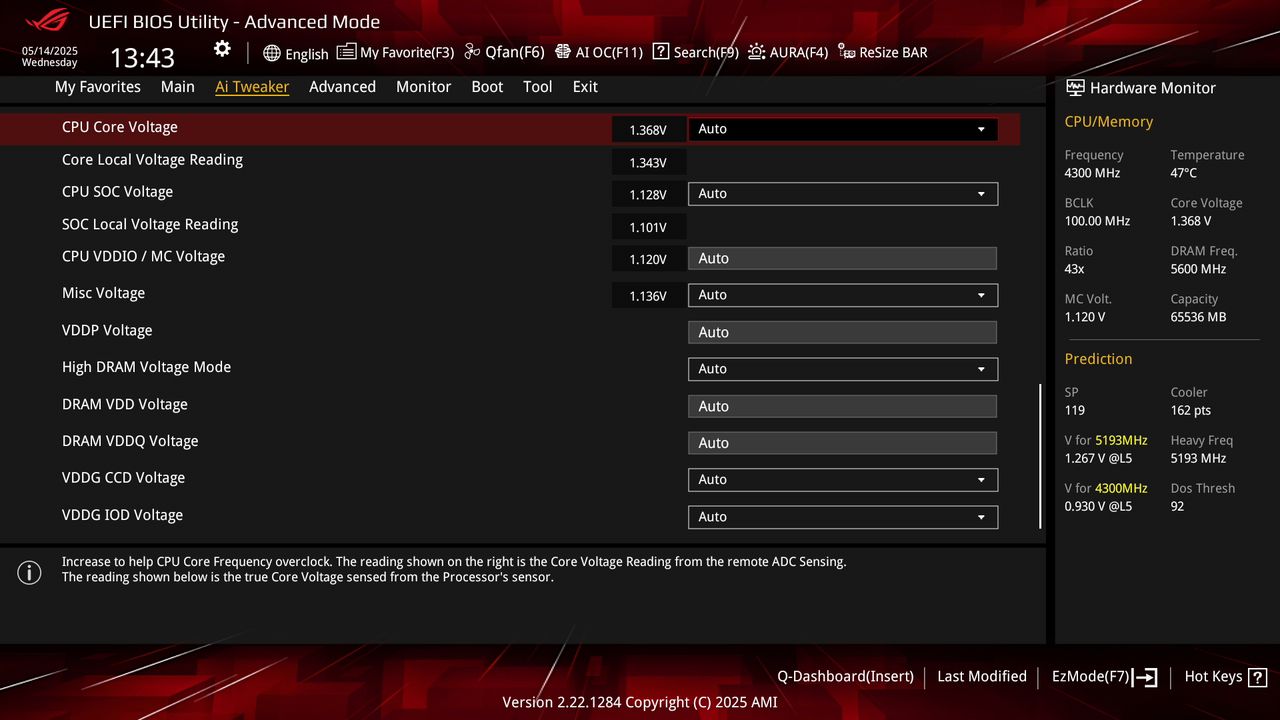

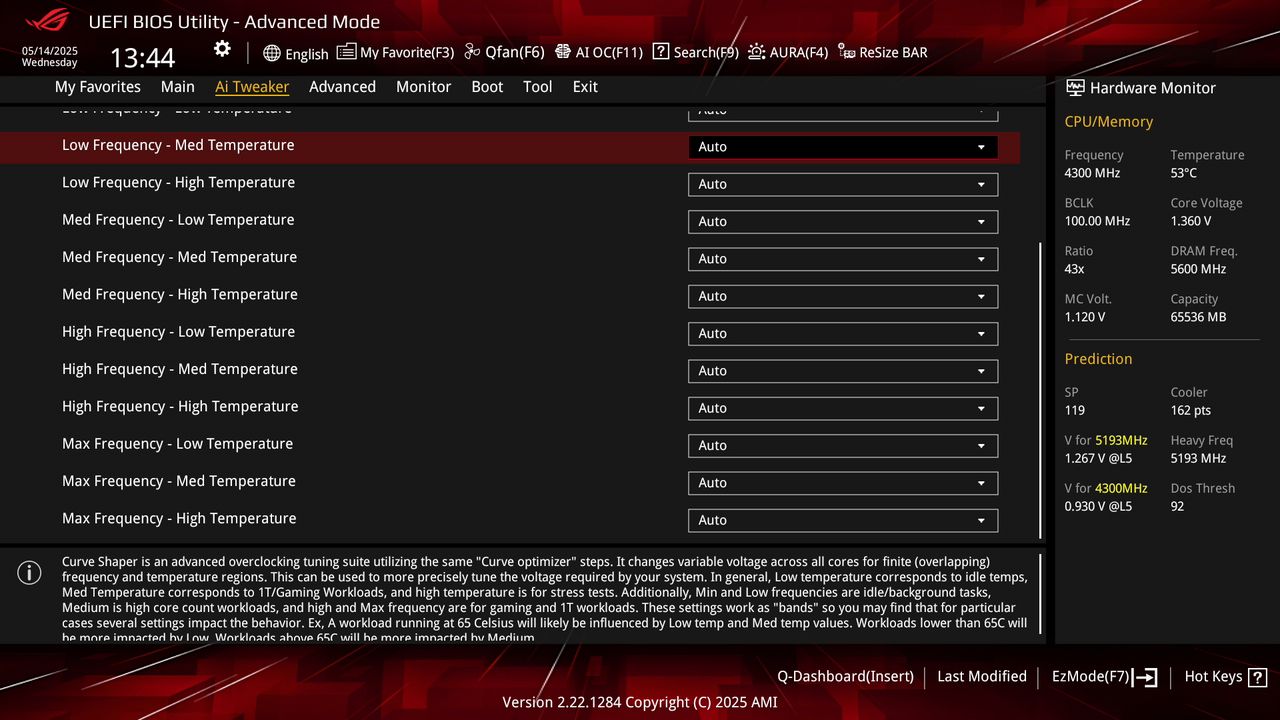

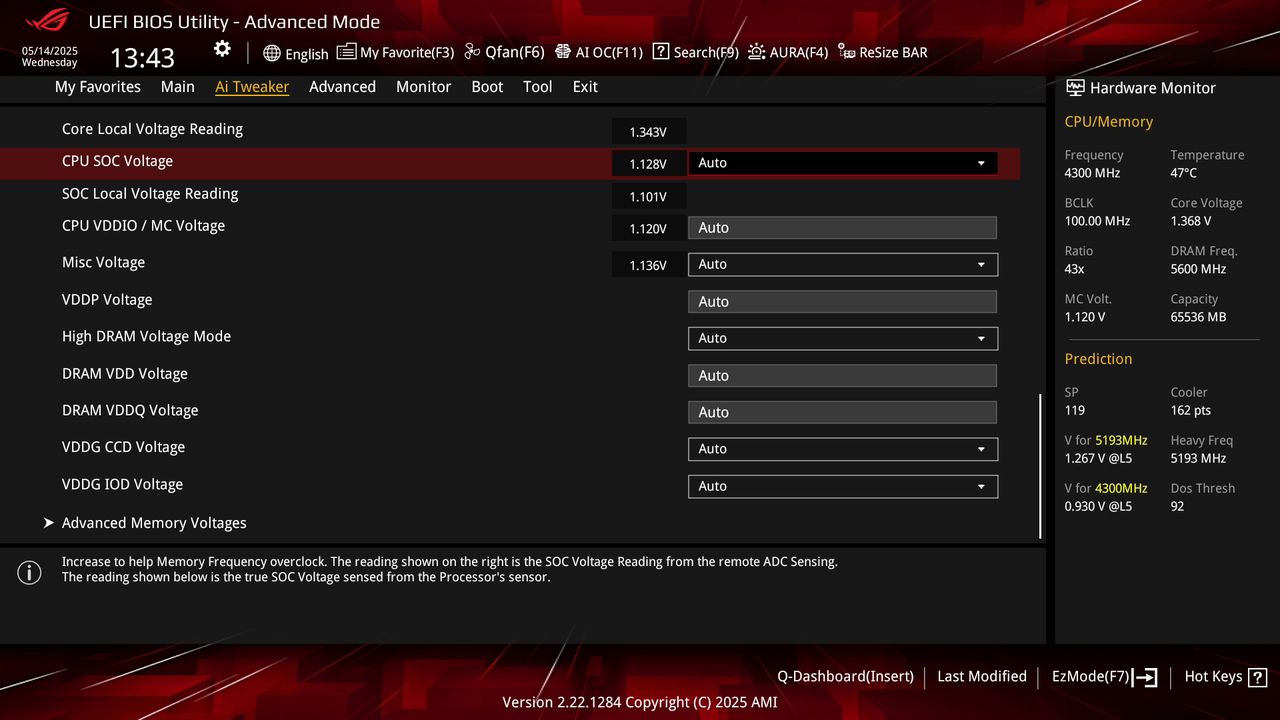

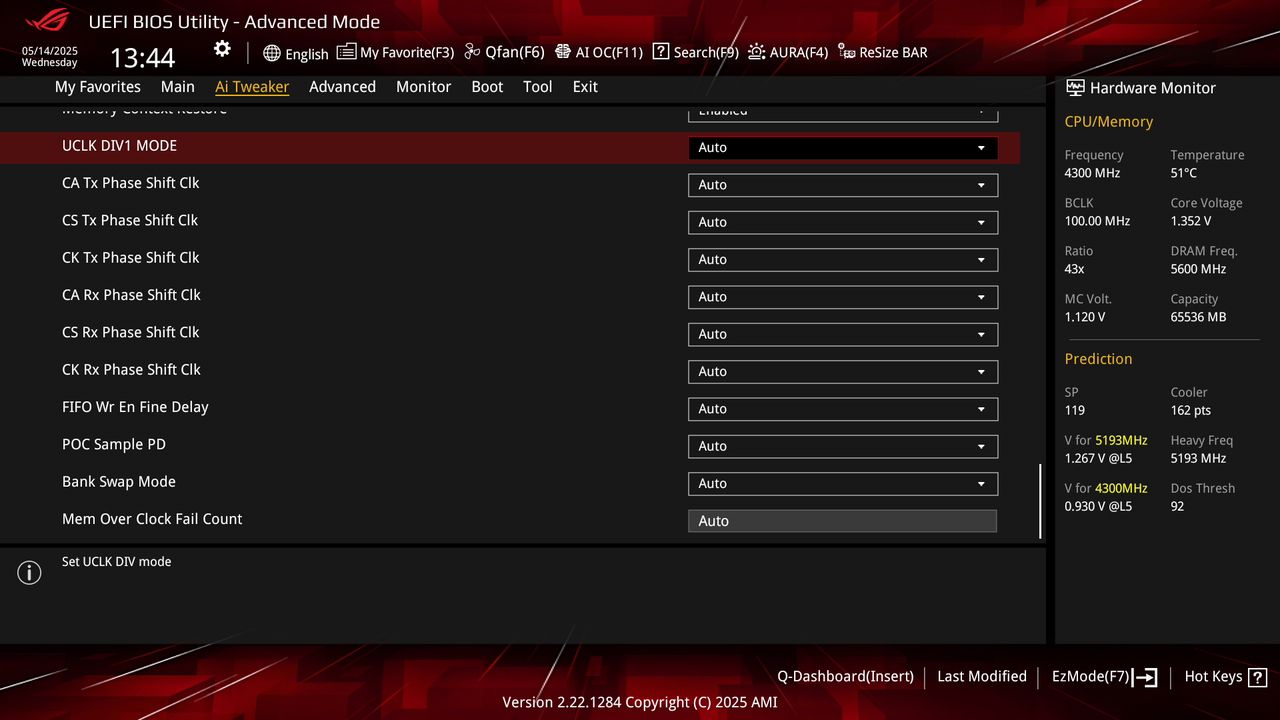

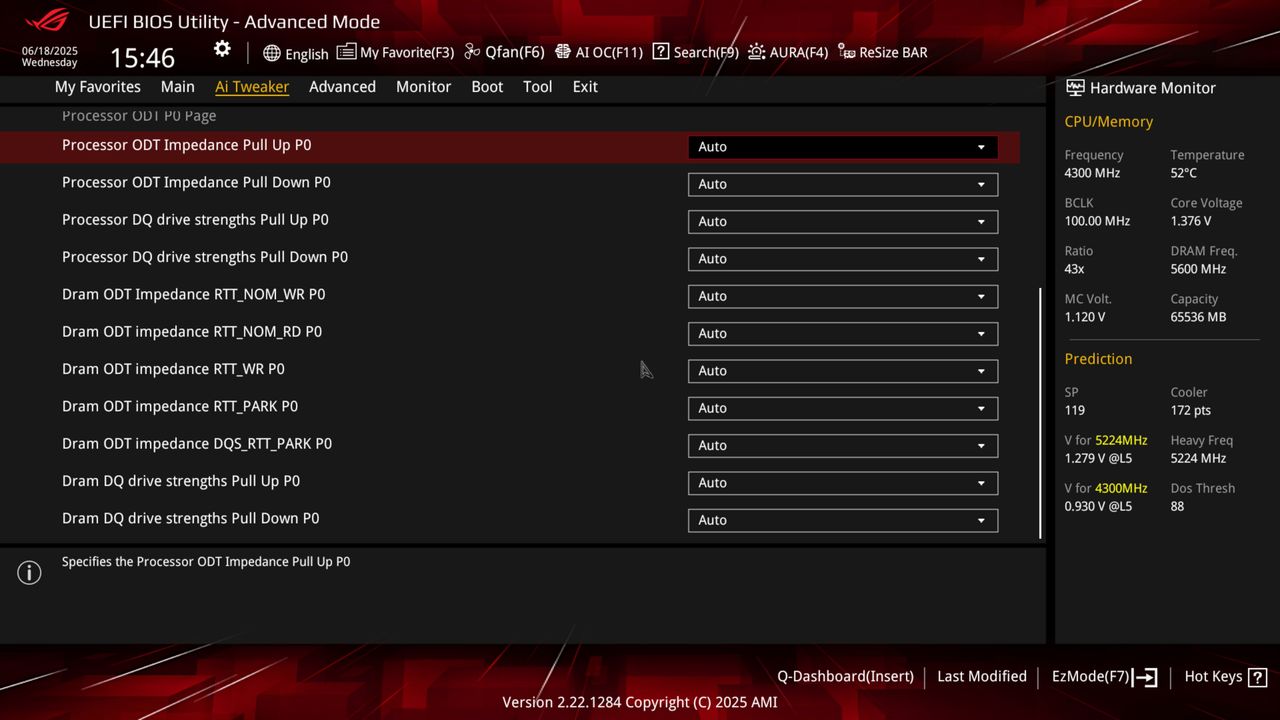

Ai Tweaker

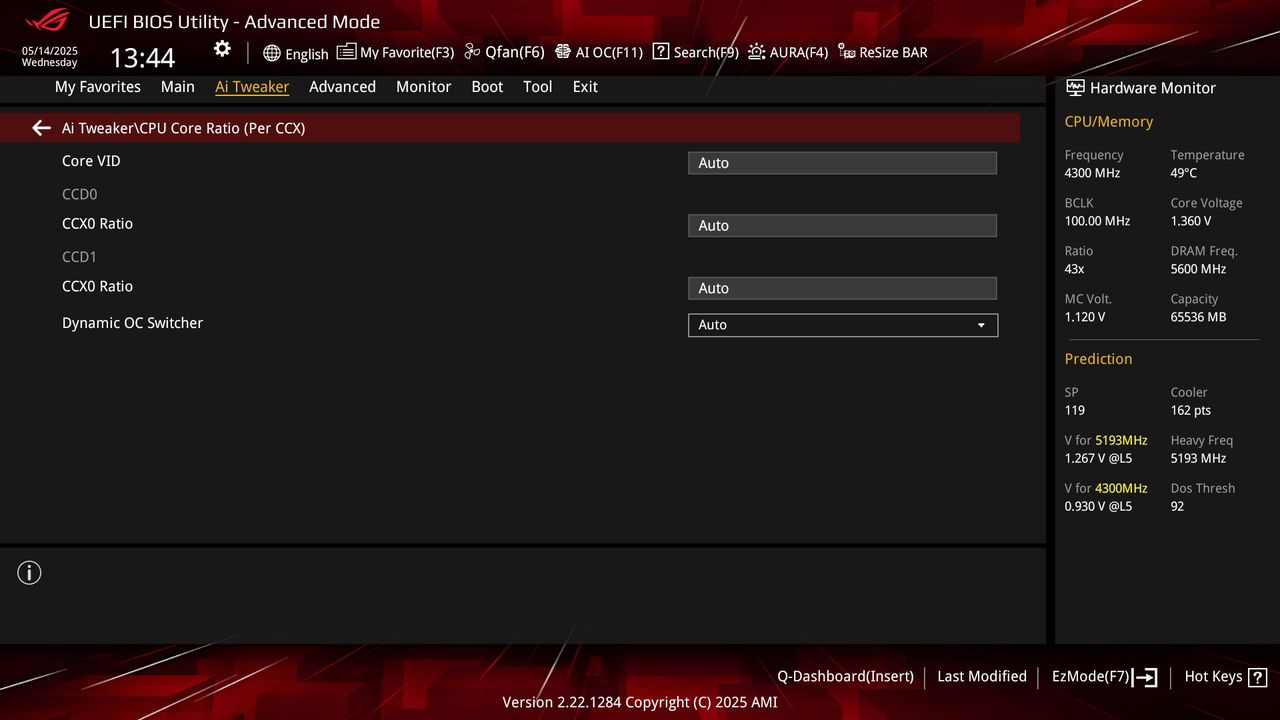

CPU Core Ratio

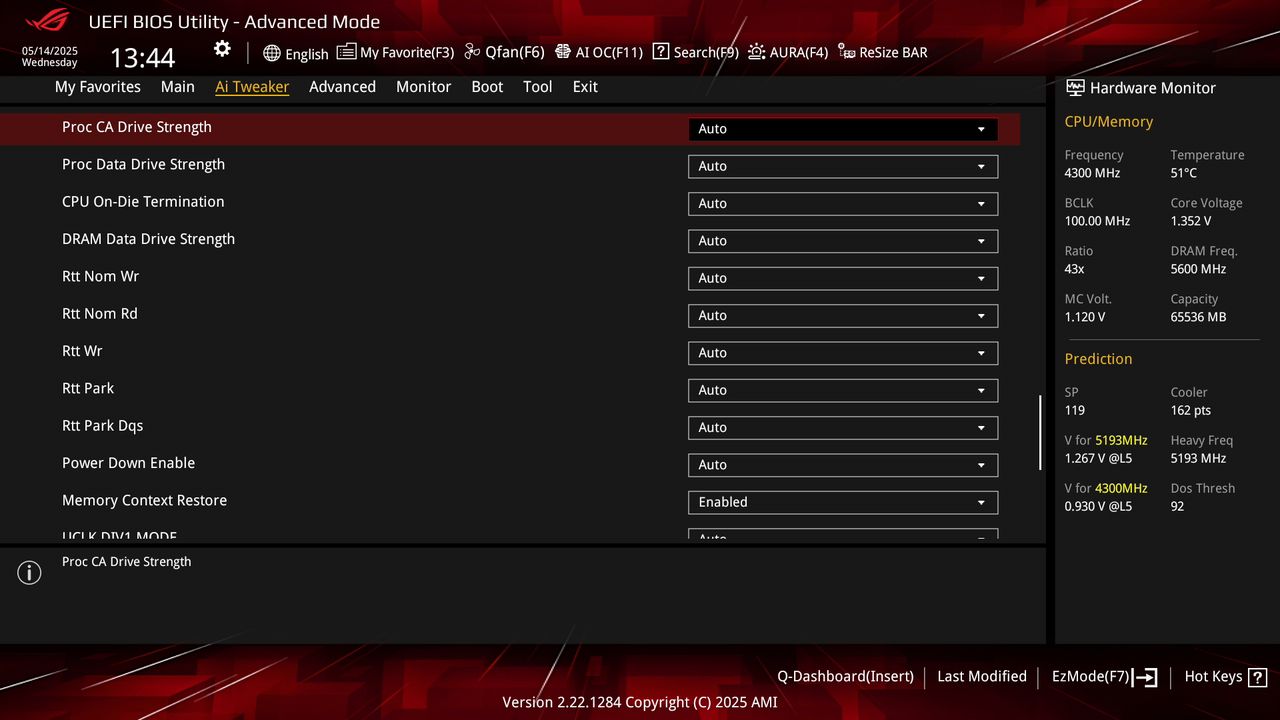

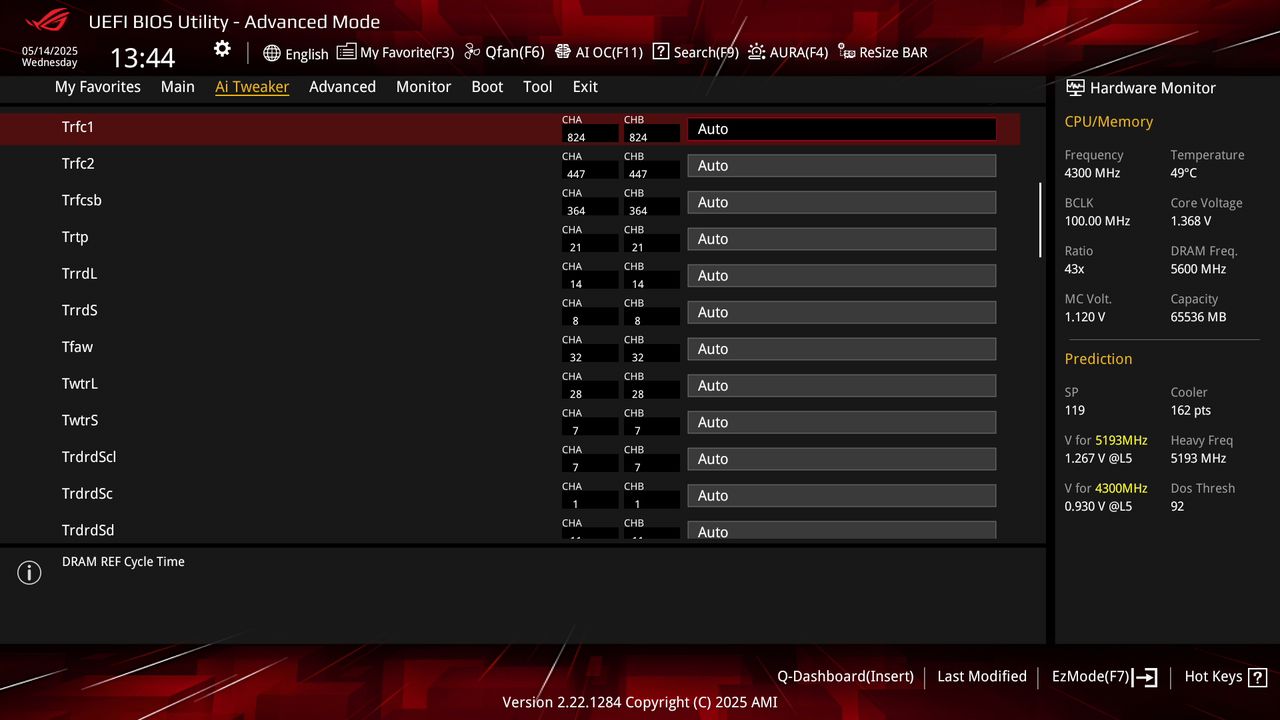

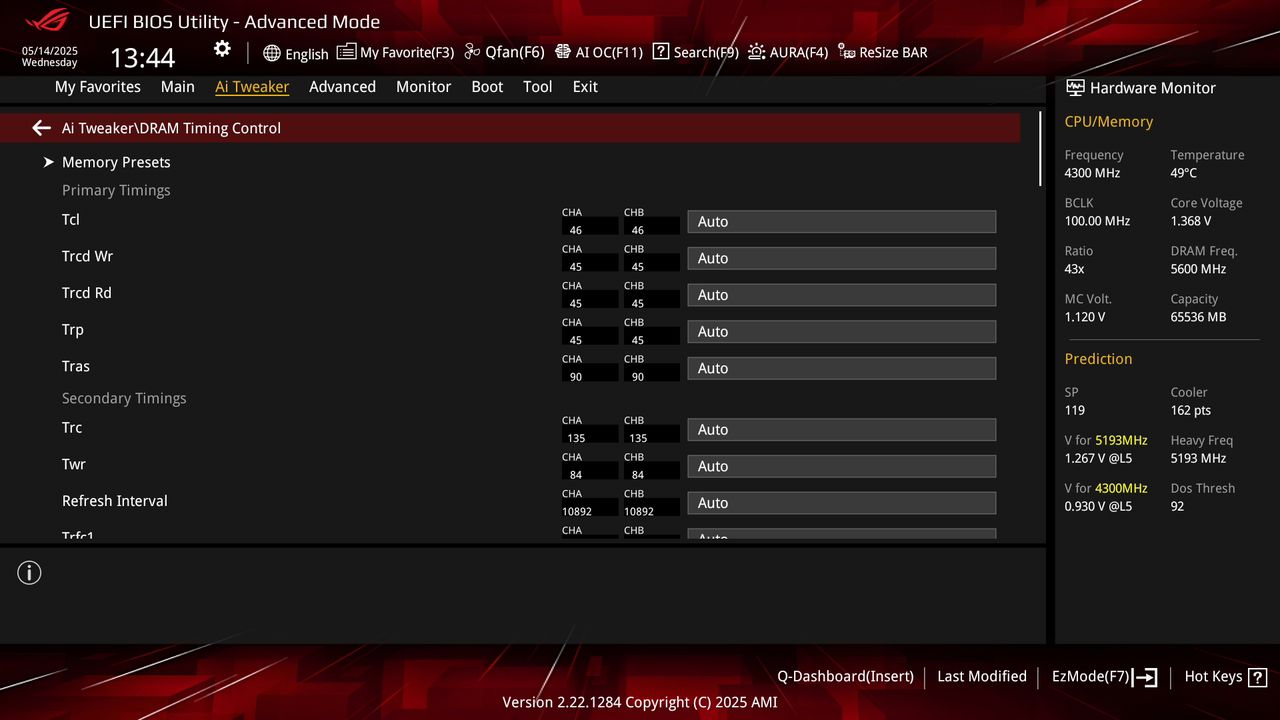

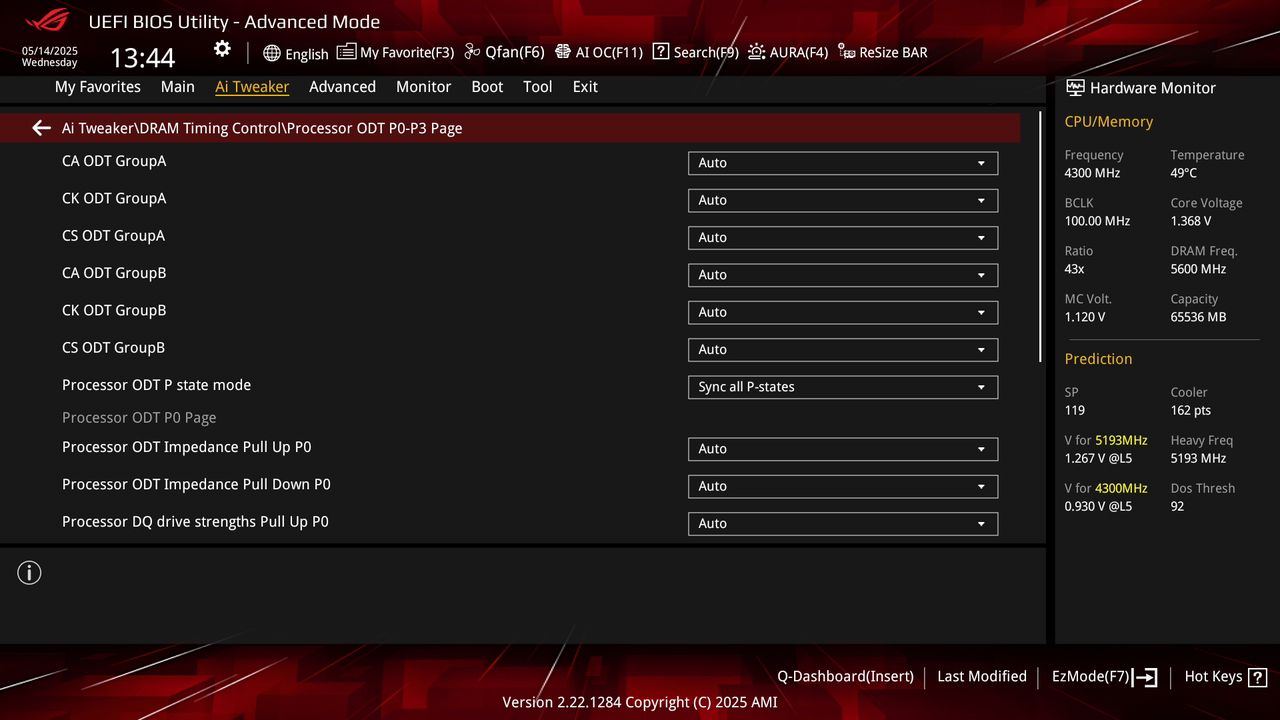

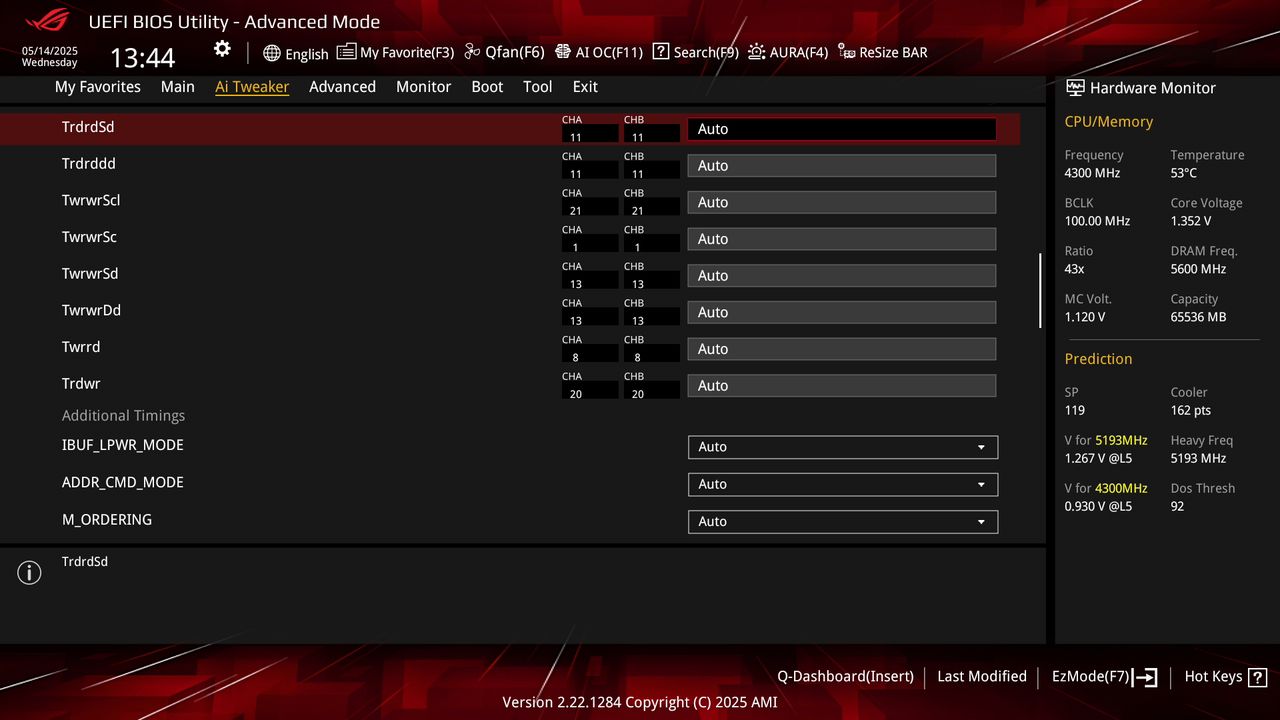

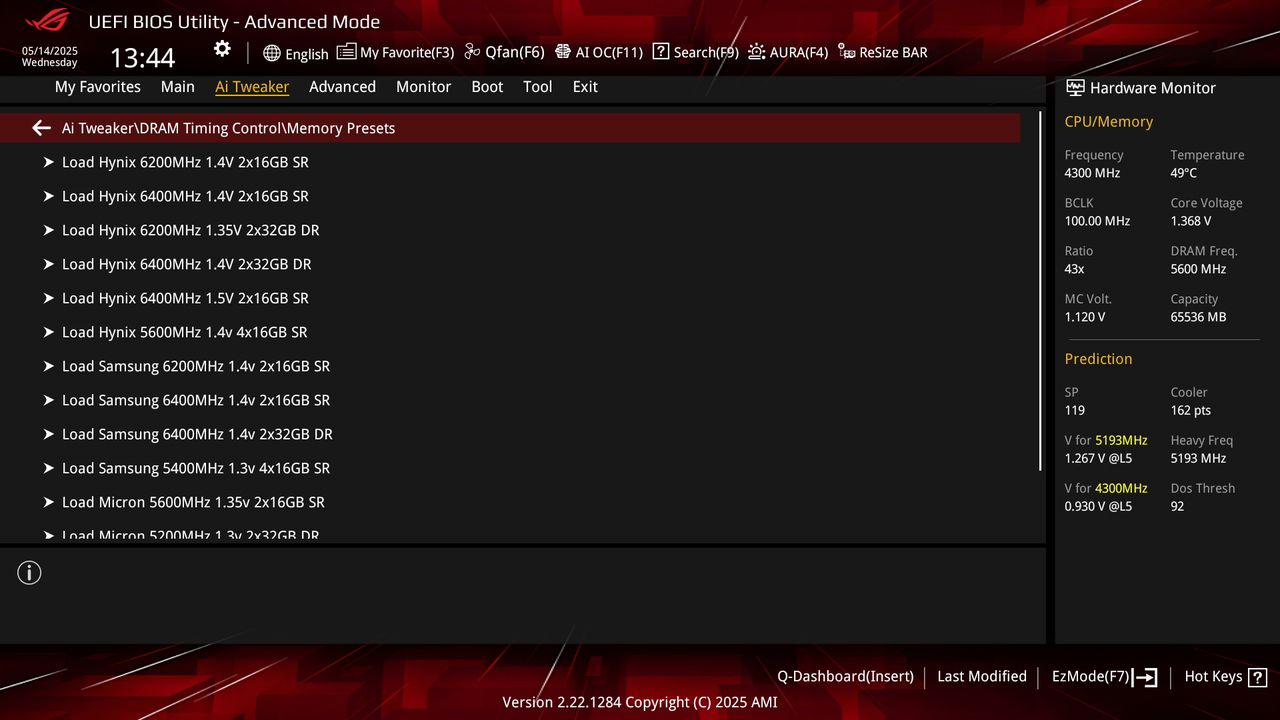

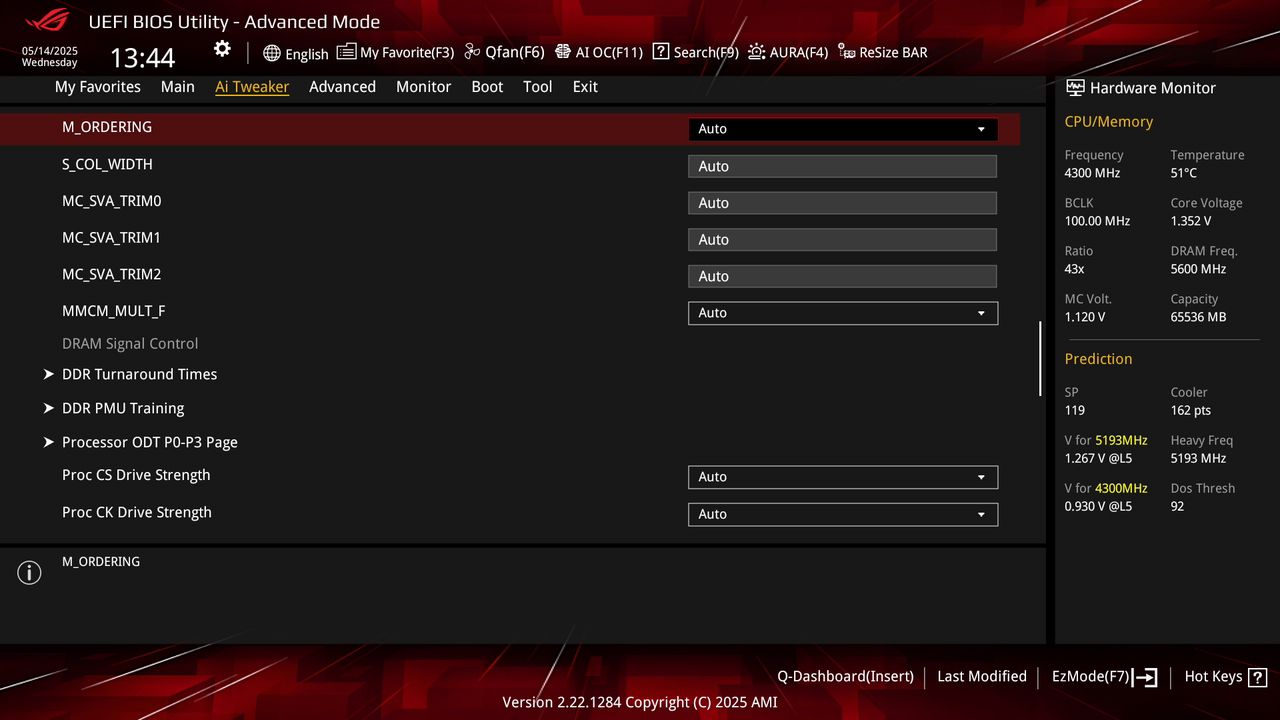

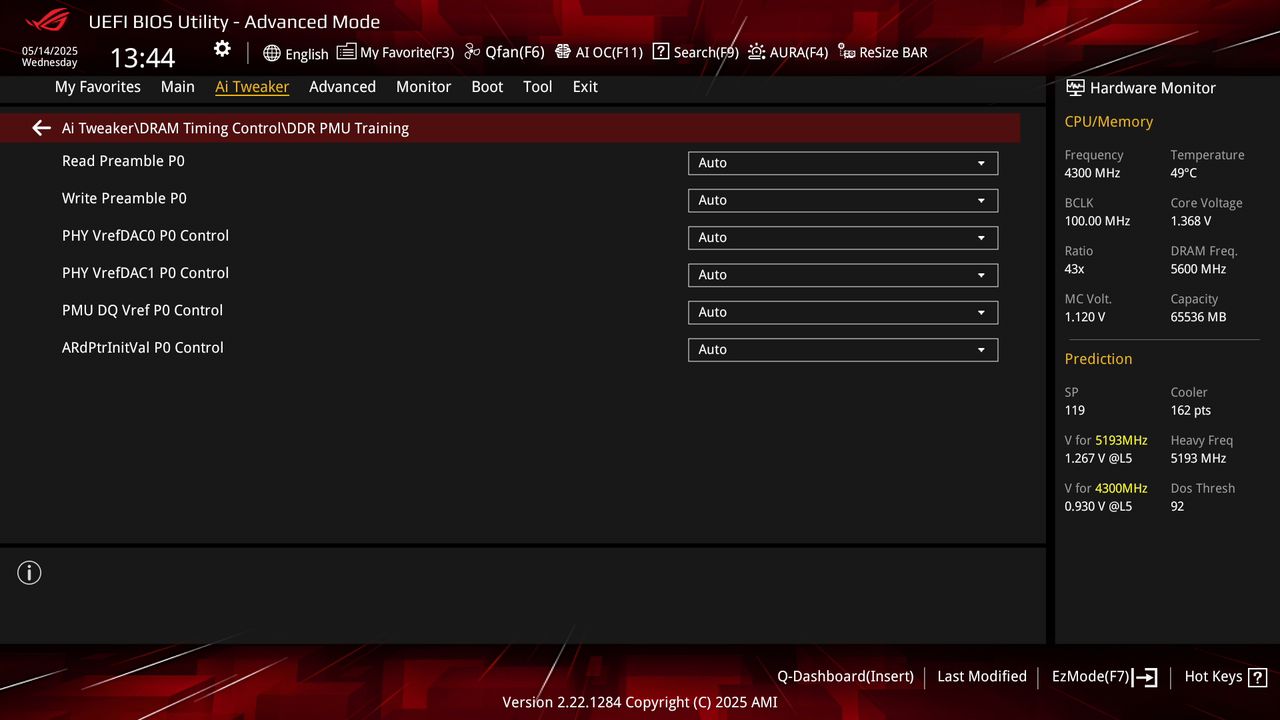

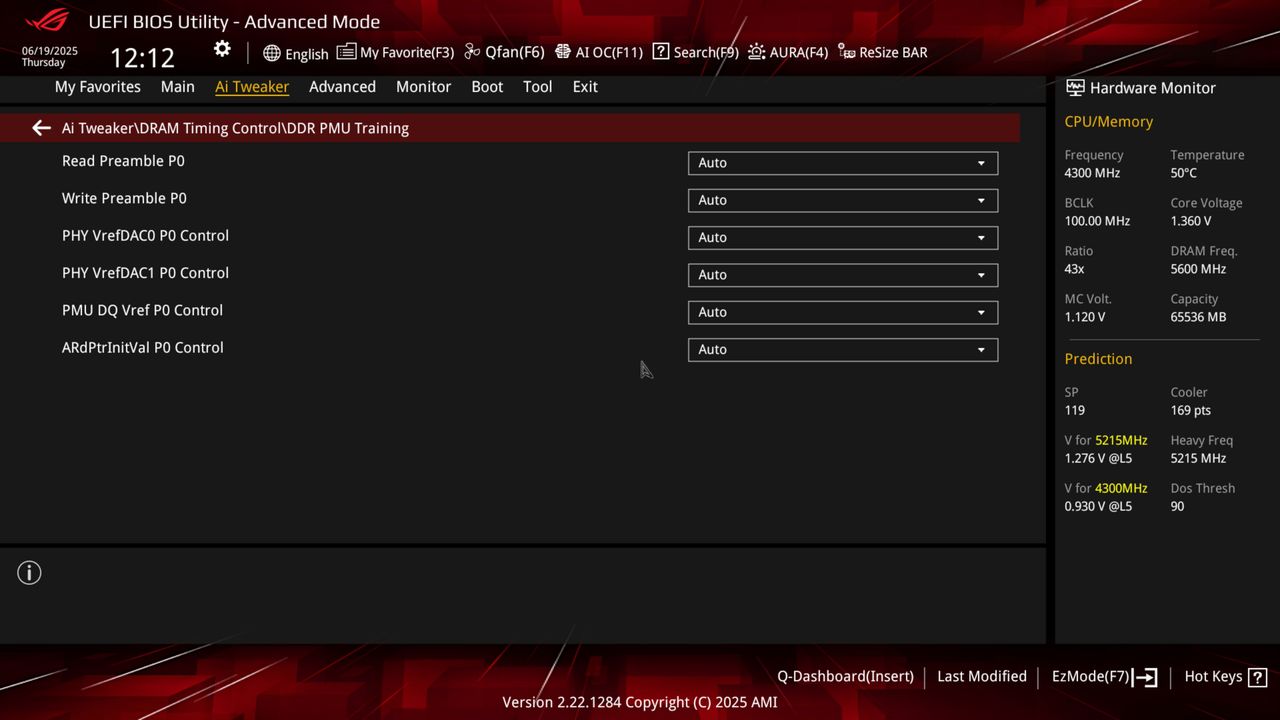

DRAM Timing Control

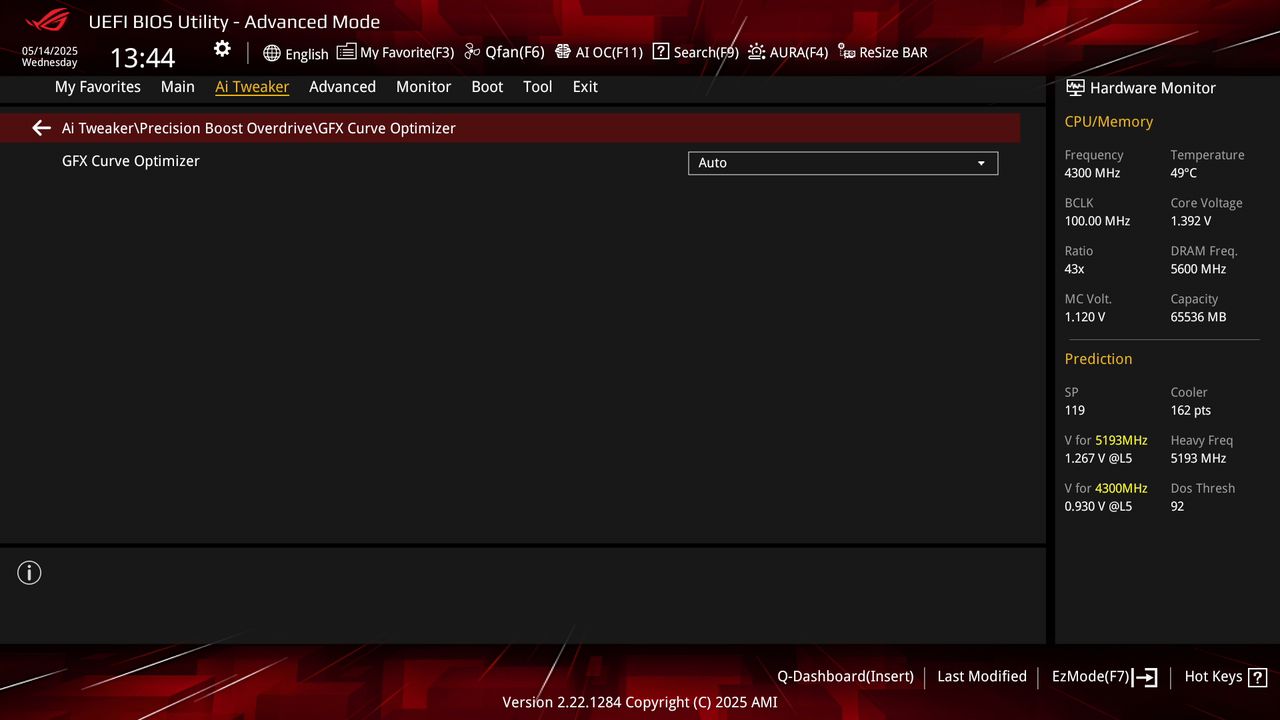

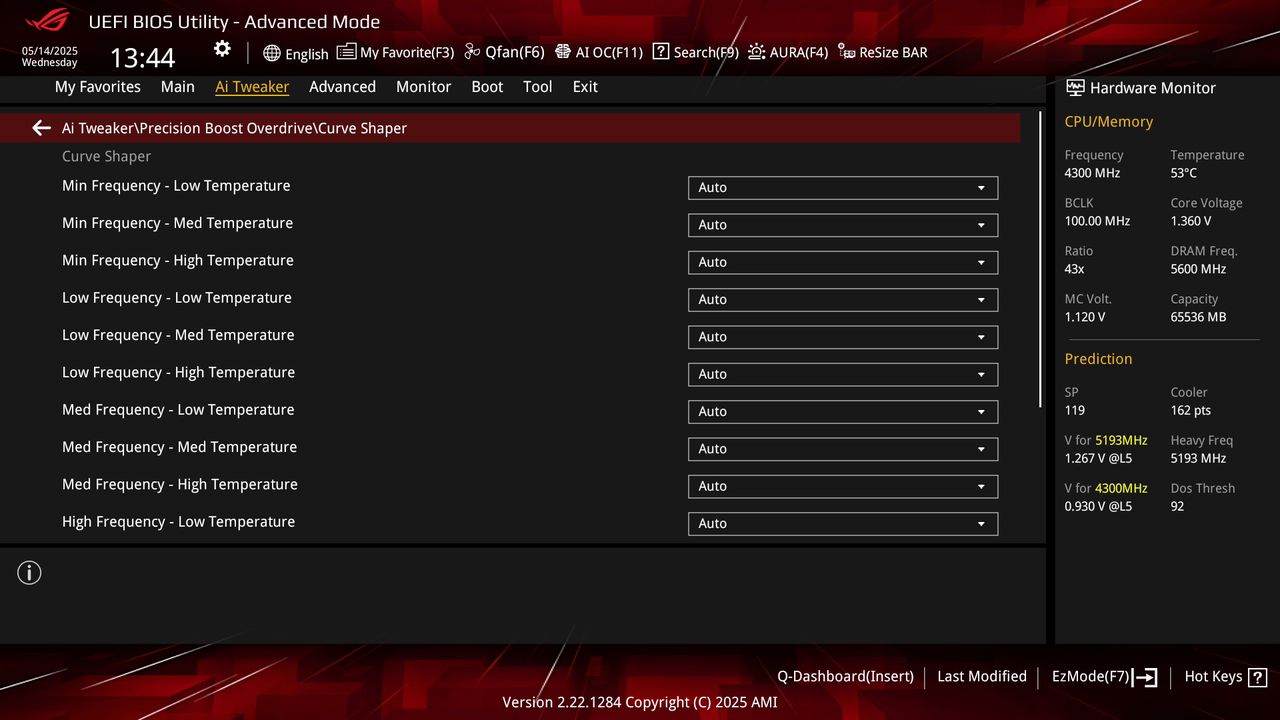

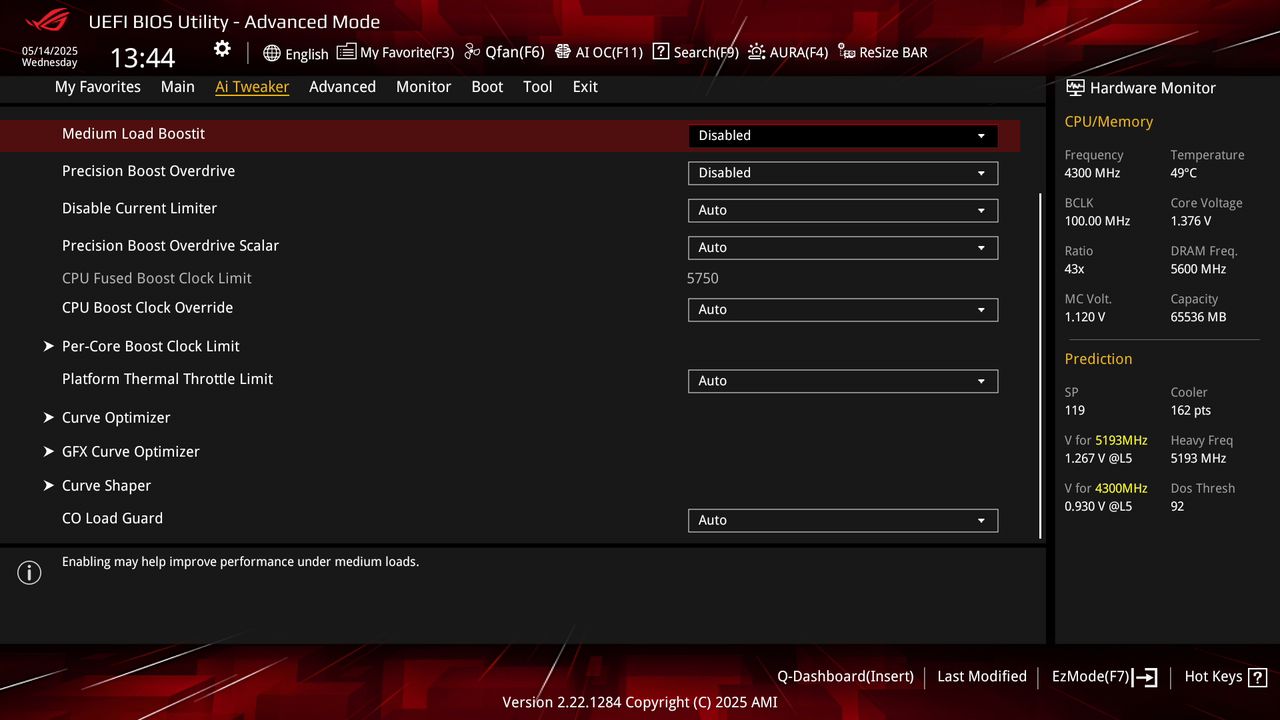

Precision Boost Overdrive

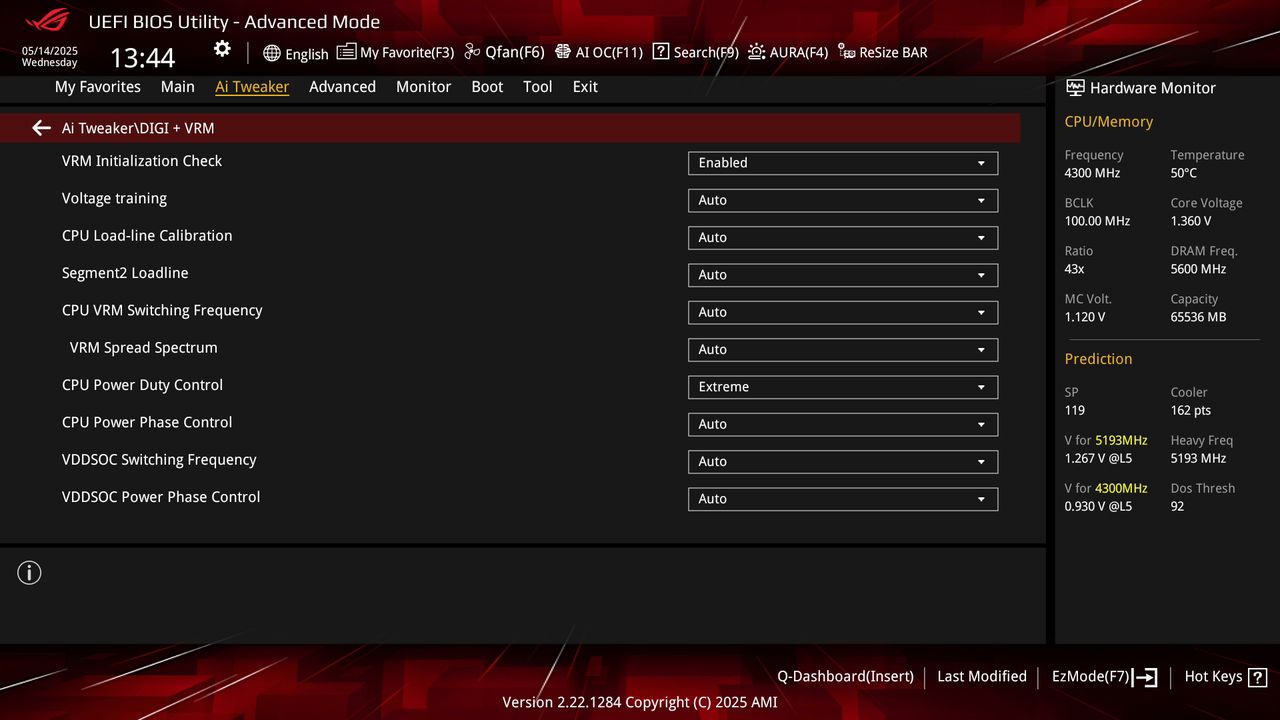

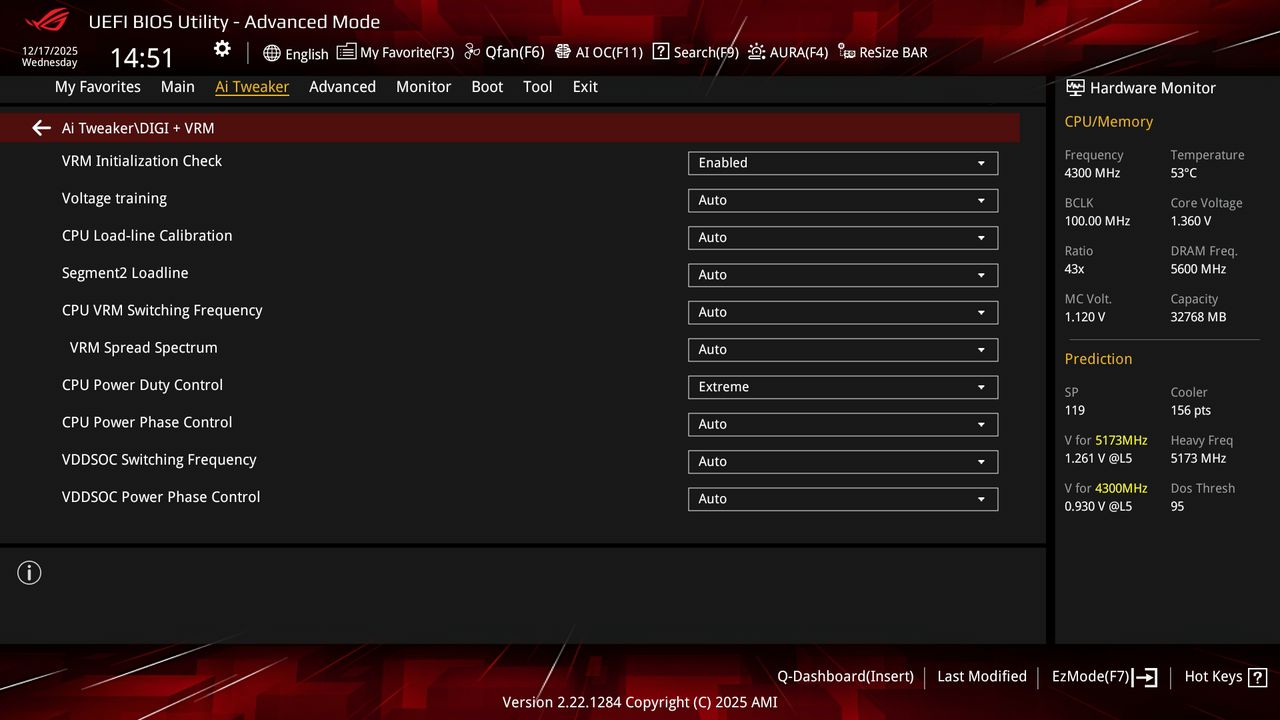

DIGI + VRM

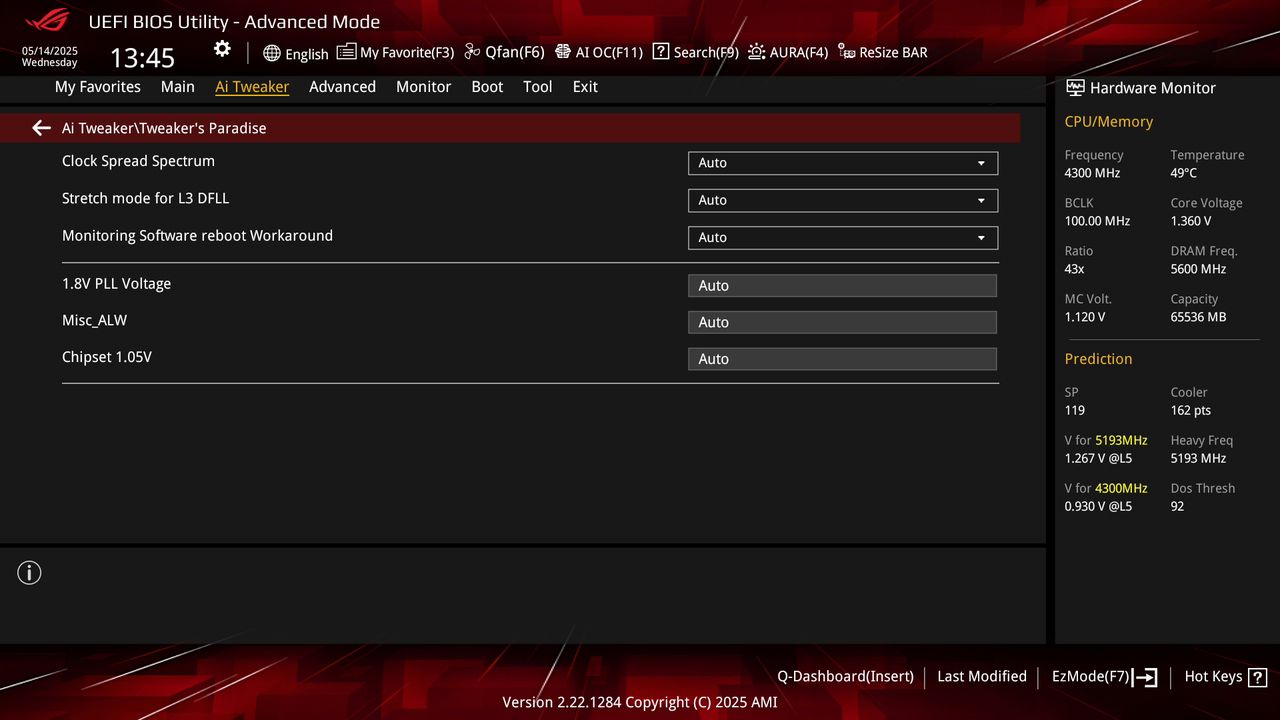

Tweaker\'s Paradise

Core Flex

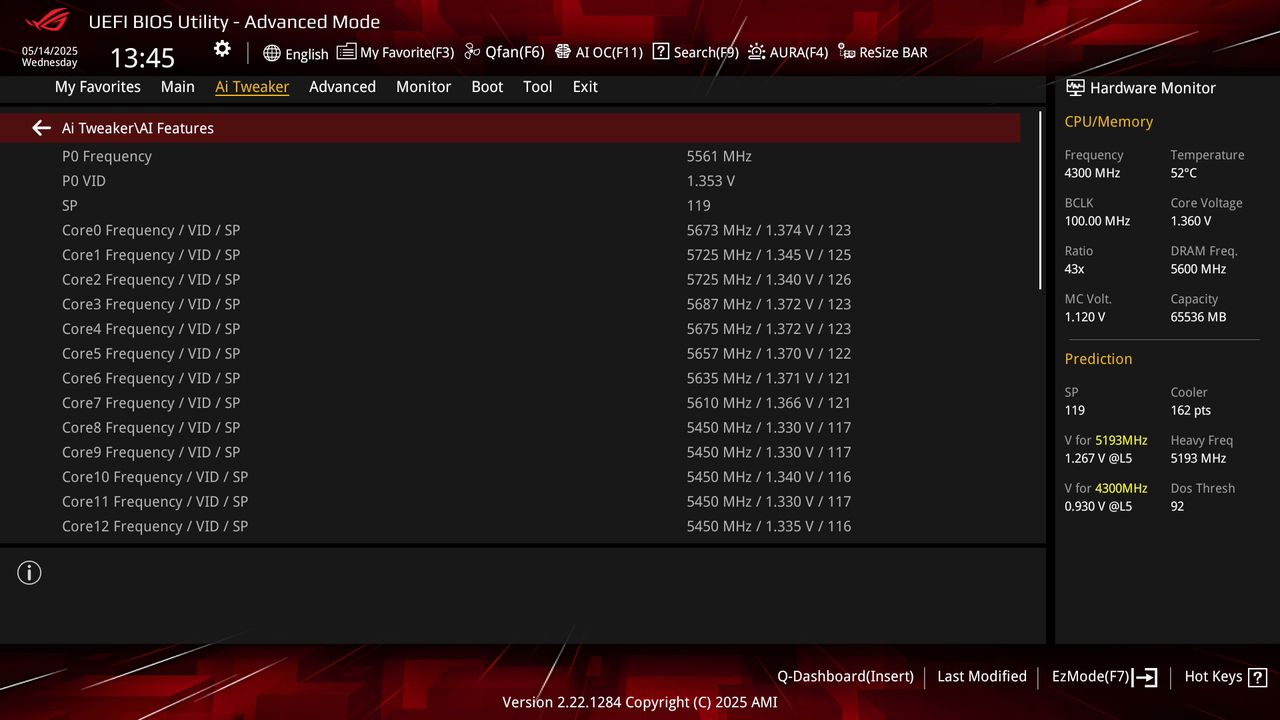

AI Features





Advanced Memory Voltages

Advanced


Trusted Computing

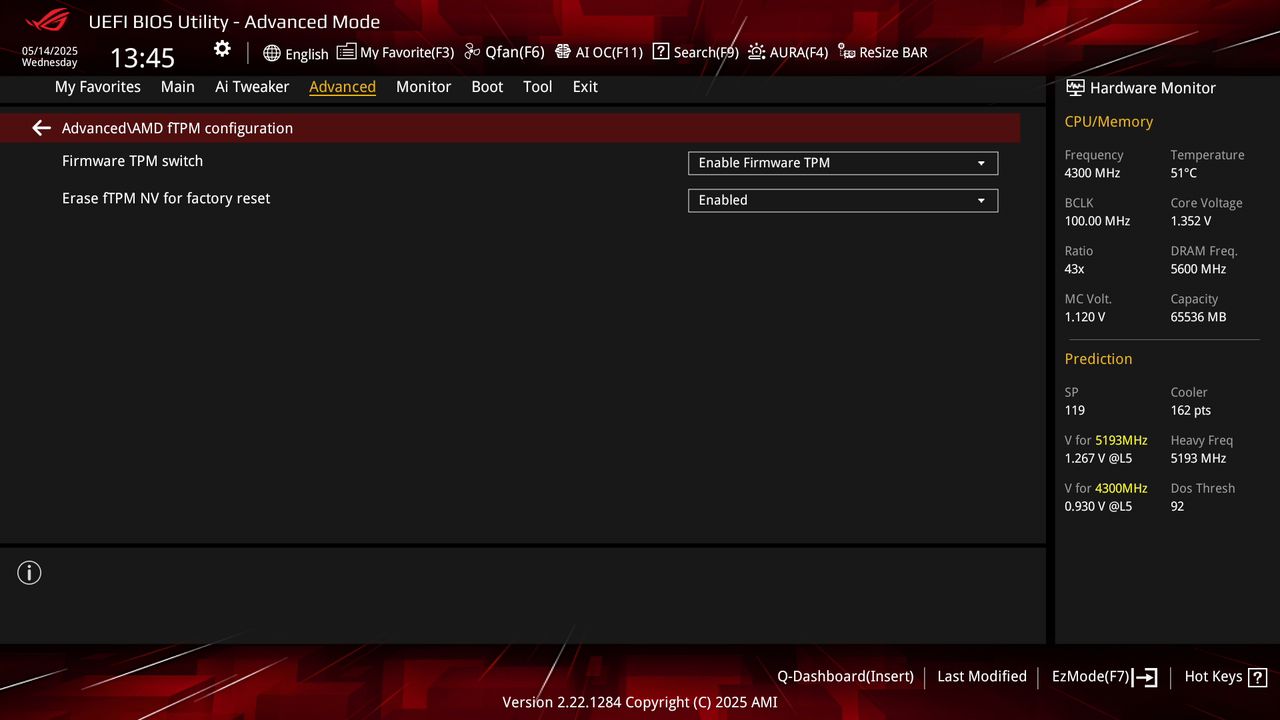

AMD fTPM Configuration

UEFI Variables Protection

CPU Configuration

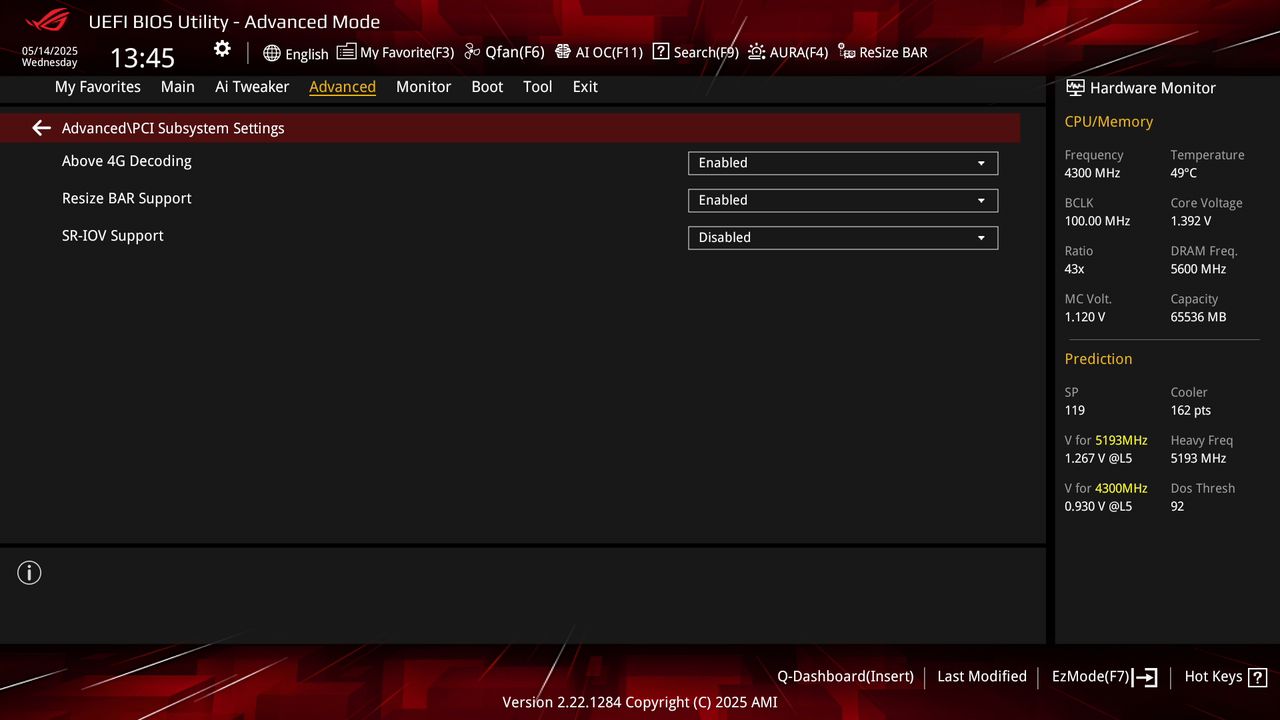

PCI Subsystem Settings

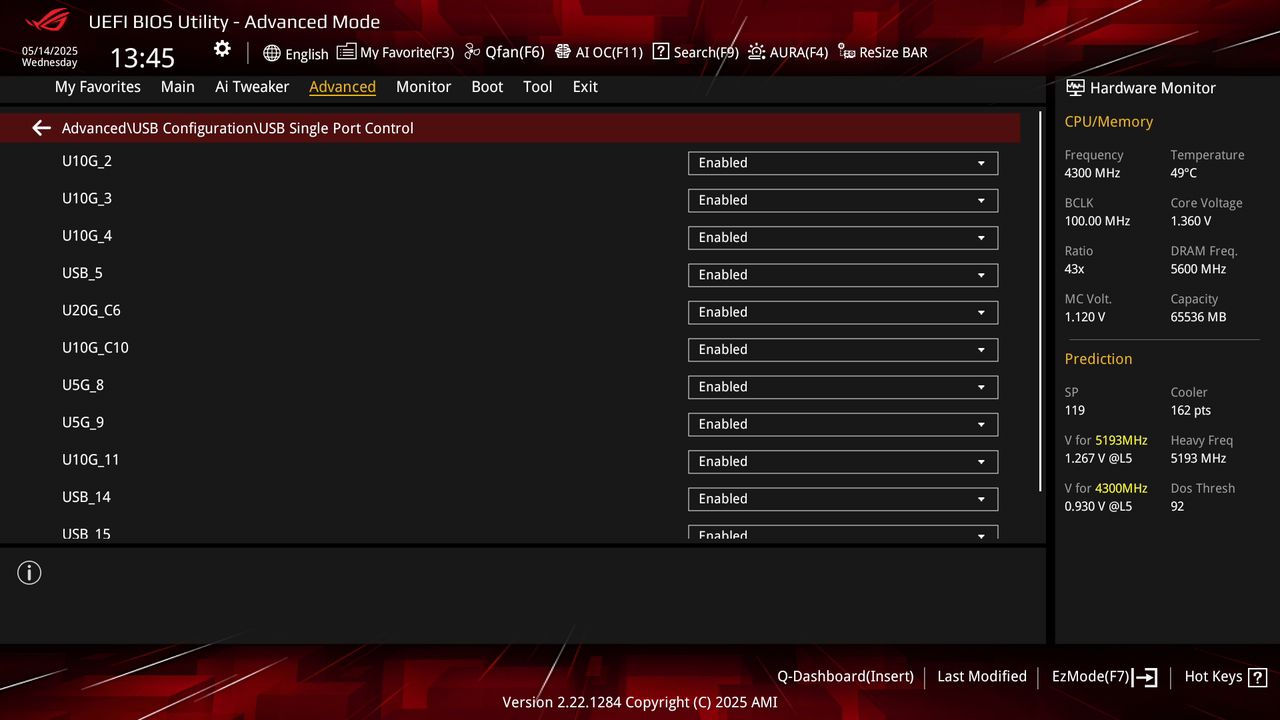

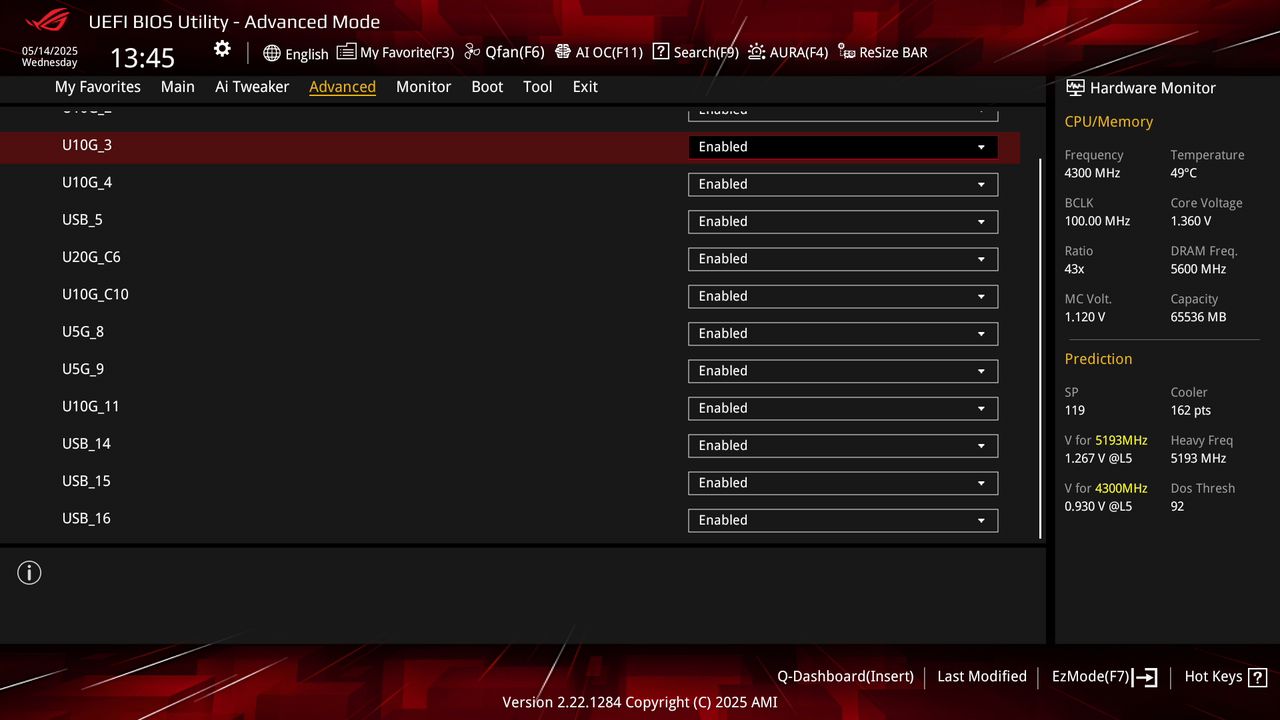

USB Configuration



Network Stack Configuration

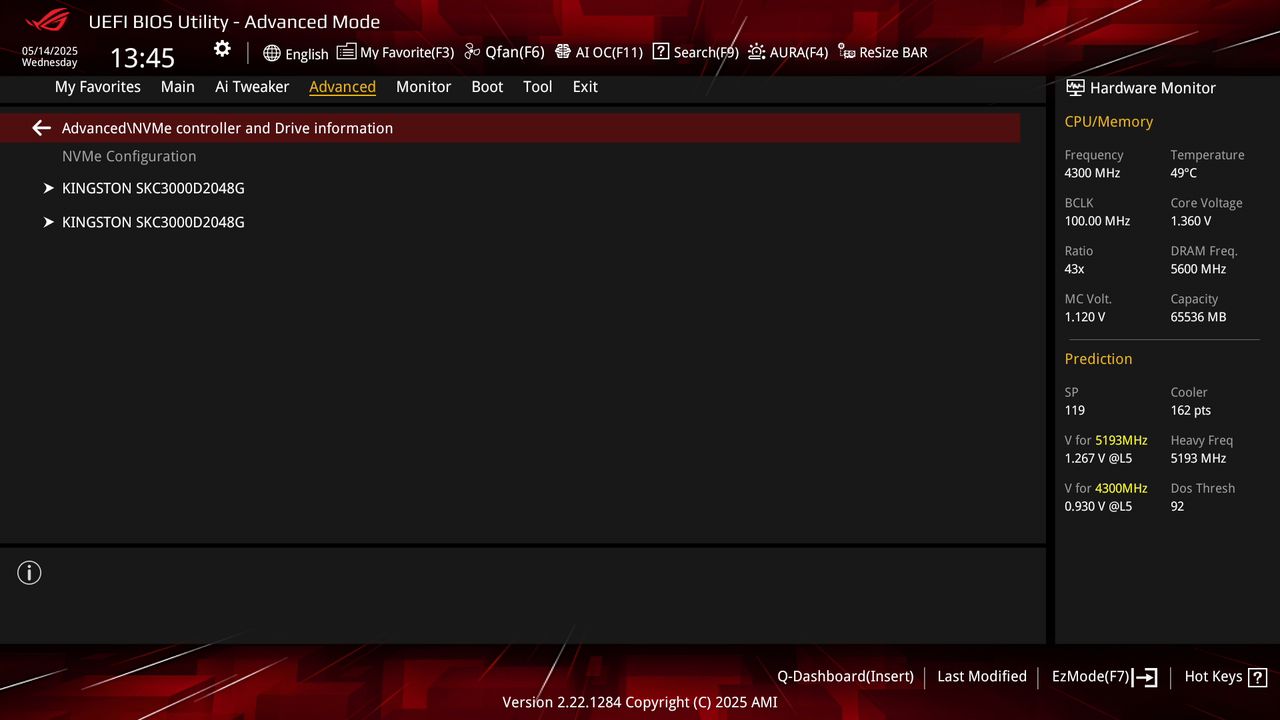

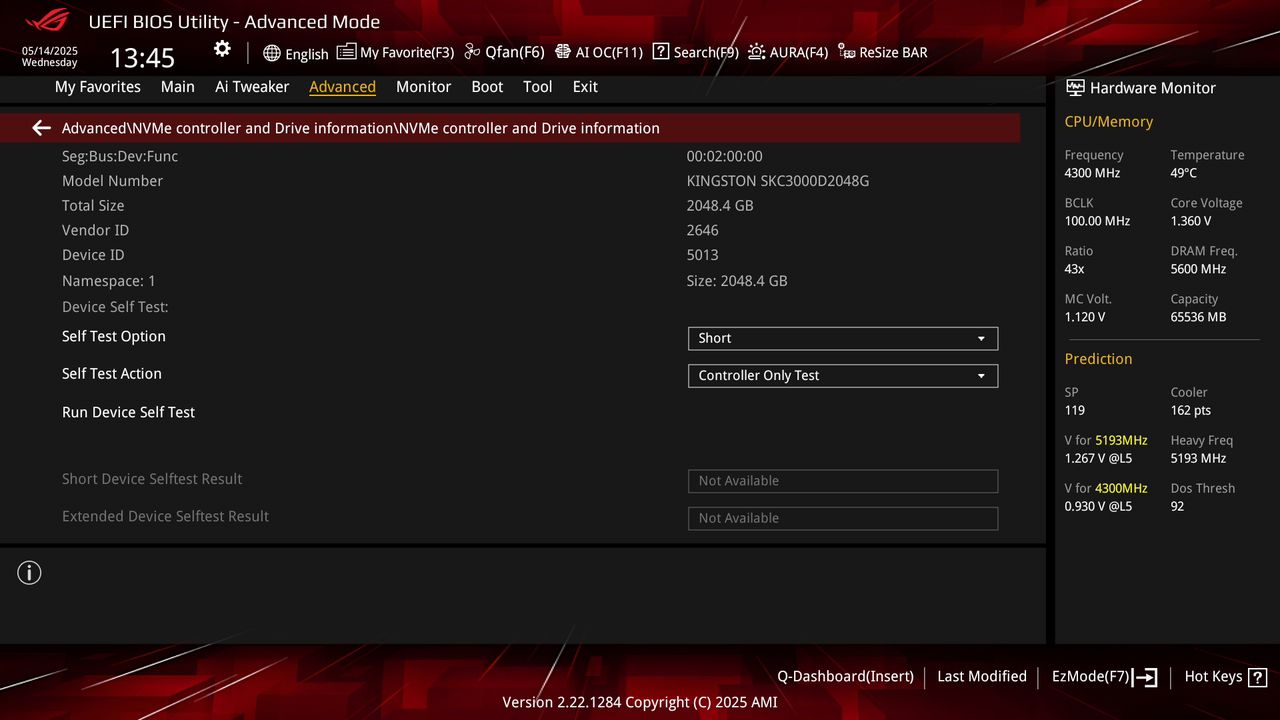

NVMe Controller and Drive Information


HDD/SSD SMART Information

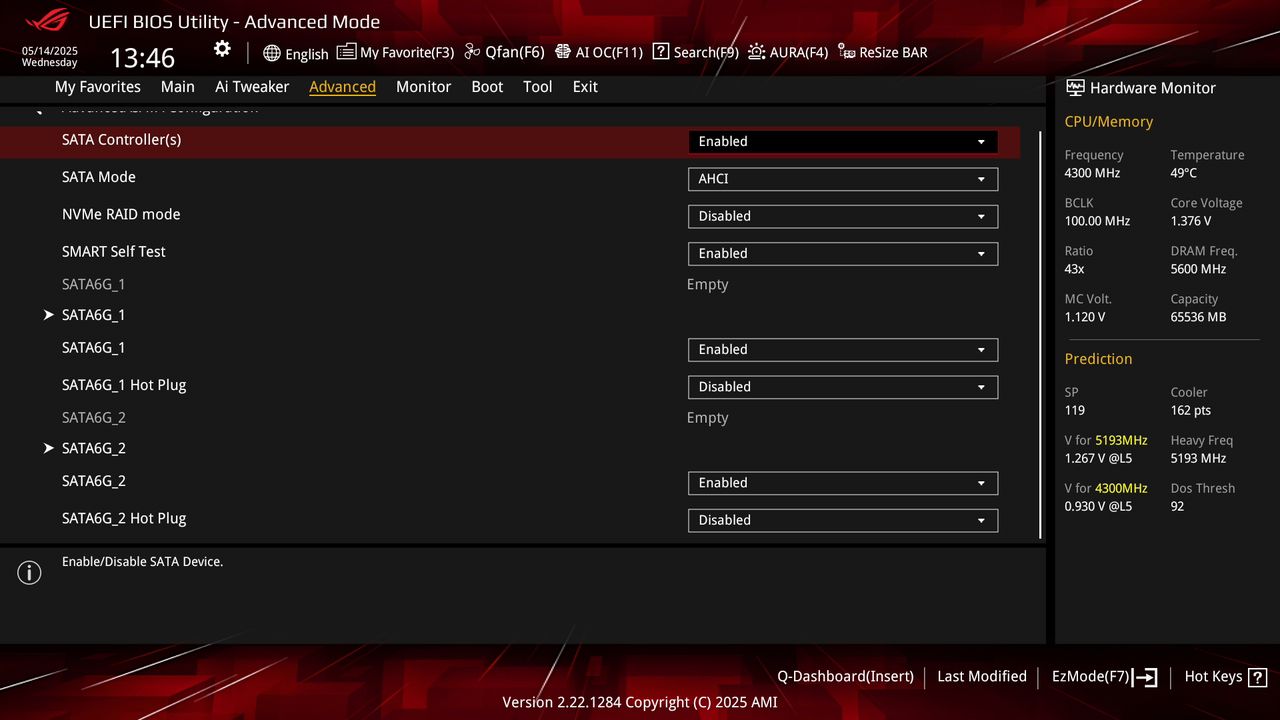

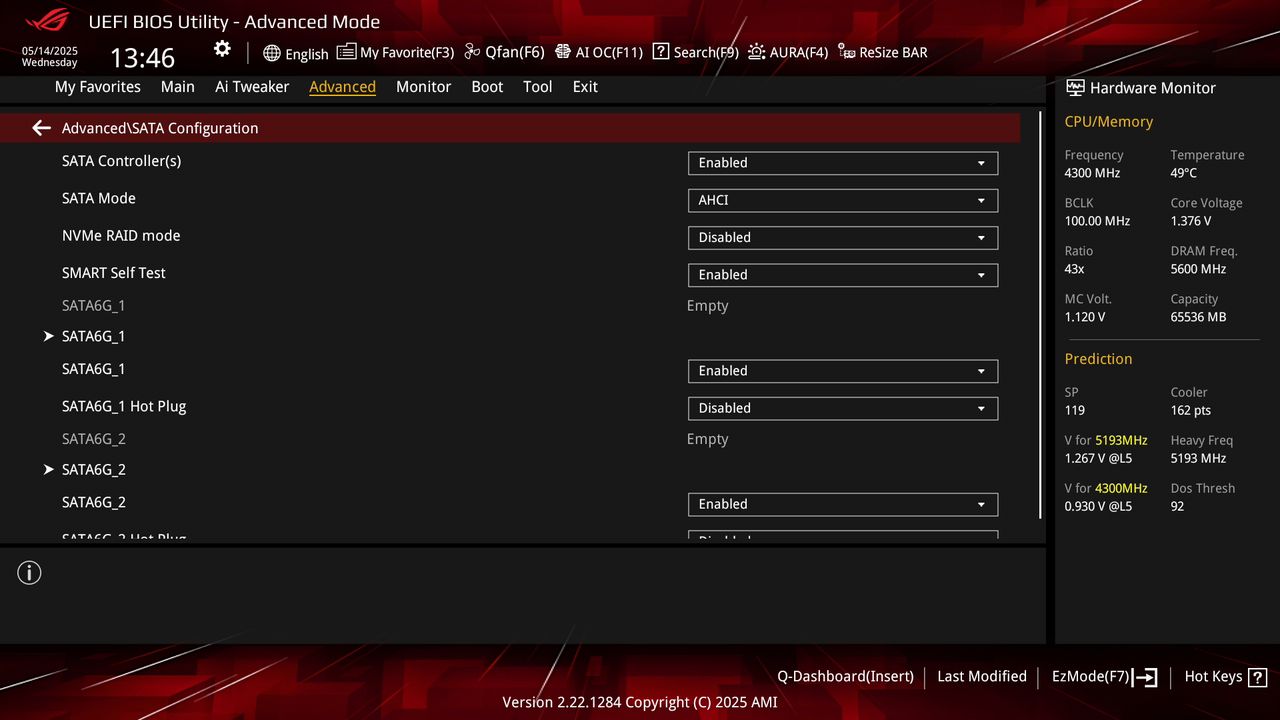

SATA Configuration

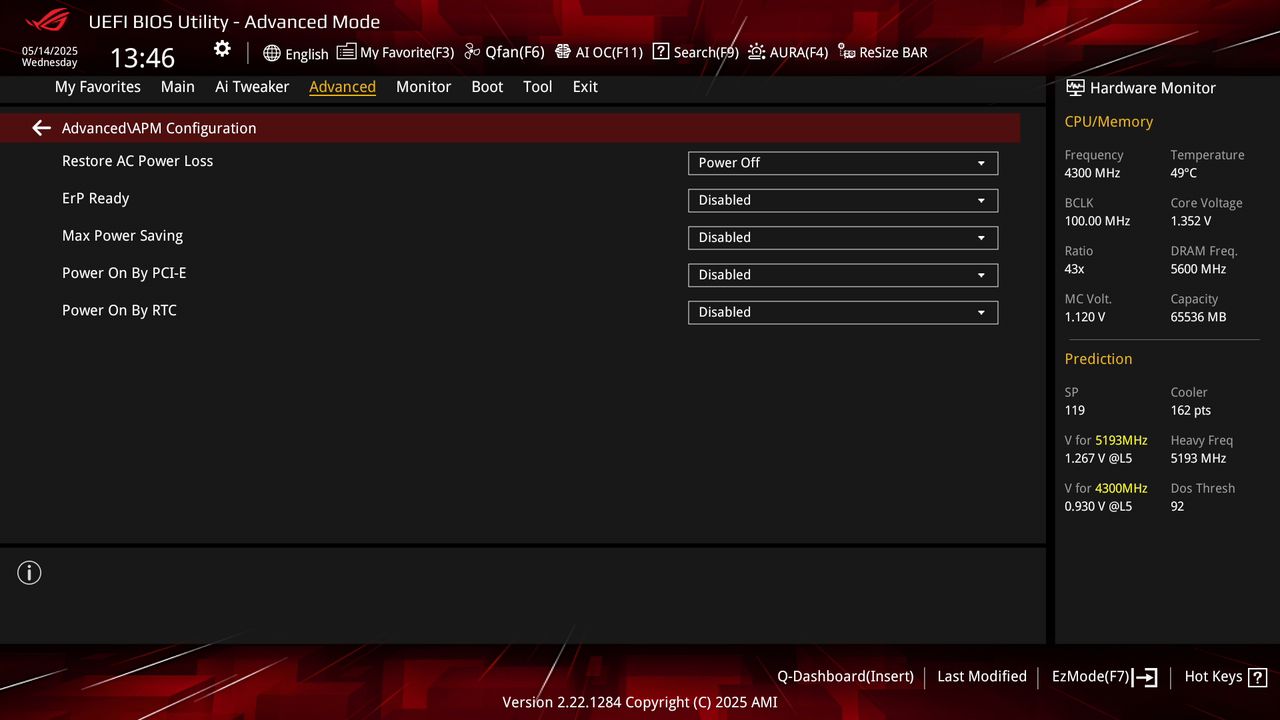

APM Configuration

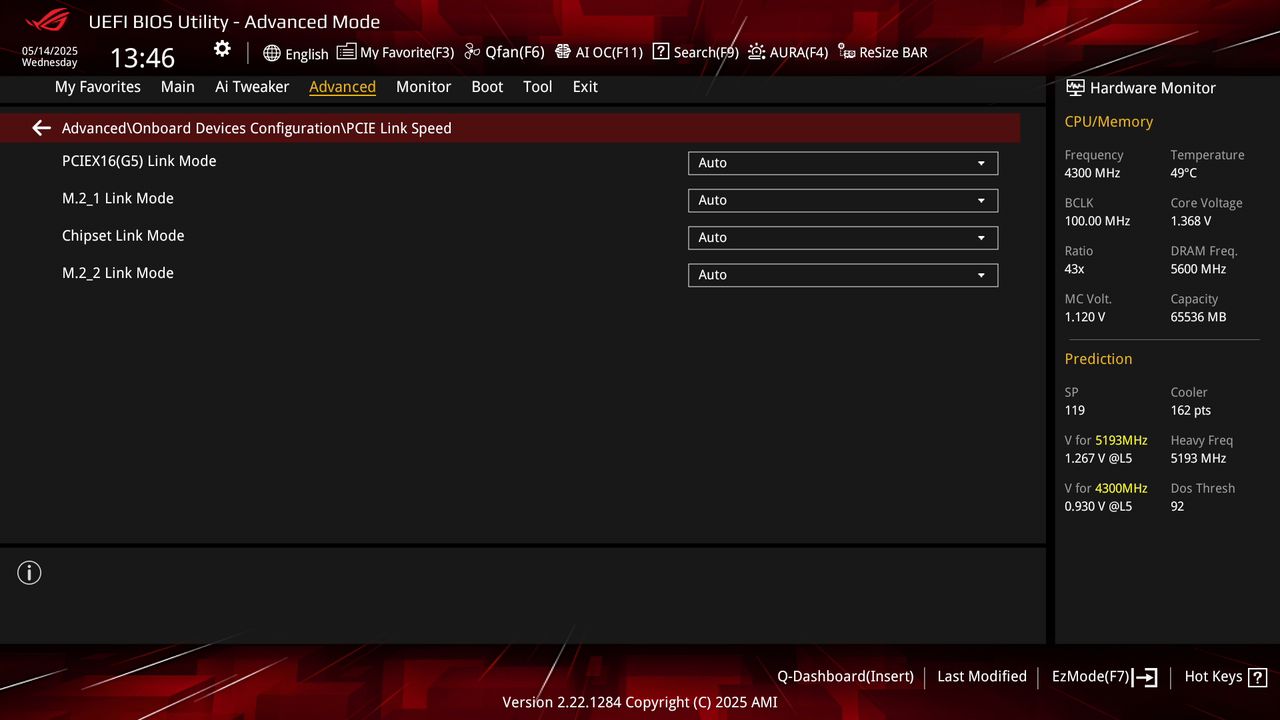

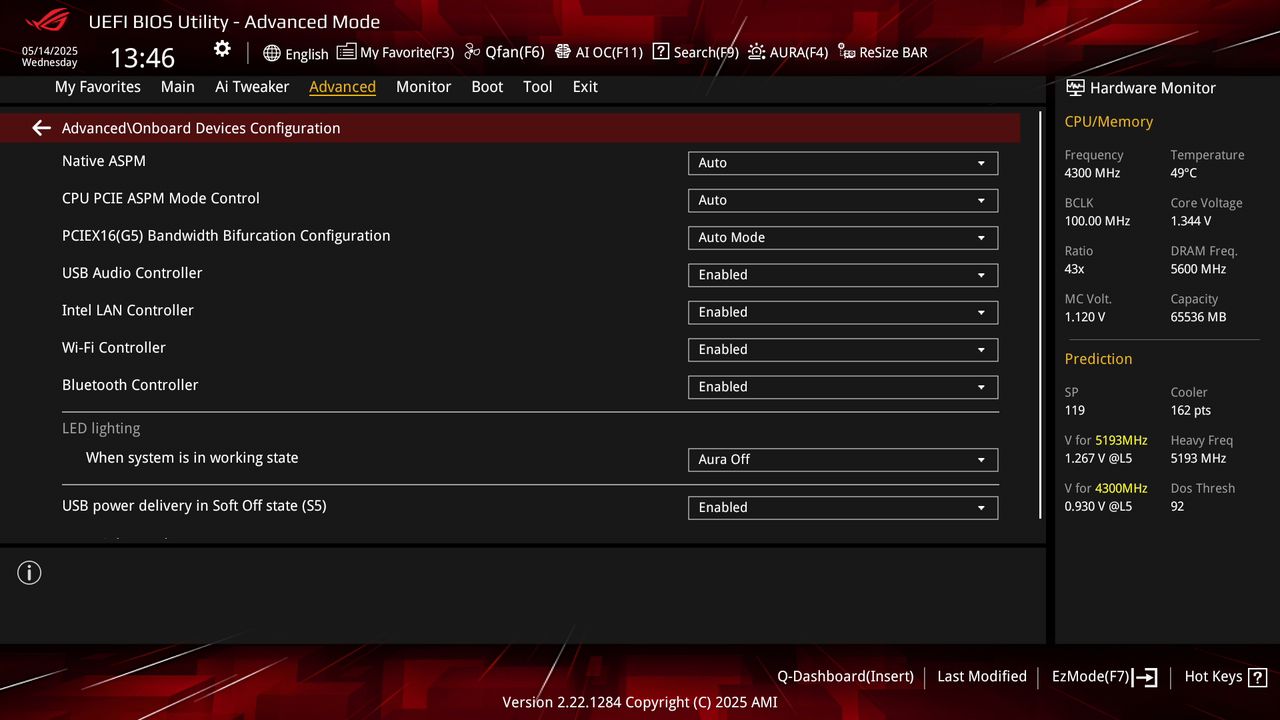

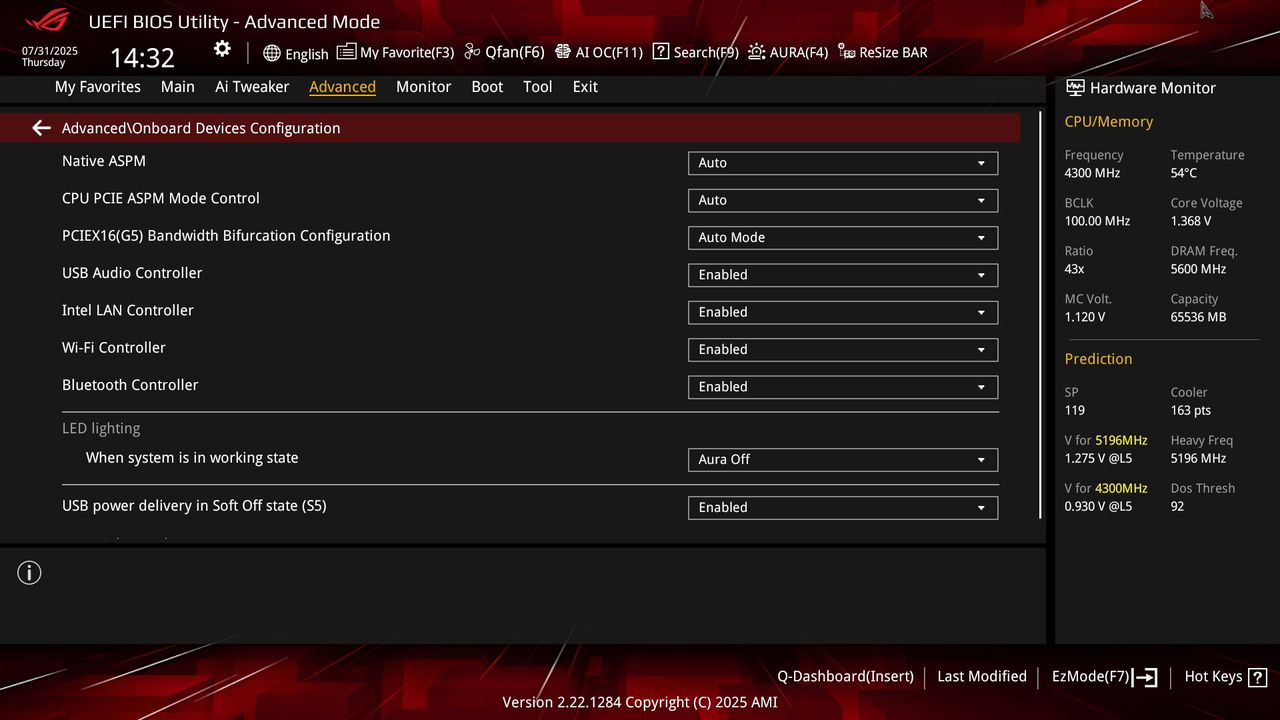

Onboard Devices Configuration

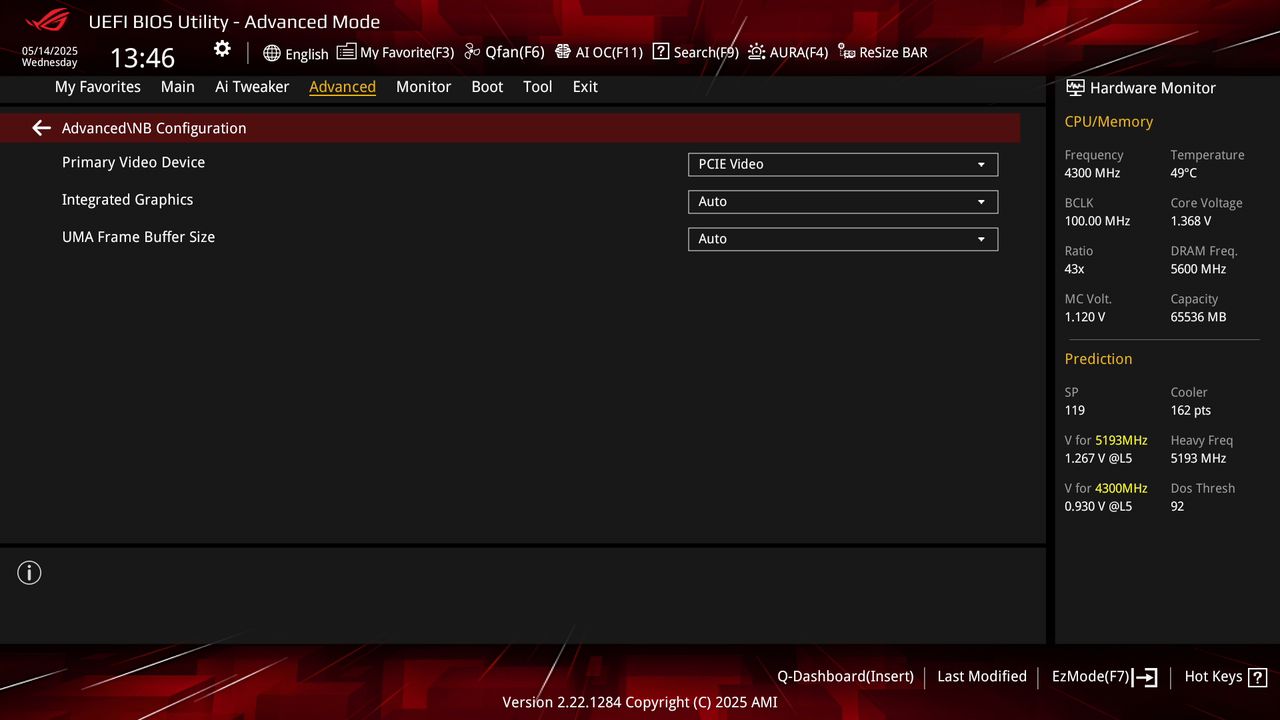

NB Configuration

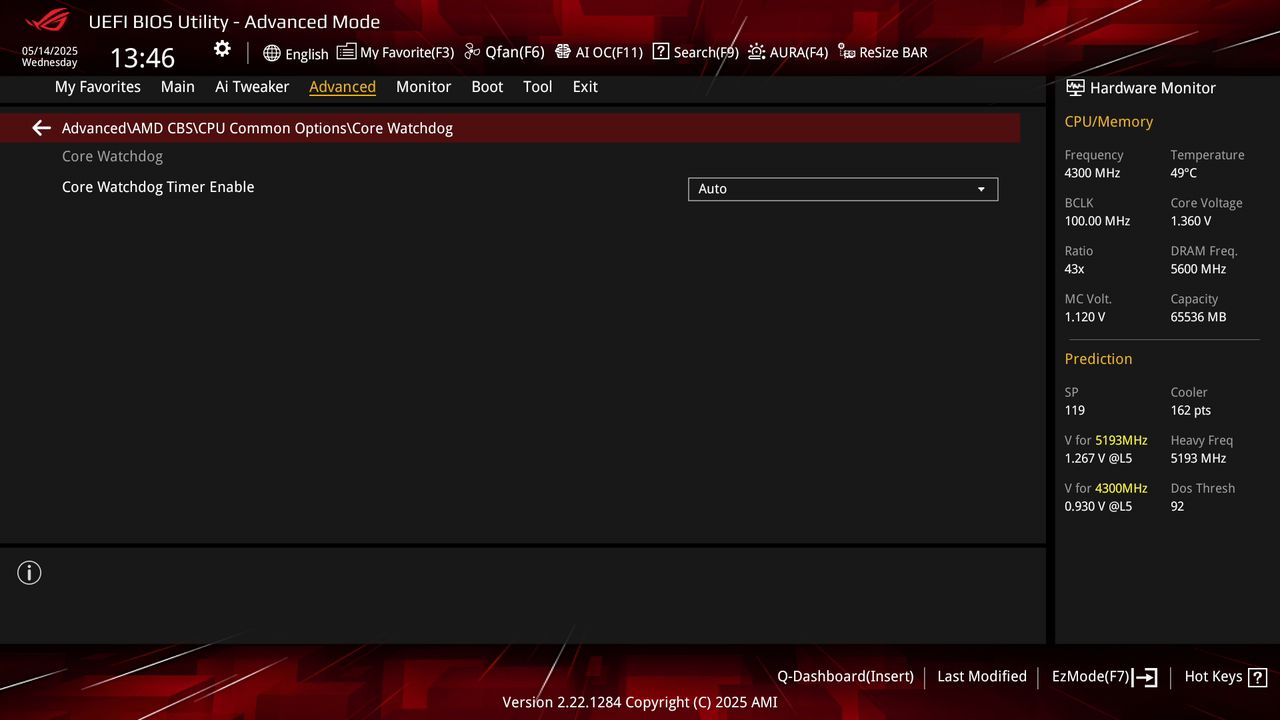

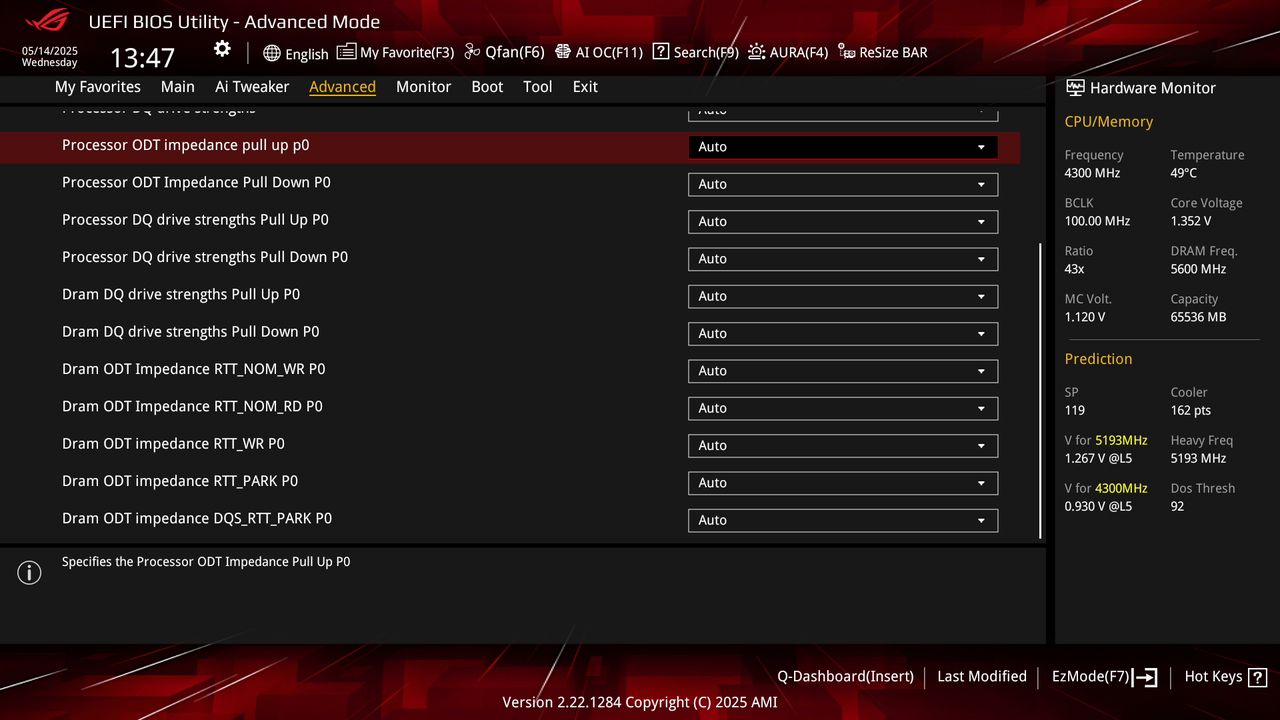

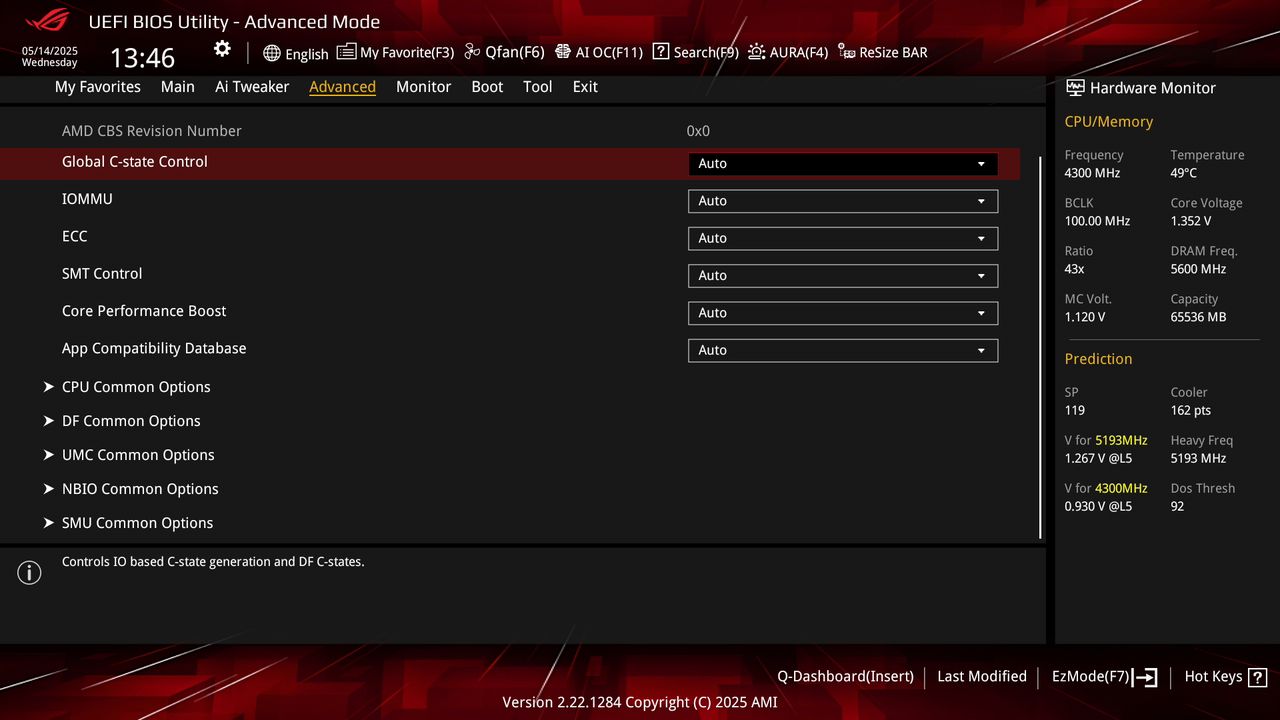

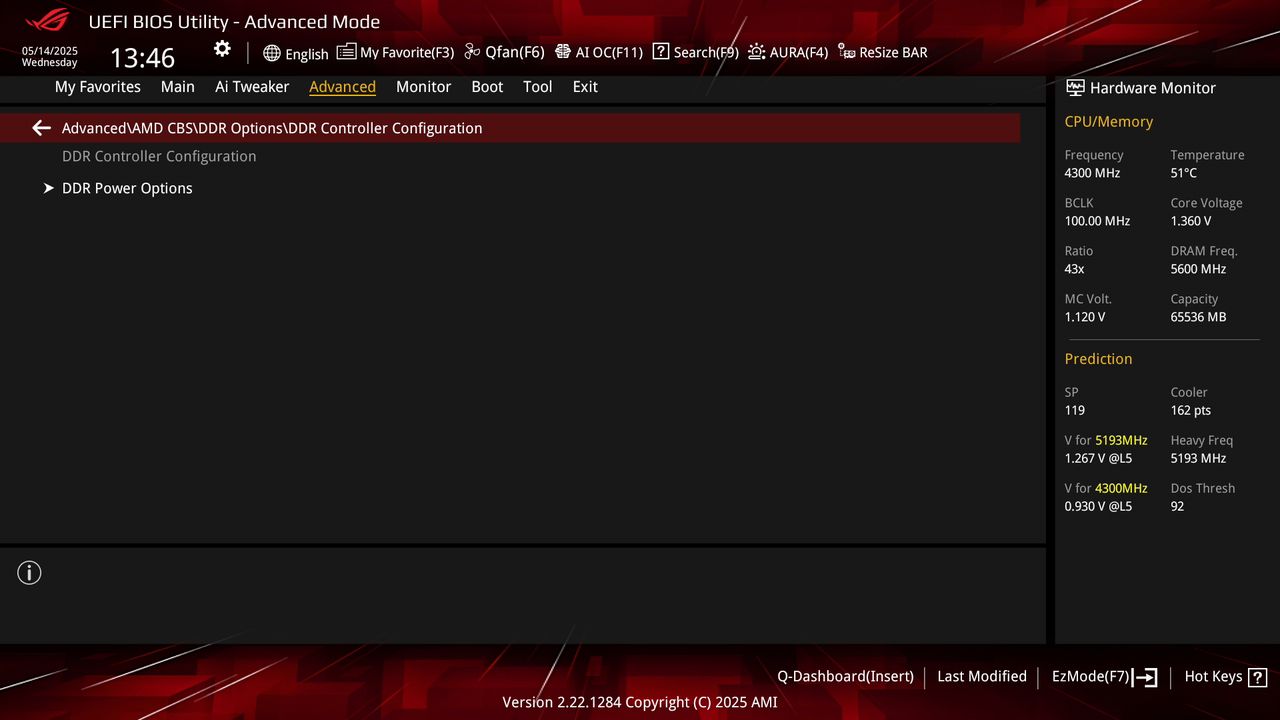

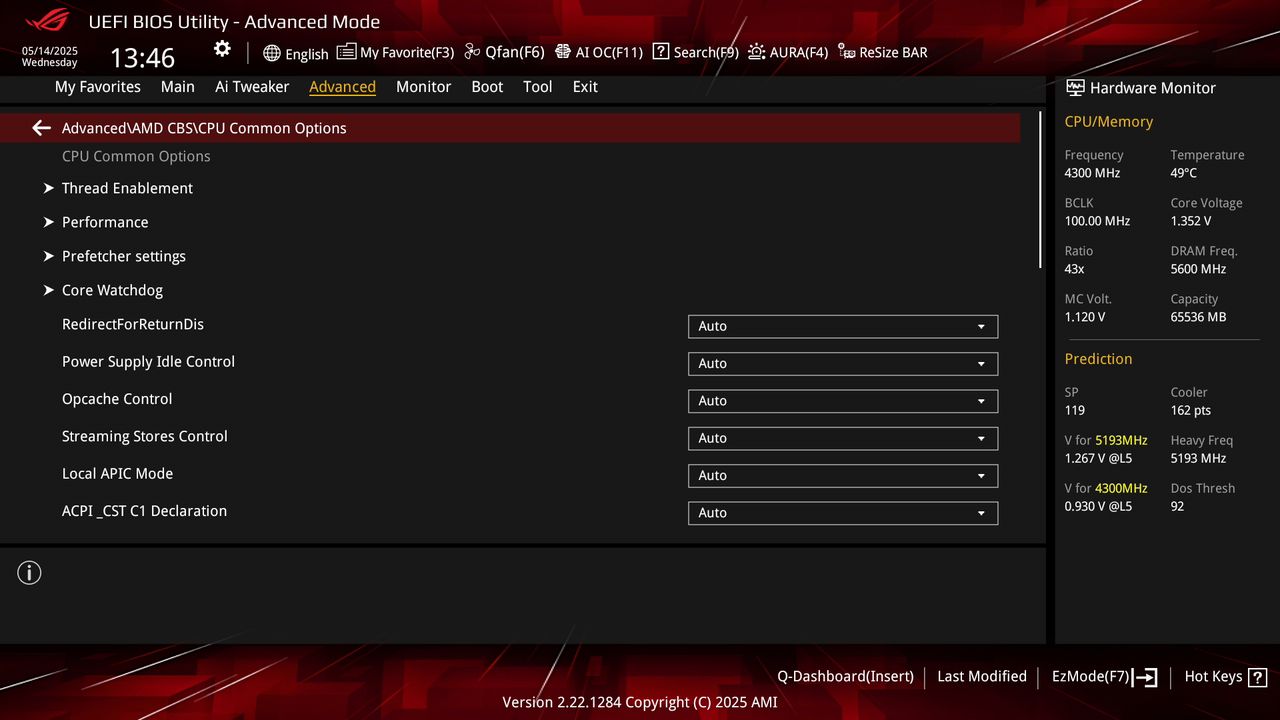

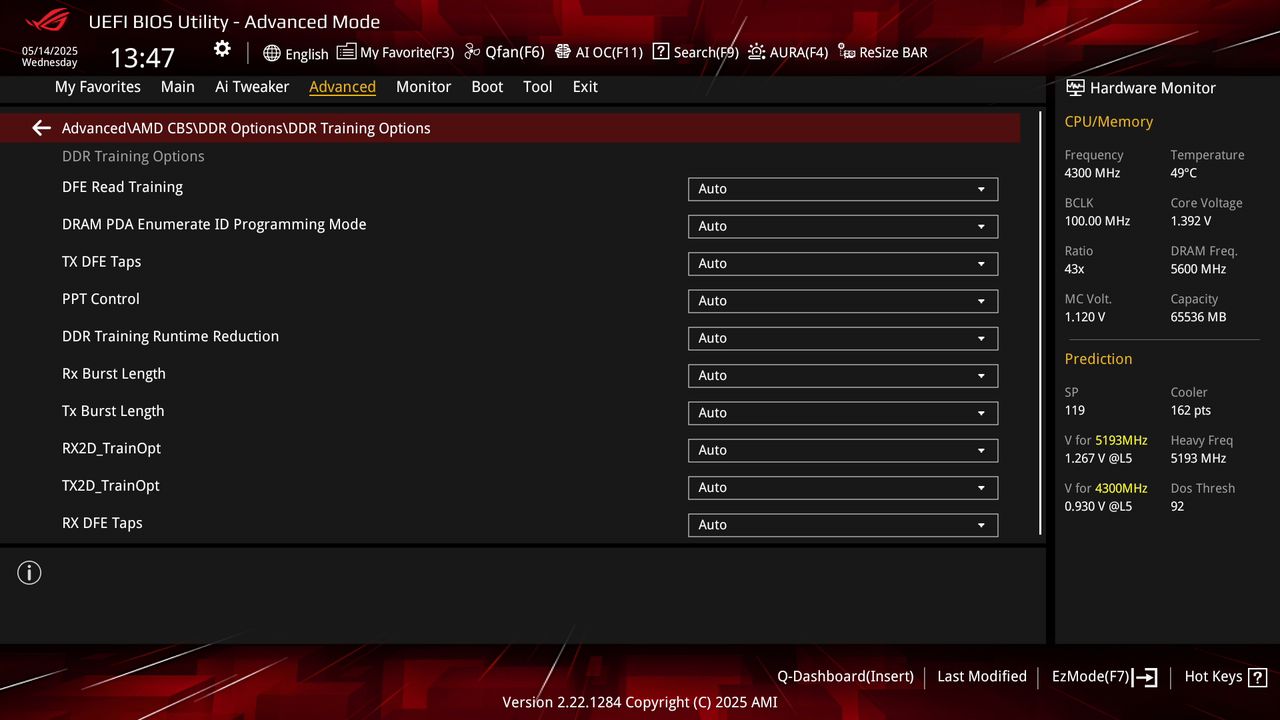

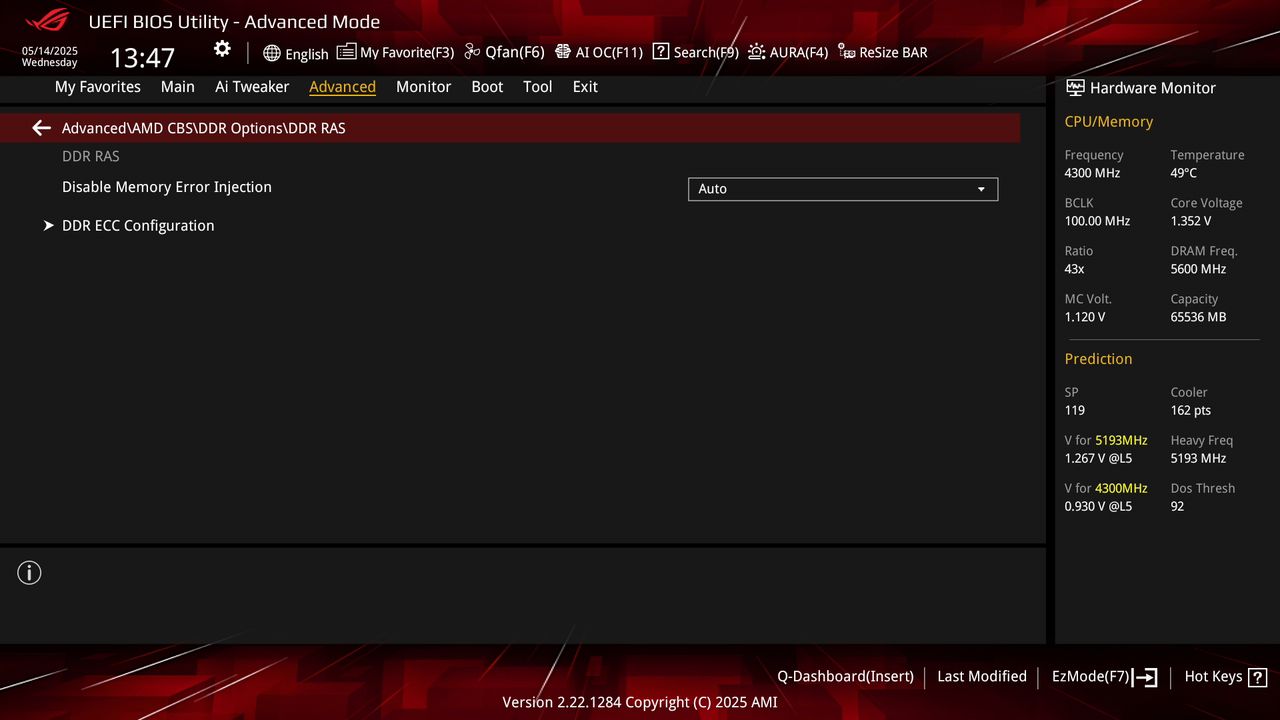

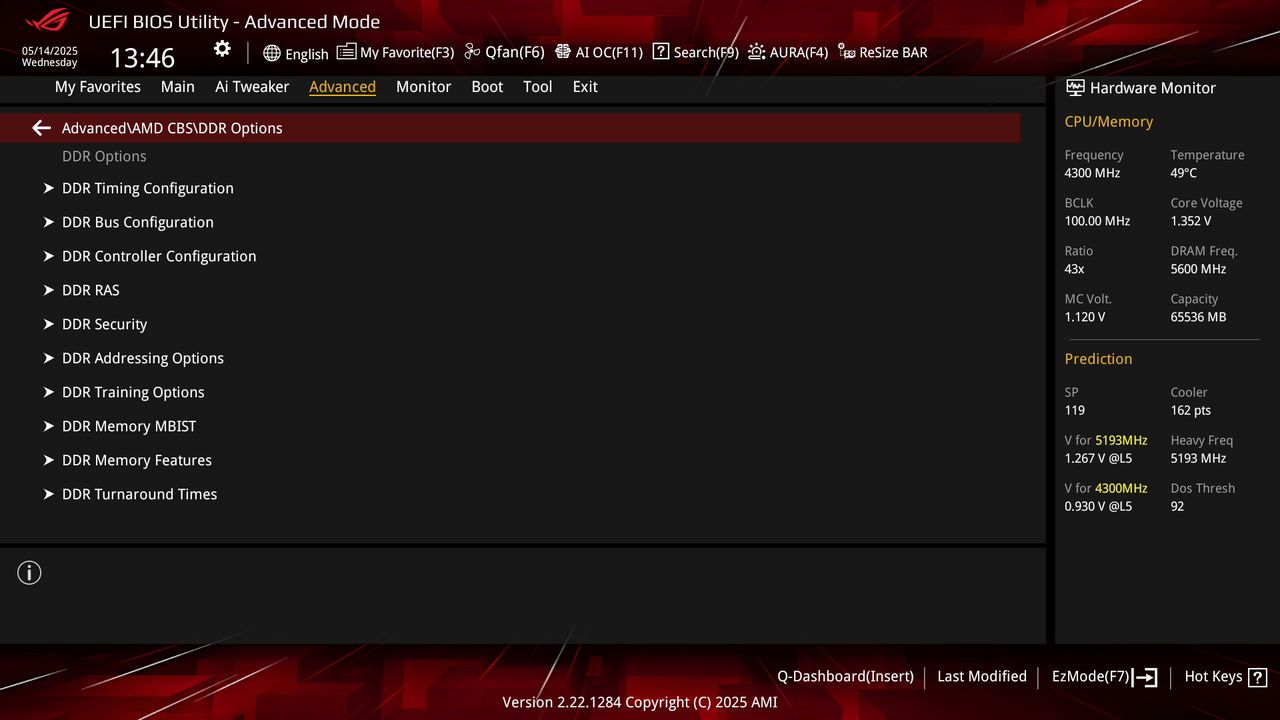

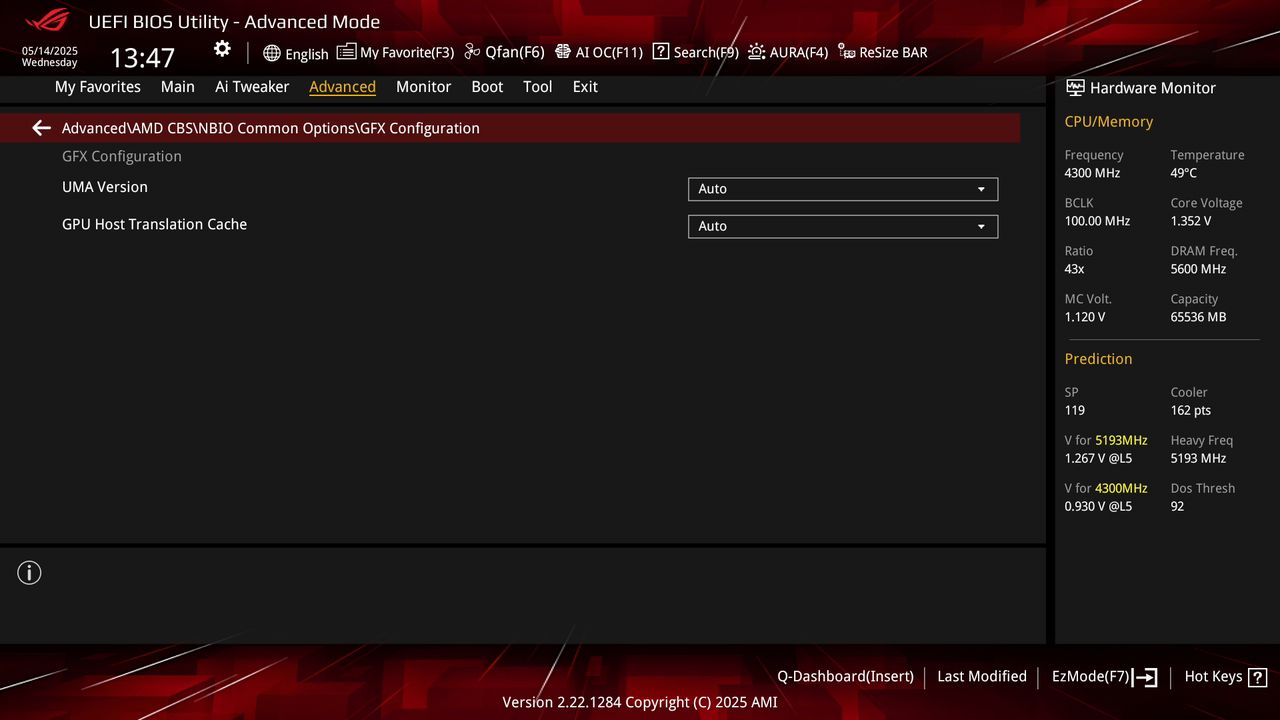

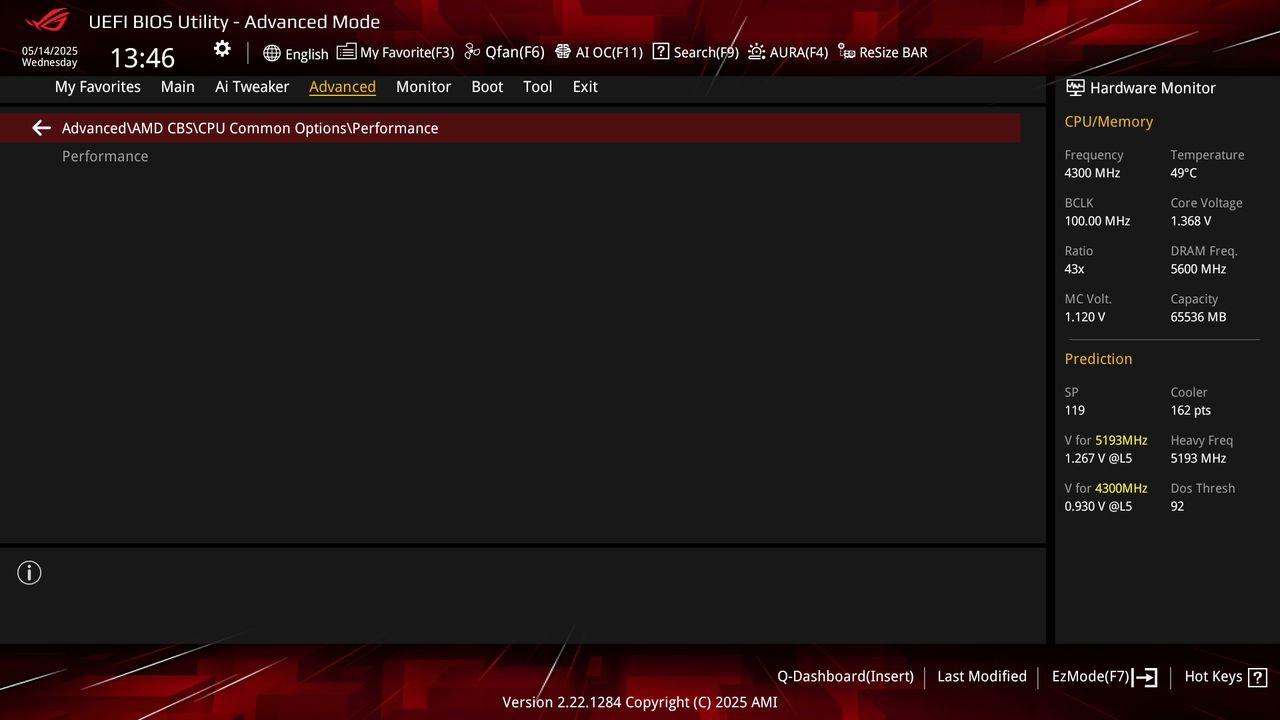

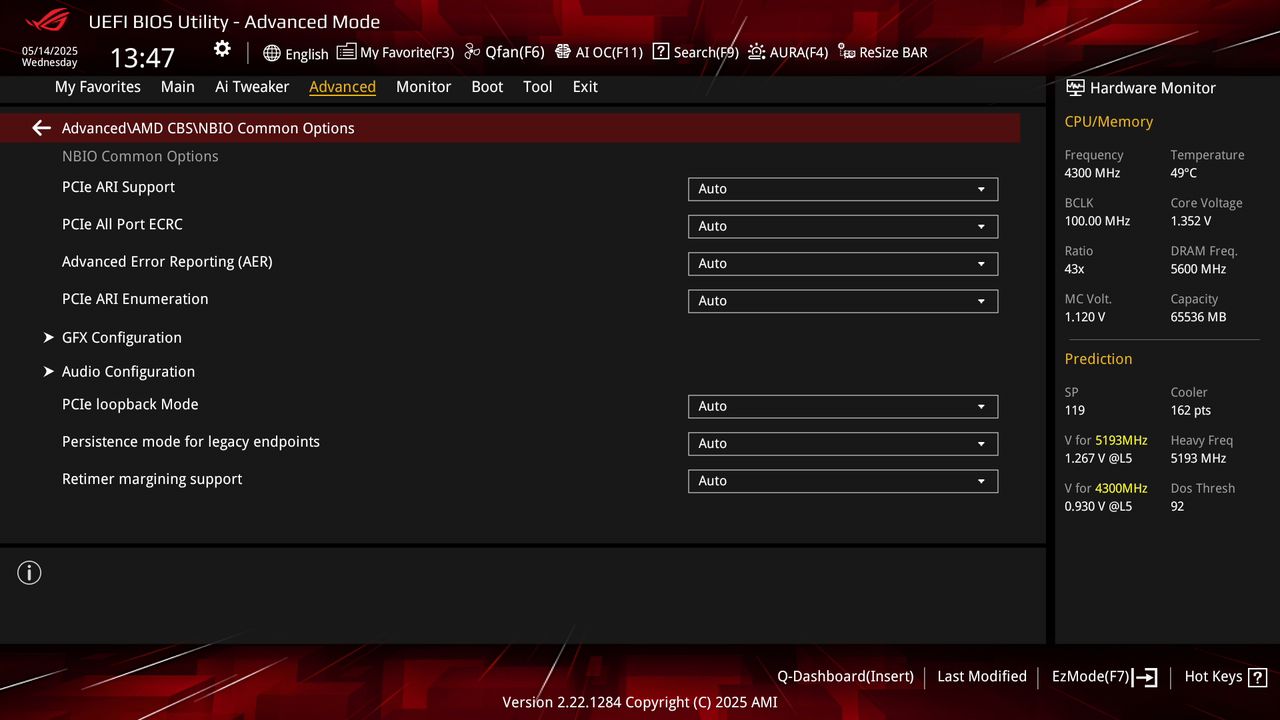

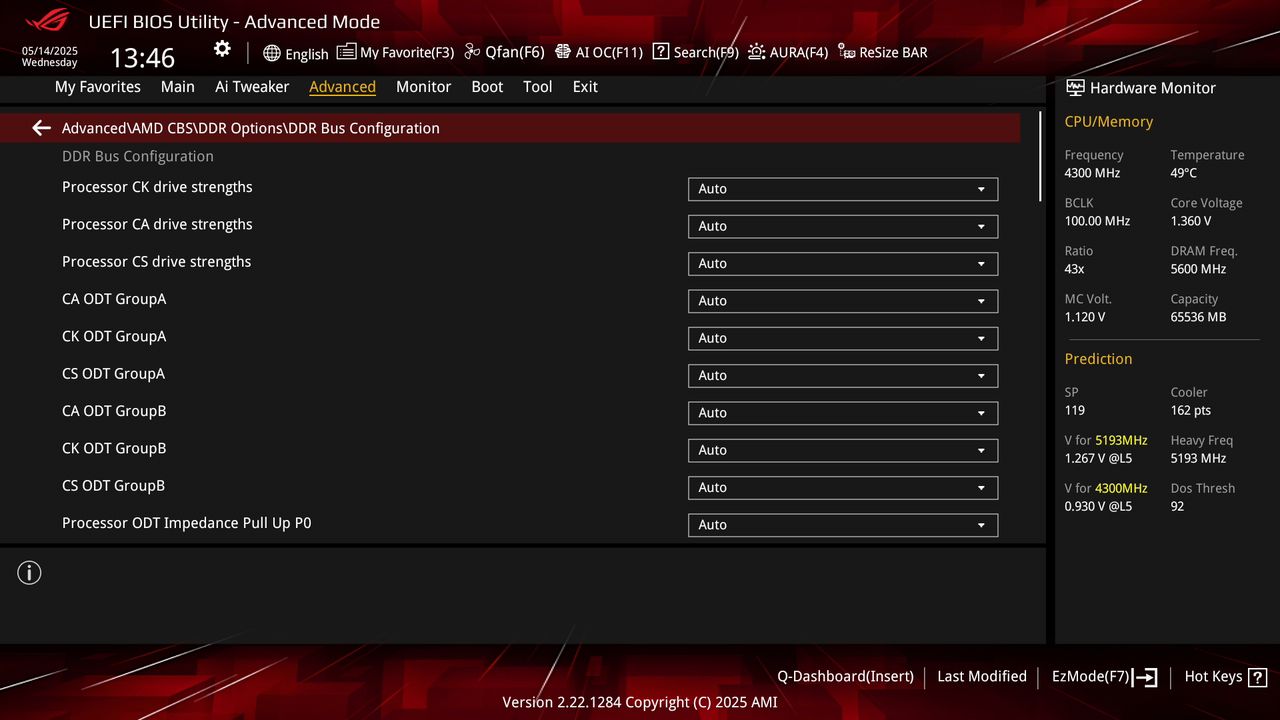

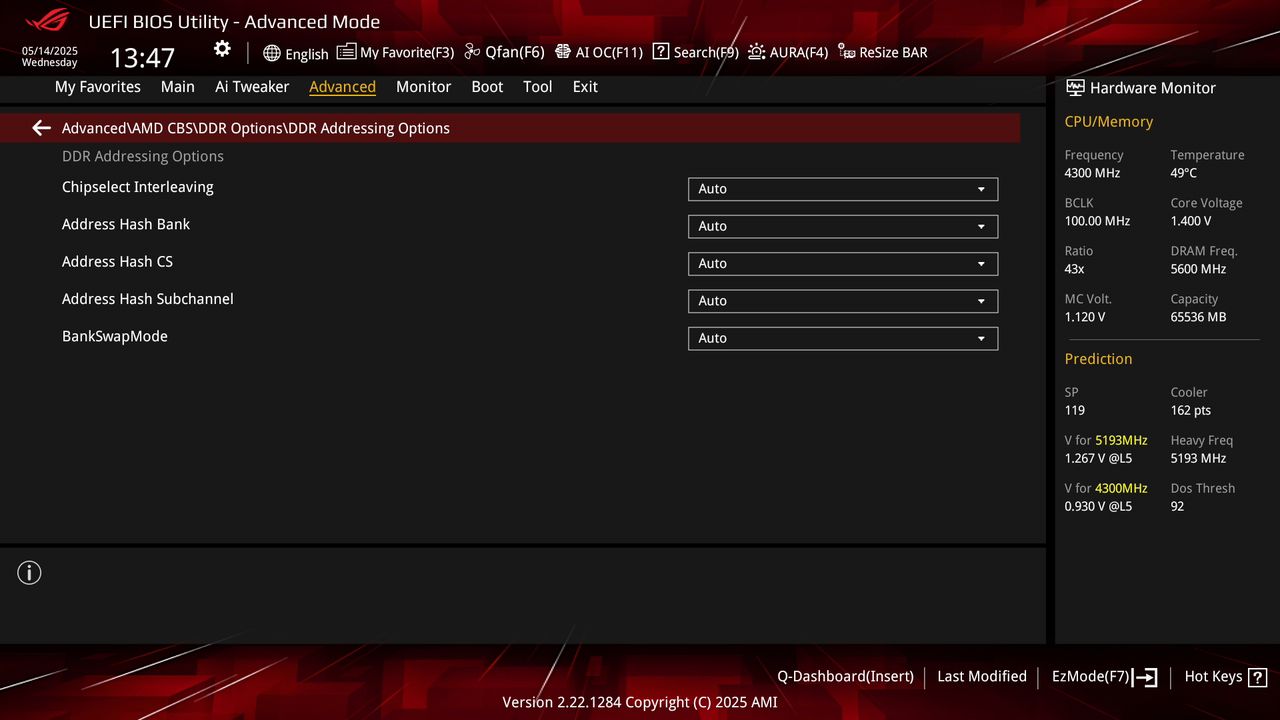

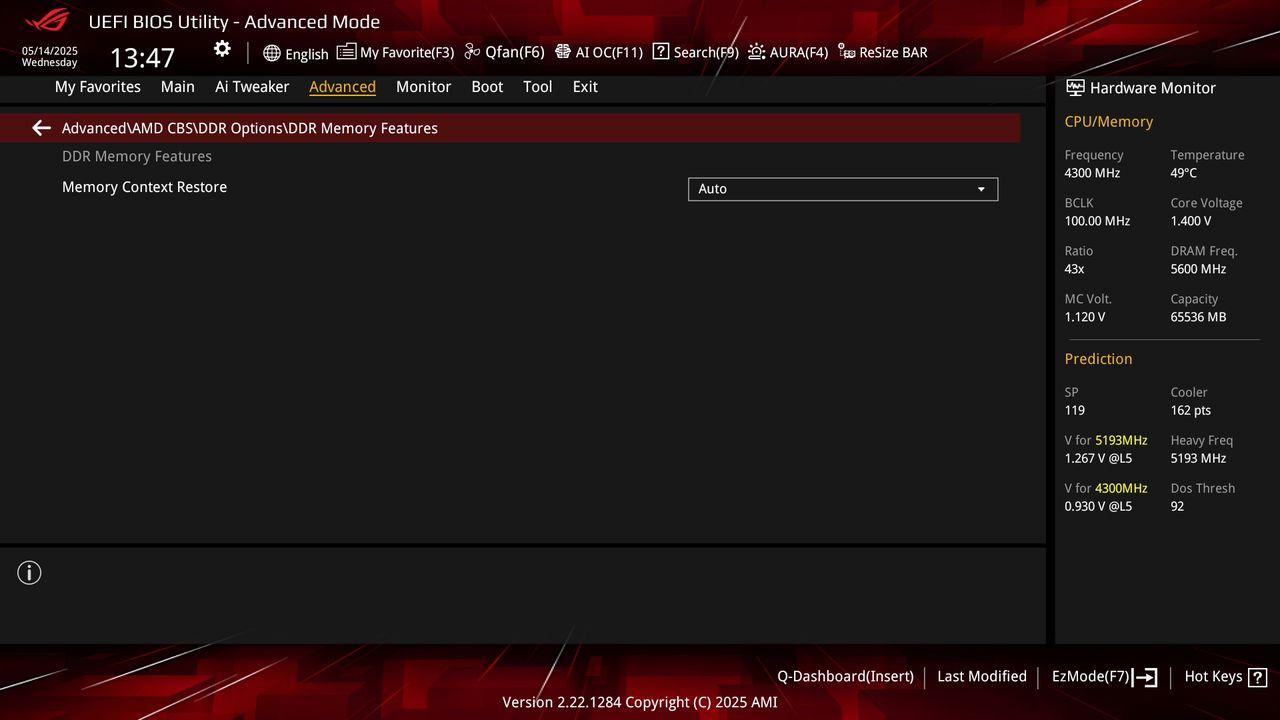

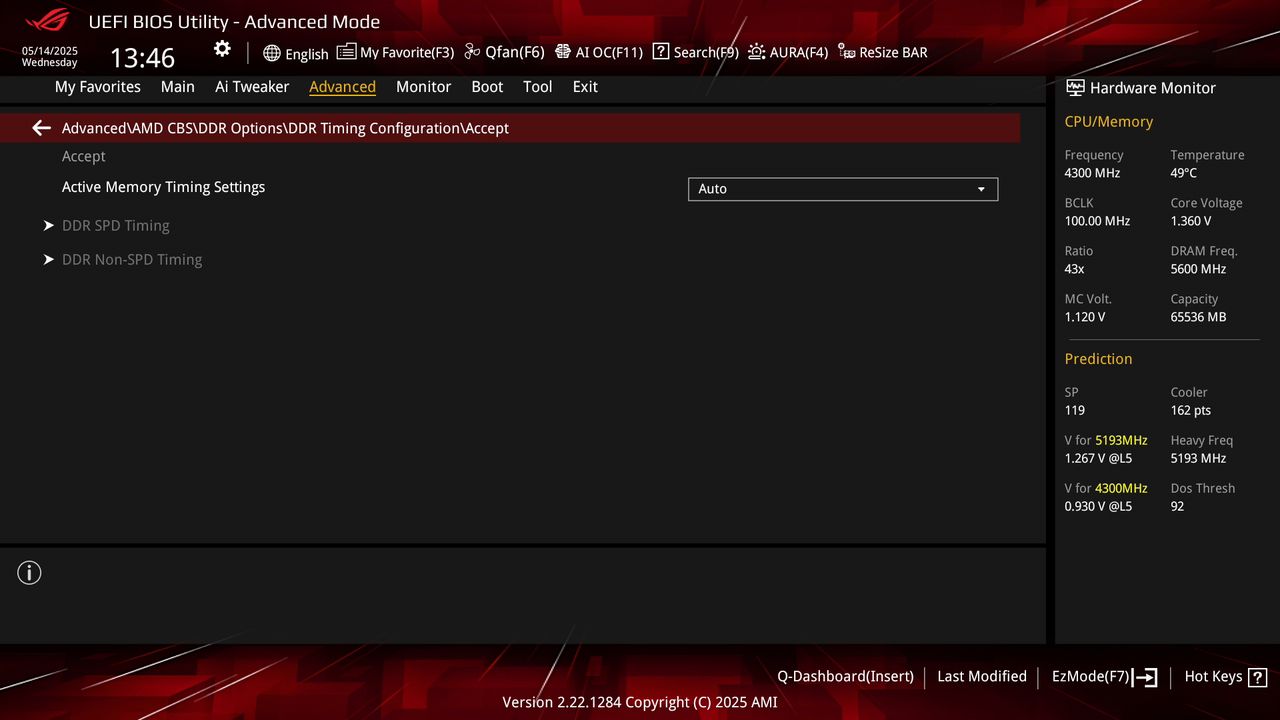

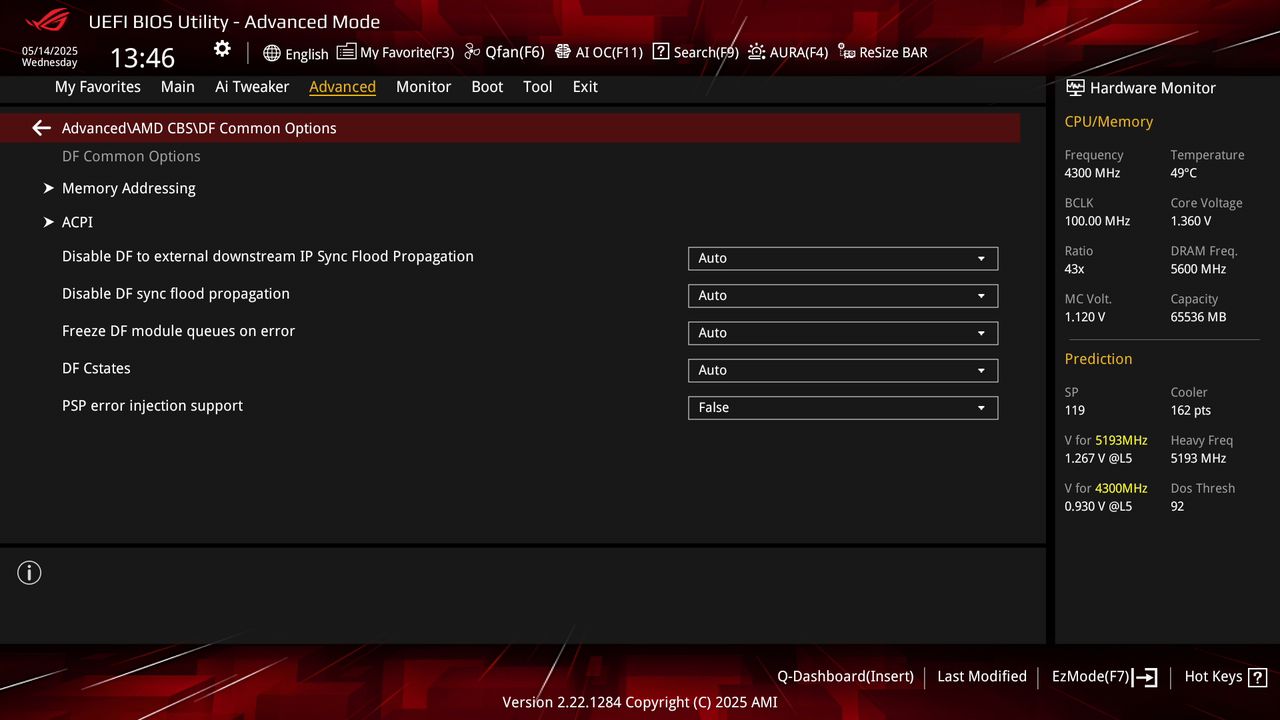

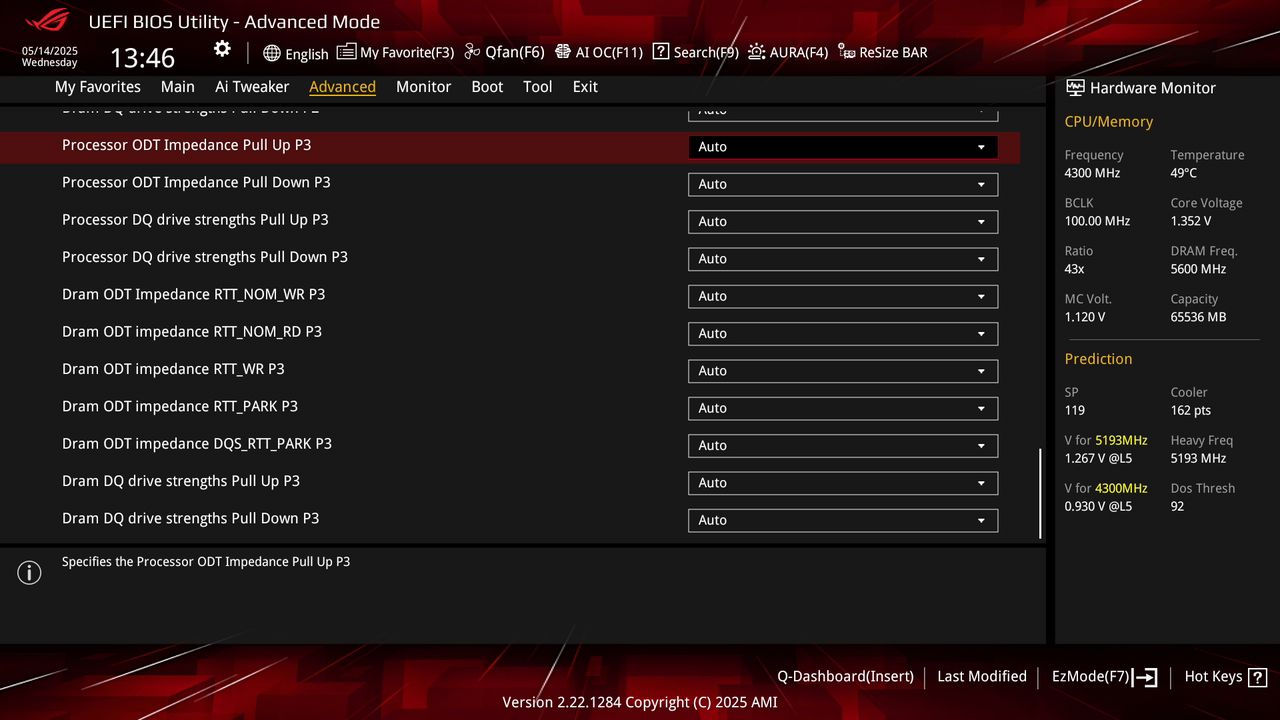

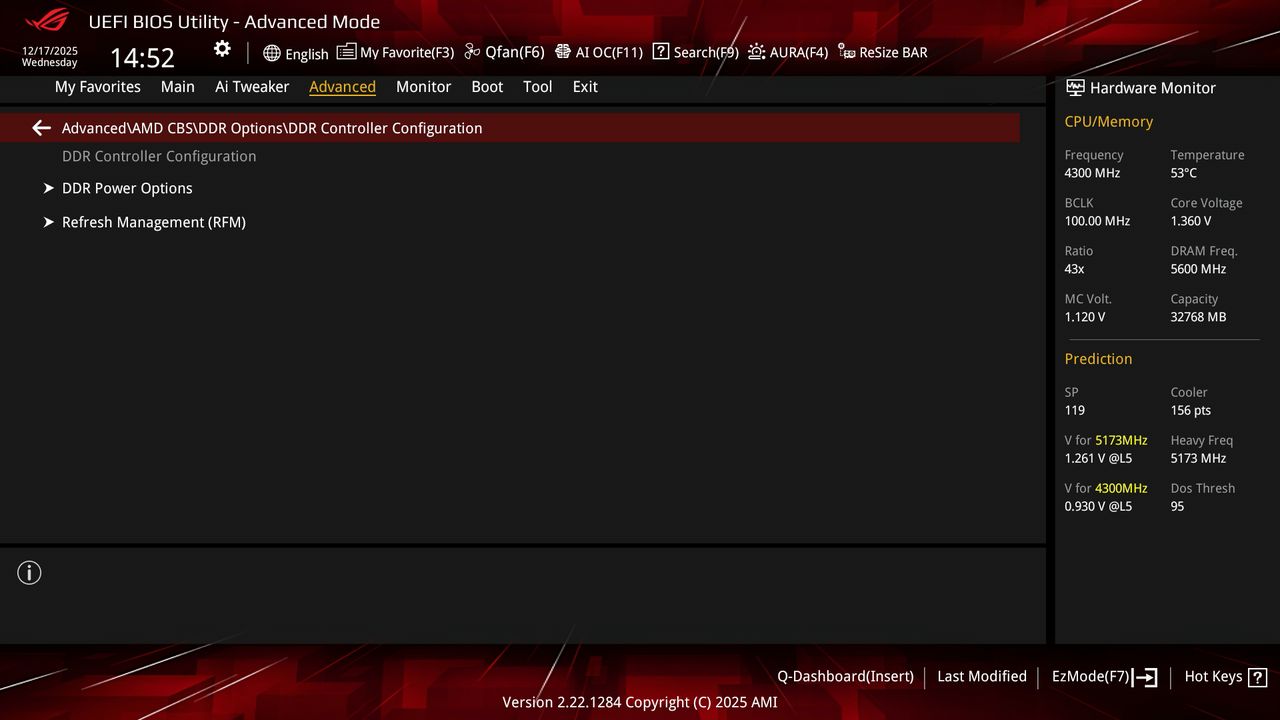

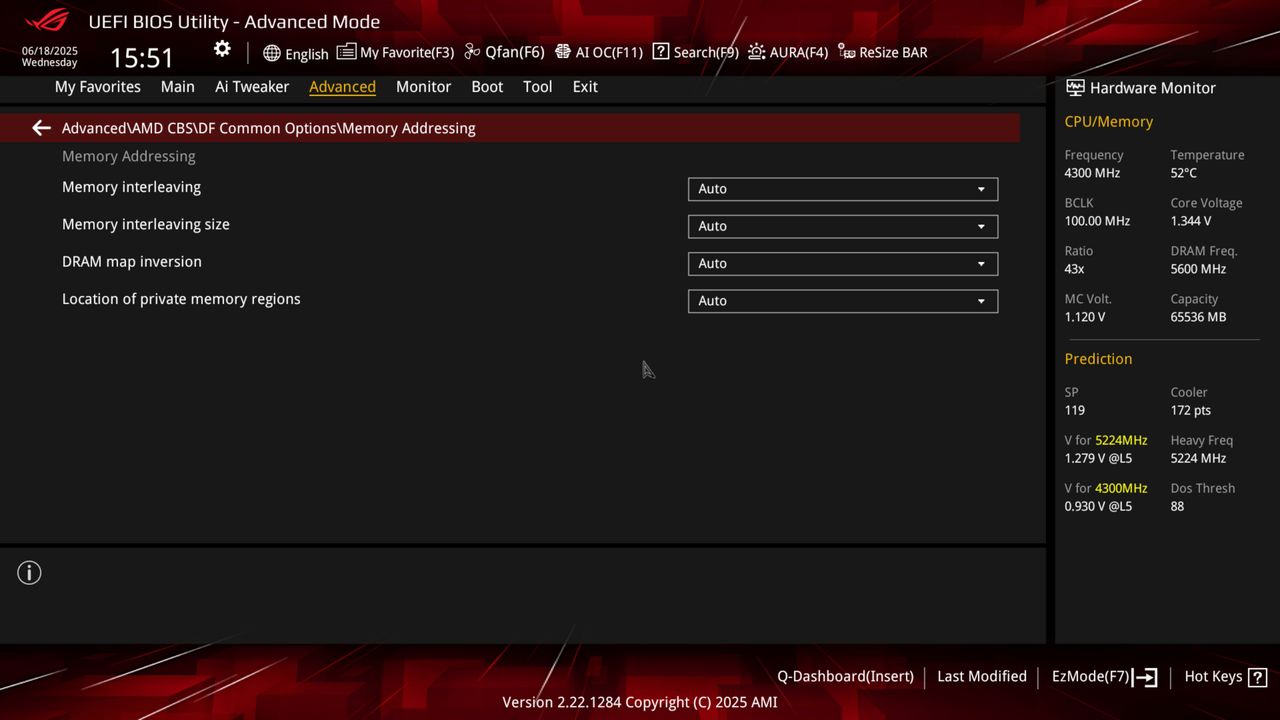

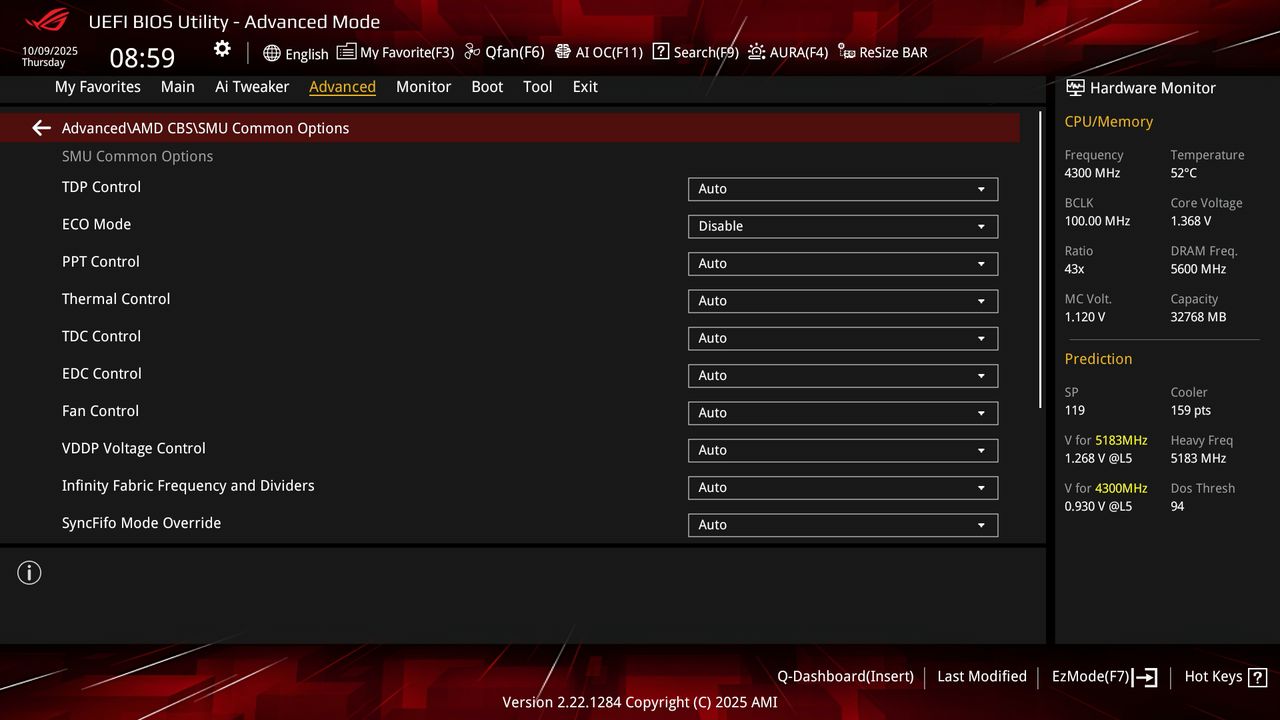

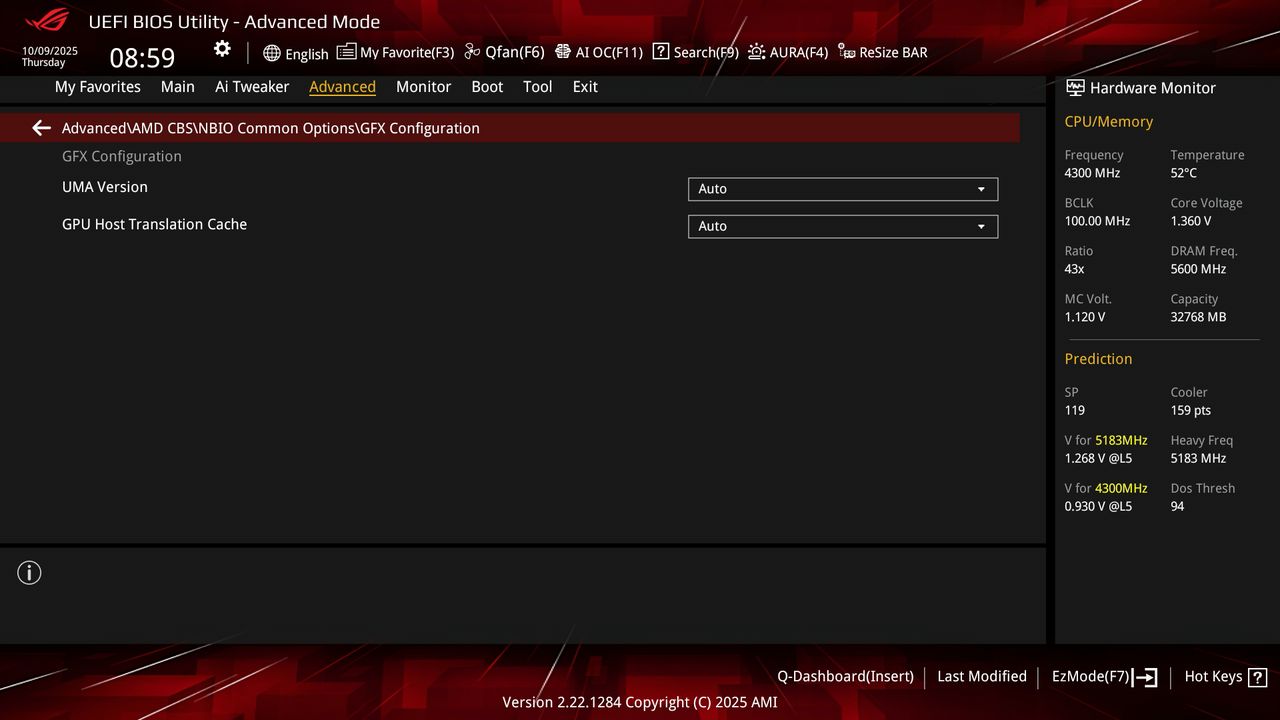

AMD CBS

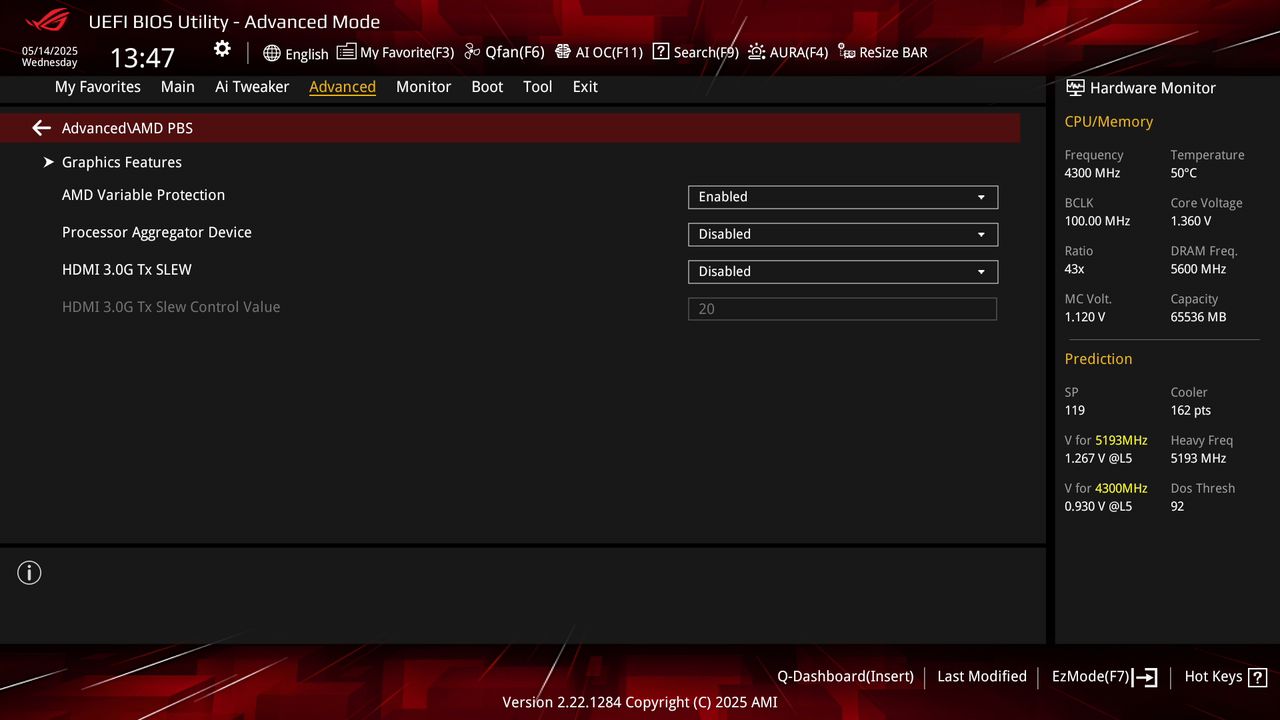

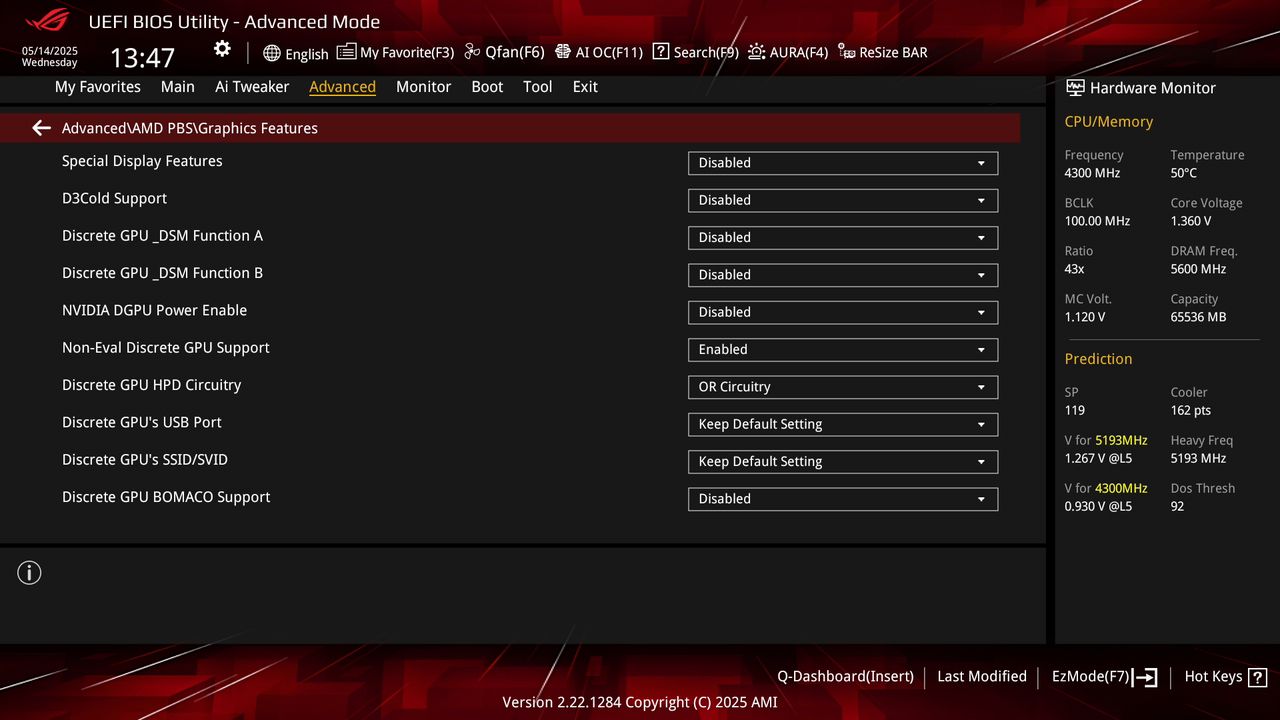

AMD PBS

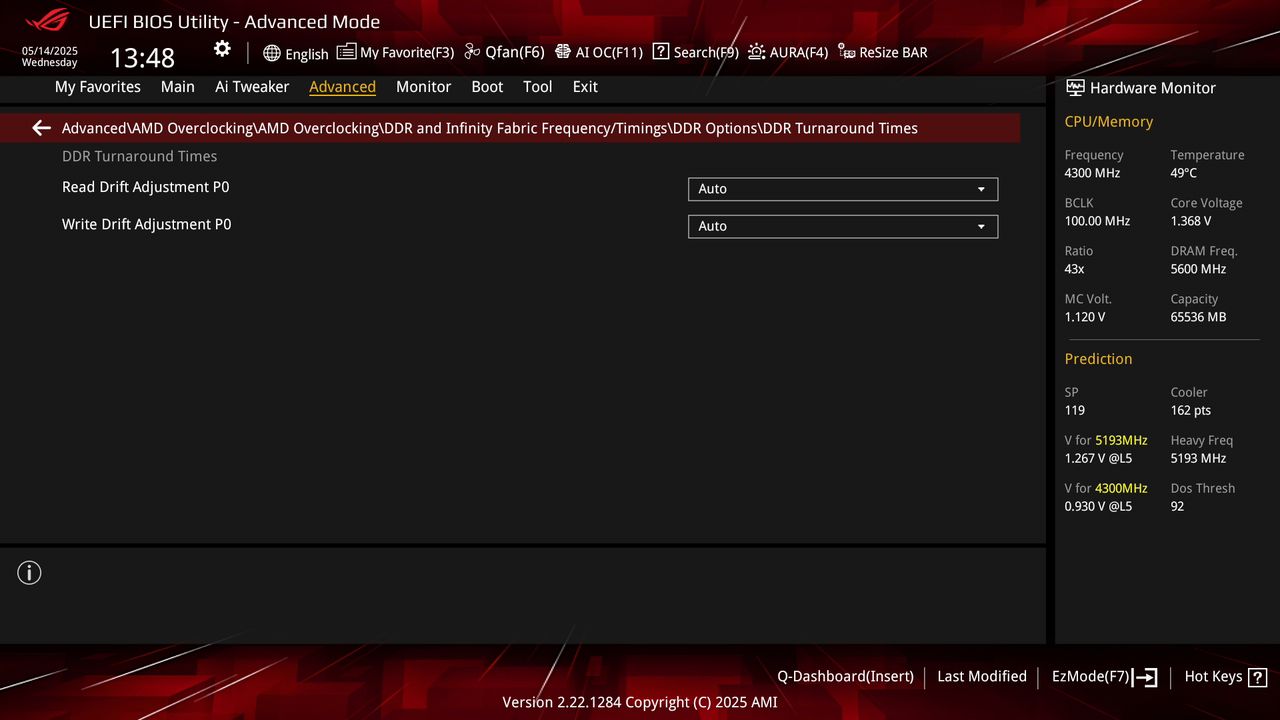

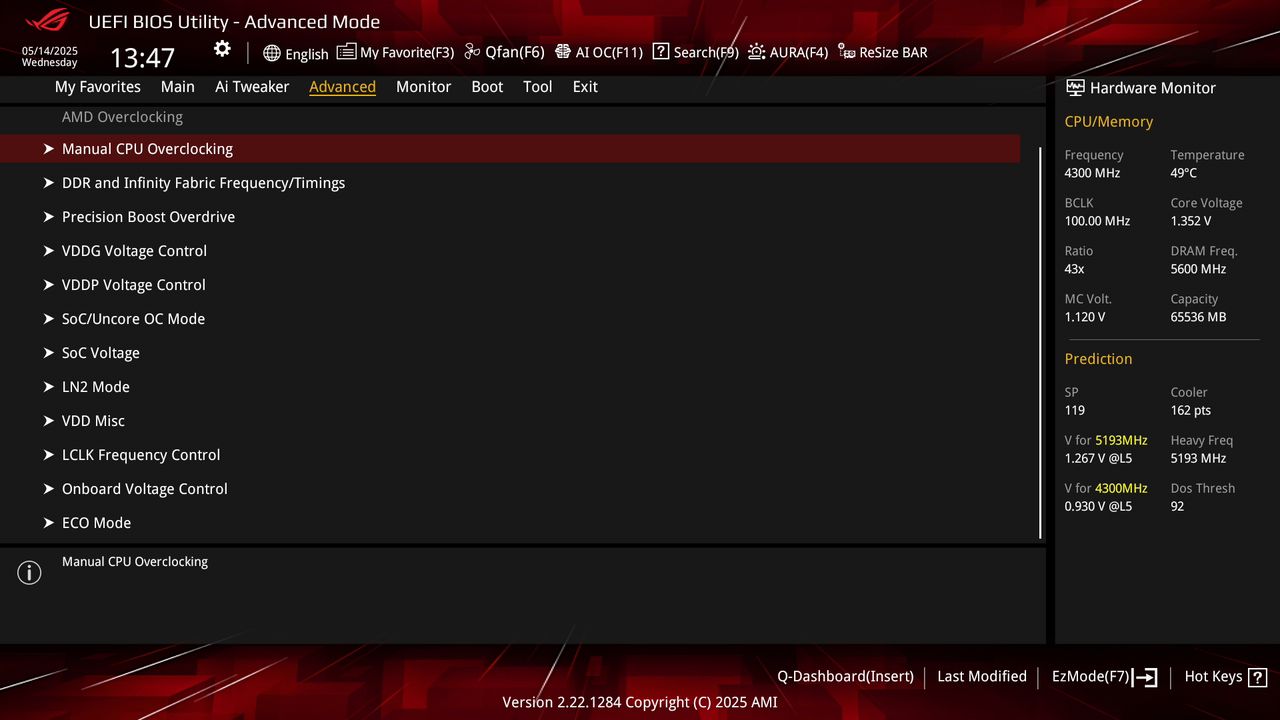

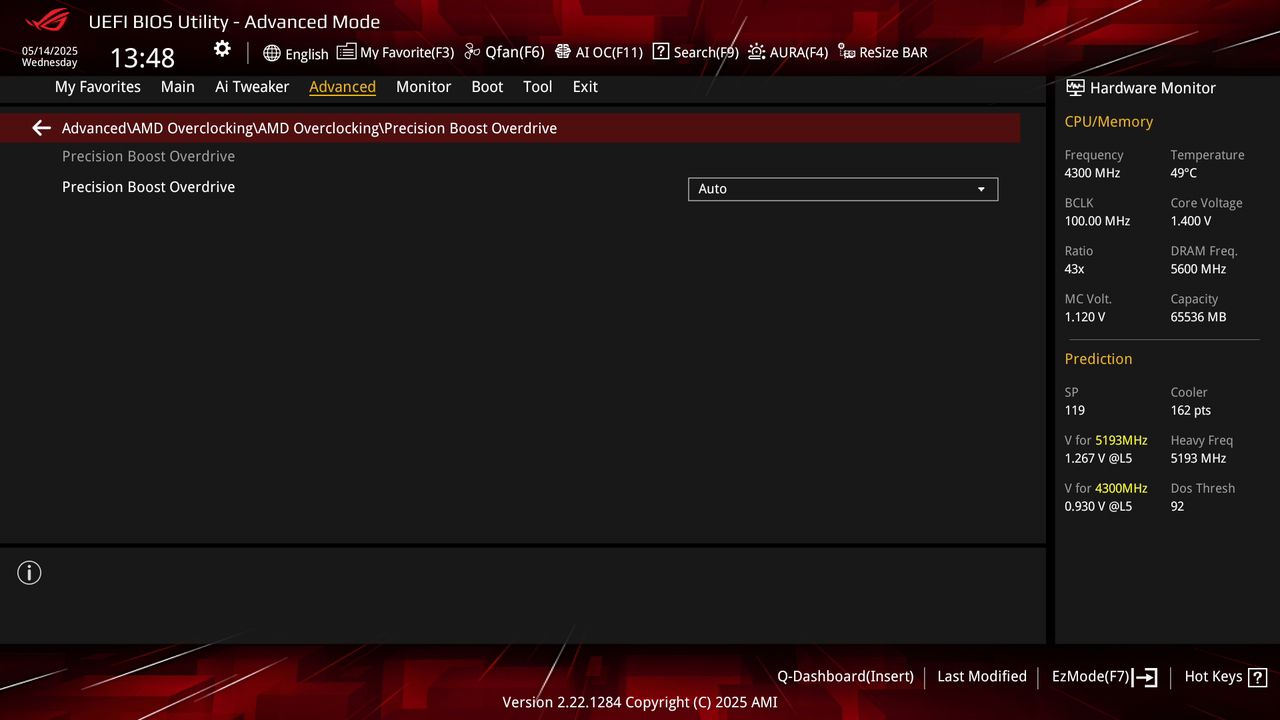

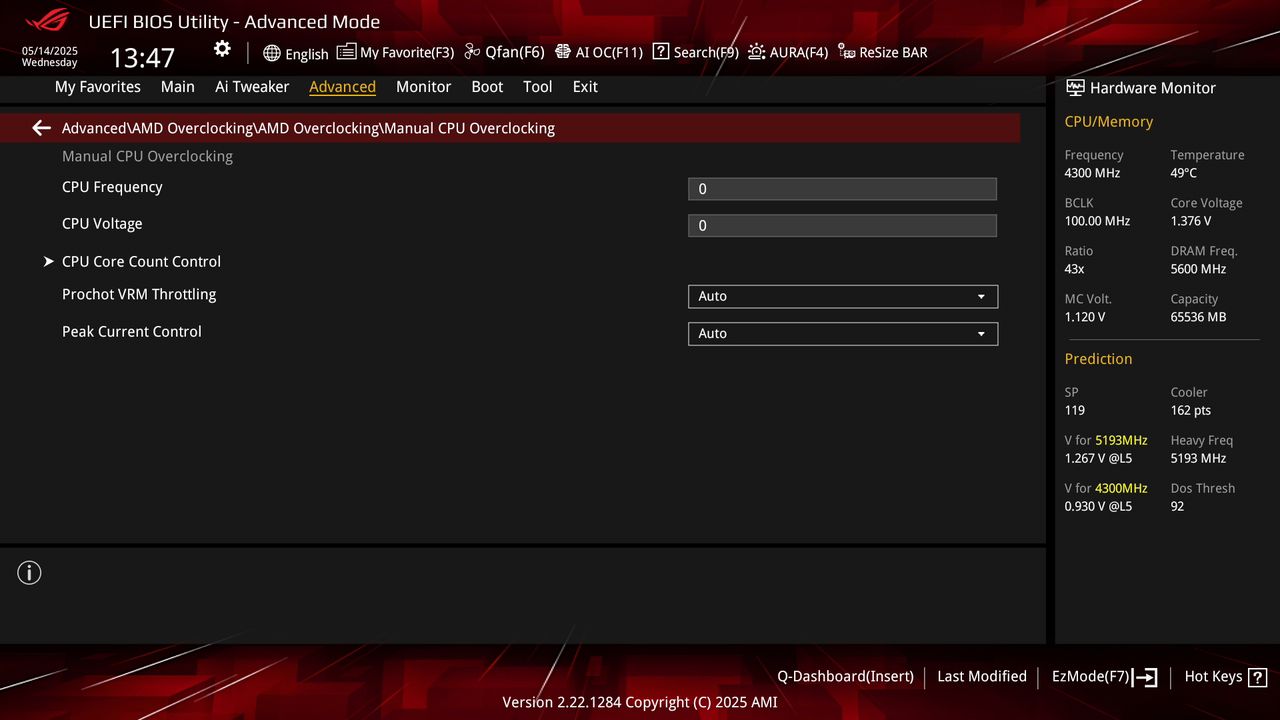

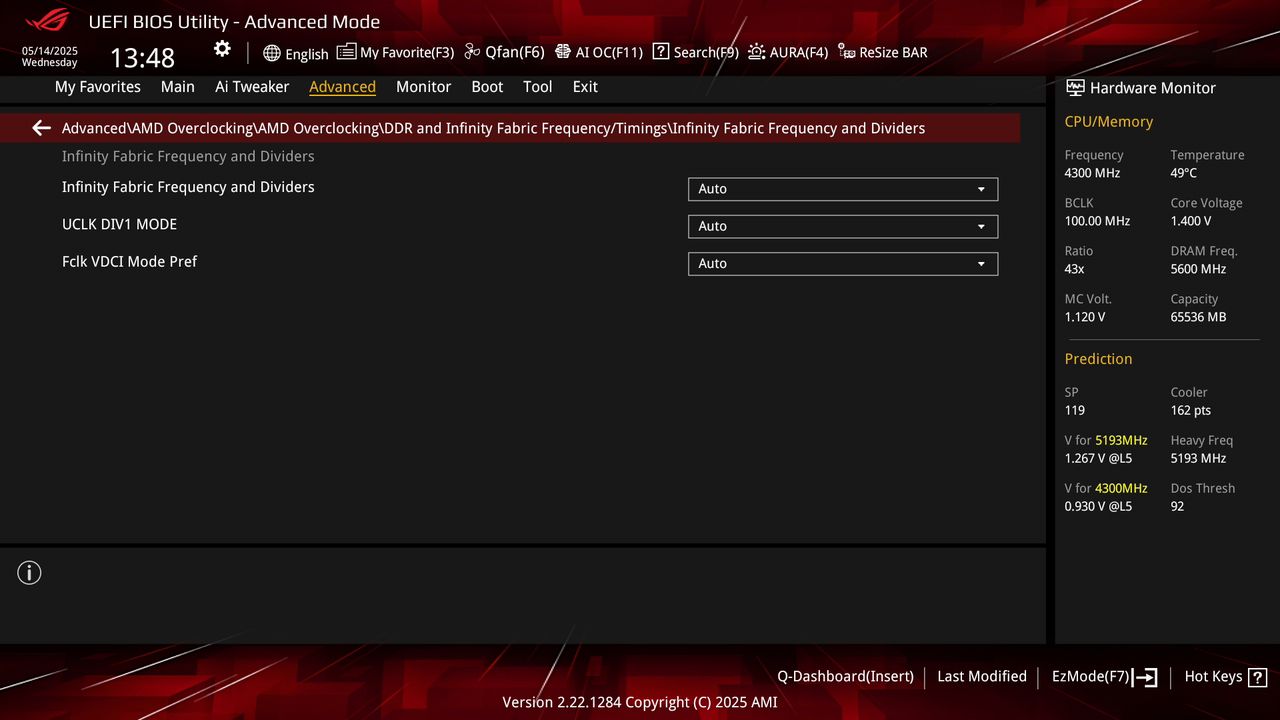

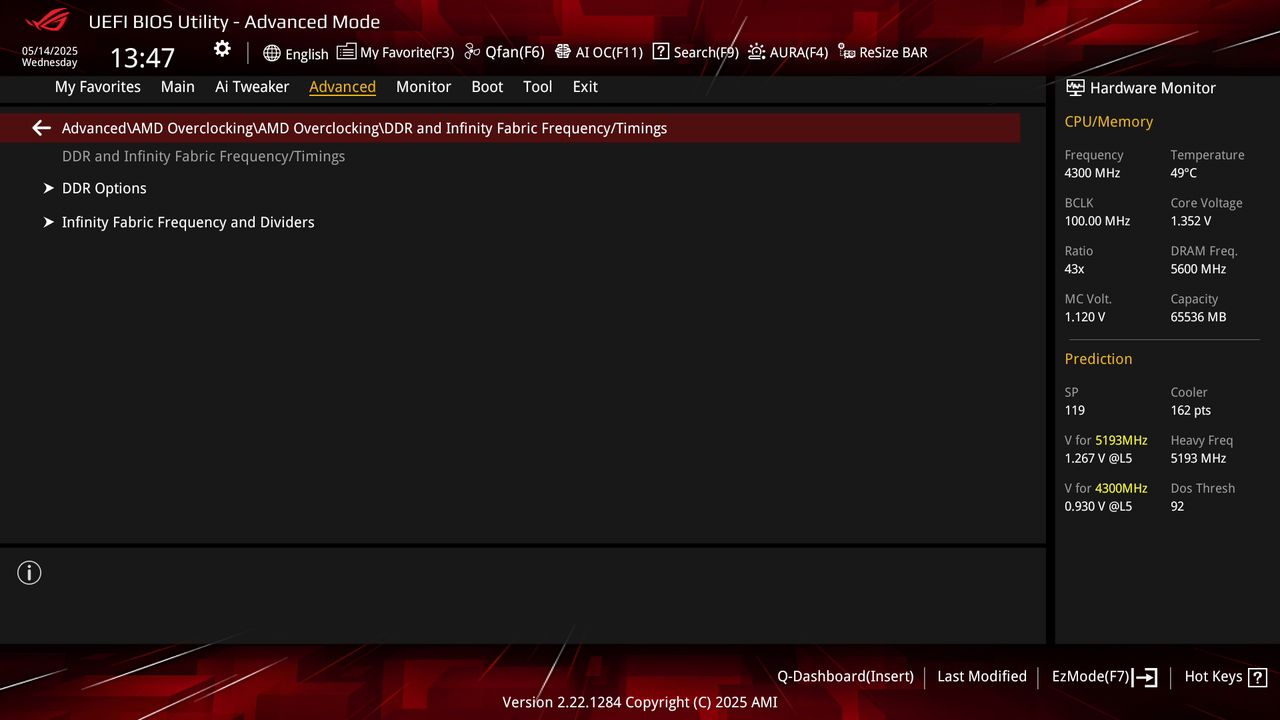

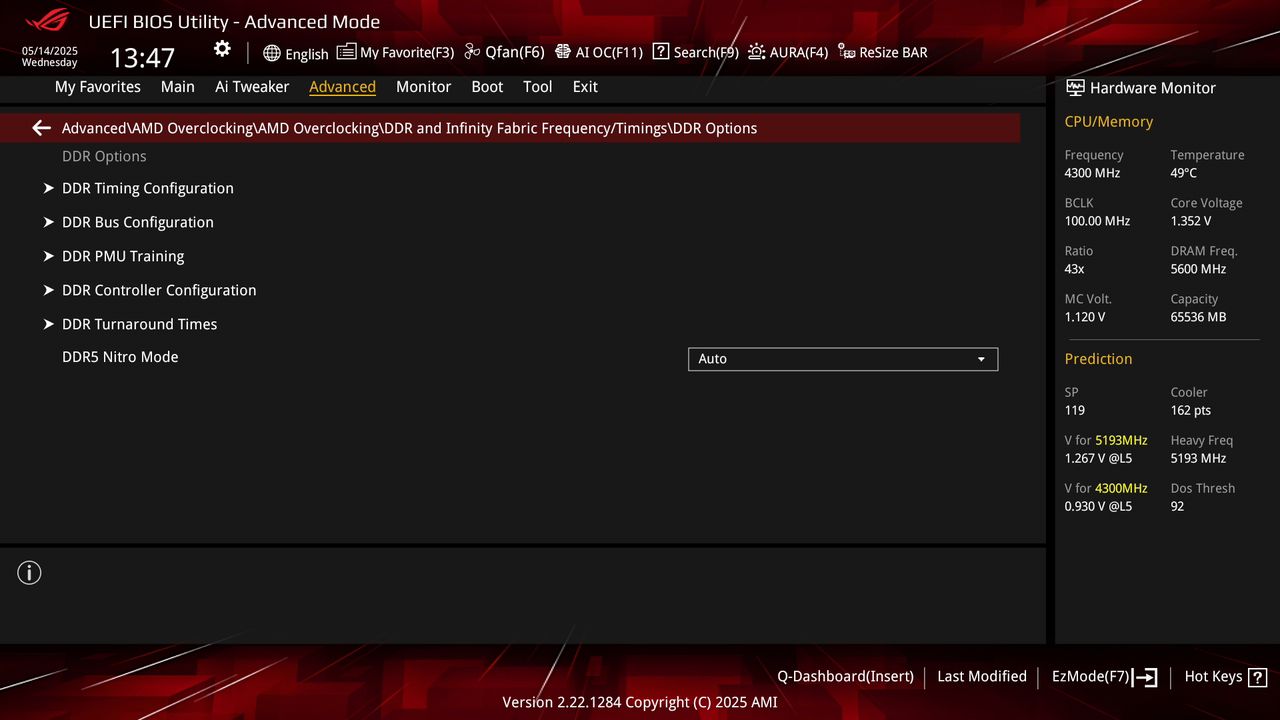

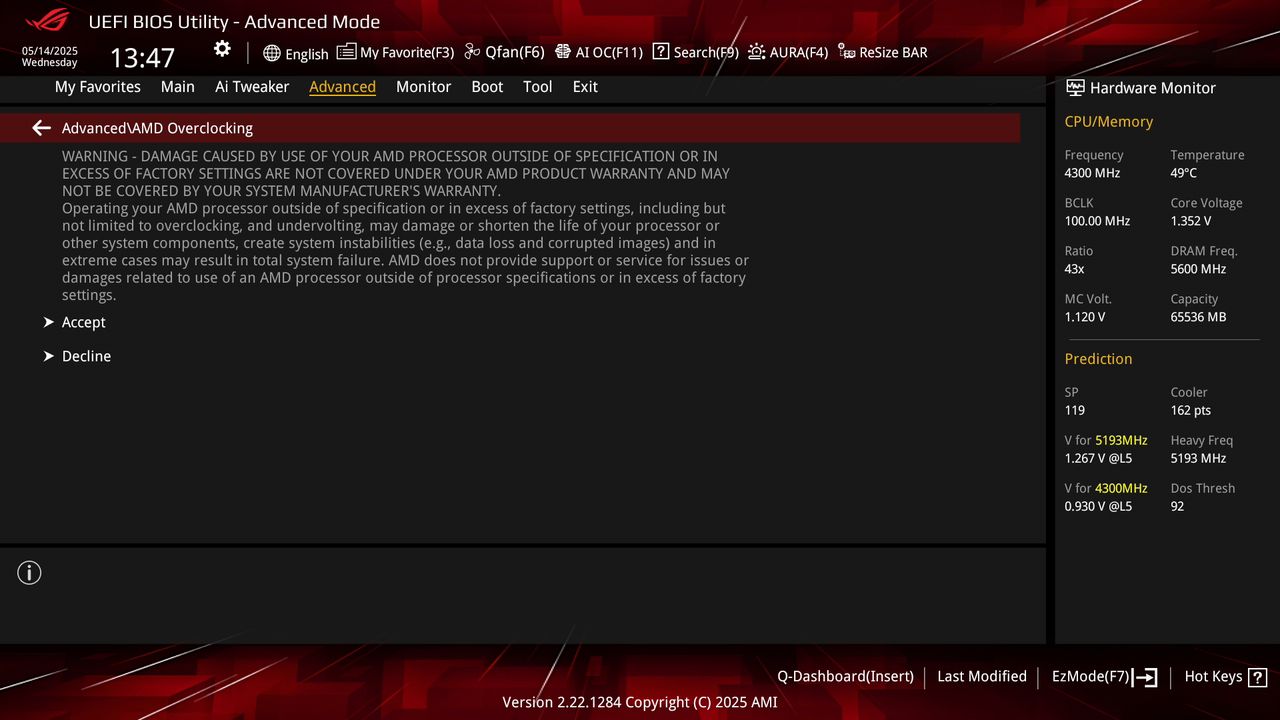

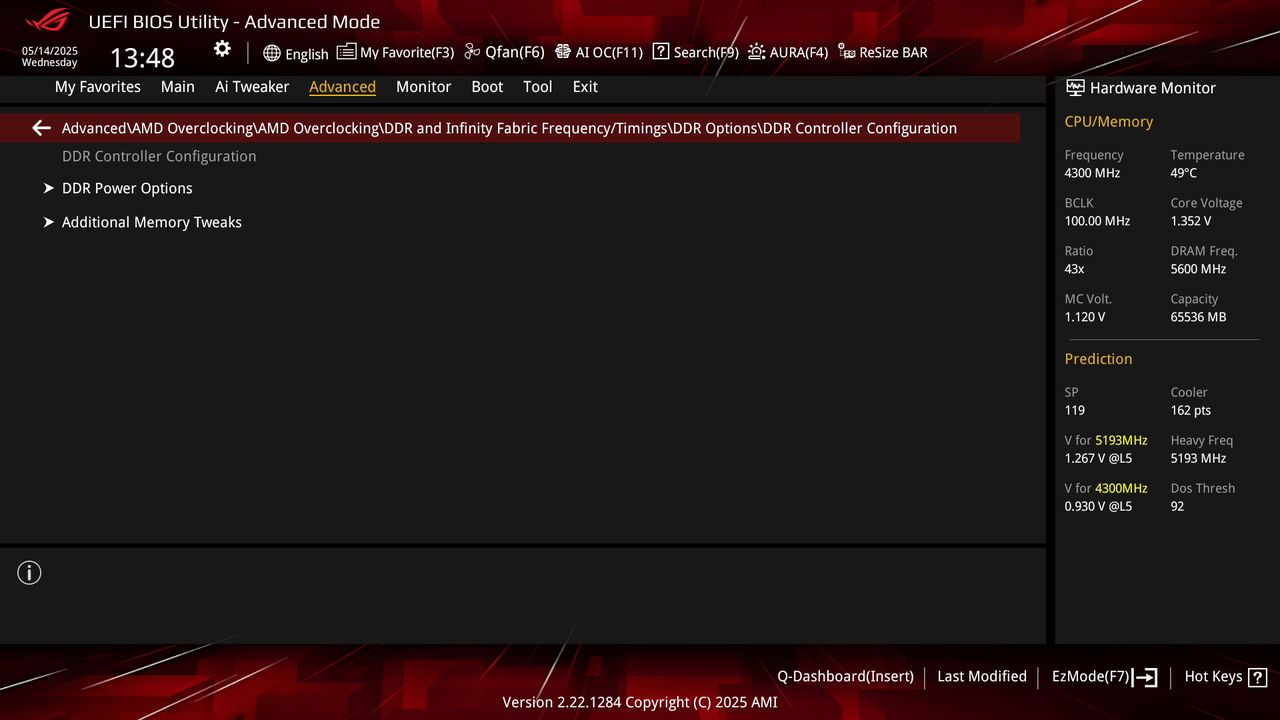

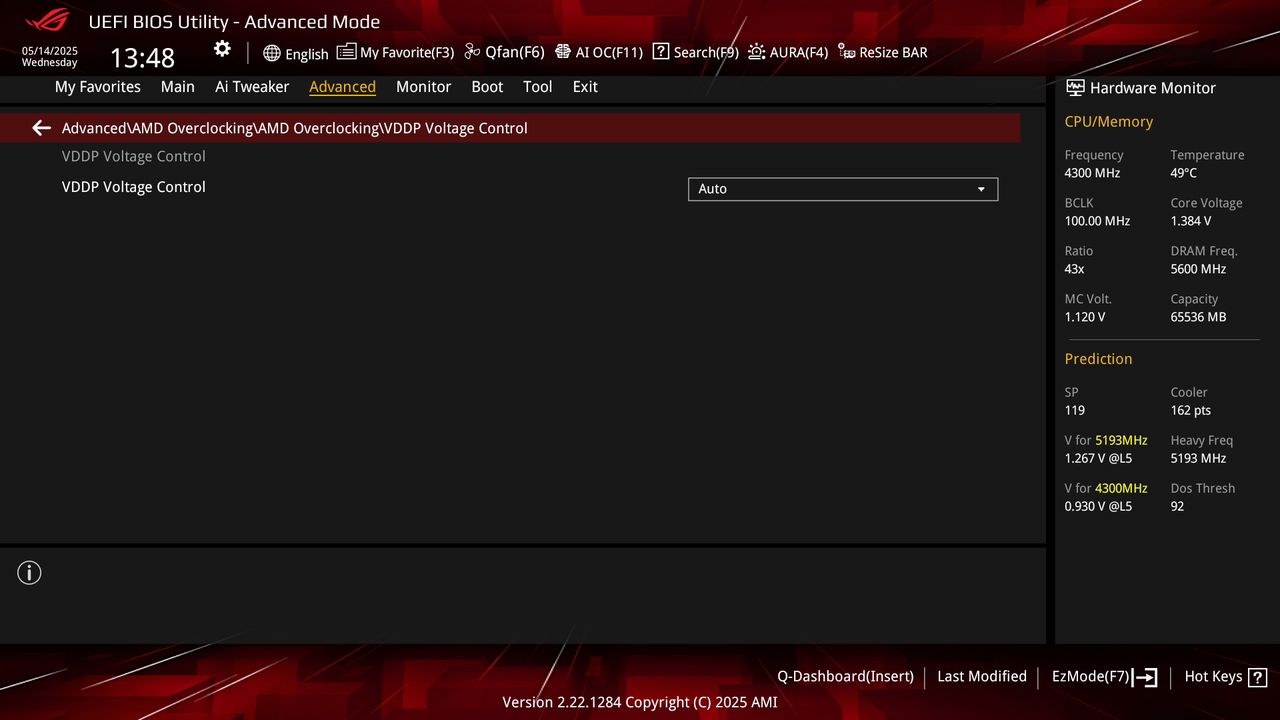

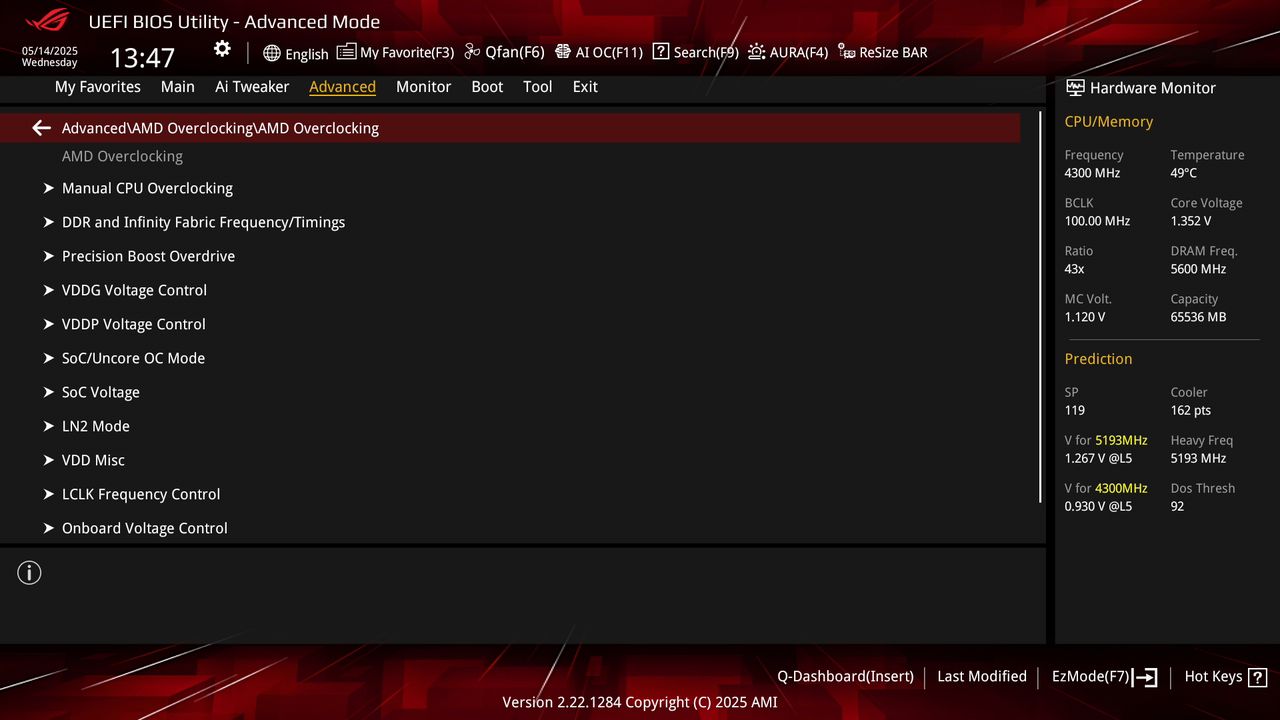

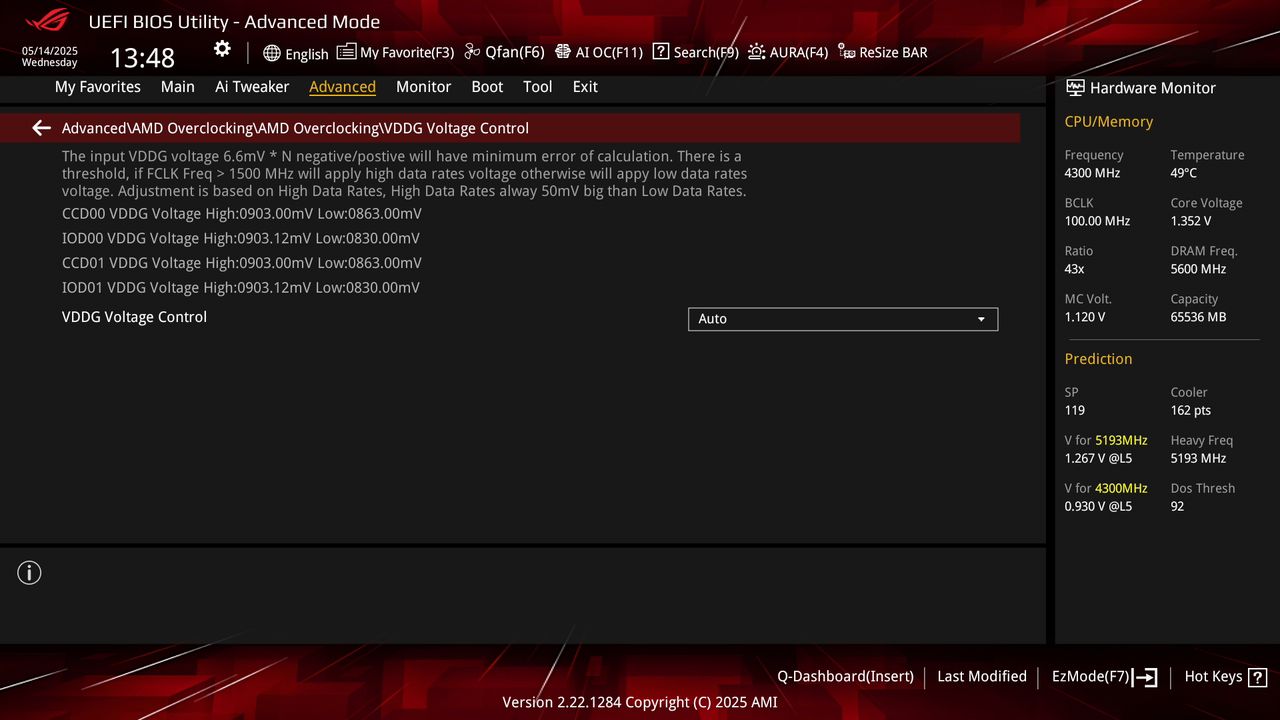

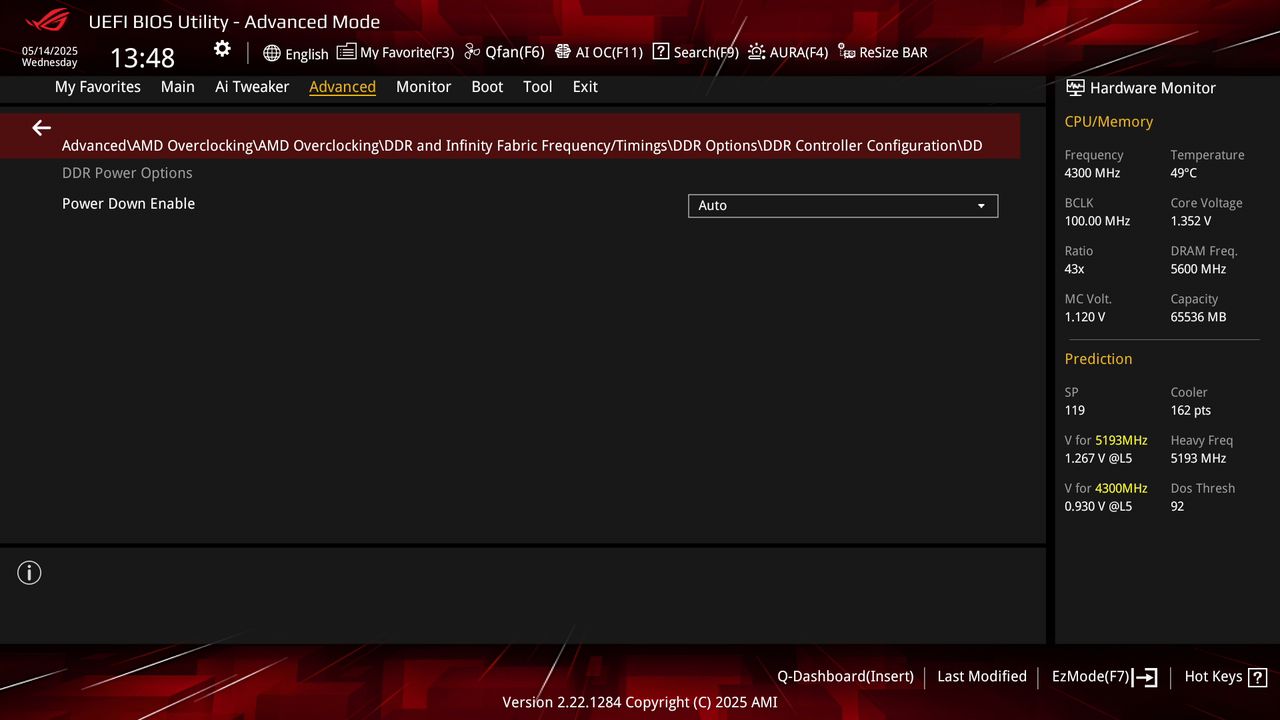

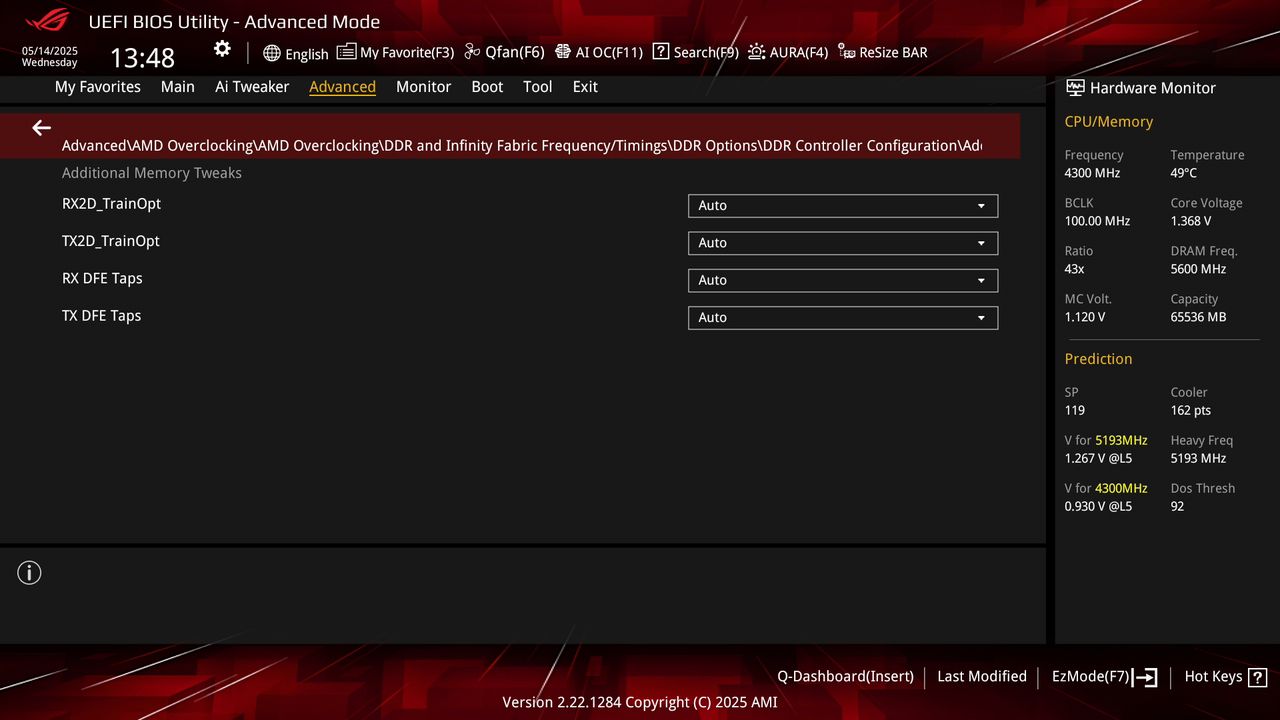

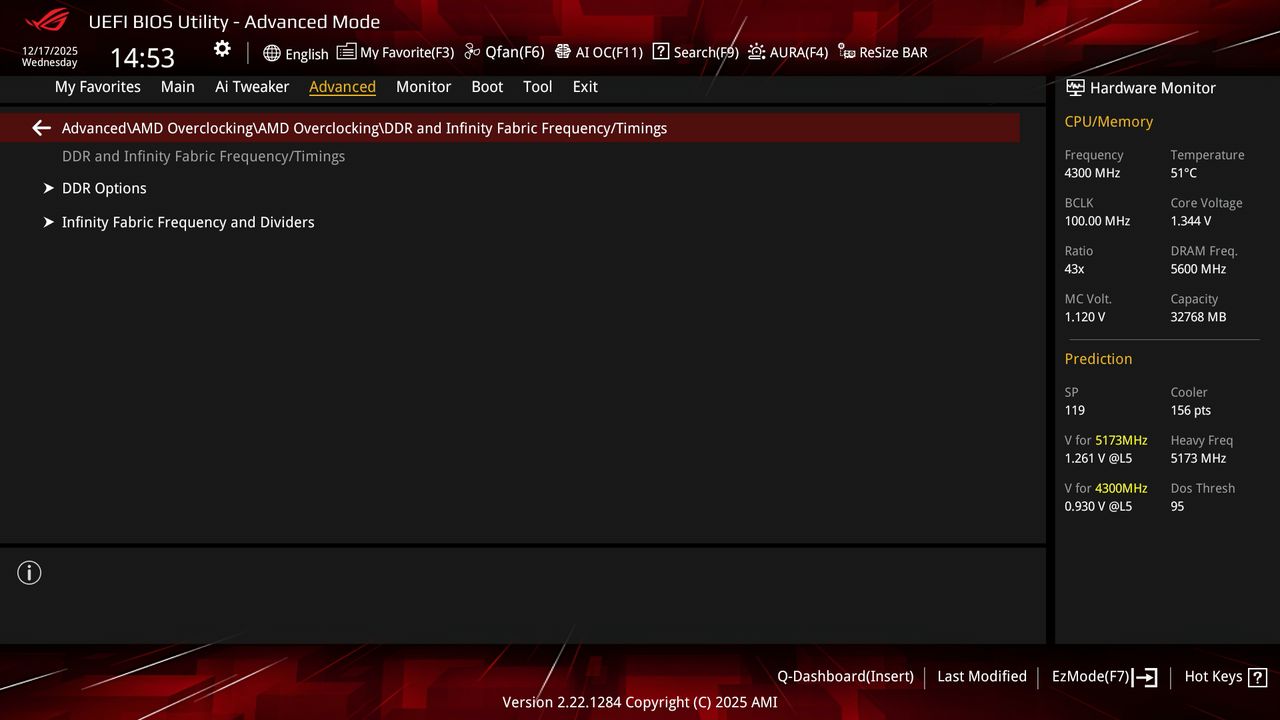

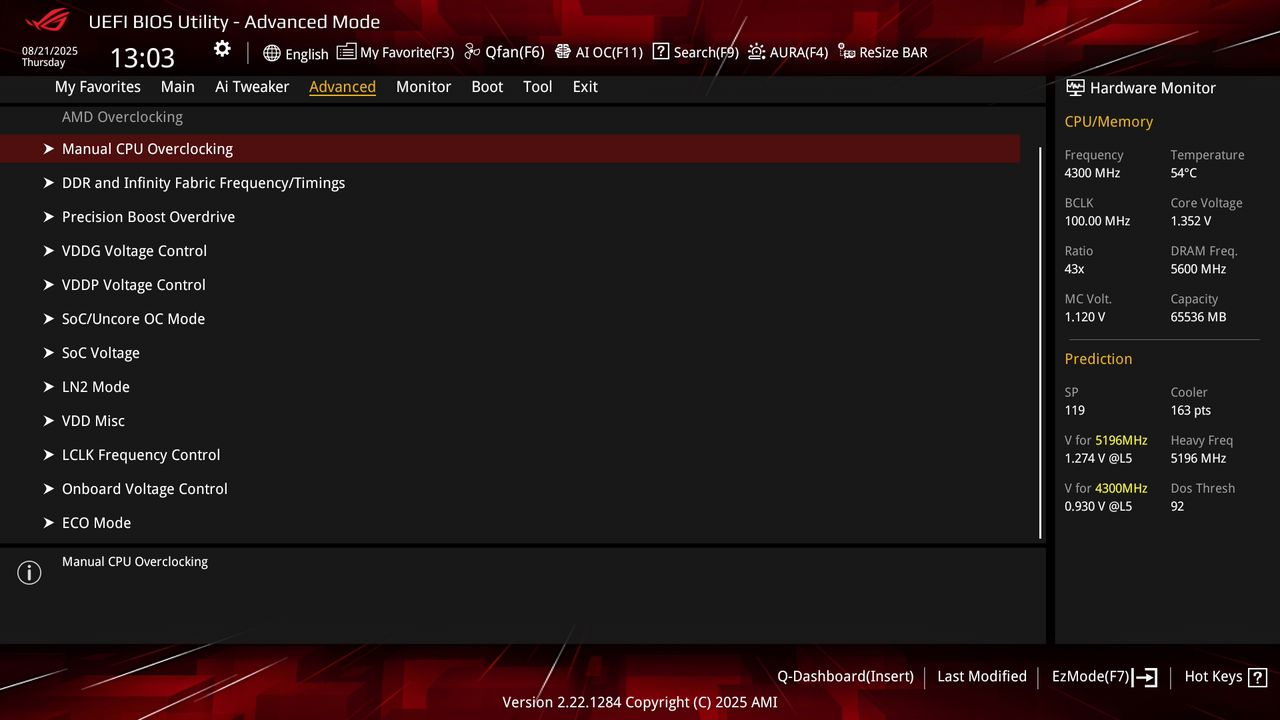

AMD Overclocking




























Intel Ethernet Controller I226-V

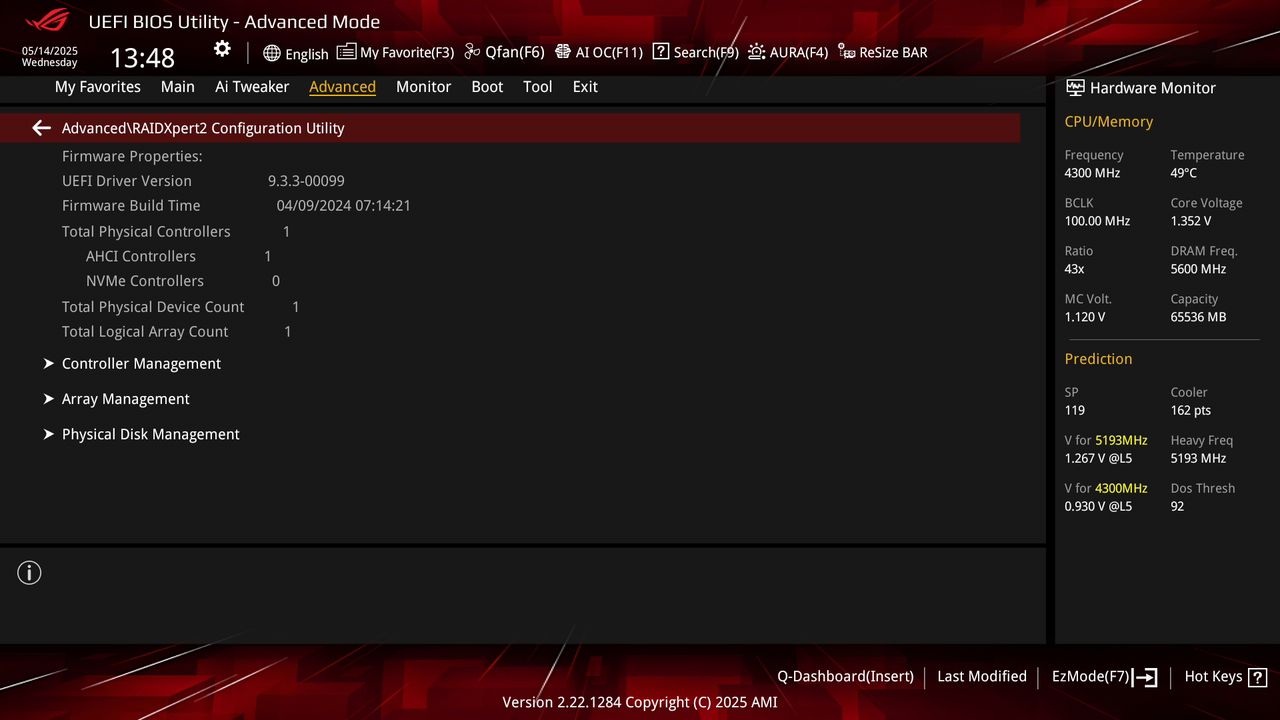

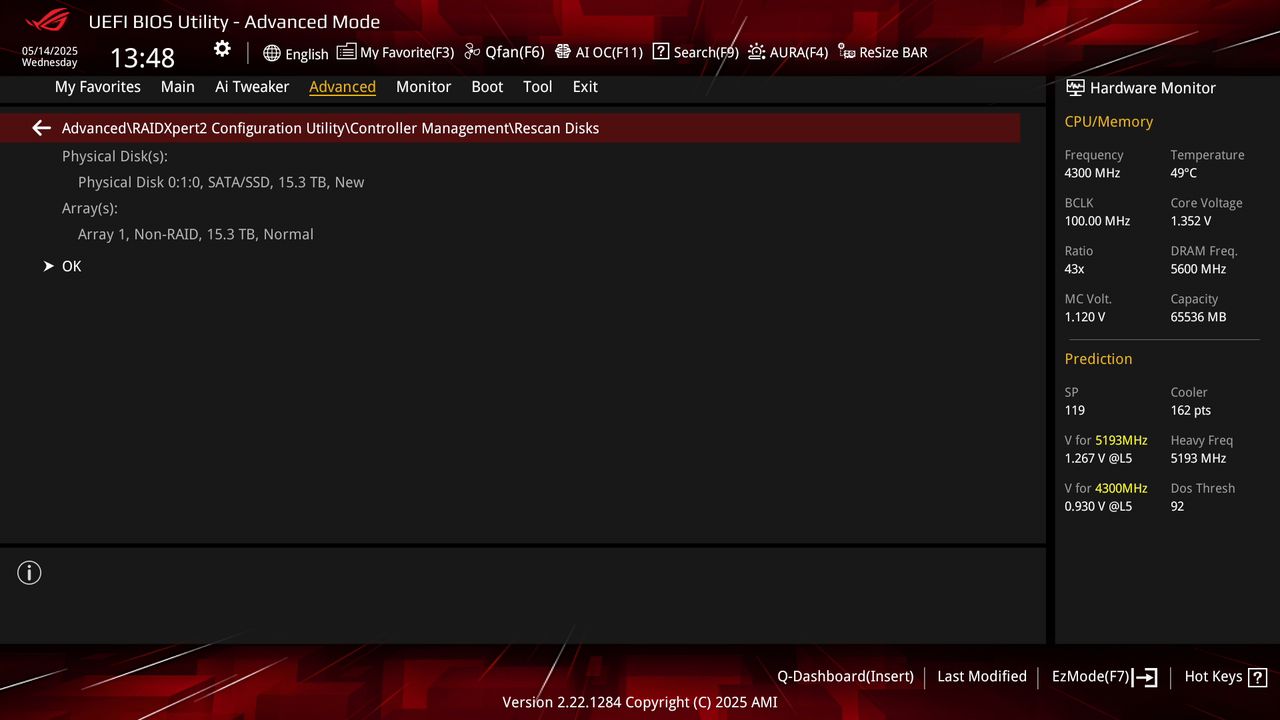

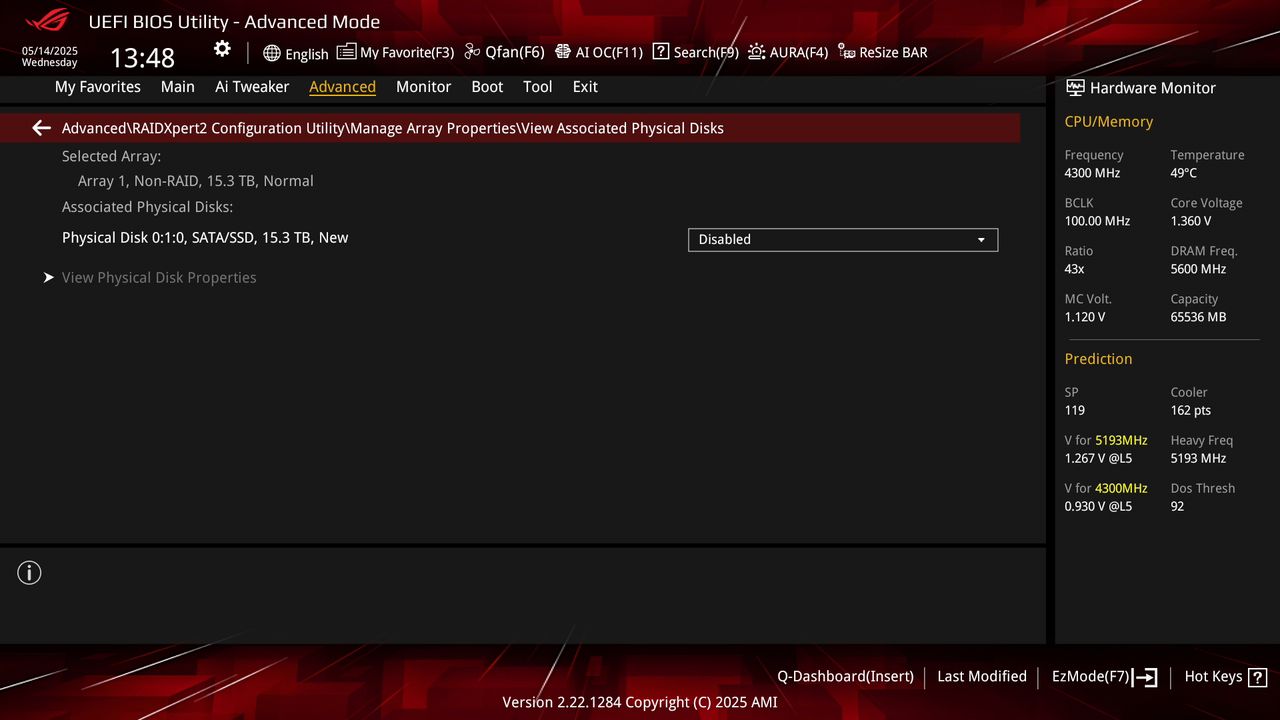

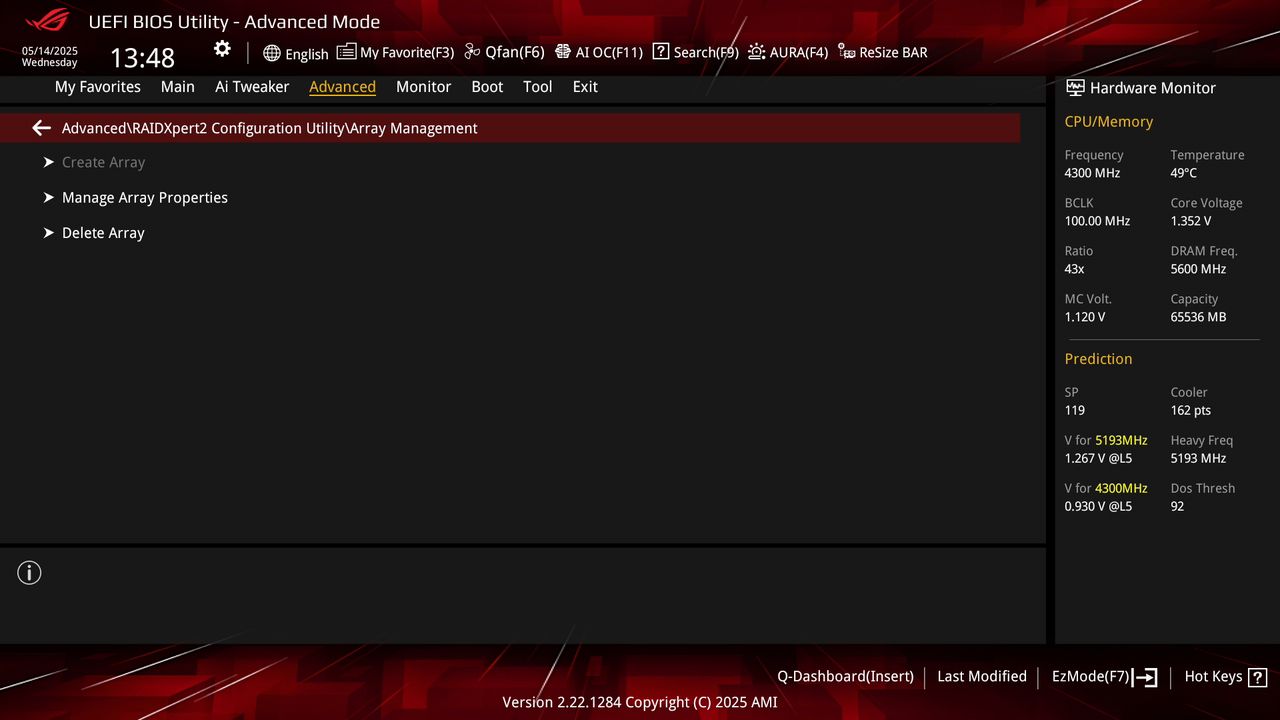

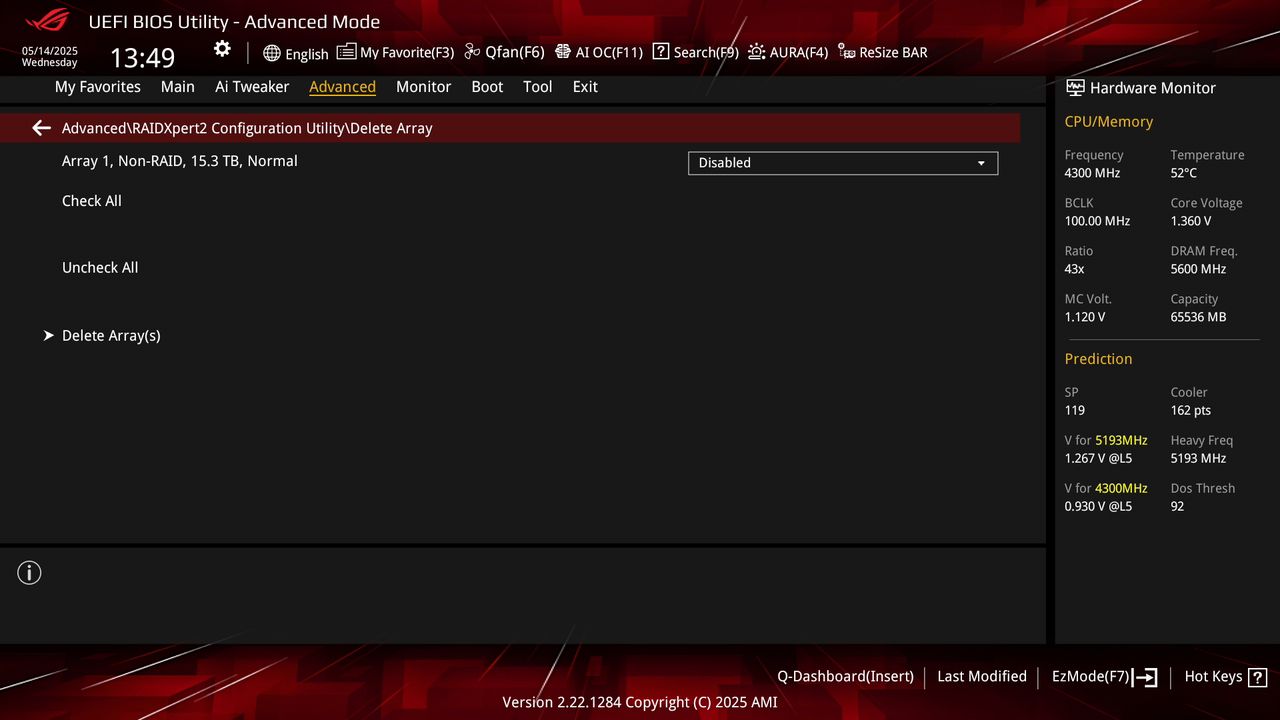

RAIDXpert2 Configuration Utility
