Case > Antec Mini P180 (White)
Puget Systems Description The reliability, performance, and versatility of the Antec Performance One series is now available in a stylishly small enclosure, perfect for gamers on the move. The Mini P180 boasts a heat-reducing dual chamber design with room for your microATX motherboard, power supply, and up to 5 hard drives. Sound-deadening multi-layer side panels and silicone grommets ensure quiet computing, while 120 mm and 200 mm fans provide optimal cooling. Top it off with a sleek interior and front USB, audio, and eSATA ports, and you won’t believe the quality we’ve fit into this petite portable case. sales@pugetsystems.com . They will be happy to help you find the right case for your specific needs.
Puget Systems Professional Advice Wilson Chau (Customer Service) Says: Good case, I'm just not hot on the front panel vents. I would have preferred it just be a mini-me of it's big brother P180. Its a minor knock for me, but overall a very smooth, quiet, and slick m-ATX case.
Daniel Brown (Customer Service) Says: The Antec Mini P180 is a really great Micro ATX chassis. It has really good airflow for it's size, and should be able to cool almost anything you can fit inside at stock clock speeds. It also has the noise reduction technologies we've become familiar with on the full-size Antec P18x series such as the silicone grommets for hard drive mounting, and the triple-layer side panels. If you are setting up a top-of-the-line Micro-ATX machine, I recommend this chassis
Christopher Crader (Customer Support) Says: This will probably be my next case. It's limited in terms of the motherboards it will support, but if you don't mind going with a microATX board, this case is excellent. It has pretty much all the awesome features of the P180 in a size that's more palatable to my aesthetic preferences. I particularly like the white version of this case because it stands in stark contrast to the mass of black cases currently available without being the ugly old beige that was ubiquitous before. The only real complaint is that it's a little difficult to find a white optical drive - most are beige or black, so they don't really fit with the finish of this case.
Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.
Manufacturer Description Model: Antec Mini P180 WhiteSpecifications:
Color White Material Aluminum and plastic shell, steel frame Type/Size Micro Tower Maximum Motherboard Size MicroATX Case Window No Power Supply None
Dimensions Height 435 mm (17.1 inches) Width 212 mm (8.3 inches) Depth 436 mm (17.2 inches) Net Weight 9.5 kg (20.9 lbs)
Drive Bays External 5.25 inch 3 External 3.5 inch 1 Internal 3.5 inch 5

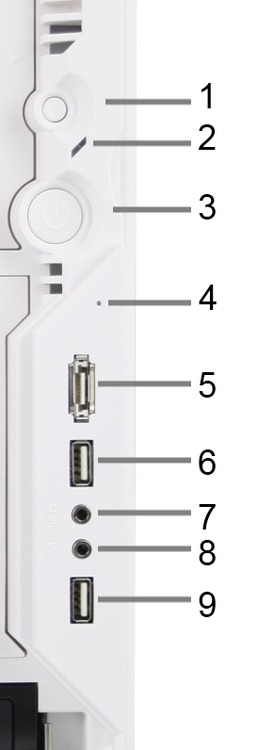

Front Panel Connectors USB 2.0 2 USB 3.0 0 Firewire 0 Audio In 1 Audio Out 1 eSATA 0
Cooling System Cooling Method Air Included Fans 1 x 120mm, 1 x 200mm Additional Fans Possible 2 x 120mm Fan (front chamber)
Features:
Configurable to accomodate graphics cards with full length PCBs Unique upper and lower chamber structure: the power supply resides in a separate chamber to isolate heat from the system and lower system noise. Cable organization for added convenience and better airflow Innovative three-layer side panel (aluminum, plastic, aluminum) dampens system generated noise, making this one of the quietest cases available
Need more information? Email us your questions about the Antec Mini P180 (White) .
Pricing History
Downloads
Antec Mini P180 (White) Manual Antec Mini P180 (White) Datasheet
