iStarUSA 5-Hard Drive Hot Swap Rack

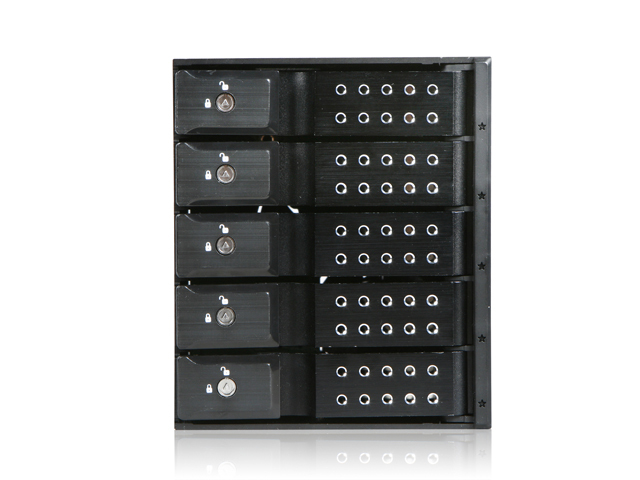

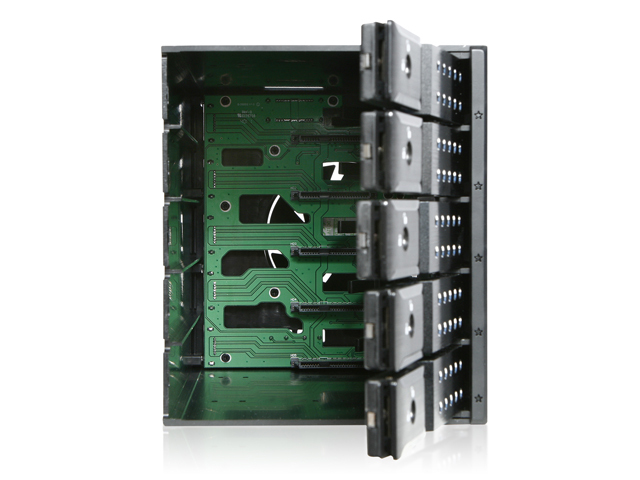

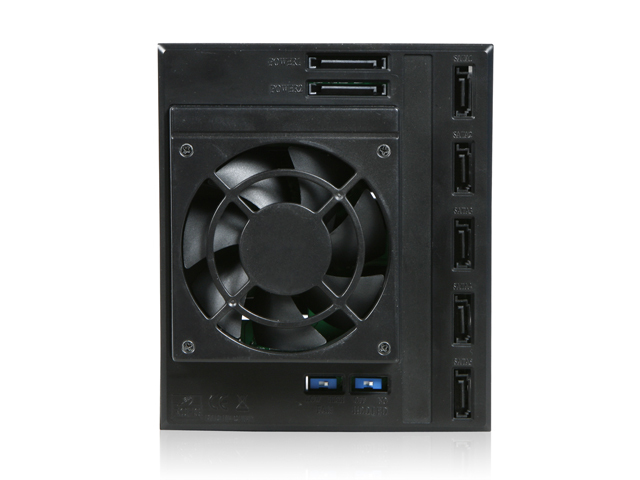

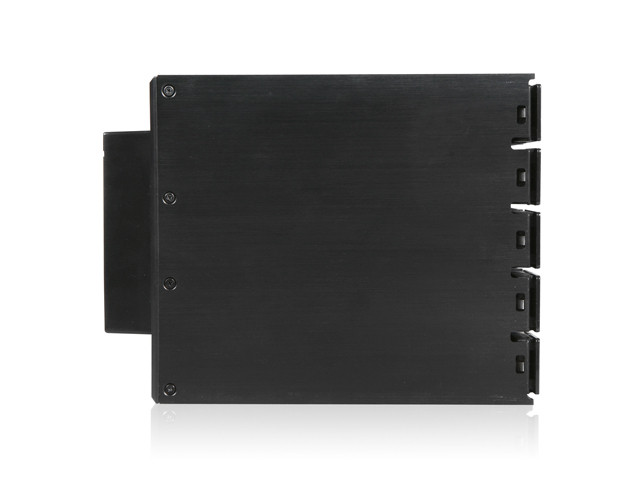

iStarUSA 5-Hard Drive Hot Swap Rack Picture 22301iStarUSA 5-Hard Drive Hot Swap Rack Picture 22290iStarUSA 5-Hard Drive Hot Swap Rack Picture 22291iStarUSA 5-Hard Drive Hot Swap Rack Picture 22292iStarUSA 5-Hard Drive Hot Swap Rack Picture 22293
This bay is the third generation of iStarUSA's internal hard drive enclosures. It provides easy, tray-less access for up to five hard drives - and hot-swap capabilities, if the SATA controller it is connected to supports that feature. The enclosure is built spacious enough to fit any 3.5" SATA type hard drives, and firm enough to prevent the drives from coming loose inside. There is an 80mm fan to ensure the drives are kept cool, and metal key locks to prevent tampering or accidental disconnects.

Please note that this takes up three 5.25" drive bays, and the drives are positioned vertically instead of the more horizontal orientation. Not all cases / configurations will have room for it, so please contact one of our sales consultants if you need any assistance.
Model: IcyDock BPN-DE350SS-BLACK

Net Weight  0.851 kg (1.9 lbs)

BPN-DE350SS is iStarUSA's third generation tray-less hot-swap hard drive cage. It features the latest transfer rate technology of 6.0 Gb/s (SATA I/II/III and SAS I/II), and is RAID capable. It also comes with adjustable fans speed and ultra-quiet cooling fans. The LED Display lights features the new blue light by popular demand. Heat dissipation is enhanced by the full aluminum construction and a 80mm fan. SATA power connector increases compatibility with most power supplies. The metal key locks help secure your hard drives and prevent unauthorized access. Converting three standard 5.25" drive bays into five usable hard drive slots, it is economically designed to maximize your investment.

-Aluminum Frame, designed for heavy-duty purpose
-Support SAS I/II, SATA I/II/III Hard Drives
-Integrative shaping aluminum design for quickest heat sink
-Data Transfer Rate up to 6.0 Gb/s
-Aluminum front bezel with metal key lock mechanism for double safety
-Removable fan cover for easy maintenance
-Multi-functional LED Indication
-Support Hot-Swap & RAID Configuration (need an additional RAID controller)
-4TB Hard Drives Compatible

Dimensions (WxHxD): 5.71" x 4.92" x 7.79" (145.0 mm x 125.0 mm x 197.9 mm)


1 Year

Configure a custom computer with the iStarUSA 5-Hard Drive Hot Swap Rack.
