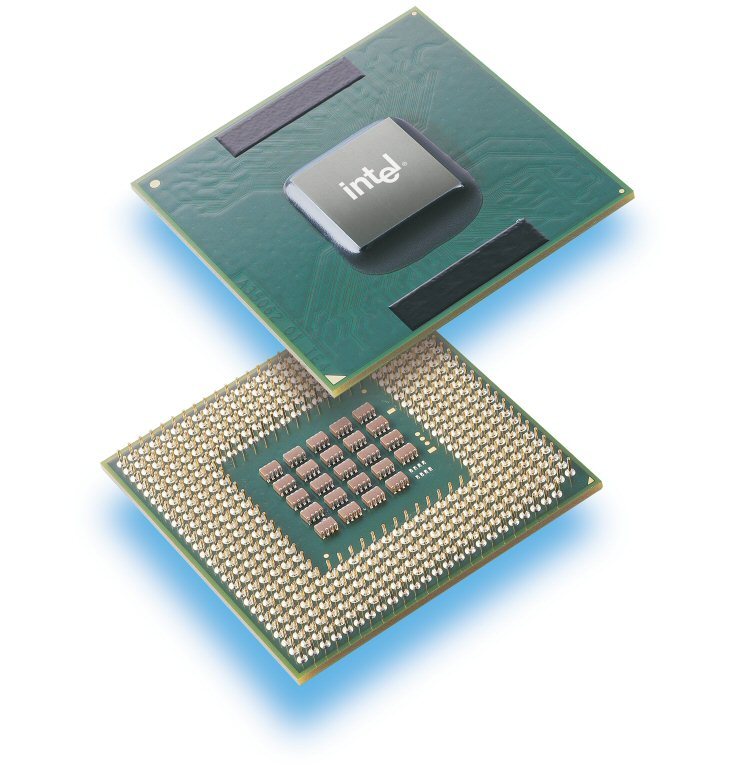

Model: Intel BXM80536GC2000F
Features
- Power Optimized 533/400 MHz processor system bus, Micro-ops Fusion Dedicated Stack Manager. Allows faster execution of instructions at lower power.
- Support for enhanced Intel SpeedStep technology w/ multiple voltage frequency operating points. Allows for better match of performance to application demand.
- Execute Disable Bit Support Can help prevent certain classes of malicious "buffer overflow" attacks when combined with supporting operating system. This is an optional feature and is available on the latest Intel Pentium M Processors.
- Support for Intel Mobile Voltage Positioning (Intel MVP IV). Dynamically lowers voltage based on processor activity to lower thermal design power enabling smaller notebooks.
- Micro FCPGA FCBGA packaging technology Optimized for a range of thinner, lighter designs including <1" thick that deliver outstanding performance.
Specifications
sSpec Number: sl7em
Processor Frequency: 2.00 GHz
Package Type: 478 pin PPGA
Bus Speed: 400 MHz
Core Stepping: B1
L2 Cache Size: 2 MB
L2 Cache Speed: 2.00 GHz
CPUID String: 06D6h
Core Voltage: 1.340-1.276 V
Thermal Guideline: 21.0W
Thermal Spec: 100*C
Manufacturing Technology: 90 nm
Bus/Core Ratio: 20
OEM Order Code: RH80536GC0412M
The Intel Pentium M Processor, in conjunction with the Intel 915 Express chipset family and the Intel PRO/Wireless network connection, is a key component of Intel Centrino Mobile Technology. It delivers outstanding mobile performance and low-power enhancements for sleeker, lighter notebook designs.
