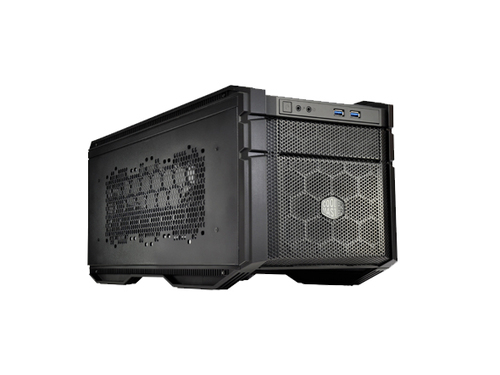

The Cooler Master HAF Stacker 915R is a lengthy Mini ITX chassis, primarily intended for packing desktop-class performance into a smaller system. The chassis is built to be stackable, allowing for several full computers to fit in the space normally occupied by a single tower chassis. Its length also allows full-size video cards and power supplies to be used, which is rare for the ITX motherboard platform.
Here at Puget Systems, we can also modify this chassis to fit a non-standard motherboard with dual Xeon processors. This takes up almost the entire interior of the chassis, preventing installation of expansion cards and changing the drive space as well. A custom modification kit is required in order to prepare the case for that sort of usage, but the processing capability of dual Xeon CPUs combined with the stacking design of the case this makes it a great platform for small cluster computing. Please consult our sales department if you have any questions about that sort of setup, or if you need help setting up a quote.
Here at Puget Systems, we can also modify this chassis to fit a non-standard motherboard with dual Xeon processors. This takes up almost the entire interior of the chassis, preventing installation of expansion cards and changing the drive space as well. A custom modification kit is required in order to prepare the case for that sort of usage, but the processing capability of dual Xeon CPUs combined with the stacking design of the case this makes it a great platform for small cluster computing. Please consult our sales department if you have any questions about that sort of setup, or if you need help setting up a quote.
Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.
Model: Cooler Master HAF-915R-KKN1
Specifications
| Color | Black |
| Material | Plastic shell, steel frame |
| Type/Size | Small Form Factor |
| Maximum Motherboard Size | Mini ITX |
| Case Window | No |
| Power Supply | None |
Dimensions | |
| Height | 248 mm (9.8 in) |
| Width | 228 mm (9.0 in) |
| Depth | 578 mm (22.8 in) |
| Net Weight | 5.5 kg (12.1 lbs) |
| Maximum CPU Cooler Height | 80 |
| Maximum GPU Length | 360 |
Drive Bays | |
| External 5.25 inch | 1 |
| External 3.5 inch | 0 |
| Internal 2.5/3.5 inch | 3 |

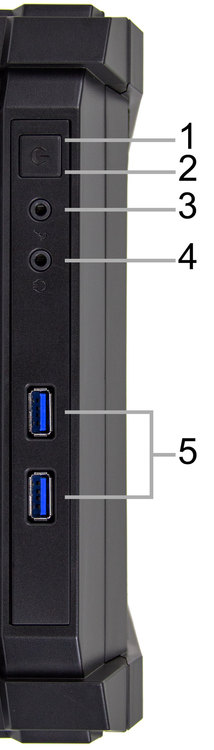

Front Panel Connectors | |
| USB 3.0 | 2 |
| Audio In | 1 |
| Audio Out | 1 |
Cooling System | |
| Cooling Method | Air |
| Included Fans | Front: 92mm |
| Total Fan Mounts | Side: 6 x 120mm or 4 x 140mm |
Features

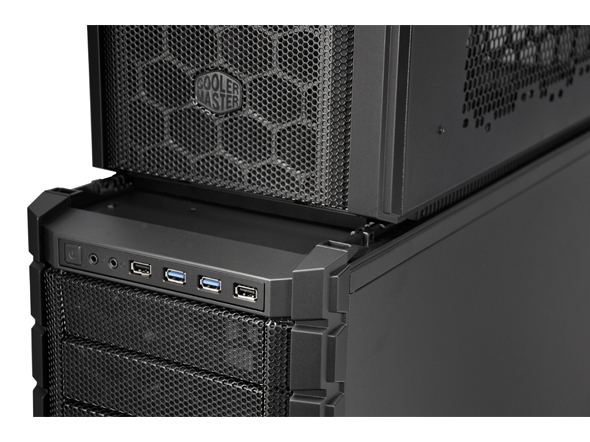

- First expandable m-ITX chassis; modular design compatible with HAF Stacker system
- Stack extra 915F or 915R for dual/triple system or additional water cooling and storage
- Intuitive design for flexible and easy installations
