Fractal Design Arc Midi R2

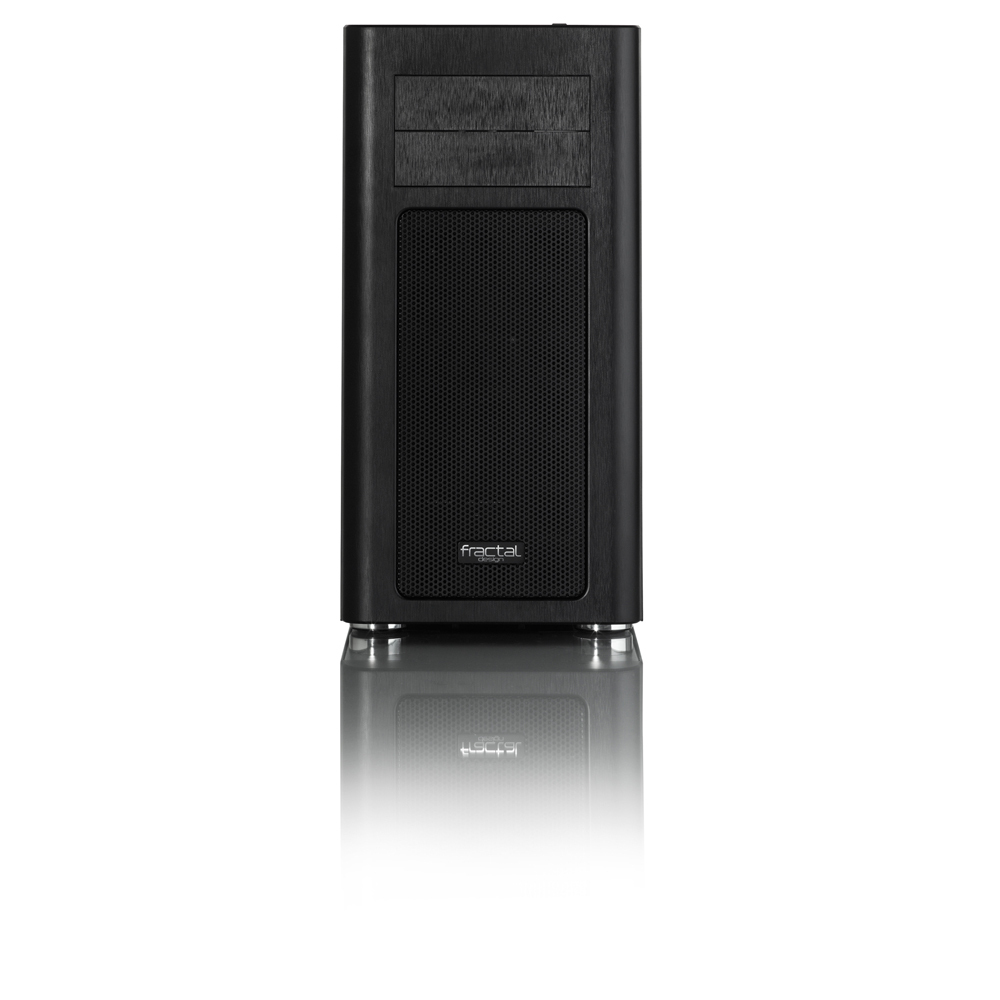

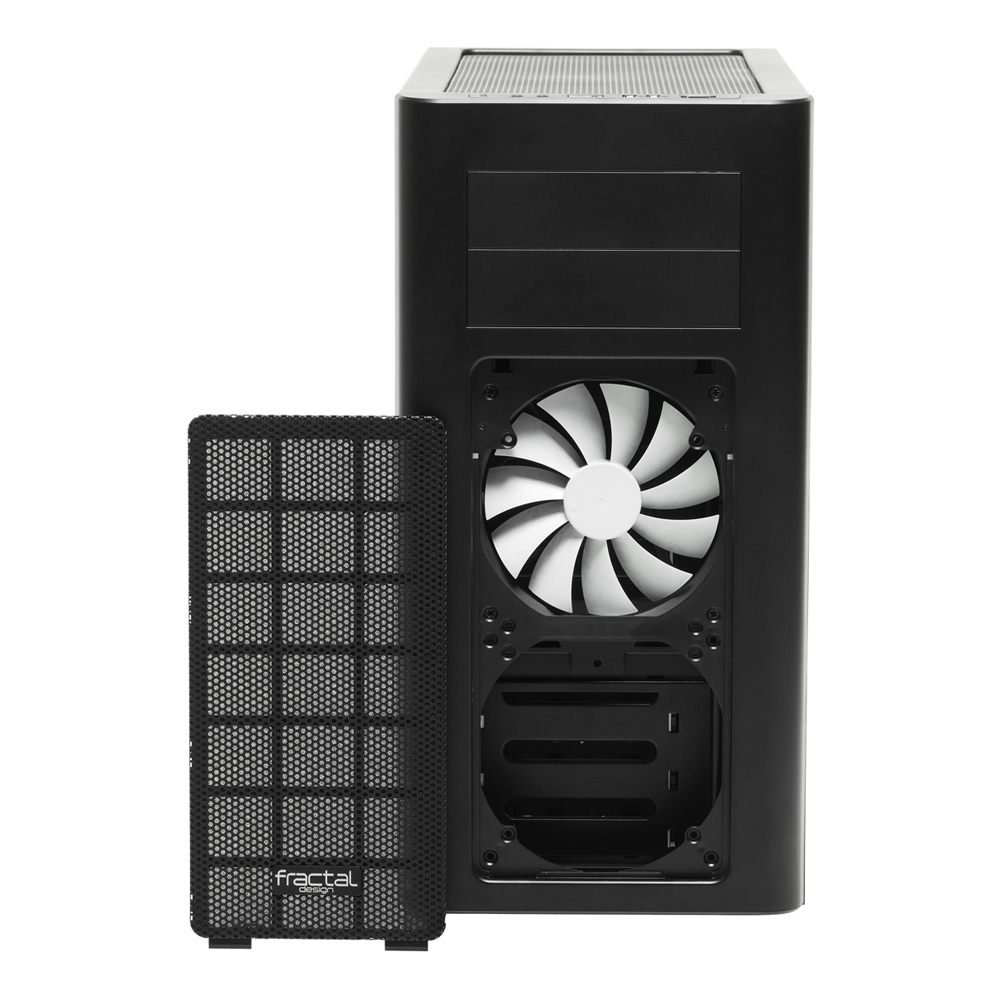

[ Front Panel ]

Fractal Design Arc Midi R2 Picture 26282Fractal Design Arc Midi R2 Picture 26283Fractal Design Arc Midi R2 Picture 26284Fractal Design Arc Midi R2 Picture 26285Fractal Design Arc Midi R2 Picture 26286Fractal Design Arc Midi R2 Picture 26287Fractal Design Arc Midi R2 Picture 26288Fractal Design Arc Midi R2 Picture 28711Fractal Design Arc Midi R2 Picture 37195

Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

Model: Fractal Design FD-CA-ARC-R2-BL

Color  Black
Material  Plastic shell, steel frame
Type/Size  Mid Tower
Maximum Motherboard Size  ATX
Case Window  Yes
Power Supply  None
Height  460 mm (18.1 in)
Width  230 mm (9.1 in)
Depth  515 mm (20.3 in)
Net Weight  10.7 kg (23.6 lbs)
Maximum CPU Cooler Height  180mm
Maximum GPU Length  290mm (430 with HD cage removed)
Maximum PSU Length  270mm (170mm with bottom fan installed)
Drive Bays
External 5.25 inch  2
External 3.5 inch  0
Internal 2.5 inch  2
Internal 2.5/3.5 inch  8

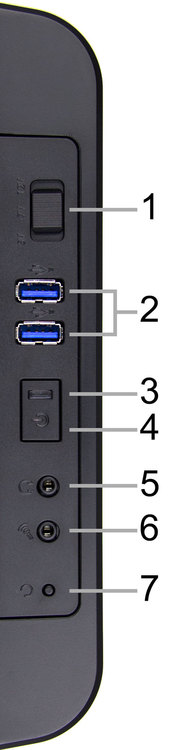

Front Panel Connectors
USB 2.0  0
USB 3.0  2
Firewire  0
Audio In  1
Audio Out  1
eSATA  0
Cooling System
Cooling Method  Air
Included Fans  140mm front, rear, and top
Total Fan Mounts  120/140mm front, 120/140mm top, 1x 120/140mm bottom, 1x 120/140mm side

  • Designed with high airflow in mind while consistently holding a minimalistic, sleek look and feel
  • Extensive water cooling support, designed to support thick radiators in the front and top positions
  • Three Silent Series R2 fans with integrated fan controller included

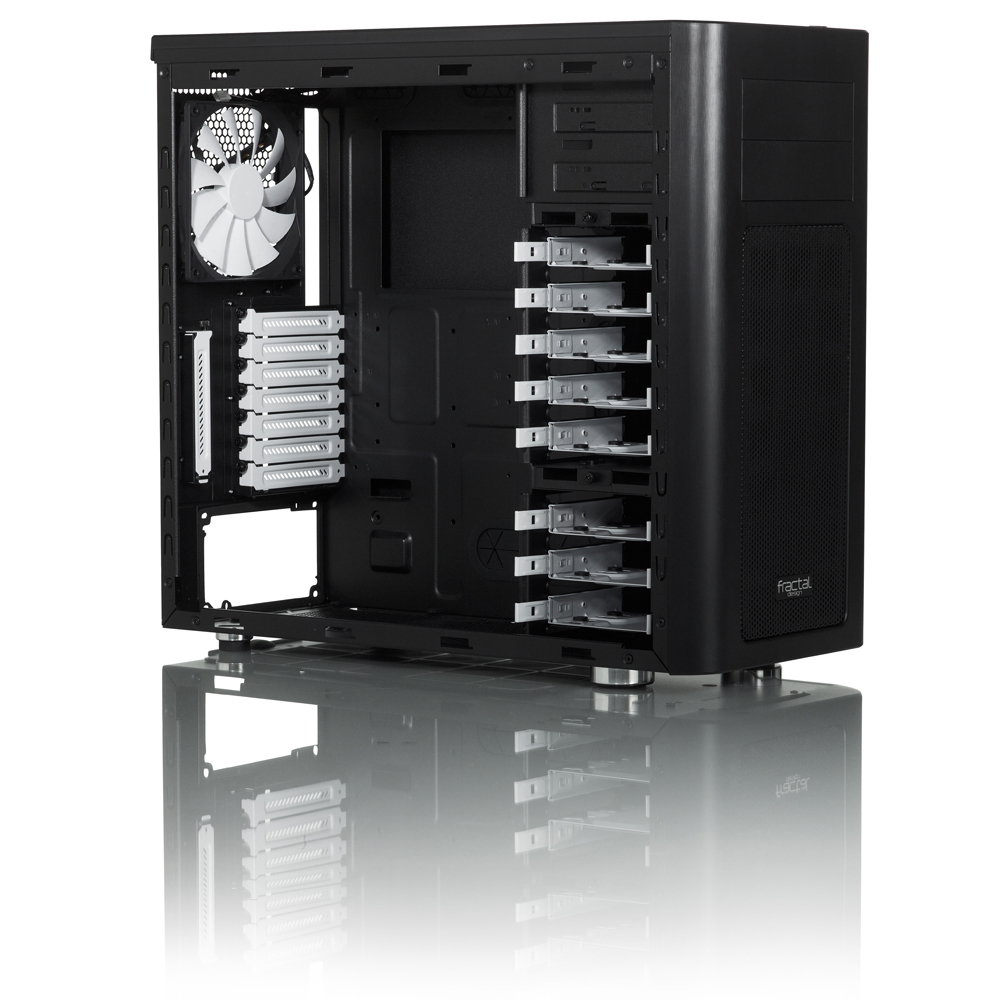

  • HDD cages are now split 5 + 3 and are both rotatable and removable for maximum configuration and airflow

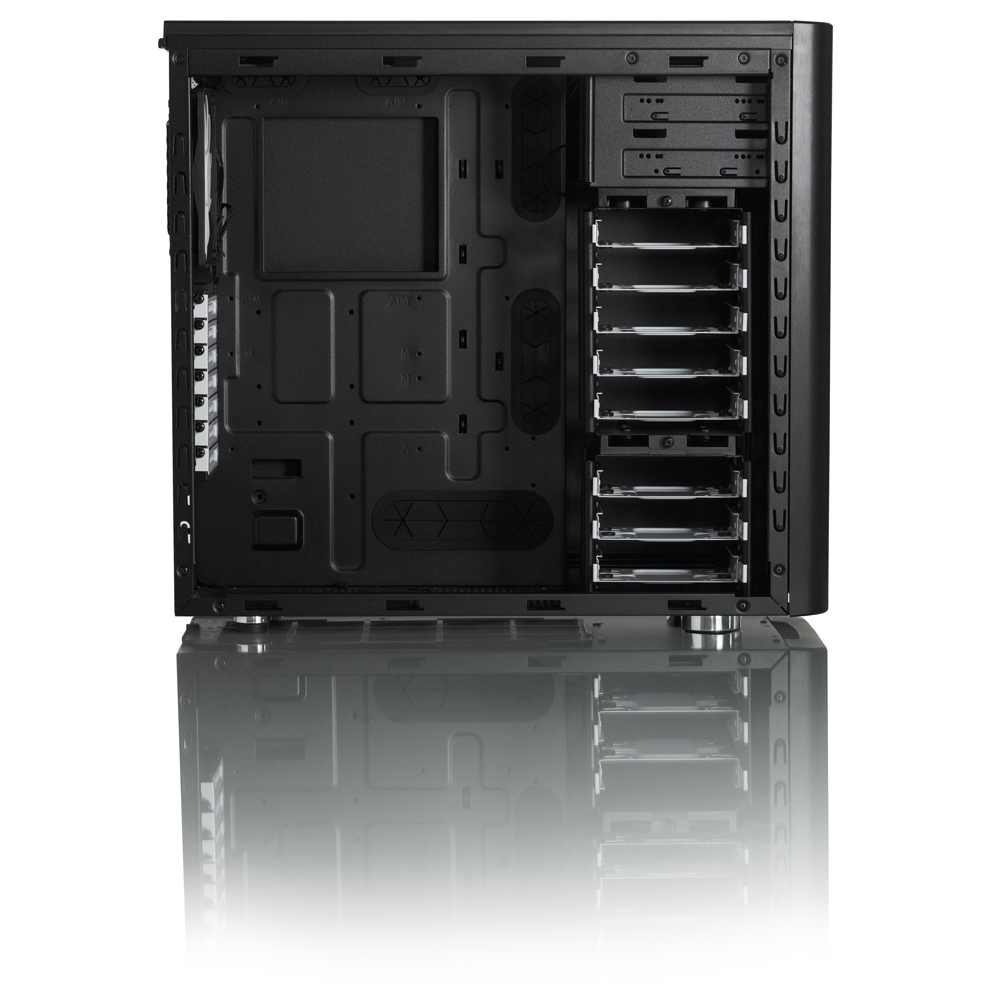

  • Support for up to 8 hard drive bays with accommodation for an additional 2 x 2,5" inch drives behind the motherboard
  • Easy installation and configuration with ample cable routing space making it simple for everyone to make a very tidy looking computer build
  • Removable fan filters for easy dust maintenance and washing

Featuring three high performance Silent Series R2 fans and ample water cooling options, the Arc Midi R2 layout maximizes airflow throughout the case and keeps even the most demanding systems at cool temperatures. Designed to house even the thickest radiators in both the top and front panels without extensive modifications, the Arc Midi R2 offers all this within a mid size case.

The chassis comes complete with a fan controller, easy to clean dust filters, high level of workmanship, flexible hard drive mounting system and plenty of space for cable routing.

with the Fractal Design Arc Midi R2.
