Fractal Design Define 7 XL

Case

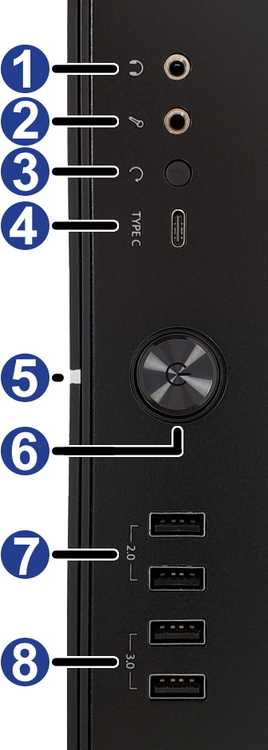

[ Front Panel ]

Fractal Design Define 7 XL Picture 60258Fractal Design Define 7 XL Picture 60260Fractal Design Define 7 XL Picture 60263Fractal Design Define 7 XL Picture 60266Fractal Design Define 7 XL Picture 60264Fractal Design Define 7 XL Picture 60259Fractal Design Define 7 XL Picture 60261Fractal Design Define 7 XL Picture 60262Fractal Design Define 7 XL Picture 60265Fractal Design Define 7 XL Picture 60382Fractal Design Define 7 XL Picture 69533

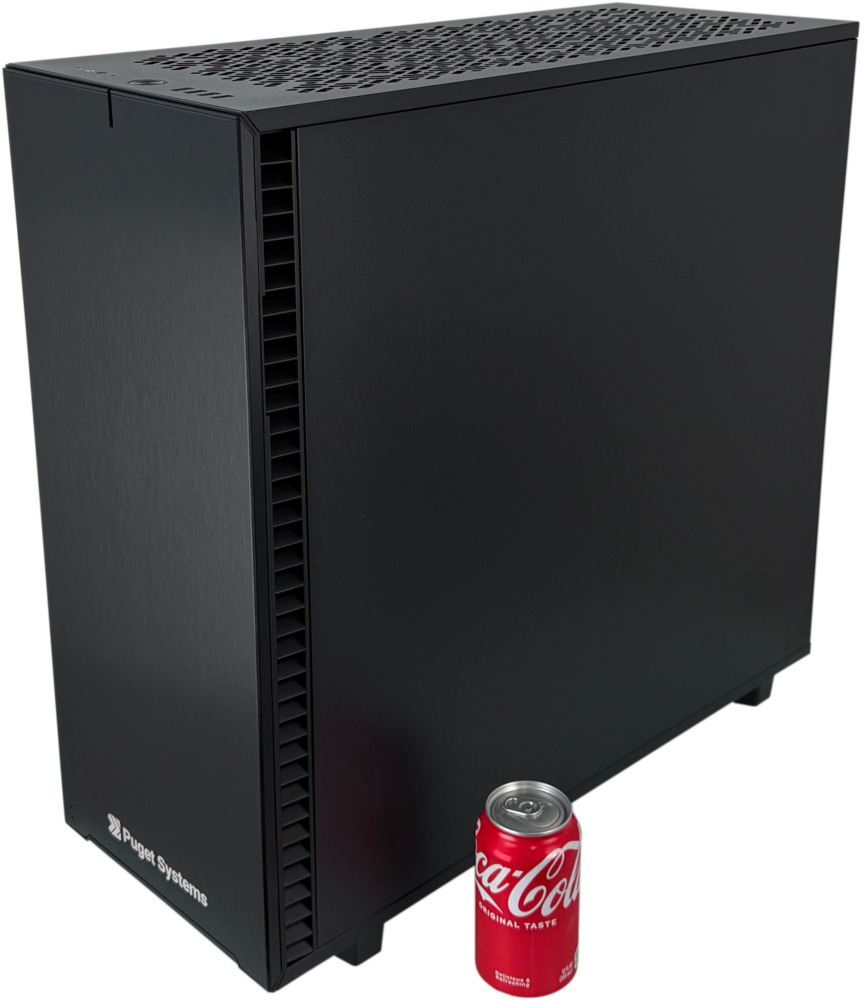

The Define 7 XL is a larger version of Fractal Design's popular Define chassis series. It is a very flexible design, built for EATX and SSI EEB motherboards, with plenty of space for boards that support dual CPU configurations and a host of other components. Noise dampening padding is installed on the front and side panel, as well as filters over the front and bottom air intakes.

Similar to other models in this family, the Define 7 XL has a flexible internal layout. However, the "floating" drive mounts are not secure enough for shipping - so the number of drives that can be installed is rather limited. We can support two 5.25-inch front drives, four 3.5-inch hard drives, and two more 2.5-inch SSDs; the 3.5-inch locations can also mount smaller SSDs if needed. If a long power supply is installed, though, it will block two of the 3.5-inch bays.

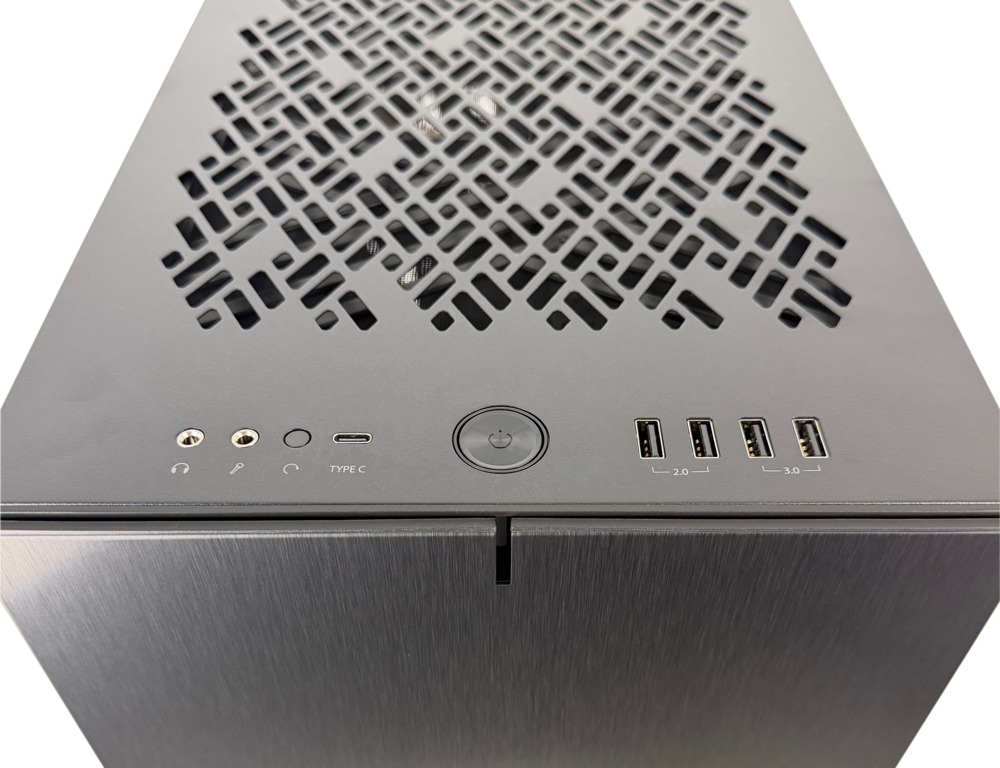

Three quiet 140mm fans are included, with room for several more. The front connections are located at the top of the case, directly above the front door, and include one USB-C, two each of USB 2.0 & 3.0 ports, and both headphone and mic plugs.
William George (Product Development)
William George (Product Development) Says:
If you are aiming to have a lot of 3.5-inch hard drives (or even 2.5-inch SSDs) in this chassis, be aware that power supplies longer than 200mm will block use of two internal drive bays. Almost all 1600W power supplies are impacted by this, as well as some lower wattage models (depending on the brand and model).

Note: Dimensions: 22.3" H x 9.4" W x 23.8" D

Model: Fractal Design FD-C-DEF7X-01

Specifications:
spacer
Color  Black
Material  Aluminum and plastic front panel, steel frame
Type/Size  Full Tower
Maximum Motherboard Size  SSI EEB
Case Window  No
Dimensions
Height  566 mm (22.3 in)
Width  240 mm (9.4 in)
Depth  604 mm (23.8 in)
Net Weight  16.53 kg (36.4 lbs)
Maximum CPU Cooler Height  185mm
Maximum GPU Length  360mm
Maximum PSU Length  250mm
Drive Bays
External 5.25 inch  2
External 3.5 inch  0
Internal 2.5 inch  2
Internal 2.5/3.5 inch  4*
Front Panel Connectors
USB 2.0  2
USB 3.0  2
Audio In  1
Audio Out  1
USB-C  1
Cooling System
Cooling Method  Air
Included Fans  3 140mm Fractal GP-14
Total Fan Mounts  9

*HDD capacity is limited by component choice. Using a PSU greater than 200mm in length prevents the installation of one drive cage, reducing 3.5" HDD mounting by 2
