Fractal Design Define XL R2 Titanium Grey w/ Window

Case

Fractal Design Define XL R2 Titanium Grey w/ Window Picture 29494Fractal Design Define XL R2 Titanium Grey w/ Window Picture 29495Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24471Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24472Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24473Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24474Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24475Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24476Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24477Fractal Design Define XL R2 Titanium Grey w/ Window Picture 24479

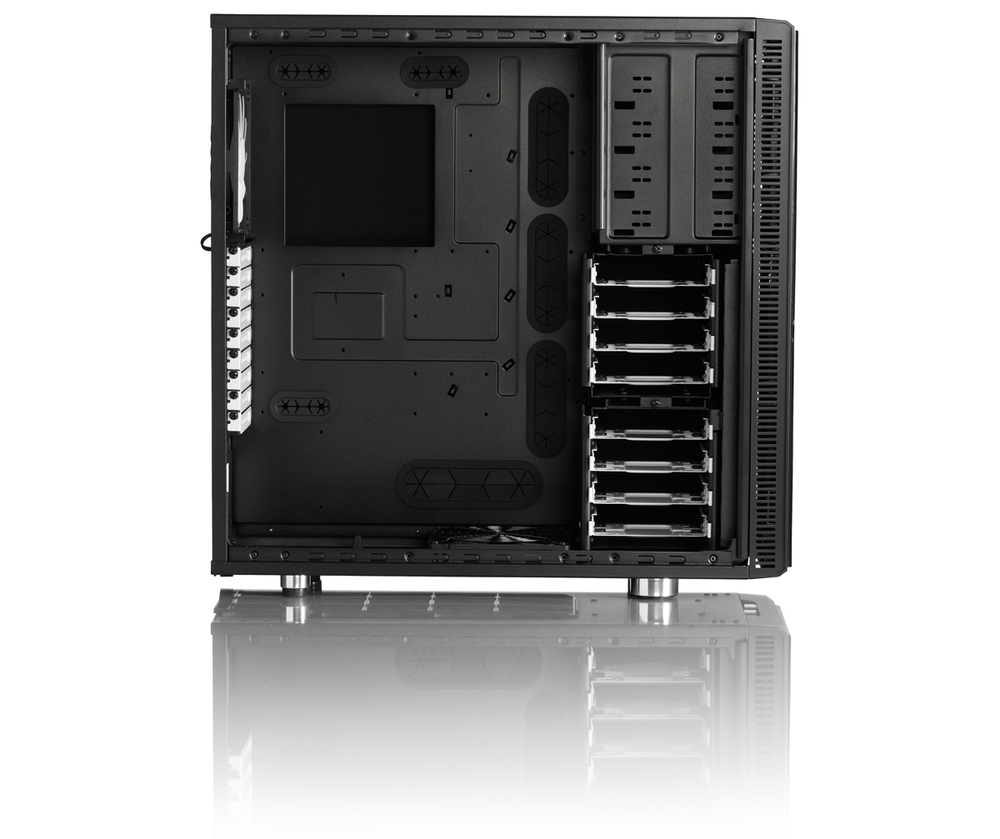

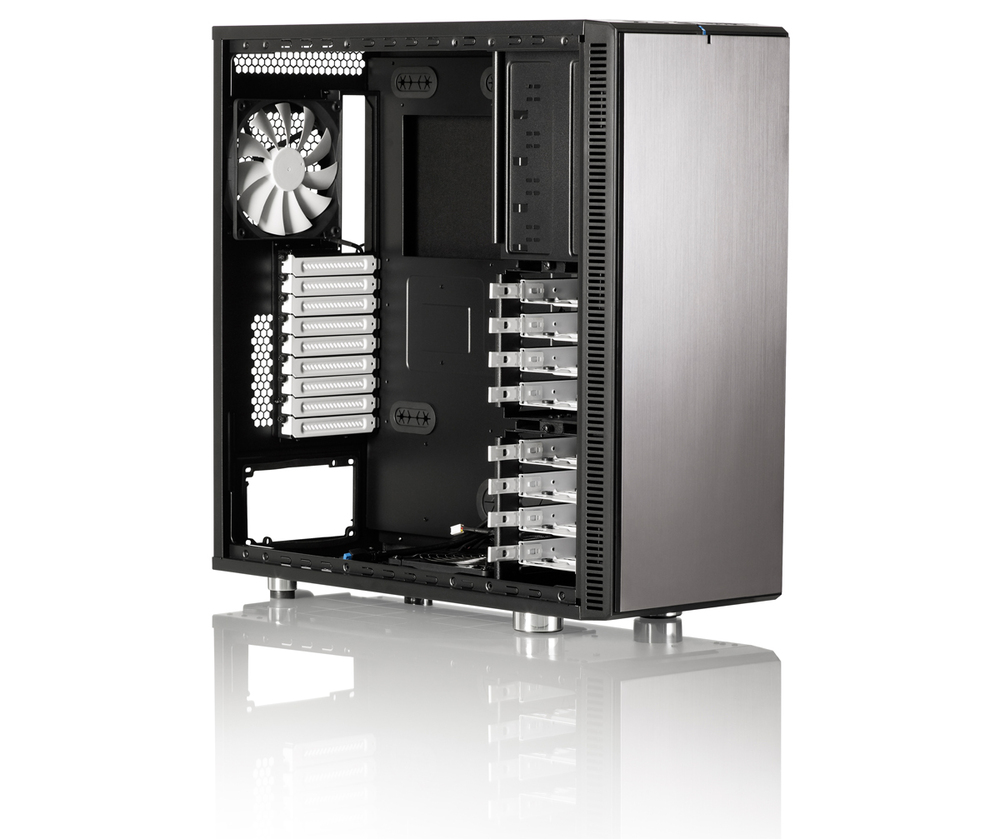

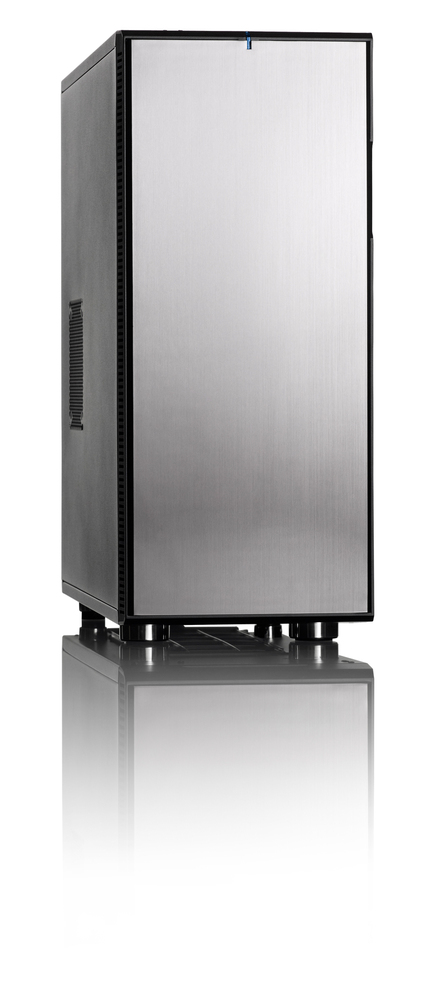

Fractal Design's Define XL R2 is a larger version of the popular Define chassis series. It is a very flexible design, built for an EATX motherboard, with plenty of space for dual CPU configurations and a host of other components. It can mount eight hard drives and four optical drives or other 5.25-inch bay devices.

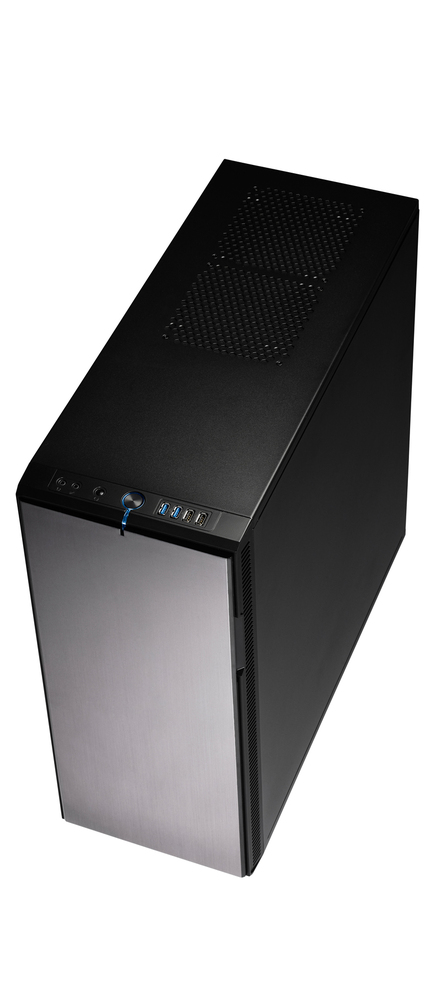

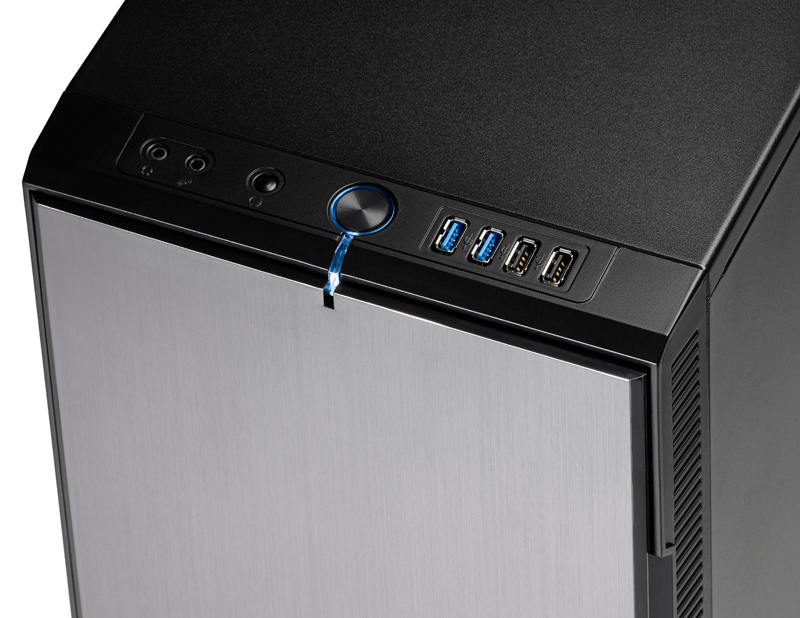

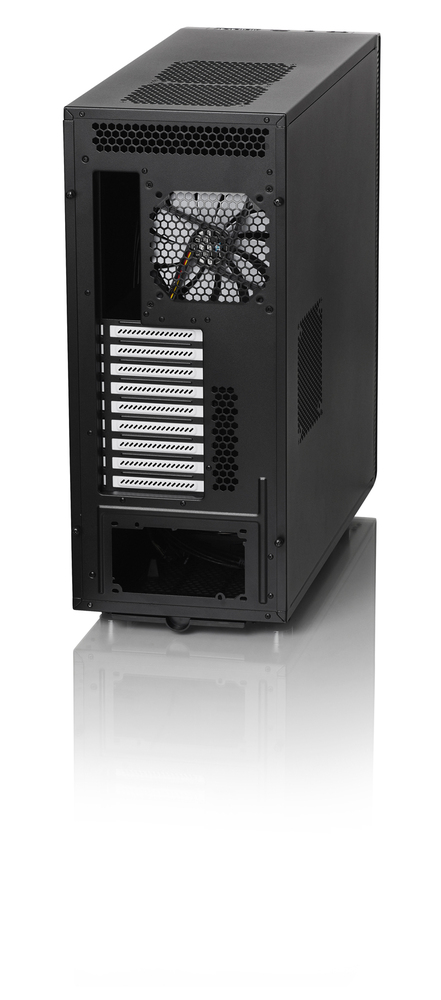

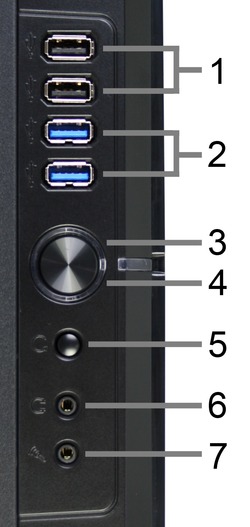

The Define XL R2 comes with three fans, but can fit up to four more depending on the cooling needs of the hardware. The front connections are located at the top of the case, directly above the front door, and include two each of USB 2.0 and USB 3.0 ports alongside headphone and mic plugs.

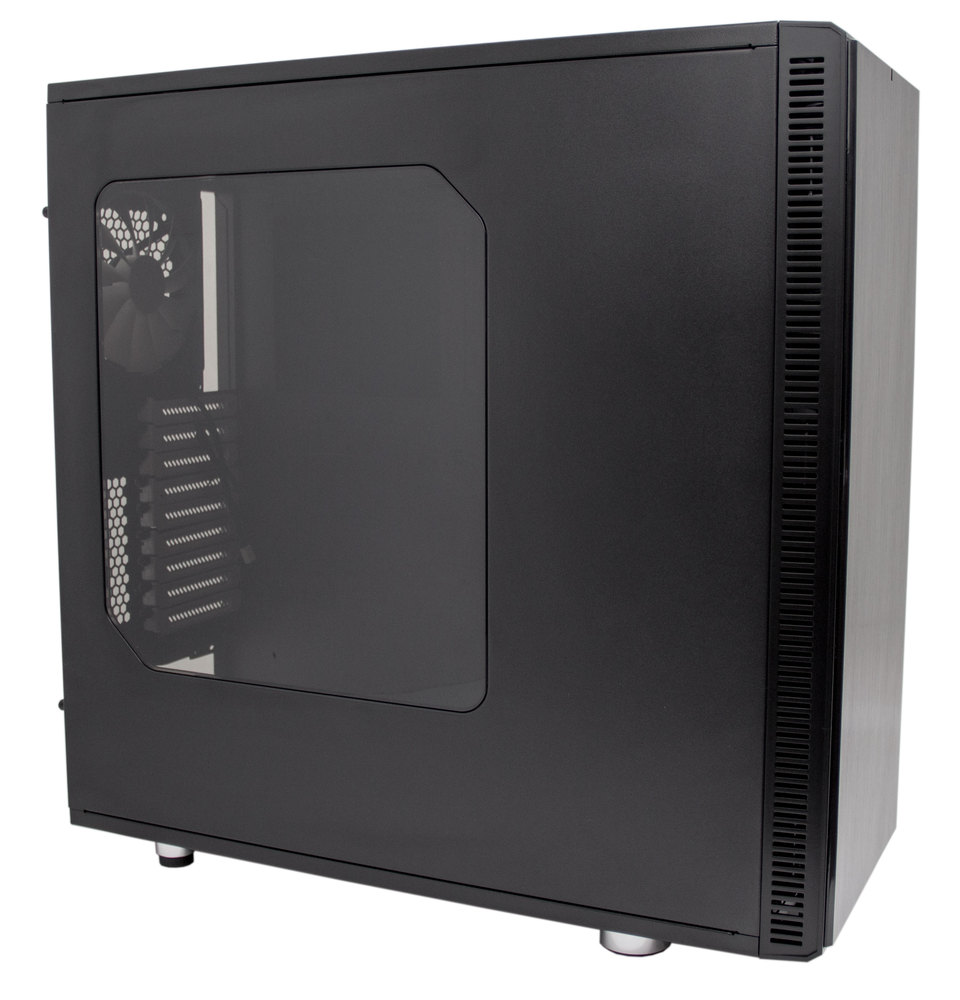

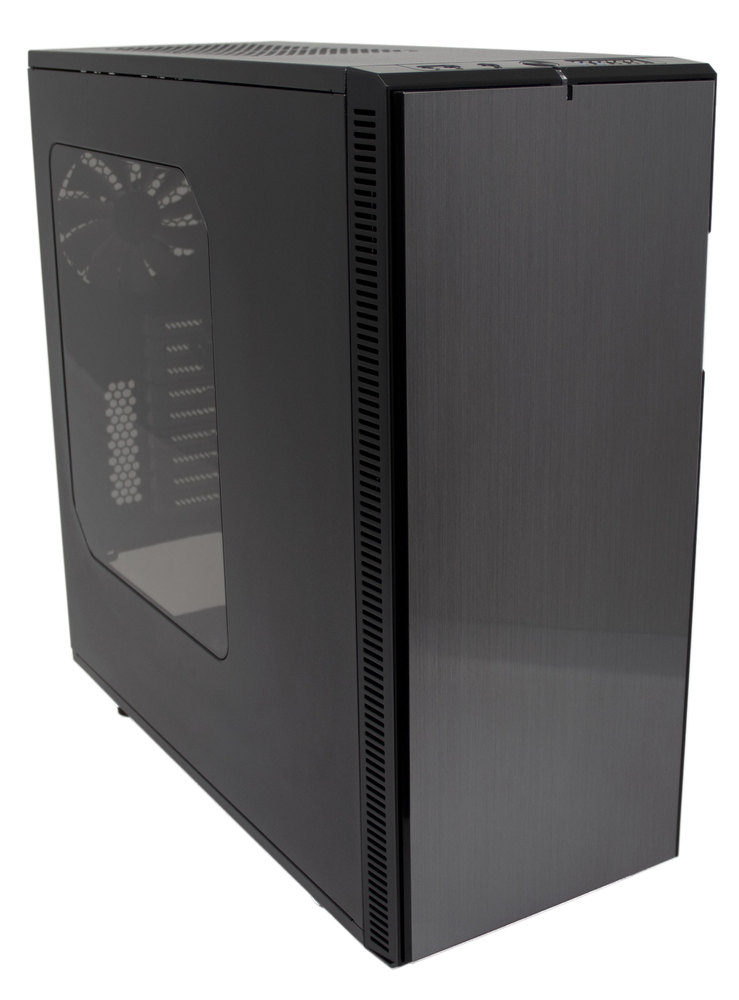

This particular version is 'Titanium Grey' in color and has a custom-made window on the left side panel.
Jeff Stubbers (Technology Consultant Lead)
Jeff Stubbers (Technology Consultant Lead) Says:
This is a very versatile case for cooling, and allows for a good amount of hard drives. The Fractal Design Define XL R2 does a good job of dampening the noise of your system as well. This case is definitely worth your consideration.

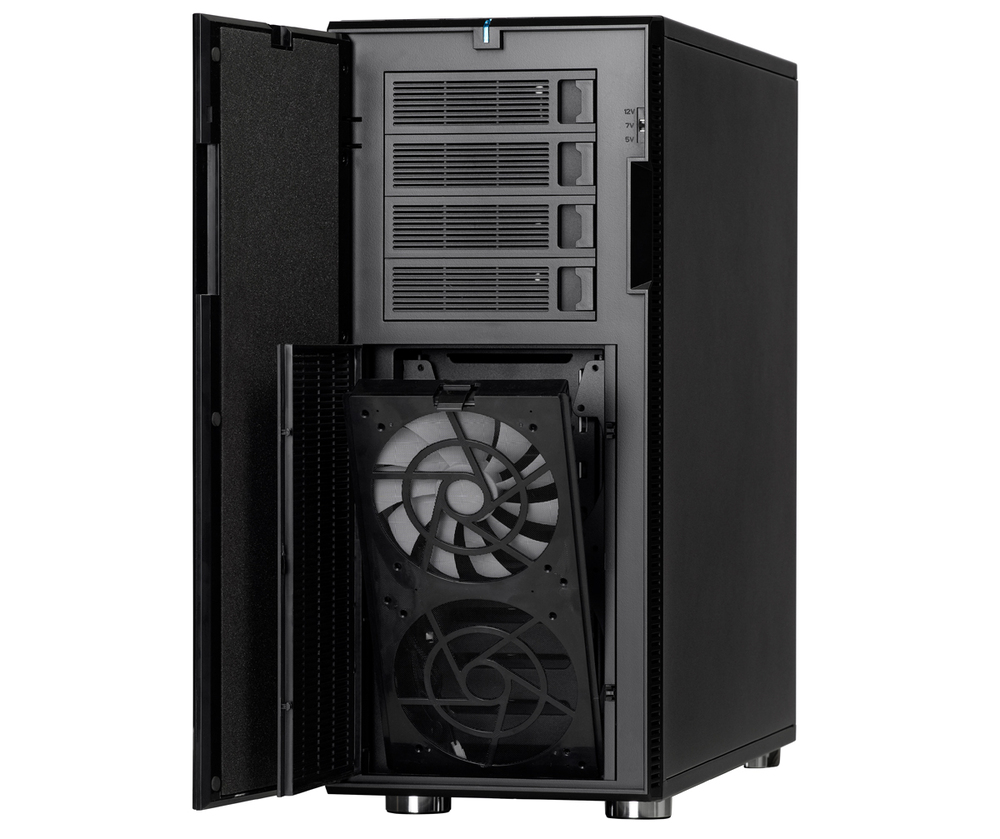

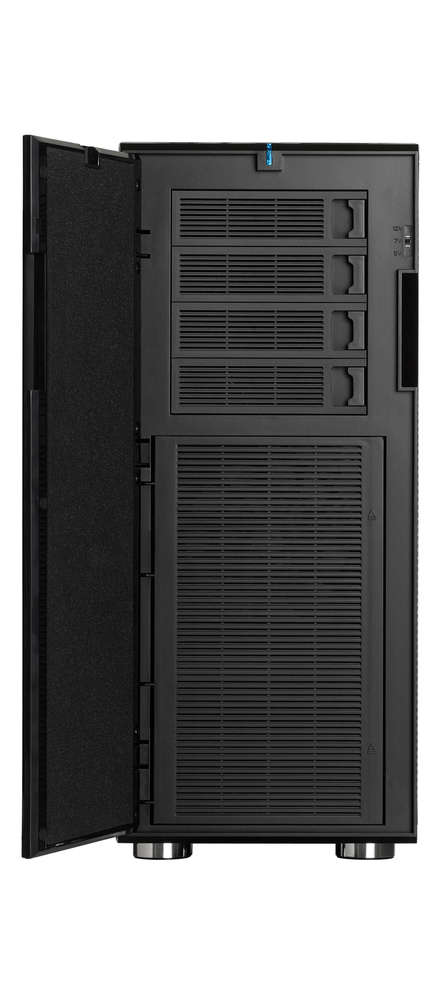

*This case gets plenty of cooling when the front door is closed. There are vents to left and right of the door designed to allow enough air in with the front door closed, and that air still gets filtered to stop the majority of dust from getting inside the system.

Note: Dimensions: 22" H x 9.1" W x 22" D

Model: Fractal Design FD-CA-DEF-XL-R2-TI-W

Specifications

Color Grey
Material Plastic front panel, steel frame
Type/Size Full Tower
Maximum Motherboard Size SSI EEB
Case Window No
Power Supply None
Dimensions
Height 559 mm (22.0 in)
Width 232 mm (9.1 in)
Depth 560 mm (22.0 in)
Net Weight 16.4 kg (36.2 lbs)
Maximum CPU Cooler Height 170mm (with no side fan)
Maximum GPU Length 330mm (480mm with top HD cage removed)
Maximum PSU Length 190mm (345mm with bottom fan removed)
Drive Bays
External 5.25 inch 4
External 3.5 inch 0
Internal 2.5/3.5 inch 8
Front Panel Connectors
USB 2.0 2
USB 3.0 2
Audio In 1
Audio Out 1
USB-C 0
Cooling System
Cooling Method Air
Included Fans 1x 140mm Front, 1x 140mm Rear, 1x 140mm Bottom
Total Fan Mounts 1x 120/140mm front, 2x 120/140mm Top, 1x 140mm Side
