InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount

Case

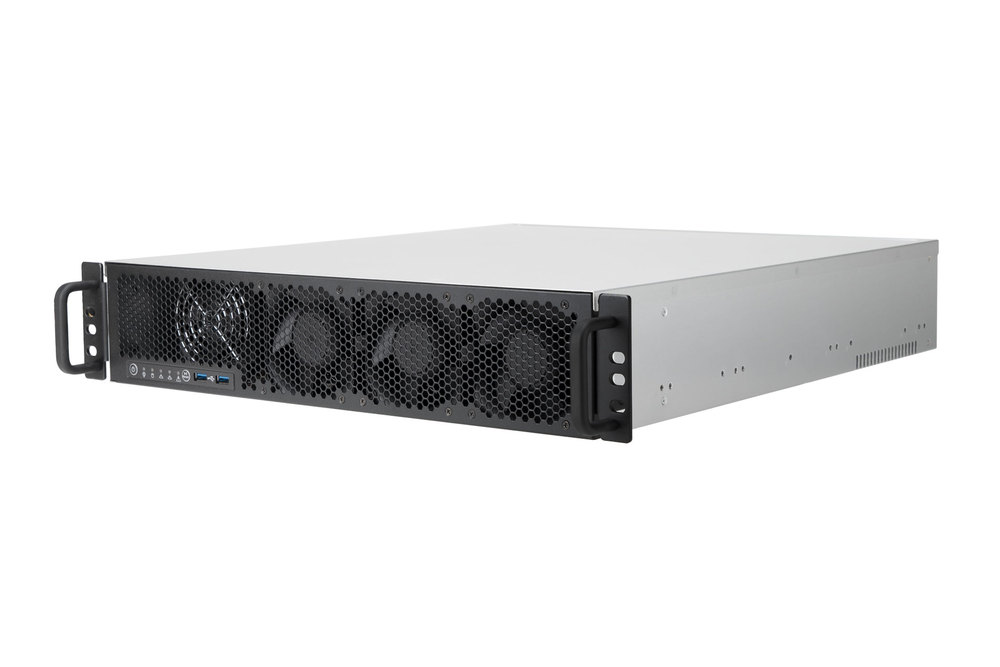

InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Main Picture


InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Picture 91501InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Picture 91502InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Picture 91503InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Picture 91504InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Picture 91505InWin IW-RL200 Liquid Cooled 1200W 2U Rackmount Picture 91506

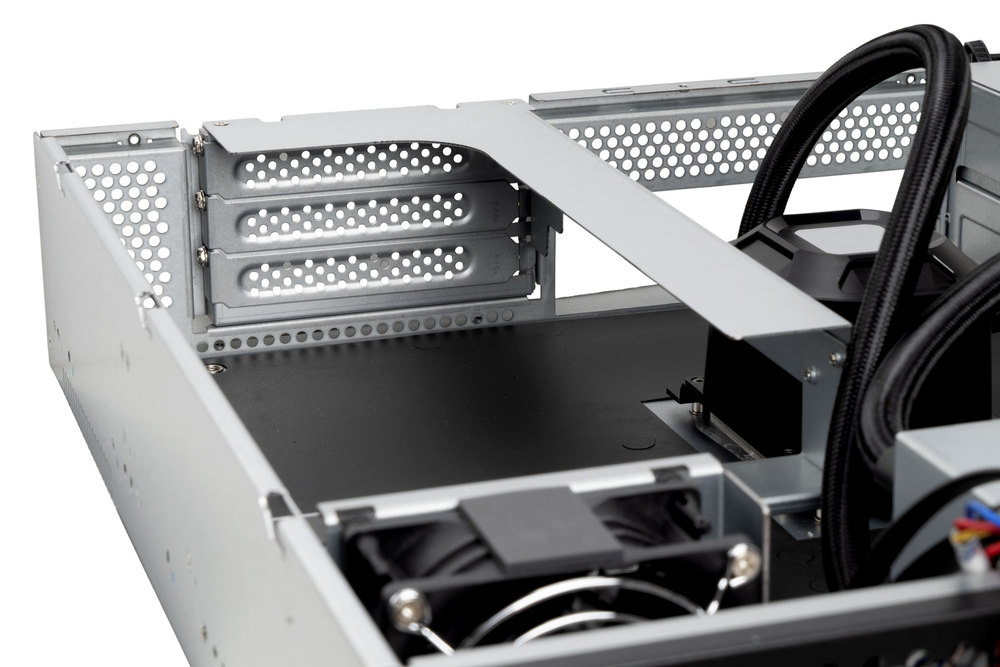

The InWin IW-RL200 is a 2U rackmount chassis that is perfect for housing a remote workstation with a lot of power while using as little space as possible. It comes bundled with an all-in-one liquid cooler for the CPU, 1200W redundant power supply, and sliding rail kit. 2U isn't normally enough height for a video card to stand up, but InWin included a PCIe 4.0 riser that allows even very large cards like NVIDIA's GeForce RTX 5090 Founders Edition to mount sideways while still having enough room for airflow.

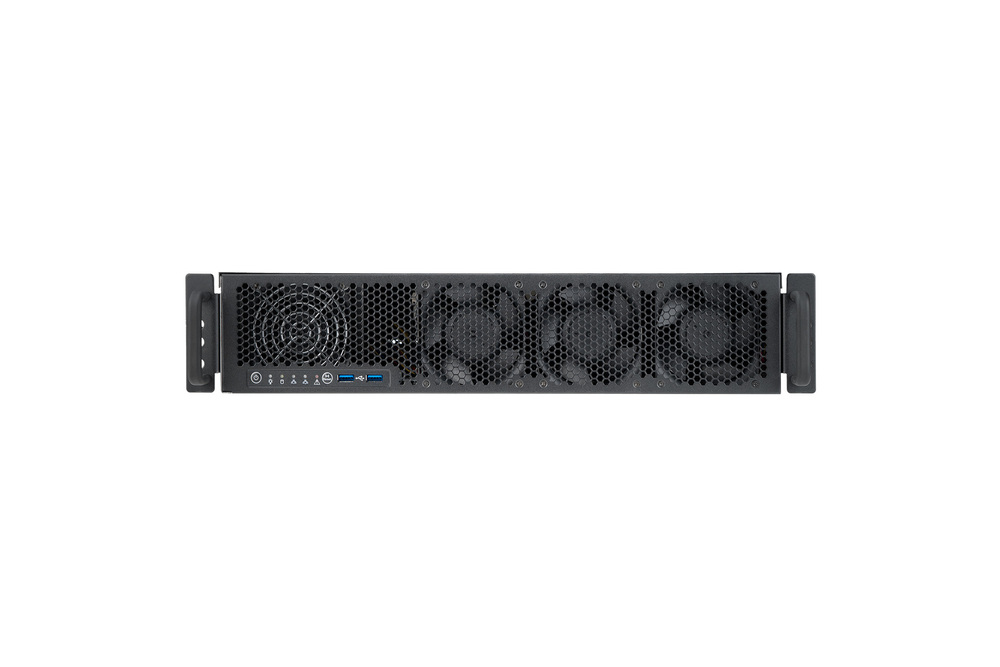

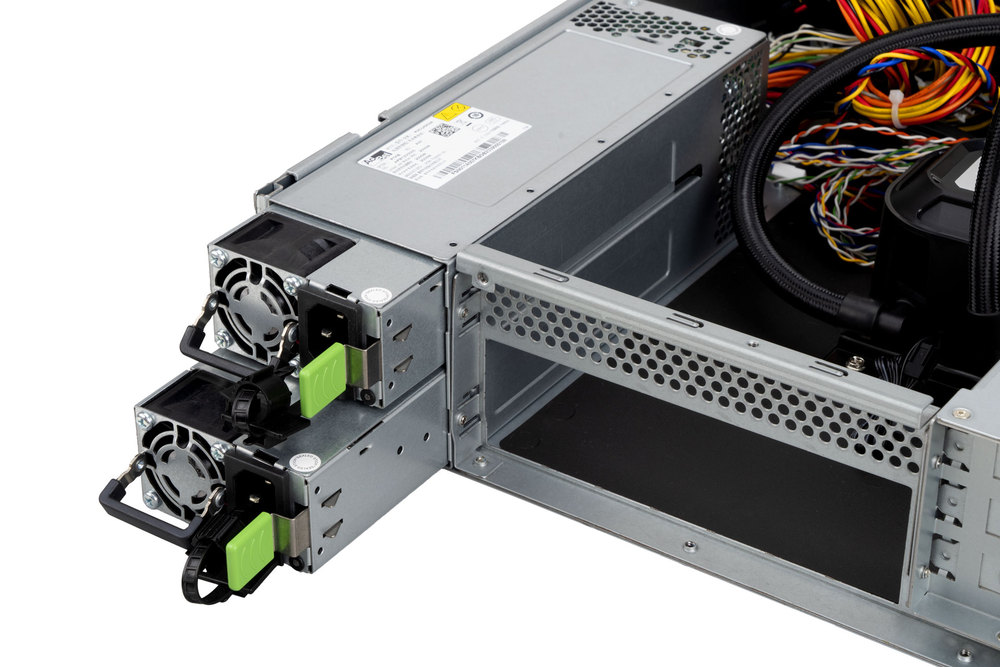

For connectivity, there are a pair of USB 3.2 ports on the front of the chassis. In terms of cooling, there are three 80mm fans in the front, mounted to the AIO radiator, and then a fourth directly in front of the GPU mount. Each of the power supplies also has a 40mm fan, and their redundant nature means that two power connections are required (though they can be on the same power circuit).
William George (Go-To-Market (GTM) Manager)
William George (Go-To-Market (GTM) Manager) Says:
While the video card riser is limited to PCIe Gen 4, that is still fast enough that it will not practically impact most GPU applications or workflows.

Model: InWin IW-RL200

Specifications

Color Black
Material Steel
Type/Size 2U Rackmount
Maximum Motherboard Size SSI EEB
Power Supply 1200W Redundant
Dimensions
Height 88 mm (3.5 in)
Width 432 mm (17.0 in)
Depth 484 mm (19.1 in)
Net Weight 7.81 kg (17.2 lbs)
Front Panel Connectors
USB 3.0 2
Cooling System
Cooling Method Liquid
Included Fans 4
Total Fan Mounts 4

Features

  • Additional specs:

    CPU Cooling:
  • Front IW-LSC2U24 2U height 80x240 mm AIO liquid cooler (350W Max) AM5

    Rail Kit:
  • Included 23" ball-bearing slide rails (24-36 inch post spacing)
