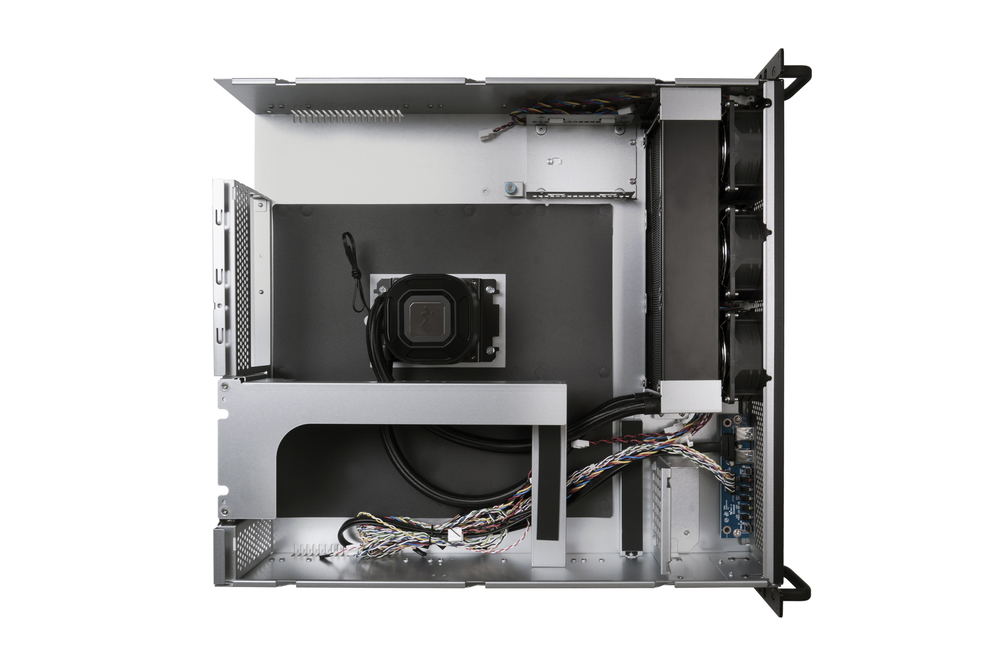

The InWin IW-RL200A is a 2U rackmount chassis that is perfect for housing a remote workstation with a lot of power while using as little space as possible. It comes bundled with an upgraded all-in-one liquid cooler for the CPU, compared to the RL200 model, enabling support for high-wattage processors like AMD's Threadripper line. 1200W redundant power supplies and a sliding rail kit are also included.

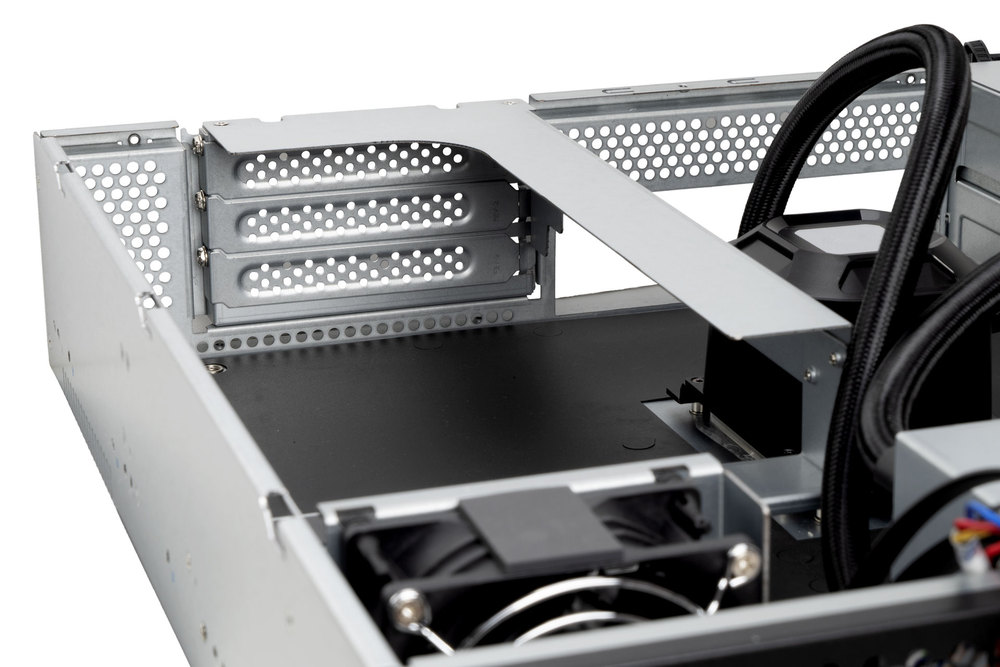

2U isn't normally enough height for a video card to stand up, but InWin included a PCIe riser that allows even very large cards like NVIDIA's GeForce RTX 5090 Founders Edition to mount sideways while still having enough room for airflow.

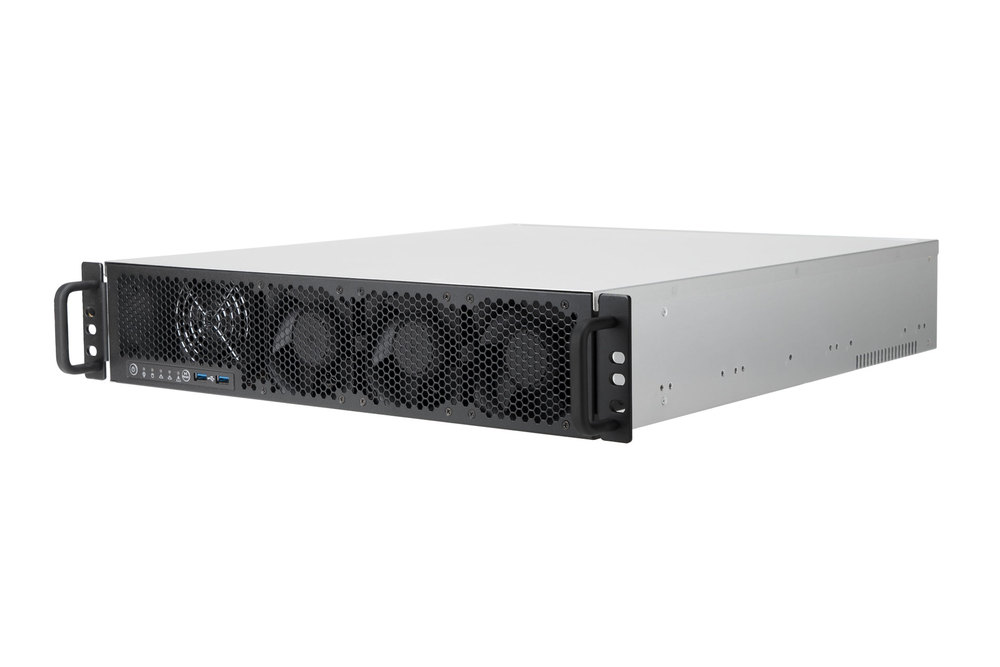

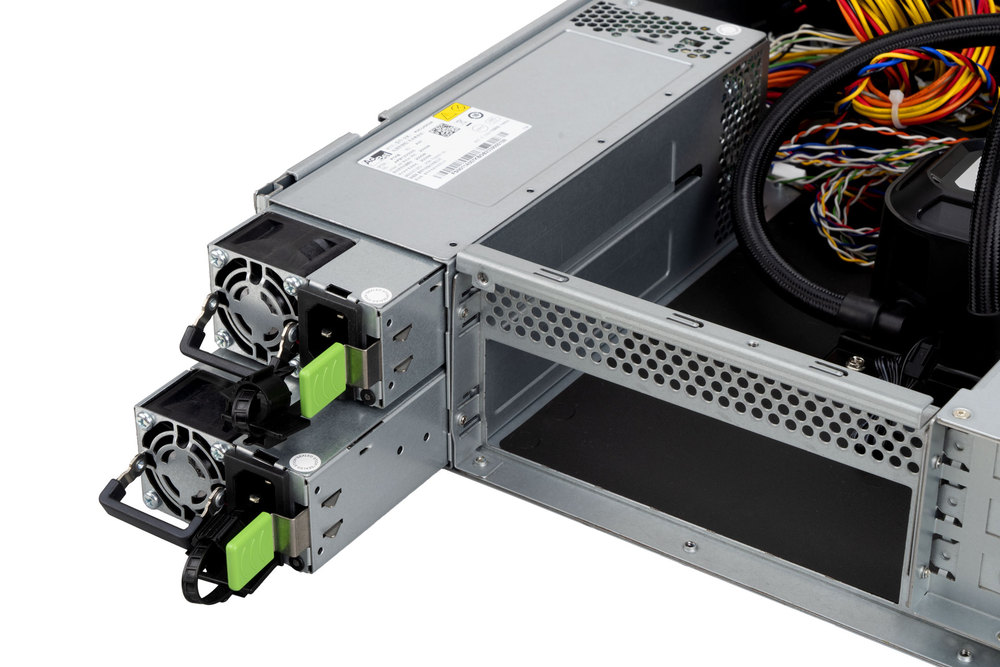

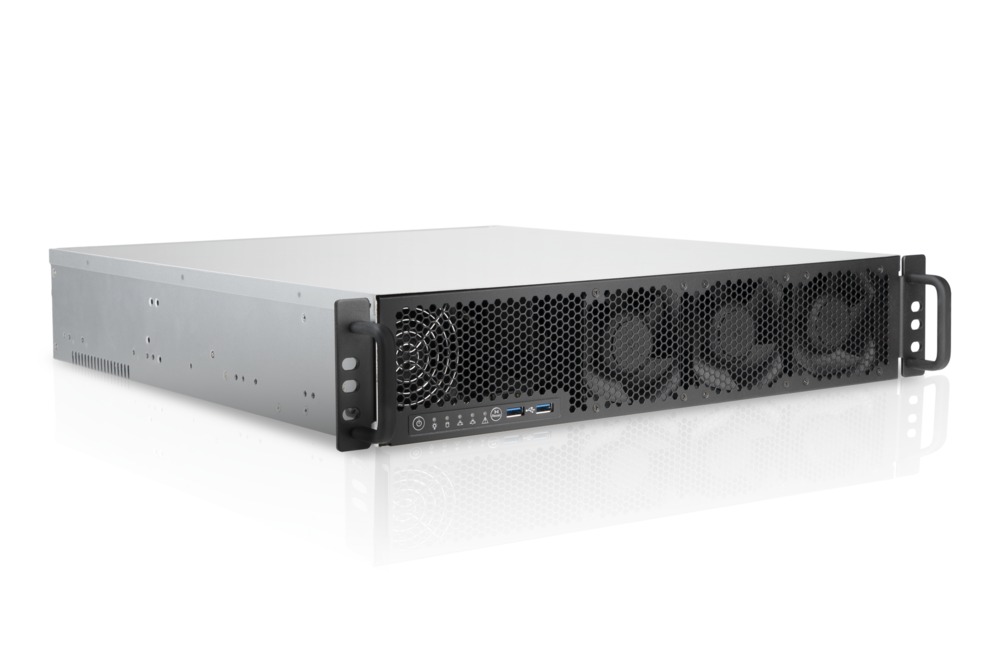

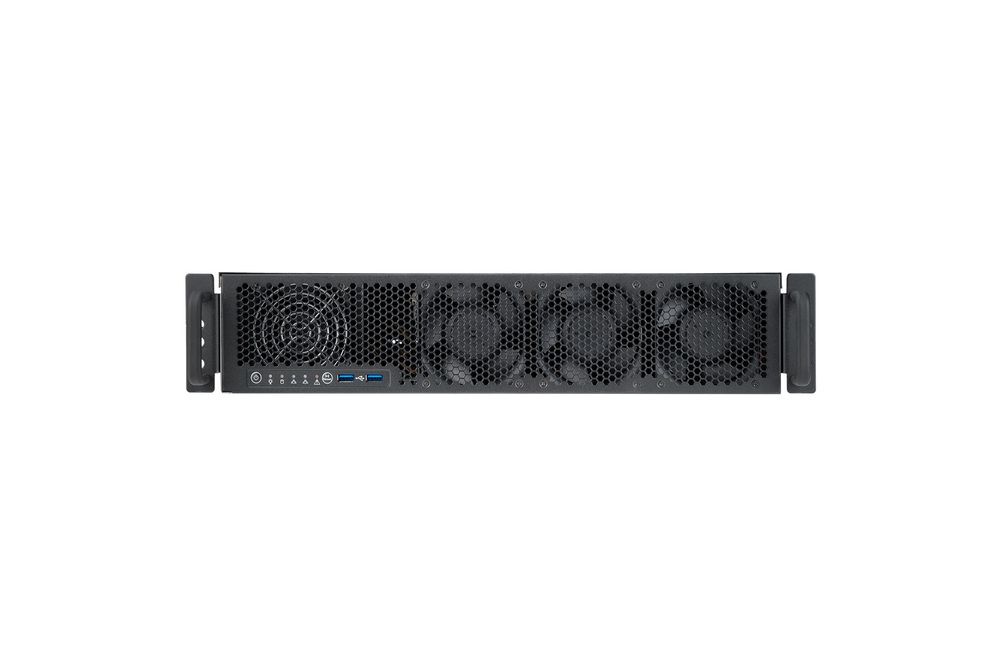

For connectivity, there are a pair of USB 3.2 ports on the front of the chassis. In terms of cooling, there are three 80mm fans in the front, mounted to the AIO radiator, and then a fourth directly in front of the GPU mount. Each of the power supplies also has a 40mm fan, and their redundant nature means that two power connections are required (though they can be on the same power circuit).
2U isn't normally enough height for a video card to stand up, but InWin included a PCIe riser that allows even very large cards like NVIDIA's GeForce RTX 5090 Founders Edition to mount sideways while still having enough room for airflow.
For connectivity, there are a pair of USB 3.2 ports on the front of the chassis. In terms of cooling, there are three 80mm fans in the front, mounted to the AIO radiator, and then a fourth directly in front of the GPU mount. Each of the power supplies also has a 40mm fan, and their redundant nature means that two power connections are required (though they can be on the same power circuit).
William George (Go-To-Market (GTM) Manager) Says:
The first batches of these cases shipped with PCIe Gen4 risers, which were fast enough that they did not practically impact most GPU applications or workflows. InWin has since upgraded to Gen5 risers, better matching modern motherboards and video cards.
The first batches of these cases shipped with PCIe Gen4 risers, which were fast enough that they did not practically impact most GPU applications or workflows. InWin has since upgraded to Gen5 risers, better matching modern motherboards and video cards.
Model: InWin RL200A-CR1K2.SET5
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 2U Rackmount |
| Maximum Motherboard Size | SSI EEB |
| Power Supply | 1200W Redundant |
Dimensions | |
| Height | 88 mm (3.5 in) |
| Width | 432 mm (17.0 in) |
| Depth | 484 mm (19.1 in) |
| Net Weight | 7.81 kg (17.2 lbs) |
Front Panel Connectors | |
| USB 3.0 | 2 |
Cooling System | |
| Cooling Method | Liquid |
| Included Fans | 4 |
| Total Fan Mounts | 4 |
Features
- Rail Kit:
- Included 23" ball-bearing slide rails (24-36 inch post spacing)
- Power Supply:
- 1+1 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) / CRPS PDB
