Silverstone SG10 Puget Systems Edition Rev 2

Case

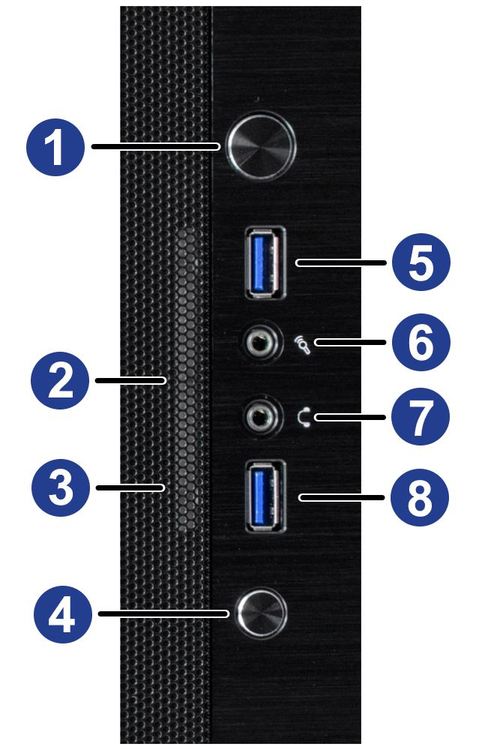

[ Front Panel ]

Silverstone SG10 Puget Systems Edition Rev 2 Picture 54251Silverstone SG10 Puget Systems Edition Rev 2 Picture 54252Silverstone SG10 Puget Systems Edition Rev 2 Picture 54253Silverstone SG10 Puget Systems Edition Rev 2 Picture 54254Silverstone SG10 Puget Systems Edition Rev 2 Picture 54166Silverstone SG10 Puget Systems Edition Rev 2 Picture 54171Silverstone SG10 Puget Systems Edition Rev 2 Picture 54250
The Silverstone SG10 chassis is an extremely compact tower, measuring less than 12" tall and 14" deep. Despite those small dimensions, it is able to pack a MicroATX motherboard, ATX power supply, full length expansion cards, large CPU cooler, and multiple drives inside. There are some trade-offs required to keep the height to a minimum, though: there are no front drive bays which means that optical drives are limited to external USB drives only.

This specific version of the SG10 has been customized by Silverstone with some improvements requested by our Labs and Production departments. It is only available for purchase at this time as part of a Puget Systems computer.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This is an updated version of the SG10 chassis, with the main change being the removal of the slot-loading optical drive bay. I've never been a fan of slot-loading drives myself, but it was particularly problematic because of the lack of a physical eject button and the potential to have no drive installed inside but the slot still present (such that you could slide a disc through and land it inside the system). With how rarely optical discs are used anymore, this removal is a logical step. We still offer larger tower systems with optical drive options, for those who need them, and of course you can get external USB-based optical drives if you just need to use one on rare occasion.
Model: Silverstone SST-SG10B_Puget

Specifications:
spacer
Color  Black
Material  Aluminum front panel, steel frame
Type/Size  Small Form Factor
Maximum Motherboard Size  MicroATX
Case Window  No
Dimensions
Height  295 mm (11.6 in)
Width  220 mm (8.7 in)
Depth  354 mm (13.9 in)
Net Weight  5.8 kg (12.8 lbs)
Maximum CPU Cooler Height  165mm
Maximum GPU Length  338mm
Maximum PSU Length  180mm
Drive Bays
External 5.25 inch  0
External 3.5 inch  0
Internal 3.5 inch  2
Internal 2.5 inch  4
Slim 5.25 inch  0
Front Panel Connectors
USB 3.0  2
Audio In  1
Audio Out  1
Cooling System
Cooling Method  Air
Included Fans  Rear 120mm, Top 180mm
Additional Fans Possible  Left side 2x 92/80mm, Left side 120/92mm

Custom version of the Silverstone SG10 with modifications for Puget Systems PCs

Includes fan 180mm to 140mm fan adapter (for top fan)




Configure a quiet custom PC with the Silverstone SG10 Puget Systems Edition Rev 2.
