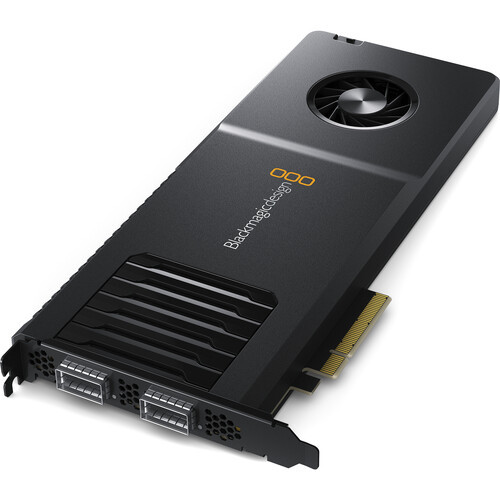

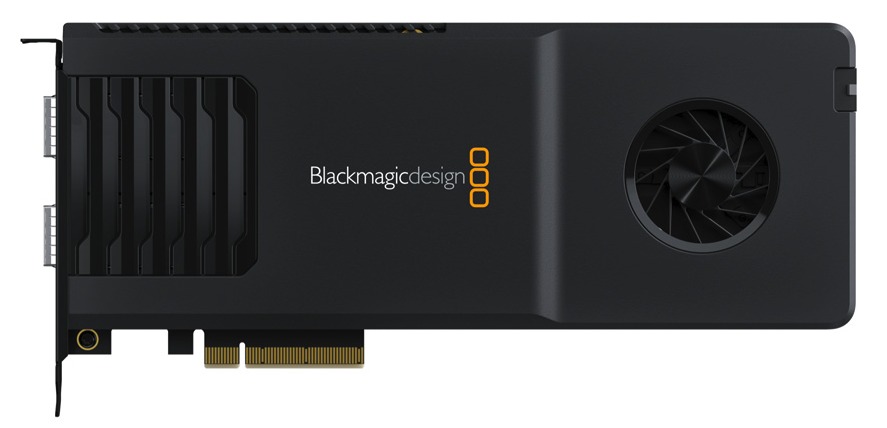

The Blackmagic Design DeckLink IP is a full-height PCI-Express 4.0 x8 card built to send and receive video over IP signals via a pair of 100Gb QSFP style Ethernet connections. It features 8 channels of capture and playback compatible with SMPTE 2110 IP broadcast systems and supports resolutions up to UHD (2160p60).
William George (Go-To-Market (GTM) Manager) Says:
Please note that this card has an active cooling fan, which means it won't be a good fit in a setting where low noise is critical.
Please note that this card has an active cooling fan, which means it won't be a good fit in a setting where low noise is critical.
Note: For MA only at this time
Model: Blackmagic BDLKIPHIP/100G
Specifications
Card Specifications | |
| Manufacturer | Blackmagic |

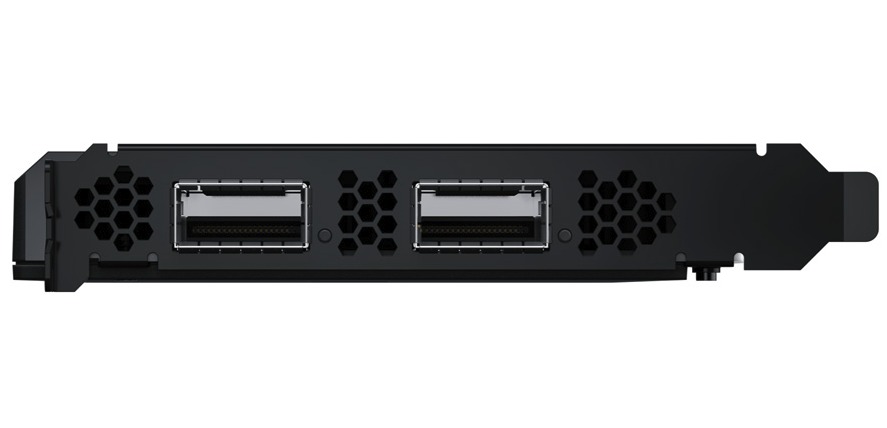

| Type of Ports | Dual 100G QSFP28 Ports |
| Port Location(s) | Rear |
| Motherboard Connection | PCI Express x16 |
| Interface | PCI Express 4.0 x16 |
| Form Factor | Full Height |

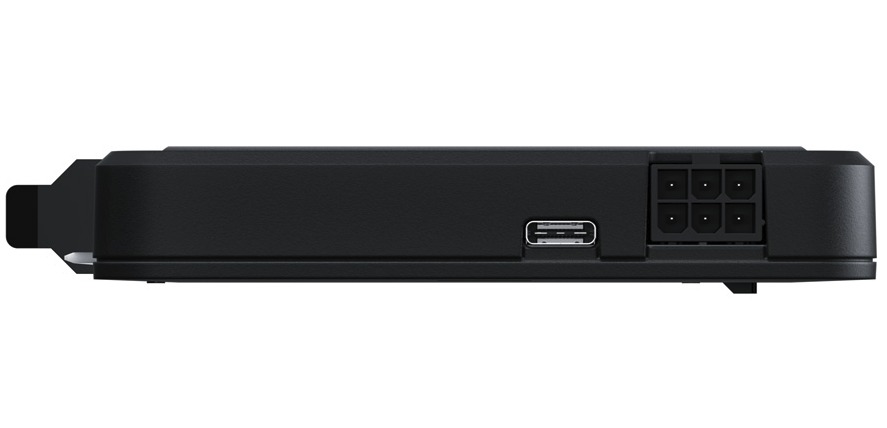

| Power Connector(s) | 6-Pin PCIe |
Dimensions | |
| Depth | 267 mm (10.5 in) |
| Net Weight | 0.39 kg (0.9 lbs) |
Features
- Format Support
- Video Resolution
- Fiber Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
- 4096 x 2160 up to 120 fps
- Audio Format
- Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit
- Embedded Audio
- IP: 2-Channel
- Standards
- Video Standard Compliance
- SMPTE: ST 2110-20/ST 2110-21/ST-2110
- HDCP Support
- No
- HDR Support
- Yes: Hybrid Log Gamma
- Broadcast System Compatibility
- NTSC, PAL
- Broadcast and Network Protocols
- SMPTE 2110-20 (video), 2110-21 (timing), 2110-30 (audio), 2110-40 (ancillary data)
- SMPTE 2022-7 stream redundancy
- NMOS IS-04 and IS-05 compliant for discovery and connection management
- PTP (Precision Time Protocol) IEEE 1588-2008 for frame-accurate sync
