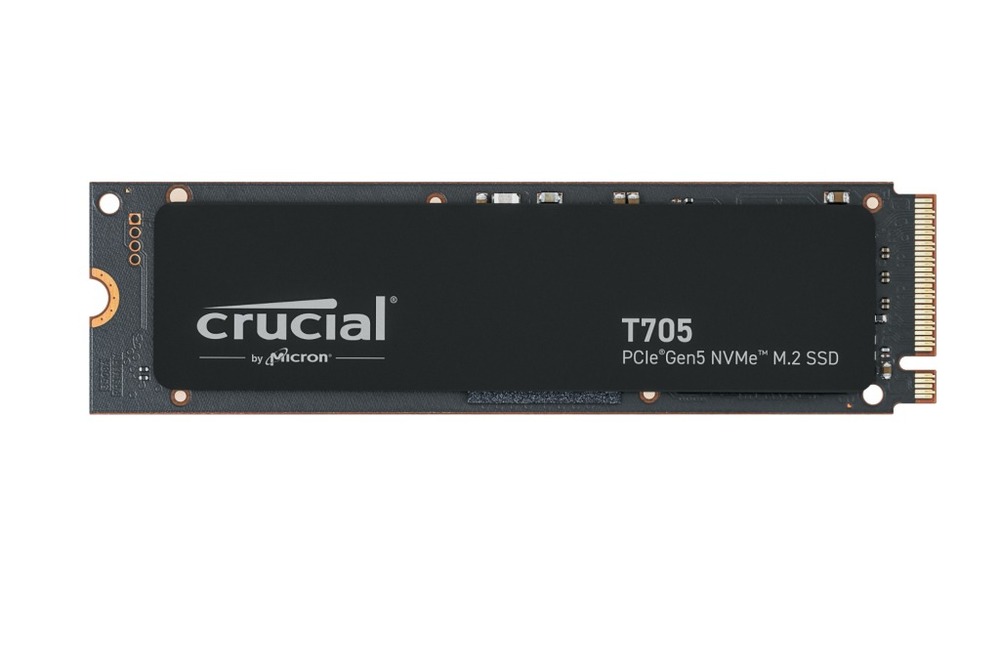

The Crucial T705 solid-state drive uses PCIe 5.0 to deliver blazing-fast transfer speeds despite the small M.2 form factor. This 1TB model can reach up to 10GB/s write and 13GB/s read speeds in sequential speed tests. Real-world performance is affected by many other factors, though, so actual throughput will be lower and depends heavily on the workload and other system parameters.
William George (Go-To-Market (GTM) Manager) Says:
These high-speed SSDs run very hot, and so can only be used on motherboards with robust heatsinks for their M.2 slots.
These high-speed SSDs run very hot, and so can only be used on motherboards with robust heatsinks for their M.2 slots.
Model: Crucial CT1000T705SSD3
Specifications
| Form Factor | M.2 2280 |
| Capacity | 1000 GB |
| Interface | PCIe 5.0 x4 |
| Endurance (TBW) | 600 TBW |
| Peak Power Draw | 12 Watts |
| Max Temp. | 91 C |
| Chip Layout | Dual Sided |
| Net Weight | 0.0099 kg (0.0 lbs) |
Performance | |
| Sequential Read (Peak) | 13600 MB/s |
| Sequential Write (Peak) | 10200 MB/s |
