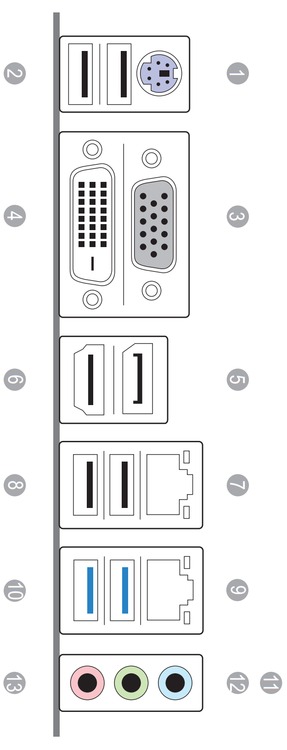

ASRock C226M WS Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
DisplayPort Out: DisplayPort for outputting digital video.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
ASRock C226M WS Schematic
This combination of advanced features, integrated into a compact board, makes the C226M WS a great candidate for a wide range of workstation and server needs.
ASRock is a less known brand, and fairly new to us here at Puget Systems, but so far the motherboards we've used from them have been quite good! This little fella is a nice one, in that it provides a lot of desktop / workstation oriented features with a Xeon processor platform for things like ECC memory support. We've seen similar boards from other brands before, but not usually in a small micro ATX form factor like this.

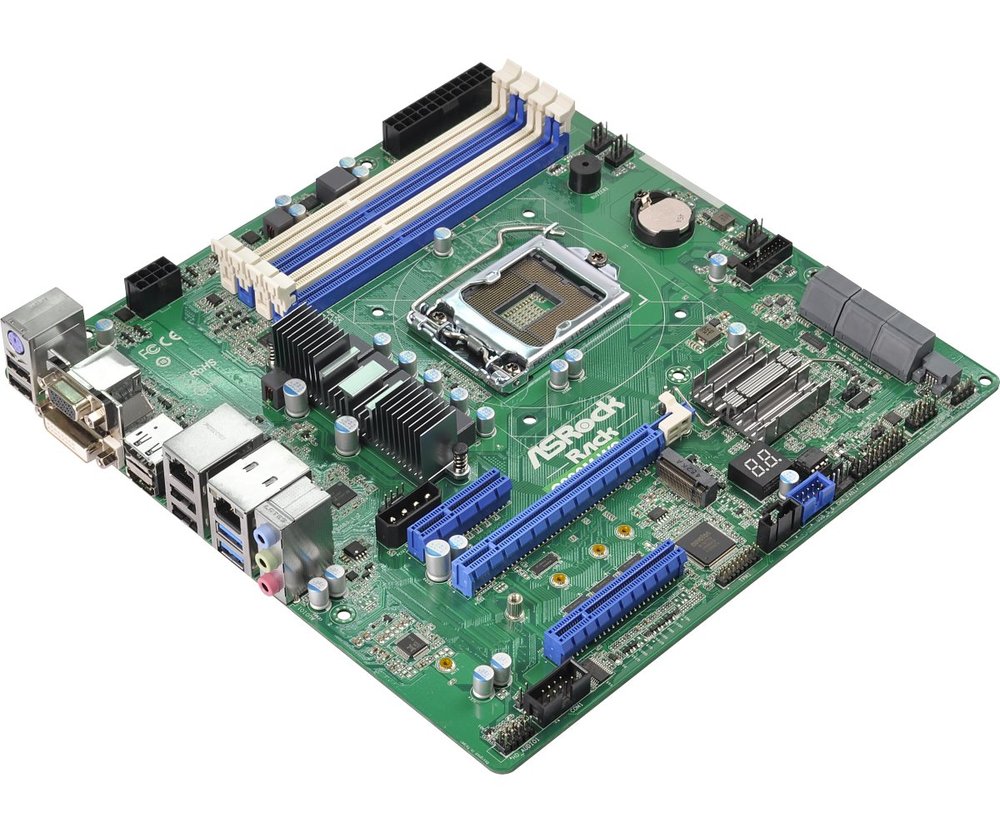

Model: ASRock C226M WS
Specifications
| Socket | 1150 |
| CPU Compatibility | Intel Xeon processor E3-1200 v3 product family & Haswell i3 |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | C226 |
| Front Side Bus | QuickPath Interconnect |
| Network Connectivity | Dual Gigabit Networking |
| Network Controller | Intel i210 + Intel i217LM |
| Audio Controller | Realtek ALC892 |
| Cooling System | Heatsink |
| Color | Green |
Memory Support | |
| Type | DDR3 ECC |
| Maximum Speed | 1600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 8 GB |
| Maximum Amount Supported | 32 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 1024 MB |
| DVI | 1 |
| VGA | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| PS/2 Keyboard | Yes |
| Audio Out | Stereo |
| Audio In | Line-In/Microphone |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 6 |
| SATA Express | 1 |
| M.2 Connector | 1 |
| M.2 Support | M.2 x2 Socket 3, type 2230/2242/2260/2280/22110 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel C226 |
Expansion Slots | |
| Slot 1 | PCI Express 2.0 x4 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
Additional Information | |
| RAID Support | 0,1,5,10 |
BIOS Features | |
| EZ Flash | Yes |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
Compatible with Asus ThunderboltEX II card (must be installed in top PCI-E slot)
