ASRock WRX80 Creator Rev 2.0 Ports

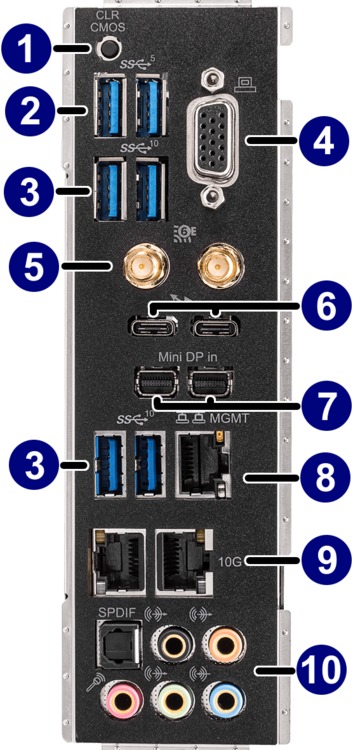

Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Thunderbolt 4 Port: Thunderbolt 4 port capable of up to 40Gbps. Also compatible with USB devices.
Mini Displayport IN: Connect a Mini DisplayPort cable from your video card to passthrough to the USB-C port.
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
10G LAN Ports (RJ-45): RJ-45 plugs for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

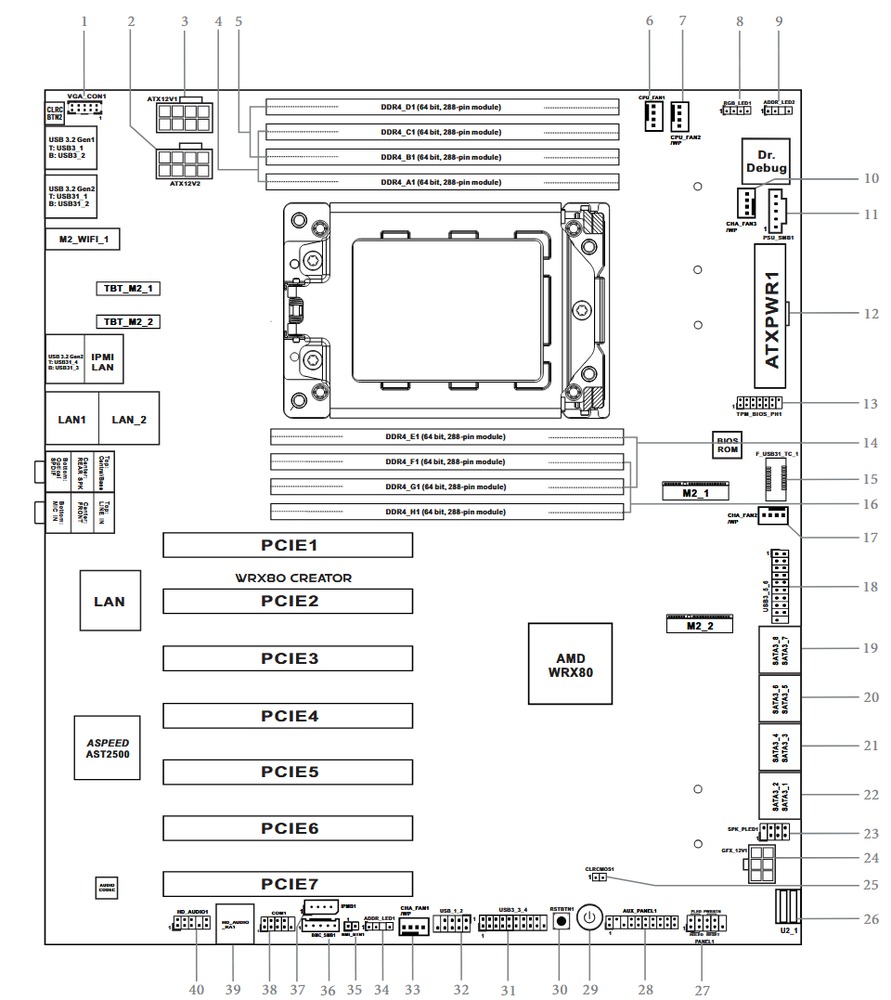

ASRock WRX80 Creator Rev 2.0 Schematic

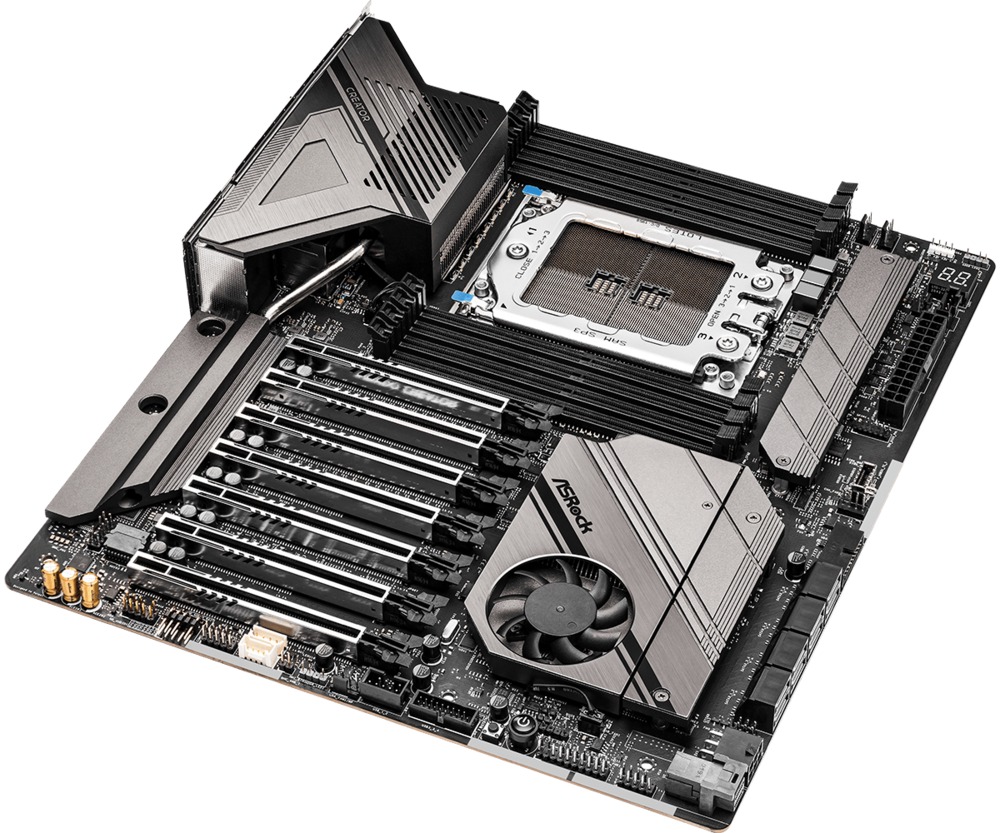

A wide range of connectivity is provided as well: six standard USB ports, two Thunderbolt 4 connectors, dual 10Gb Ethernet, WiFi 6E, Bluetooth 5, and both analog and digital audio. Internally it has eight SATA ports and a pair of M.2 slots, supporting a flexible array of storage options.
The Thunderbolt ports on this motherboard are a little quirky when it comes to video pass-through. That is not a big deal for most users, but if you need that feature then check out Ben's guidance below.
When using the TB video passthrough with this motherboard, we found success using bi-directional, straight (non-angled), 1.4 DP to mini-DP cables with a Windows supported TB monitor and the Thunderbolt control center application running.
Model: ASRock WRX80 Creator Rev 2.0
Specifications
| Socket | sWRX8 |
| CPU Compatibility | Threadripper Pro |
| Form Factor | CEB |
| Chipset Manufacturer | AMD |
| Chipset | WRX80 |
| Wired Network Connectivity | Dual 10G Networking + WiFi 6 |
| Network Controller | Marvell 10G Intel AX210 |
| Audio Controller | Onboard Realtek ALC4050H+ALC1220 HD Audio |
| Cooling System | Heatsink and Fan |
| Color | Grey |
Memory Support | |
| Type | DDR4 ECC Registered |
| Maximum Speed | 3200 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 128 GB |
| Maximum Amount Supported | 1024 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2500 |
| Maximum Resolution | 1920x1200 |
| Maximum DisplayPort Resolution | 7680x4320 |
| VGA | 1 |
| Notes: | 2x Thunderbolt 4 video outputs provided by 2x Mini Displayport IN |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 4 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Wireless Antenna Port | Yes |
| Thunderbolt Ports | 2 |
| Thunderbolt Version | 4 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 2 Type C | 1 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 2 |
| M.2 Support | 1x 60-110mm PCIe Gen4, 1x 60-80mm PCIe Gen4 |
| U.2 Connector | 1 |
| TPM (module sold separately) | 1 |
Expansion Slots | |
| Slot 1 | PCI Express 4.0 x16 |
| Slot 2 | PCI Express 4.0 x16 |
| Slot 3 | PCI Express 4.0 x16 |
| Slot 4 | PCI Express 4.0 x8 in a x16 size |
| Slot 5 | PCI Express 4.0 x16 |
| Slot 6 | PCI Express 4.0 x8 in a x16 size |
| Slot 7 | PCI Express 4.0 x16 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | Yes |
| RAID Support | 0/1/5/10 |
| Bluetooth | Yes (5.2) |
| Dual GPU Slot Spacing | 4-Slot |
| Integrated IO Shield | Yes |
| Remote Management | Onboard |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 272 mm (10.7 in) |
| Net Weight | 1.732 kg (3.8 lbs) |
