ASRock Z270M-ITX/ac

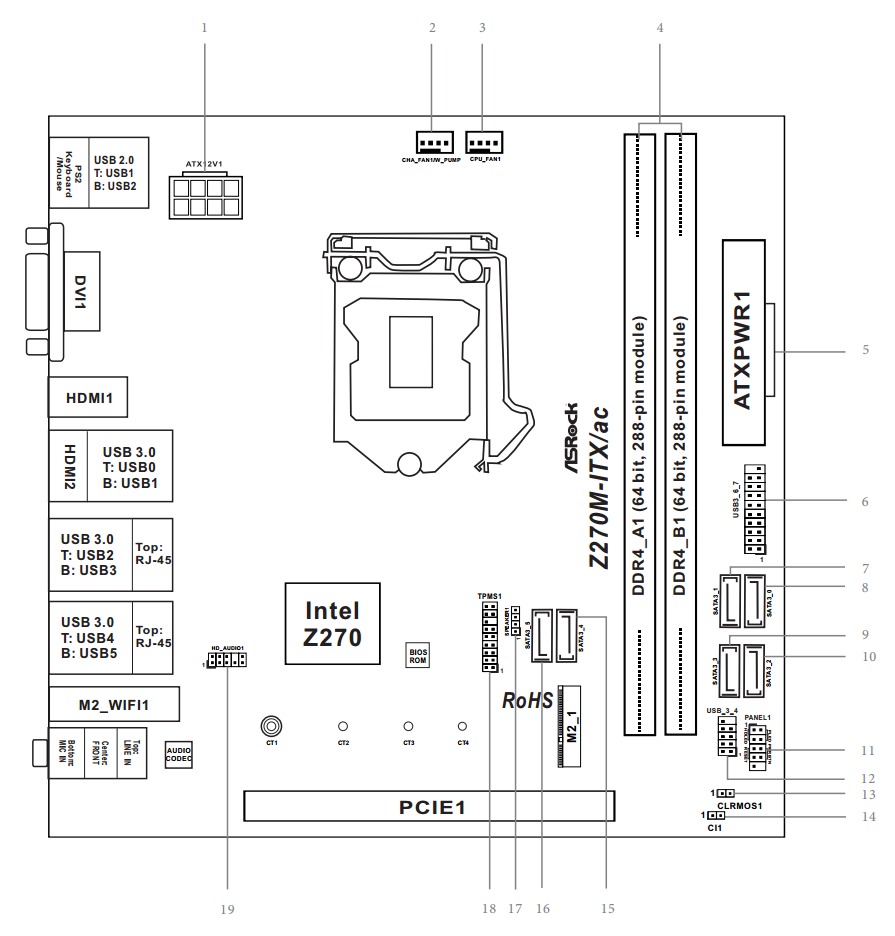

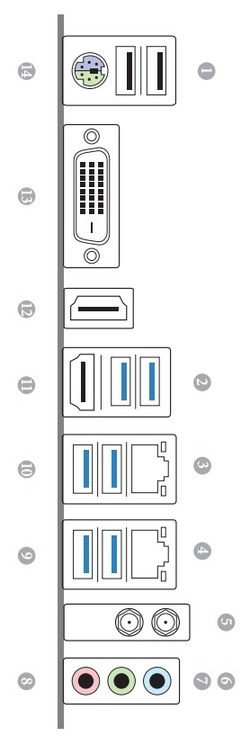

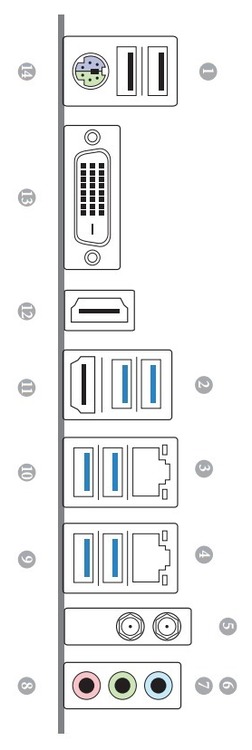

[ Rear Ports ][ Schematic ]

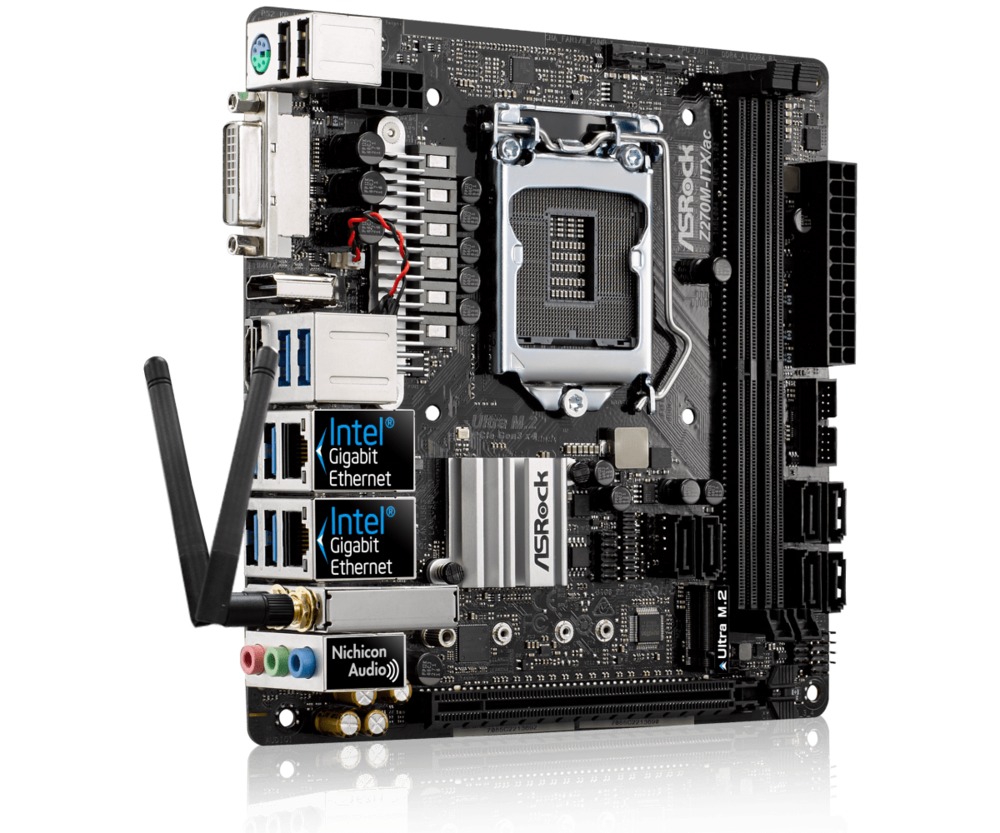

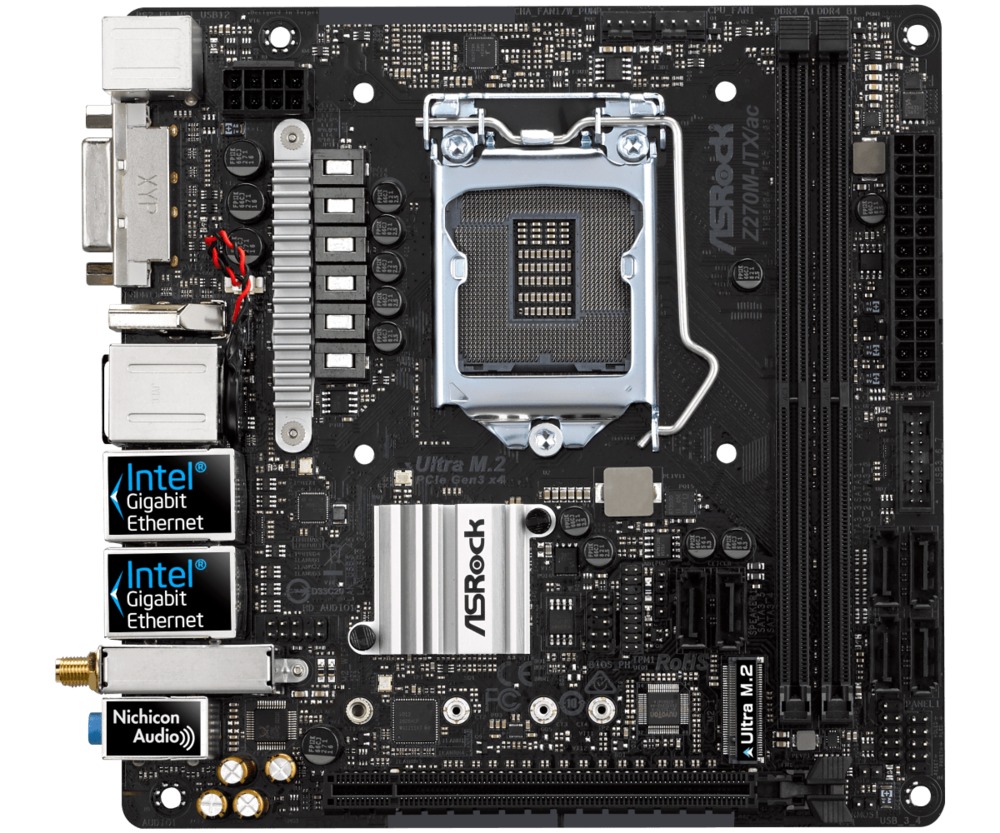

ASRock Z270M-ITX/ac Picture 42180ASRock Z270M-ITX/ac Picture 42181ASRock Z270M-ITX/ac Picture 42182ASRock Z270M-ITX/ac Picture 42134ASRock Z270M-ITX/ac Picture 42047
The ASRock Z270M-ITX/ac brings the performance of Intel's latest Kaby Lake processors to even the smallest computers. Intel's continual improvements to power usage and onboard graphics capabilities can be very beneficial in small systems, where power supply capacity and room for dedicated video cards is limited. The onboard video provides one DVI and two HDMI outputs, supporting up to three active monitors at a time. Numerous other connections are supported as well: USB 2.0 & 3.0, dual gigabit Ethernet, WiFi, Bluetooth, and analog audio jacks. It is equipped with a single PCI-Express x16 slot, capable of housing a dedicated video card or other expansion device (chassis permitting).
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This board packs a lot of features into a small size - and fairly small price tag, too. That is important for compact systems, since there is very little room to expand or add features beyond what the motherboard includes. The single PCI-Express slot is usually for a dedicated video card, at least when the chassis it is installed in is big enough, but could also be used for other devices if needed.
Model: ASRock Z270M-ITX/ac

Socket  1151
CPU Compatibility  Intel Socket 1151 for 7th Generation Processors
Form Factor  Mini-ITX
Chipset Manufacturer  Intel
Chipset  Z270
Front Side Bus  DMI 3.0
Network Connectivity  Gigabit Networking
Network Controller  Intel
Audio Controller  Onboard Realtek ALC892
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2400 MHz
Number of Slots  2
Maximum Size per Slot  16 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  512 MB
Maximum DVI Resolution   1920x1200
Maximum HDMI Resolution   4096x2160
DVI  1
HDMI Version  1.4b
External Connections
USB 2.0  2
USB 3.0  6
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
LAN (RJ45)  2
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.0  1 (providing 2 ports)
SATA III 6.0Gbps  6
M.2 Connector  1
M.2 Support  Socket 3 for M Key, type 2242/2260/2280/22110 devices
TPM (module sold separately)  1
SATA Controllers
SATA III 6.0Gbps Controller 1  6 port - Intel Z270
Expansion Slots
Slot 1  PCI Express 3.0 x16
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1,5,10
Bluetooth  Yes
BIOS Features
EZ Flash  Yes
OC Profiles  Yes
Height  170 mm (6.7 in)
Width  170 mm (6.7 in)

Configure a custom computer with the ASRock Z270M-ITX/ac.
