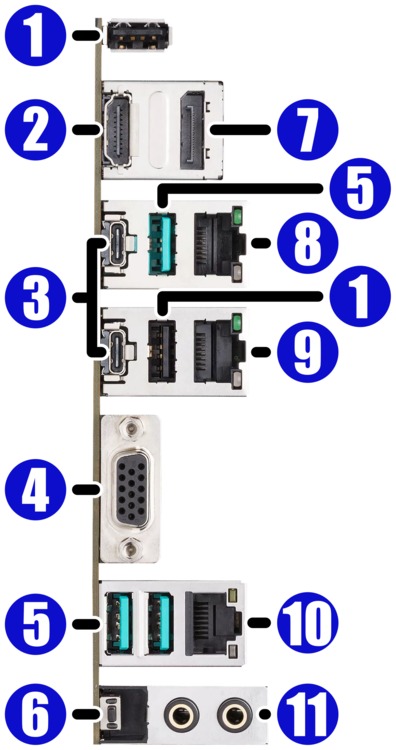

ASUS Pro WS B850M-ACE SE Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
HDMI 2.1: Outputs digital video and audio at up to 8K resolution (7680x4320) at 60hz.
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
VGA Out Port: Video Graphics Adapter (VGA) port for outputting analog video.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K resolution (7680x4320).
2.5G LAN (RJ45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 2.5 Gb
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

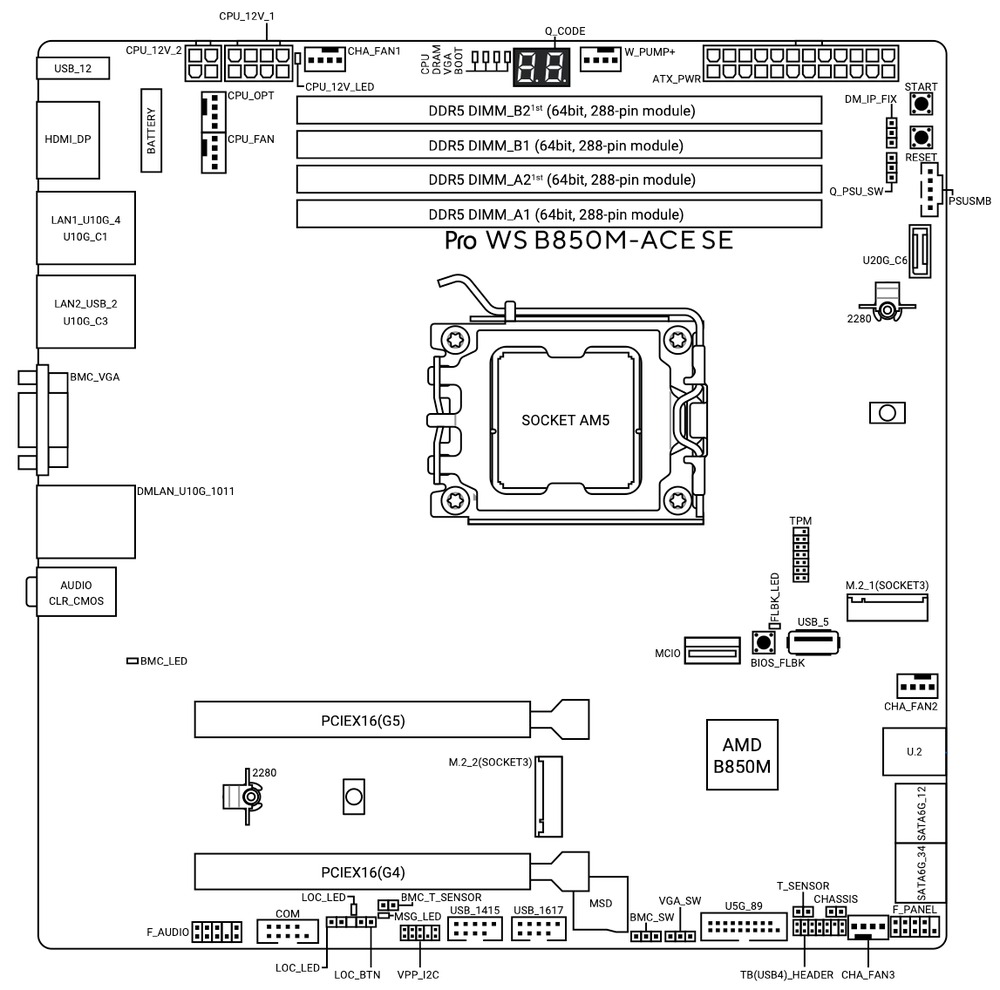

ASUS Pro WS B850M-ACE SE Schematic
For external connectivity, this board has basic analog audio outputs, 10Gb & 2.5Gb Ethernet, and six USB ports of varying size and speed. There are also HDMI and DisplayPort outputs for use with the graphics built into AMD's Ryzen processors, though most users will want to add a dedicated video card for improved performance. One of the more unique features this board offers is onboard remote management (IPMI) with a dedicated Ethernet port and accompanying VGA output.
The remote management functionality of this board makes it a great option for corporate environments where IT needs more control over deployed workstations!

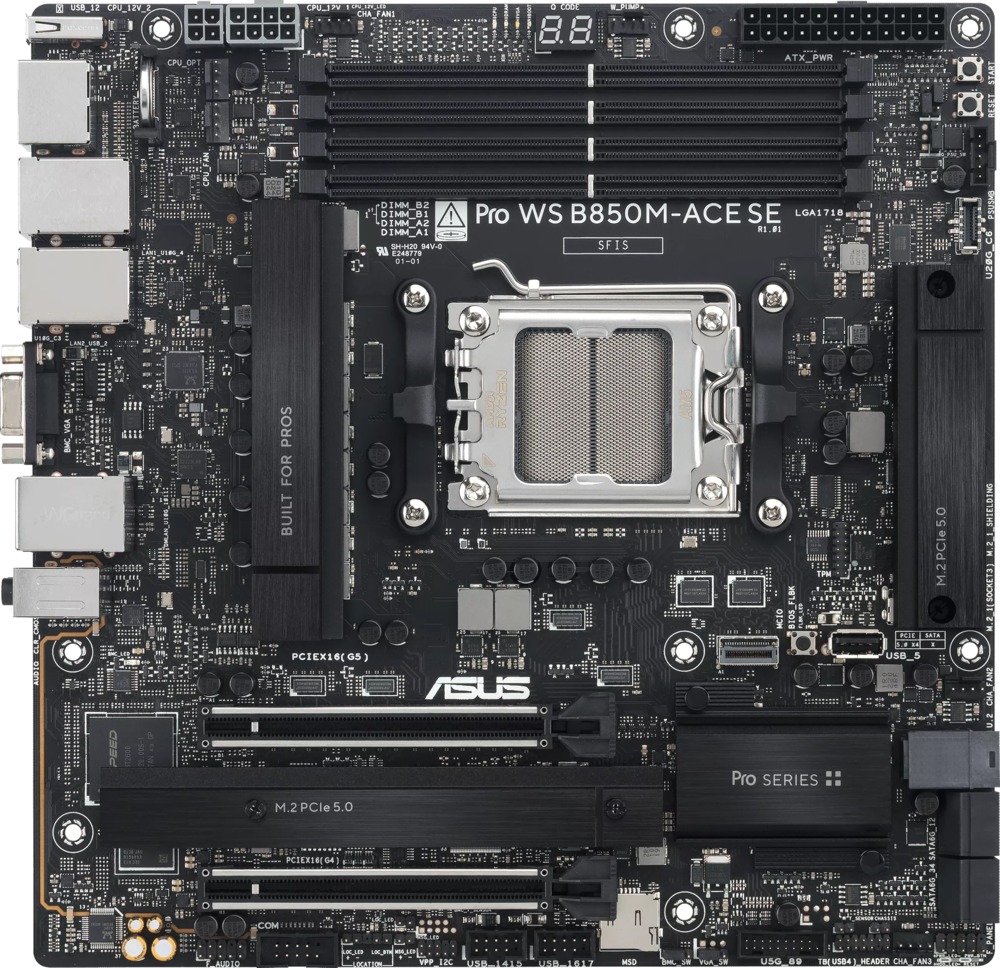

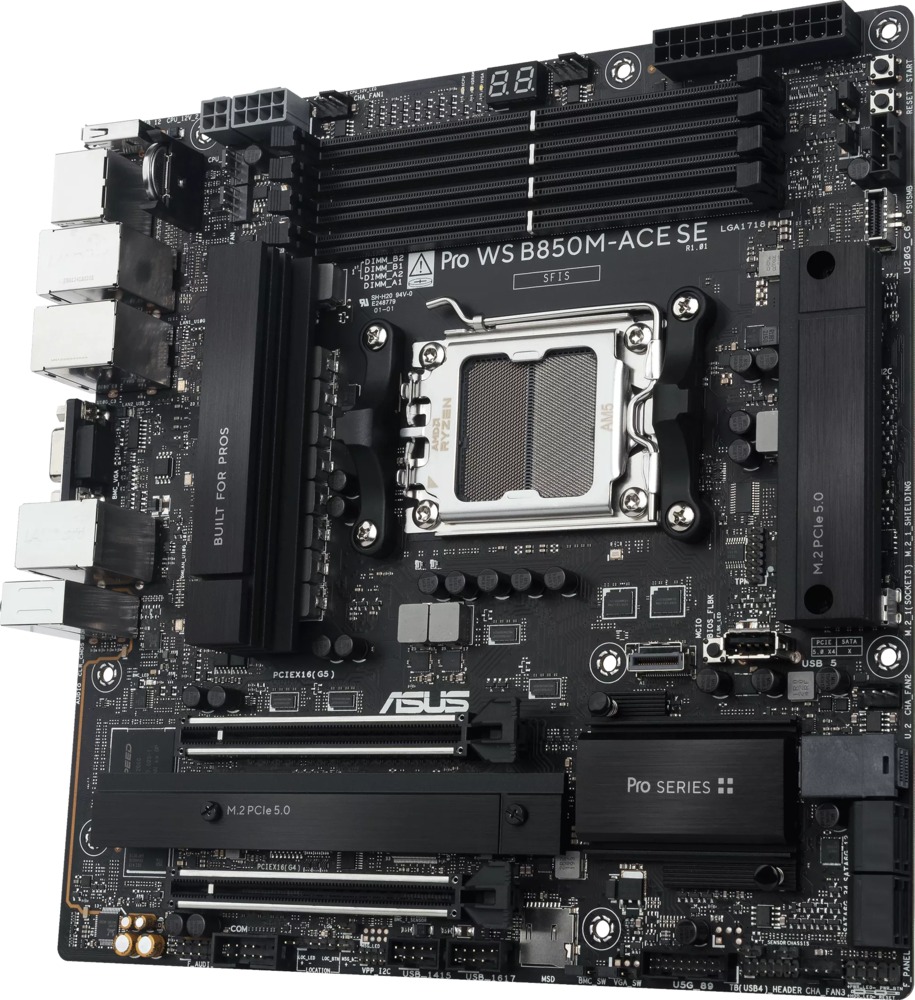

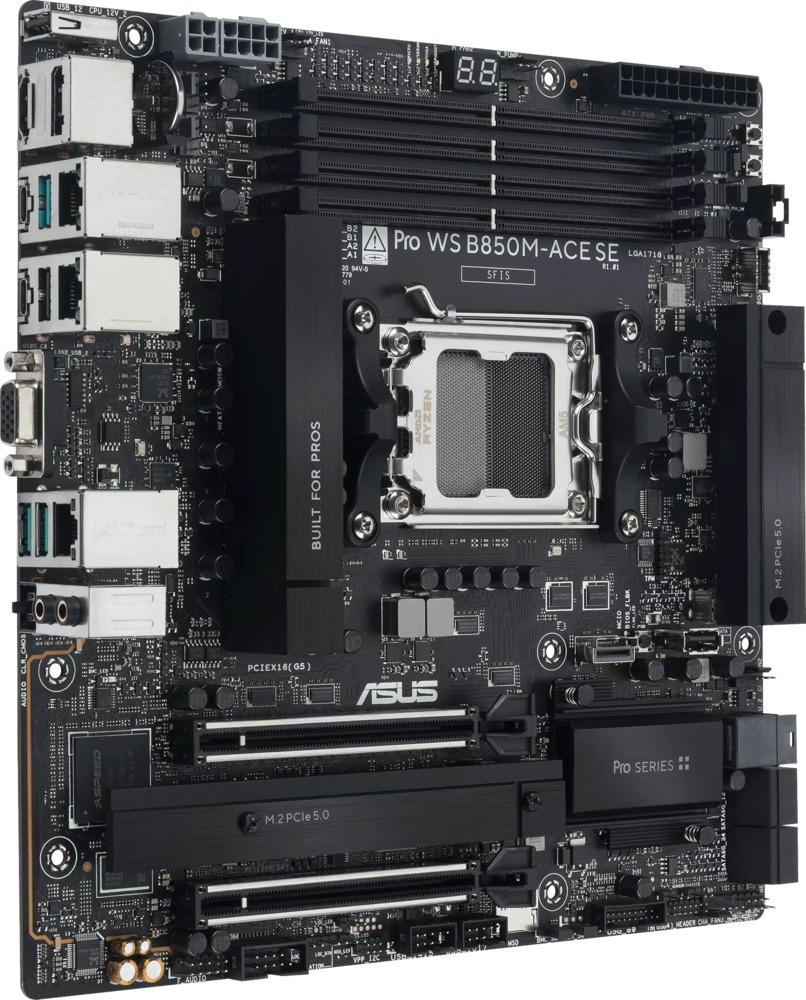

Model: Asus Pro WS B850M-ACE SE
Specifications
| Socket | AM5 |
| CPU Compatibility | Ryzen 7000 and 9000 series CPUs |
| Form Factor | MicroATX |
| Chipset Manufacturer | AMD |
| Chipset | B850 |
| Wired Network Connectivity | 10GbE RJ45 + 2.5GbE RJ45 |
| Network Controller | Realtek RTL8127, Intel I226 |
| Audio Controller | Realtek ALC897 |
| Cooling System | Passive Heatsink |
| Windows Support | Windows 10/11, Windows Server |
| Linux Support | No |
Memory Support | |
| Type | DDR5 |
| Maximum Speed | 5600 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 256 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2600/AMD |
| Maximum HDMI Resolution | 3840x2160 |
| Maximum DisplayPort Resolution | 7680x4320 |
| VGA | 1 |
| HDMI | 1 |
| HDMI Version | 2.1 |
| DisplayPort | 1 |
| DisplayPort Version | 1.4 |
| Notes: | VGA for ASPEED graphics output only |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 2 (USB 3.1) | 3 |
| USB 3.2 Gen 2 Type C | 2 |
| Audio Out | Surround Sound (7.1) |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
| Wireless Antenna Port | No |
| Thunderbolt Ports | None |
| BIOS Flashback | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| USB 3.2 Gen 2x2 Type C | 1 |
| SATA III 6.0Gbps | 4 |
| M.2 Connector | 2 |
| M.2 Support | 2x 80mm PCIe 5.0 |
| Maximum M.2 Length | 80 mm (3.1 in) |
| U.2 Connector | 1 |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
| Compatible TPM | Asus TPM-SPI |
Expansion Slots | |
| Slot 1 | Slot not available on this board |
| Slot 2 | PCI Express 5.0 x16 |
| Slot 3 | Slot not available on this board |
| Slot 4 | PCI Express 4.0 x4 in a x16 size |
Additional Information | |
| Bluetooth | No |
| Integrated IO Shield | No |
| Remote Management | Onboard |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
| Net Weight | 1.375 kg (3.0 lbs) |
