ASUS WS C621E SAGE

Motherboard

[ Rear Ports ][ Schematic ]

ASUS WS C621E SAGE Picture 45275ASUS WS C621E SAGE Picture 45276ASUS WS C621E SAGE Picture 45277ASUS WS C621E SAGE Picture 45279ASUS WS C621E SAGE Picture 45278
The Asus WS C621E SAGE is a feature-rich motherboard for the Xeon Scalable family of processors. There are sockets for two CPUs alongside 12 DDR4 RAM modules. Just as importantly, this board features seven PCI-Express slots. All are the full x16 length - although depending on which slots are populated, some may only run at x8 data speed.

For external connectivity the WS C621E SAGE includes multiple USB ports (2.0, 3.0, and 3.1), dual gigabit Ethernet ports for networking, both analog and digital audio, and a legacy PS/2 port for an older keyboard or mouse. Internally there are ten SATA 6Gbps ports, four U.2 connectors, and a single M.2 slot. That wide range of connectivity makes this board a great platform for a high performance workstation.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
If you want a powerful, dual CPU system for roles outside of the server room, I highly recommend this board! It has all the standard connectivity you'd expect on a desktop or workstation, like USB 3.1 and audio, which are so often missing from server-class hardware. It also has several PCI-Express slots, allowing a wide range of add-on card configurations.
Model: Asus WS C621E Sage

Specifications:
spacer
Socket  3647
CPU Compatibility  Purley
Form Factor  SSI EEB
Chipset Manufacturer  Intel
Chipset  C620
Front Side Bus  DMI 3.0
Network Connectivity  Dual Gigabit Networking
Network Controller  Intel / Intel
Audio Controller  Onboard Realtek S1220A HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2666 MHz
Number of Slots  12
Maximum Size per Slot  64 GB
Maximum Amount Supported  768 GB
Onboard Video
Chipset Manufacturer  ASpeed
Processor Type  AST2500
Onboard Memory  64 MB
Maximum Resolution  1920x1200
VGA  1
Notes:  Onboard video is via an included optional VGA bracket.

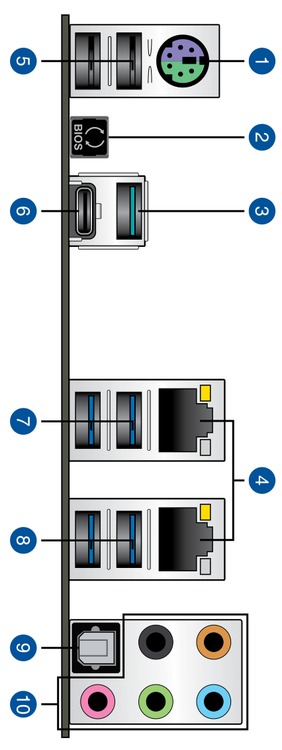

External Connections
USB 2.0  2
USB 3.0  4
USB 3.1  1
USB 3.1 Type C  1
PS/2 Keyboard  Yes
PS/2 Mouse  Yes
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  No
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.0  2 (providing 4 ports)
SATA III 6.0Gbps  10
M.2 Connector  1
M.2 Support  NVMe 80mm / 110mm
U.2 Connector  4
Serial (Com)  1
TPM (module sold separately)  1
TPM Pinout  14-1
SATA Controllers
SATA III 6.0Gbps Controller 1  8
SATA III 6.0Gbps Controller 2  2
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express x8 or x16 in a x16 size
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x8 in a x16 size
Slot 5  PCI Express 3.0 x16
Slot 6  PCI Express x8 or x16 in a x16 size
Slot 7  PCI Express 3.0 x16
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0, 1, 5, 10
Bluetooth  No
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  330 mm (13.0 in)
