Asus Pro WS WRX80E-SAGE SE WIFI

Motherboard

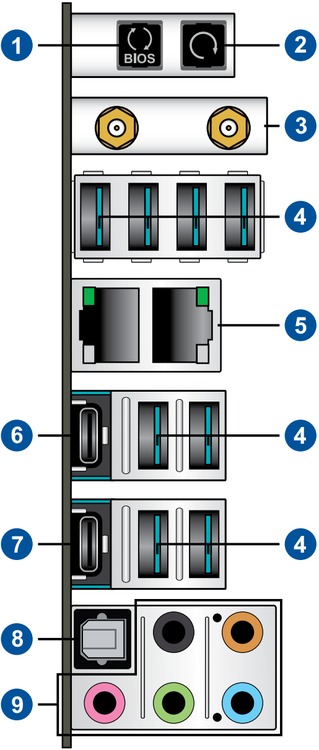

[ Rear Ports ][ Schematic ]

Asus Pro WS WRX80E-SAGE SE WIFI Picture 68114Asus Pro WS WRX80E-SAGE SE WIFI Picture 68115Asus Pro WS WRX80E-SAGE SE WIFI Picture 68116Asus Pro WS WRX80E-SAGE SE WIFI Picture 68117Asus Pro WS WRX80E-SAGE SE WIFI Picture 68118Asus Pro WS WRX80E-SAGE SE WIFI Picture 68119Asus Pro WS WRX80E-SAGE SE WIFI Picture 68122Asus Pro WS WRX80E-SAGE SE WIFI Picture 68121
The Asus Strix TRX40-XE is a large, EEB size motherboard for AMD's Threadripper PRO processors. In addition to the sWRX8 socket for the CPU, it has eight RAM slots supporting up to 512GB of DDR4 Registered ECC memory and seven PCI-Express 4.0 x16 slots. That layout allows for a very diverse configuration of expansion cards, limited only by space inside the chassis, cooling / airflow, and power availability. Because of its size, though, only full-size tower or rackmount cases can fit this board.

A wide range of connectivity is provided as well: eight standard USB ports, two of the new USB Type C, dual 10Gb Ethernet, WiFi 6, Bluetooth 5.0, and both analog and digital audio. Internally it has eight SATA ports and three M.2 connectors, supporting a flexible array of storage options.
Model: Asus 90MB1591-M0ACN0

Specifications:
spacer
Socket  sWRX8
CPU Compatibility  Threadripper Pro
Form Factor  SSI EEB
Chipset Manufacturer  AMD
Chipset  WRX80
Network Connectivity  Dual 10G Networking + WiFi 6
Network Controller  Intel X550-AT2, Intel AX200
Audio Controller  Onboard Realtek ALC4080 HD Audio
Cooling System  Heatsink and Fan
Number of Fans  2
Color  Black
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  3200 MHz
Number of Slots  8
Maximum Size per Slot  128 GB
Maximum Amount Supported  2048 GB
External Connections
USB 3.2 Gen 2 (USB 3.1)  8
USB 3.2 Type C  1
USB 3.2 Gen 2x2 Type C  1
PS/2 Keyboard  No
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Type C  1
SATA III 6.0Gbps  8
M.2 Connector  3
M.2 Support  42-110mm NVMe (Gen4) & SATA
U.2 Connector  2
Serial (Com)  1
TPM (module sold separately)  1
Compatible TPM  Asus TPM-SPI
SATA Controllers
SATA III 6.0Gbps Controller 1  AMD WRX80
Expansion Slots
Slot 1  PCI Express 4.0 x16
Slot 2  PCI Express 4.0 x16
Slot 3  PCI Express 4.0 x16
Slot 4  PCI Express 4.0 x16
Slot 5  PCI Express 4.0 x16
Slot 6  PCI Express 4.0 x16
Slot 7  PCI Express 4.0 x16
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0, 1, 10
Bluetooth  Yes (5.0)
Dual GPU Slot Spacing  4-Slot
Integrated IO Shield  Yes
Remote Management  Onboard
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  310 mm (12.2 in)
Width  330 mm (13.0 in)
Net Weight  2.5 kg (5.5 lbs)

https://docs.google.com/document/d/1oASv2LQIvfoZUdT0MH7n2KfMMqmD7hWDvkYisVxJHOo/edit?usp=sharing



Warranty:

3 years
