Asus ROG STRIX Z370-I

Motherboard

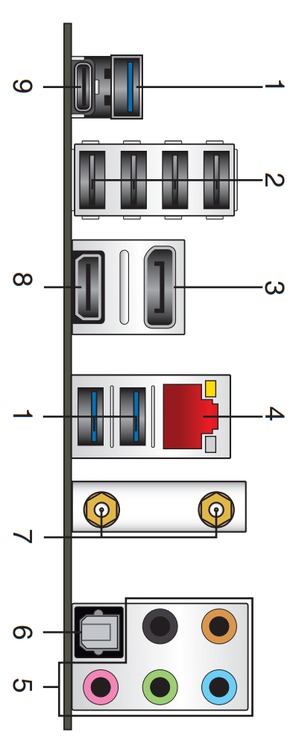

[ Rear Ports ][ Schematic ]

Asus ROG STRIX Z370-I Picture 43569Asus ROG STRIX Z370-I Picture 43570Asus ROG STRIX Z370-I Picture 43574Asus ROG STRIX Z370-I Picture 43572Asus ROG STRIX Z370-I Picture 43573Asus ROG STRIX Z370-I Picture 43576Asus ROG STRIX Z370-I Picture 43575

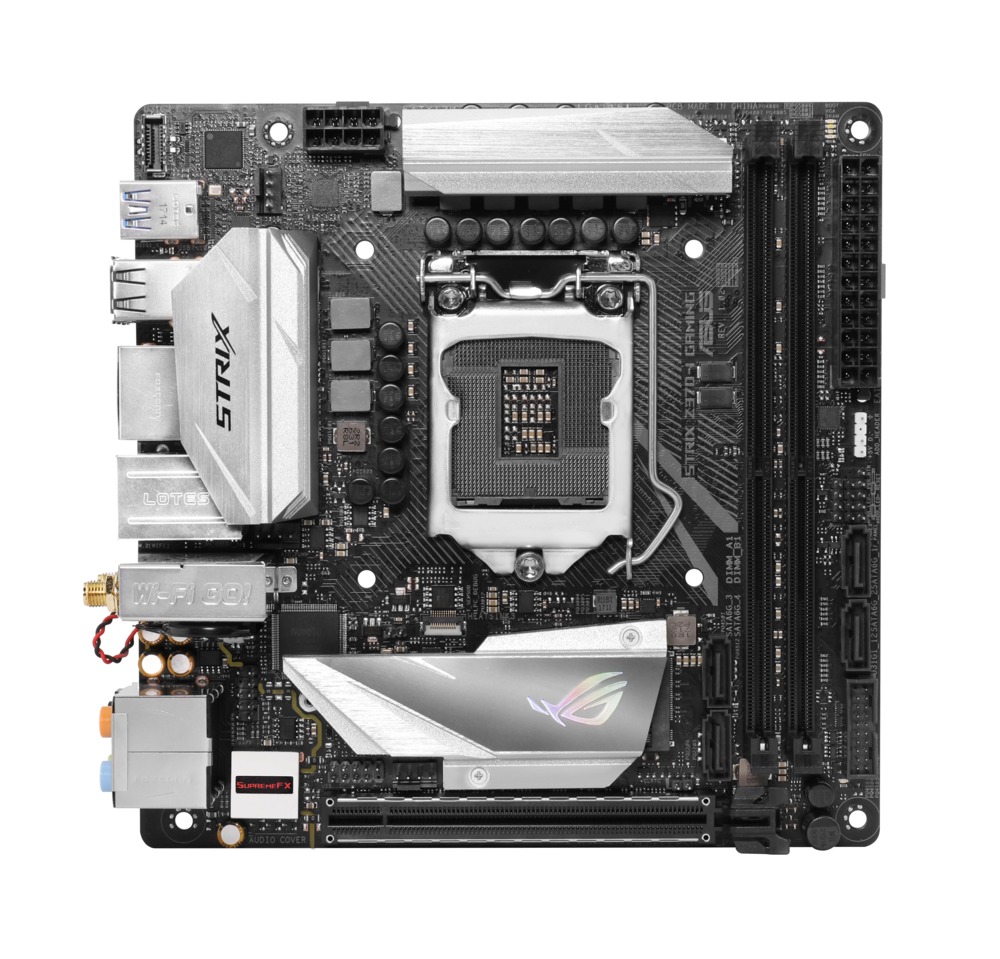

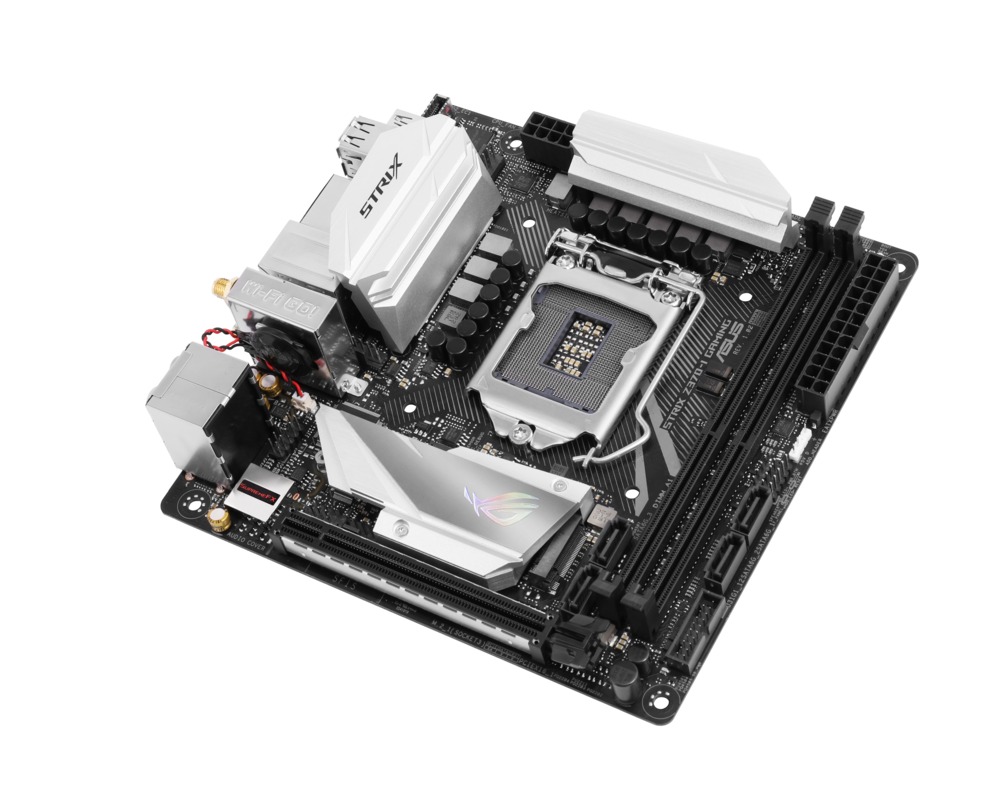

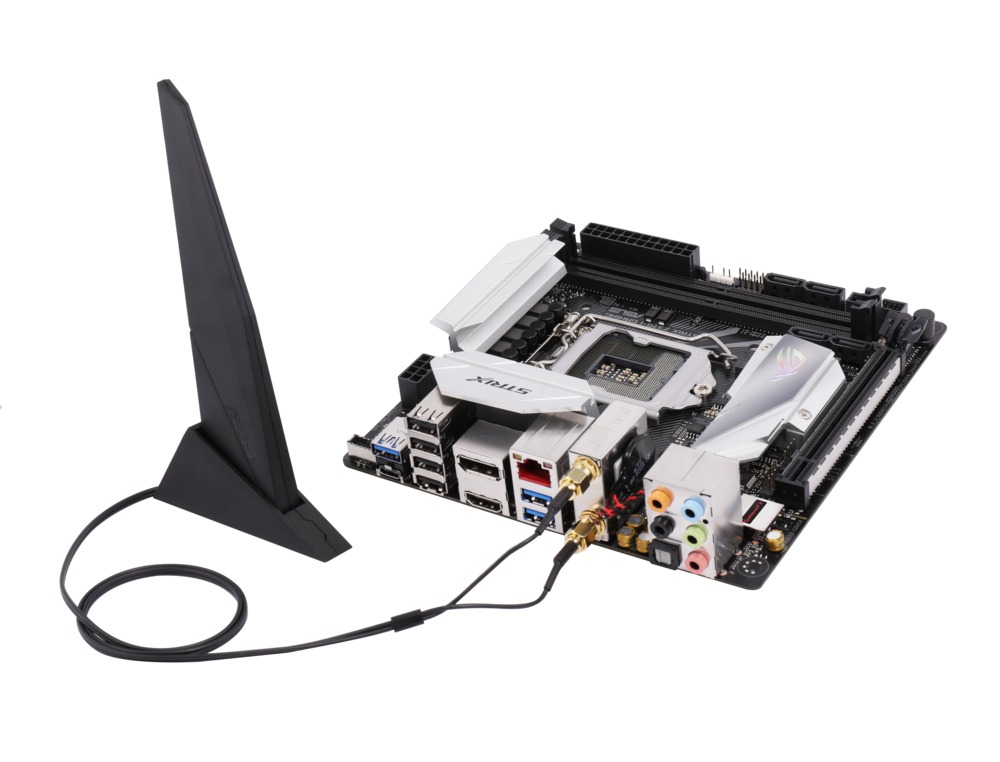

The Asus ROG STRIX Z370-I is a compact, ITX form factor motherboard for 8th-generation Core series processors. Despite its small size, it packs a lot of features and connectivity. Inside, it offers two full-size memory slots, SATA and M.2 for a variety of drives, and a PCI-Express x16 slot that can be used in cases with enough room for an expansion card. Externally, the board provides a wide range of connections: analog and digital audio, WiFi, Bluetooth, gigabit Ethernet, four USB 2.0 ports, two USB 3.0 ports, and two USB 3.1 ports (including one Type C). There are also two video outputs, HDMI and DisplayPort, thanks to the Intel graphics built into the CPU.
William George (Puget Labs)
William George (Puget Labs) Says:
This board packs a lot of features into a small size - and fairly small price tag, too. That is important for compact systems, since there is very little room to expand or add features beyond what the motherboard includes. The single PCI-Express slot is usually for a dedicated video card, at least when the chassis it is installed in is big enough, but could also be used for other devices if needed.
Model: Asus STRIX Z370-I GAMING

Specifications:
spacer
Socket  1151
CPU Compatibility  Intel Socket 1151 for 8th Generation Processors
Form Factor  Mini-ITX
Chipset Manufacturer  Intel
Chipset  Z370
Front Side Bus  DMI 3.0
Network Connectivity  Gigabit Networking
Network Controller  Intel
Audio Controller  Onboard Realtek ALC1220 7.1 Channel HD Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2666 MHz
Number of Slots  2
Maximum Size per Slot  16 GB
Maximum Amount Supported  32 GB
Onboard Video
Chipset Manufacturer  Intel
Processor Type  CPU Integrated Graphics
Maximum Shared Memory  512 MB
Maximum HDMI Resolution   4096x2160
Maximum DisplayPort Resolution   4096x2160
HDMI  1
HDMI Version  1.4b
DisplayPort  1
DisplayPort Version  1.2
External Connections
USB 2.0  4
USB 3.0  2
USB 3.1  1
USB 3.1 Type C  1
PS/2 Keyboard  No
PS/2 Mouse  No
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.0  1 (providing 2 ports)
USB 3.1 Type C  1
SATA III 6.0Gbps  4
M.2 Connector  2
M.2 Support  Slot 1: PCIe & SATA Slot 2: PCIe
SATA Controllers
SATA III 6.0Gbps Controller 1  4 port - Intel Z370
Expansion Slots
Slot 1  PCI Express 3.0 x16
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1,5,10
Bluetooth  Yes (4.2)
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  170 mm (6.7 in)
Width  170 mm (6.7 in)
