Asus WS C422 SAGE/10G

Motherboard

[ Rear Ports ][ Schematic ]

Asus WS C422 SAGE/10G Picture 49097Asus WS C422 SAGE/10G Picture 49098Asus WS C422 SAGE/10G Picture 49099Asus WS C422 SAGE/10G Picture 49100Asus WS C422 SAGE/10G Picture 49101Asus WS C422 SAGE/10G Picture 49103Asus WS C422 SAGE/10G Picture 49102

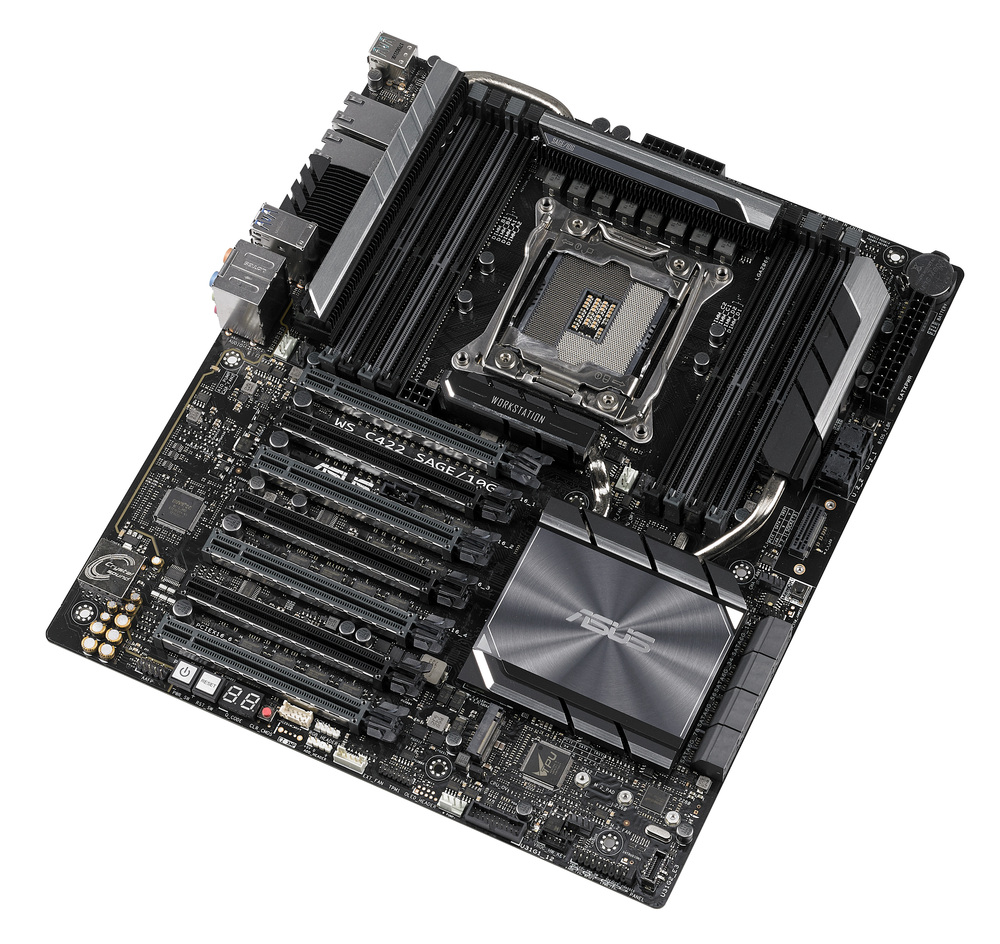

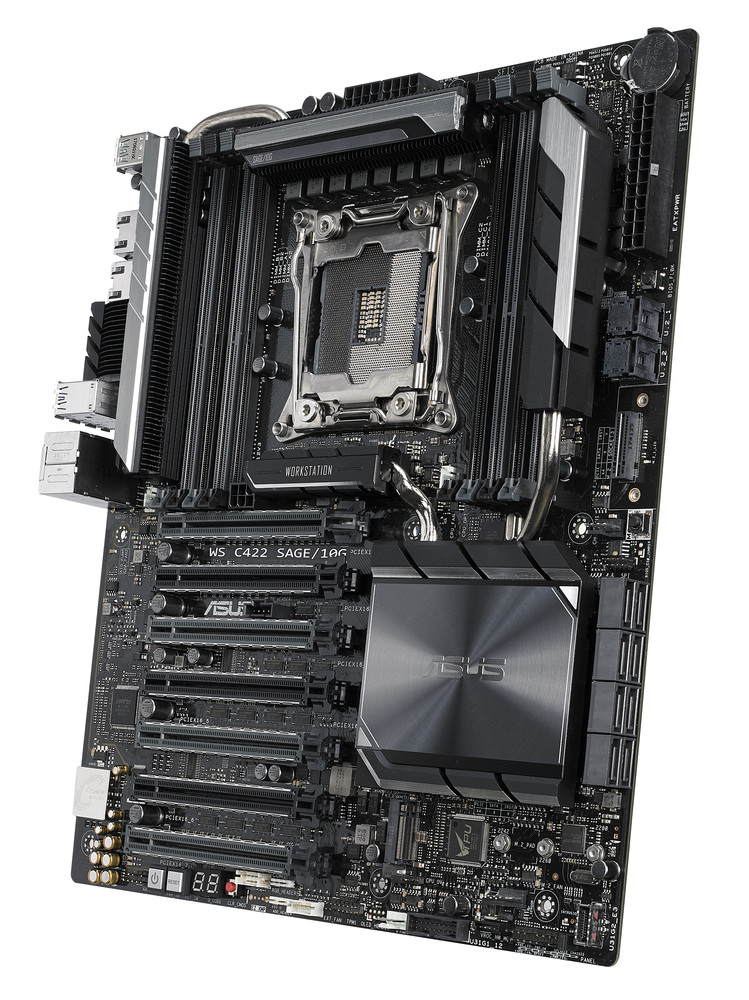

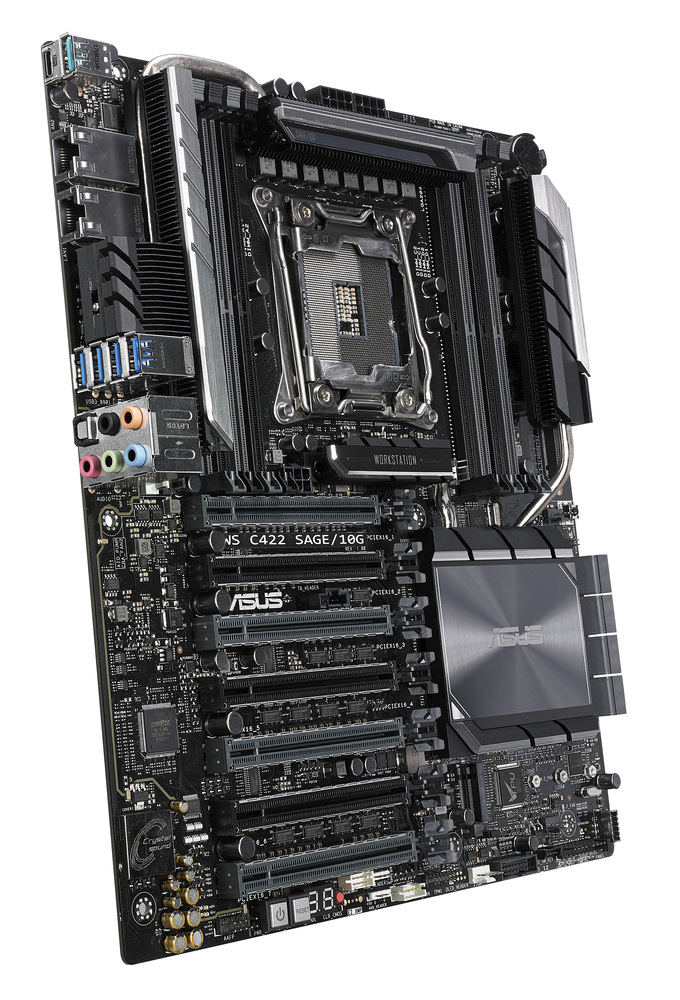

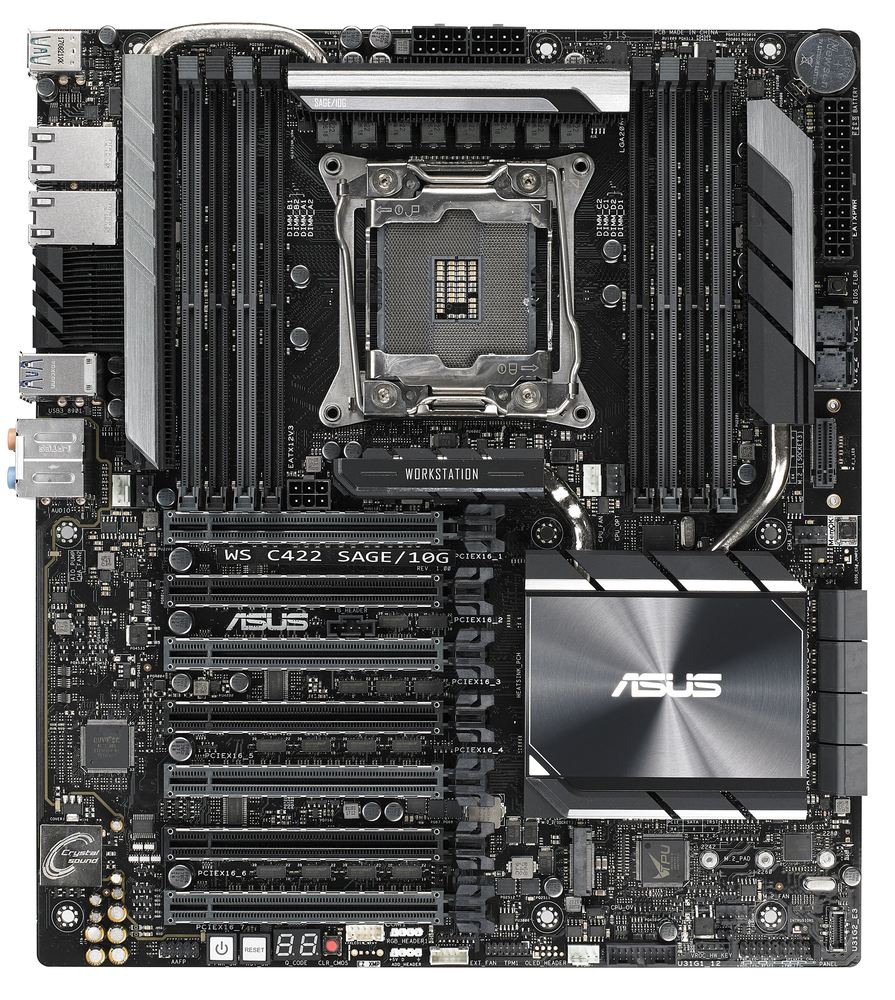

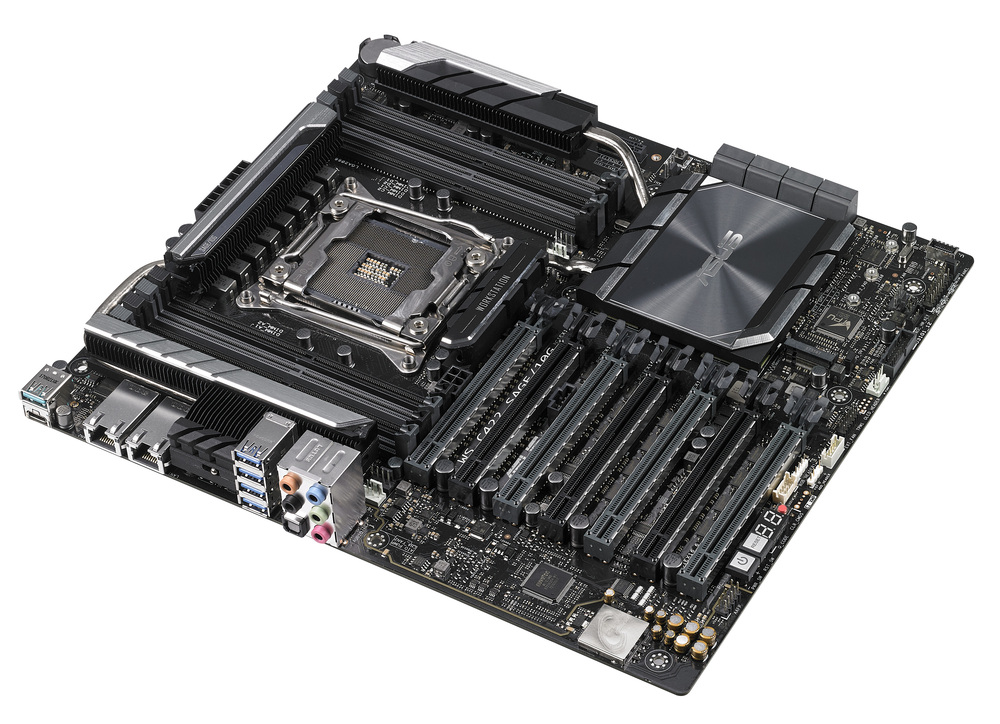

The Asus WS C422 SAGE/10G is a high-end workstation motherboard for Intel's Xeon W processor line. The primary focus of this board is to support a wide range of PCI-Express cards. Normally the number of such cards that can be installed is limited by the PCI-Express lanes provided from the CPU (48 in the case of the Xeon W). However, the WS C422 SAGE/10G uses a pair of PLX chips on the motherboard to expand the usable number of PCI-Express lanes dramatically. A full four PCI-Express x16 cards can be used at full speed, or up to seven with one at x16 speed and the other six at x8.

In addition to the massive number of PCI-Express slots, this motherboard also features a rare networking configuration: dual 10Gb Ethernet ports. These are great for high-speed network setups, which are becoming more common in areas where high-end workstations are used. These ports are backward compatible with the more common 1Gb standard as well.

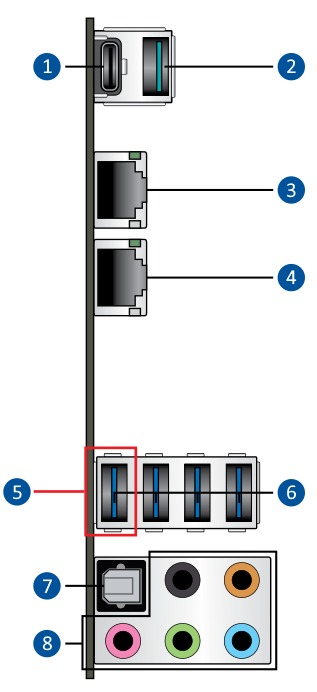

A lot of other connectivity is included too. Four USB 3.0 and two USB 3.1 ports are present on the back panel, along with analog and digital audio plugs. Internally, 8 SATA 6Gbps ports are available for drives along with both M.2 and U.2 connectors. The only area lacking is internal USB headers, for which there are no USB 2.0 connections - so in most of our workstations we add a M.2 to USB adapter, so that all front ports on the chassis can be hooked up.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
Holy PCI-Express lanes, Batman! The Asus WS C422 SAGE/10G is a great solution if you need to stack a single-CPU system full of expansion cards. In the right chassis, and with the right power supply, this board will allow use of up to 4 dual-width GPUs at the same time! You may want to talk with one of our sales consultants, though, to make sure you have enough space, power, and cooling to run everything that you have planned.
Model: Asus WS C422 SAGE/10G

Specifications:
spacer
Socket  2066
CPU Compatibility  Xeon W
Form Factor  CEB
Chipset Manufacturer  Intel
Chipset  C422
Front Side Bus  DMI 3.0
Network Connectivity  Dual 10G Networking
Network Controller  Intel X550-AT2
Audio Controller  Onboard Realtek ALC S1220A High Definition Audio
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2666 MHz
Number of Slots  8
Maximum Size per Slot  64 GB
Maximum Amount Supported  512 GB
External Connections
USB 3.0  4
USB 3.1  1
USB 3.1 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  No
Internal Connections
USB 3.0  1 (providing 2 ports)
USB 3.1 Type C  1
SATA III 6.0Gbps  8
M.2 Connector  2
M.2 Support  x1 42-110mm NVMe, x1 42-80mm NVMe
U.2 Connector  2
Serial (Com)  1
TPM (module sold separately)  1
TPM Pinout  14-1
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 3.0 x8 in a x16 size
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x8 in a x16 size
Slot 5  PCI Express 3.0 x16
Slot 6  PCI Express 3.0 x8 in a x16 size
Slot 7  PCI Express 3.0 x16
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10
Bluetooth  No
Dual GPU Slot Spacing  4-Slot
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  267 mm (10.5 in)
Net Weight  4.28 kg (9.4 lbs)

Features:

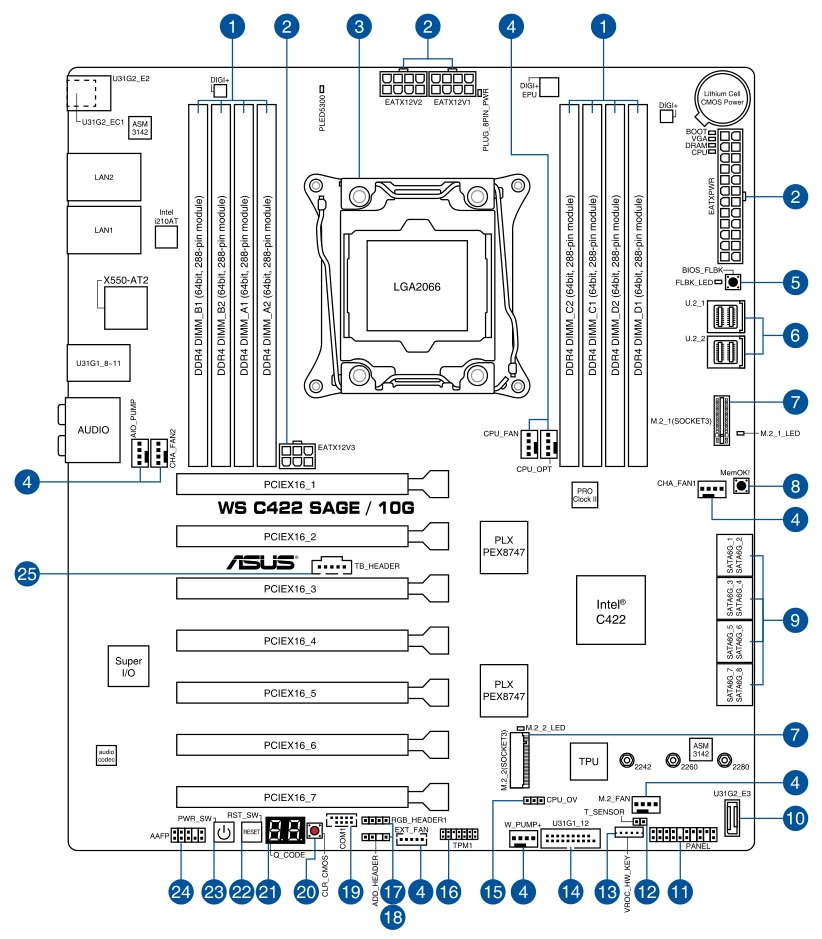

  • PCIe 1, 2, 3 are routed through PLX 8747_1. PCIe 4, 5, 6, 7 are routed through PLX 8747_2.
Warranty:

3 Years




Configure a scientific workstation with the Asus WS C422 SAGE/10G.
