Asus X99 Deluxe II

Motherboard

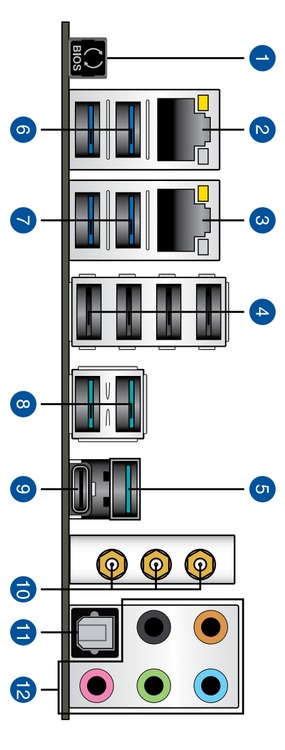

[ Rear Ports ][ Schematic ]

Asus X99 Deluxe II Picture 39535Asus X99 Deluxe II Picture 39534Asus X99 Deluxe II Picture 39536Asus X99 Deluxe II Picture 39538Asus X99 Deluxe II Picture 39537
The Asus X99 Deluxe II is an update to one of the premiere motherboards for Intel's Core i7 and Xeon E5 processors. The X99 chipset on this board supports DDR4 memory, and unofficially also works with ECC Registered memory which is available in higher capacities. A host of connectivity is provided as well, with four each of USB 2.0, 3.0, and 3.1 ports along with dual Gb Ethernet, WiFi, and audio connections. Internally it has several SATA connections, one M.2 slot, and two of the new U.2 ports.

We are NOT offering the Thunderbolt add-on card with this motherboard, because it fails to meet our quality standards. This board, aside from that, is an excellent board and one we fully recommend.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This board sports Asus' white-on-black color scheme, and it looks great in systems with a side window. It is also loaded with all the latest technology, so if you are looking for something that is future-proof this is a great choice.
Model: Asus X99-DELUXE II

Specifications:
spacer
Socket  2011-3
CPU Compatibility  Intel Core i7 Processors on LGA 2011-v3 Socket
Form Factor  ATX
Chipset Manufacturer  Intel
Chipset  X99
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual Gigabit Networking + 802.11 A/B/G/N/AC
Network Controller  Intel I218-V, Intel I211-AT
Audio Controller  Realtek ALC1150 8-Channel High Definition Audio CODEC
Cooling System  Heatsink
Color  Black & White
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  2133 MHz
Number of Slots  8
Maximum Size per Slot  64 GB
Maximum Amount Supported  512 GB
External Connections
USB 2.0  4
USB 3.0  4
USB 3.1  3
USB 3.1 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  2
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.0  2 (providing 4 ports)
SATA III 6.0Gbps  8
SATA Express  1
M.2 Connector  1
M.2 Support  M.2 x4 Socket 3 with vertical M Key design, type 2242/2260/2280
U.2 Connector  2
TPM (module sold separately)  1
TPM Pinout  14-1
SATA Controllers
SATA III 6.0Gbps Controller 1  8 port - Intel X99
SATA III 6.0Gbps Controller 2  1 SATA Express port - Intel X99
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  PCI Express 2.0 x1
Slot 3  PCI Express 2.0 x4 in a x16 size
Slot 4  PCI Express 3.0 x16
Slot 5  PCI Express 3.0 x16
Slot 6  PCI Express 3.0 x8 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0,1,5,10 (Only on ports 1-4)
Bluetooth  Yes (4.0)
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  305 mm (12.0 in)
Width  244 mm (9.6 in)

Expansion slots:
40-Lane CPU:
4x PCe 3.0/2.0 x16 slots* (single@x16, dual@x16/x16, triple@x16/x16/x8, quad@x8/x8/x8/x8 mode)
1x PCIe 2.0 x16 slot** (PCIEx16_2 max. at x4 mode, compatible with PCIe x1 and x4 devices)
1x PCIe 2.0 x1 slot (compatible with PCIe x1)

28-Lane CPU:
3x PCe 3.0/2.0 x16 slots*** (single@x16, dual@x16/x8, triple@x8/x8/x8)
1x PCIe 2.0 x16 slot** (PCIEx16_2 max. at x4 mode, compatible with PCIe x1 and x4 devices)
1x PCIe 2.0 x16 slot** (PCIEx16_5 max. at x1 mode, compatible with PCIe x1 devices)
1x PCIe 2.0 x1 slot (compatible with PCIe x1 devices)

*PCIe x16_3 shares bandwidth with M.2 and U.2_2. It runs at x16 mode by default. PCIe x16_5 shares bandwidth with U.2_1. It runs at x4 mode by default with U.2_1 enabled.
**PCIe x16_2 shares bandwidth with USB3_34 and USB 3.1_EA34. It runs at x2 mode by default.
***PCIe x16_3 shares bandwidth with M.2 and U.2_2. It runs at x8 mode by default. PCIe x16_4 shares bandwidth with U.2_1. It is disabled by default.

Due to chipset behavior, The SATA6G_78, SATA6G_910 ports do not support IRST including RAID configuration.



Manufacturer specs
Manufacturer
Specifications
setup screens
BIOS
Screenshots
Thermal Pictures
Thermal
Images
pictures
Product
Photography
Configure a custom computer with the Asus X99 Deluxe II.
