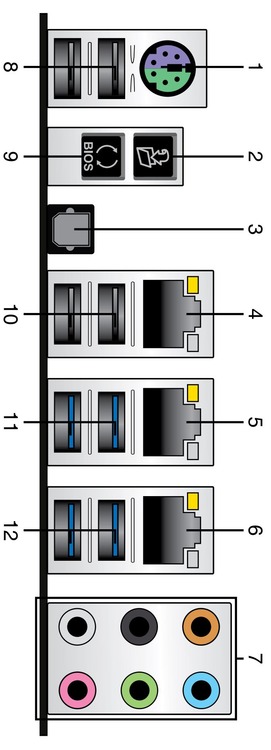

Asus Z10PE-D16 WS Ports
PS/2 Hybrid Port: Connection supporting either a PS/2 mouse or PS/2 keyboard.
Q-Code Logger Button: Sends Q-Code event logs to a drive in the corresponding USB port. See motherboard manual for more.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
IPMI LAN Port: RJ-45 plug for remote management of computer via IPMI (Intelligent Platform Management Interface).
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
Asus Z10PE-D16 WS Schematic
If you want a powerful, dual CPU system for roles outside of the server room, I highly recommend this board! It has all the standard connectivity you'd expect on a desktop or workstation, like USB 3.0 and audio, which are so often missing from server-class hardware. It also has several PCI-Express slots, allowing a wide range of add-on card configurations.
Model: Asus Z10PE-D16 WS
Specifications
| Socket | Dual 2011-3 |
| CPU Compatibility | Intel Xeon E5-2600 V3 Family |
| Form Factor | EATX |
| Chipset Manufacturer | Intel |
| Chipset | C612 |
| Front Side Bus | QuickPath Interconnect |
| Network Connectivity | Dual Gigabit Networking |
| Network Controller | 2x Intel I210-AT |
| Audio Controller | Realtek ALC1150 8-Channel High Definition Audio |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 ECC Registered |
| Maximum Speed | 2133 MHz |
| Number of Slots | 16 |
| Maximum Size per Slot | 64 GB |
| Maximum Amount Supported | 1024 GB |
Onboard Video | |
| Chipset Manufacturer | ASpeed |
| Processor Type | AST2400 |
| Onboard Memory | 32 MB |
| Notes: | Requires VGA bracket to be used externally |
External Connections | |
| USB 2.0 | 4 |
| USB 3.2 Gen 1 (USB 3.0) | 4 |
| PS/2 Keyboard | Yes |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Mgmt LAN (RJ45) | 1 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 1 |
| SATA III 6.0Gbps | 10 |
| M.2 Connector | 1 |
| M.2 Support | M.2 Socket 3 supports M Key and type 2260/2280/22110 storage devices |
| Serial (Com) | 1 |
| TPM (module sold separately) | 1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 6 port - Intel C612 |
| SATA III 6.0Gbps Controller 2 | 4 port - Intel C612 |
Expansion Slots | |
| Slot 2 | PCI Express 3.0 x8 in a x16 size |
| Slot 3 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 in a x16 size |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | PCI Express 3.0 x16 |
| Slot 7 | PCI Express 3.0 x16 |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,5,10 |
| Dual GPU Slot Spacing | 2-Slot |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 330 mm (13.0 in) |
Supports the Asus ASMB8-iKVM remote management module.
