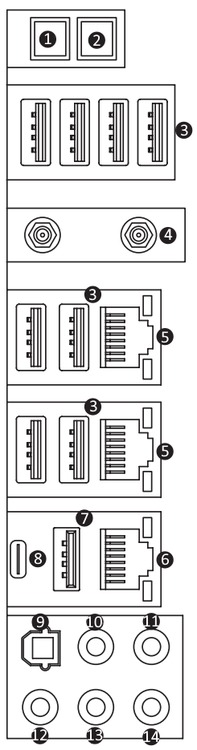

Gigabyte X399 AORUS Xtreme Ports
Clear CMOS Switch: Resets CMOS / BIOS on the motherboard. WARNING: Do not press without consulting tech support!
Power Switch: On/off button for the device.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
WiFi Antenna Connector: Connection for WiFi antenna (included). Antenna must be connected to get proper reception.
Gigabit LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 1000 Mbps.
10G LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 10 Gbps.
USB 3.2 Gen 2 (USB 3.1) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 2 and older devices (10 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Rear Speakers: 3.5mm analog audio jack for output to rear speakers (if using surround sound).
Center / Subwoofer Audio Jack: 3.5mm analog audio jack for output to center speaker and subwoofer (if using surround sound).
Microphone Audio Jack: 3.5mm analog audio jack for microphone input to the computer.
Line In Audio Jack: 3.5mm analog audio jack for line-level input to the computer.
Front Speakers: 3.5mm analog audio jack for output to speakers (front, if using surround sound) or headphones.
Gigabyte X399 AORUS Xtreme Schematic
A wide range of connectivity is provided as well: eight standard USB ports, two USB 3.1 (one of which is Type C), both 1Gb and 10Gb Ethernet ports, WiFi, Bluetooth, and both analog and digital audio. Internally it has six SATA ports and three M.2 connectors, with included heatsinks, allowing for a flexible array of storage options.
Threadripper 2, Quad GPU support, and 10Gb networking is a great combination for rendering nodes - either CPU or GPU based, or both!
Model: Gigabyte X399 AORUS XTREME
Specifications
| Socket | TR4 |
| CPU Compatibility | Threadripper 2 |
| Form Factor | CEB |
| Chipset Manufacturer | AMD |
| Chipset | X399 |
| Network Connectivity | Dual Gigabit Networking + 10G + 802.11 A/B/G/N/AC |
| Network Controller | Dual Intel i210AT + AQUANTIA 10G + Intel WiFi/Bluetooth |
| Audio Controller | Onboard Realtek ALC 1220-VB High Definition Audio |
| Cooling System | Heatsink |
| Color | Black & White |
Memory Support | |
| Type | DDR4 ECC |
| Maximum Speed | 2993 MHz |
| Number of Slots | 8 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 128 GB |
External Connections | |
| USB 3.2 Gen 1 (USB 3.0) | 8 |
| USB 3.2 Gen 2 (USB 3.1) | 1 |
| USB 3.2 Type C | 1 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
| Wireless Antenna Port | Yes |
Internal Connections | |
| USB 2.0 | 2 (providing 4 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| USB 3.2 Gen 1 Type C | 1 |
| SATA III 6.0Gbps | 6 |
| M.2 Connector | 3 |
| M.2 Support | 2x 60-110mm NVMe+SATA, 1x 42-80mm NVMe+SATA |
| TPM (module sold separately) | 1 |
| Compatible TPM | 12-1 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x16 |
| Slot 2 | Slot not available on this board |
| Slot 3 | PCI Express 3.0 x8 in a x16 size |
| Slot 4 | PCI Express 3.0 x1 |
| Slot 5 | PCI Express 3.0 x16 |
| Slot 6 | Slot not available on this board |
| Slot 7 | PCI Express 3.0 x8 in a x16 size |
Additional Information | |
| SLI Compatible | Yes |
| Crossfire Compatible | Yes |
| RAID Support | 0,1,10 |
| Bluetooth | Yes (4.2) |
| Dual GPU Slot Spacing | 4-Slot |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | Yes |
Dimensions | |
| Height | 305 mm (12.0 in) |
| Width | 267 mm (10.5 in) |
