MSI MPG B550I GAMING EDGE WIFI

Motherboard

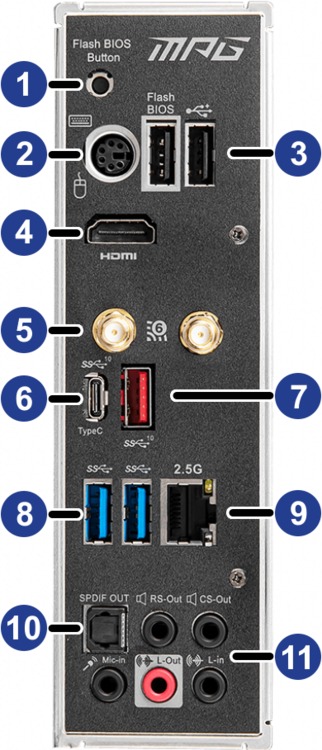

[ Rear Ports ][ Schematic ]

MSI MPG B550I GAMING EDGE WIFI Picture 63102MSI MPG B550I GAMING EDGE WIFI Picture 63105MSI MPG B550I GAMING EDGE WIFI Picture 63106MSI MPG B550I GAMING EDGE WIFI Picture 63111MSI MPG B550I GAMING EDGE WIFI Picture 63107
The MSI MPG B550I Gaming Edge WiFi is a compact motherboard for AMD's 3rd generation Ryzen processors. The small ITX form factor means there is far less space available on the board compared to larger systems, but despite its size it manages to pack lots of features and connectivity.

Internally, there are two full-size memory slots, four SATA ports, two M.2 connectors, and a PCI-Express x16 slot that can be used for a full size GPU or other expansion card (provided the chassis is large enough). Externally, this board provides a wide range of connections: analog and digital audio output, WiFi 6, Bluetooth 5.0, 2.5Gb Ethernet, and six total USB ports, including one USB Type C. There is also a HDMI output, but that only works with CPUs that include built-in graphics... and none of AMD's higher-end Ryzen models have that feature.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
A couple of oddities about this board are worth noting, but shouldn't impact most users:

- The HDMI connection on this motherboard only works with CPUs that have built-in graphics, but the higher-end Ryzen chips we carry don't support that feature (since almost everyone uses a dedicated video card)

- The onboard NIC does not support Linux, so users of that OS will want to have a dedicated network card added
Model: MSI MPG B550I GAMING EDGE WIFI

Specifications:
spacer
Socket  AM4
CPU Compatibility  AMD Ryzen
Form Factor  Mini-ITX
Chipset Manufacturer  AMD
Chipset  B550
Network Connectivity  2.5G Networking + WiFi 6
Network Controller  Realtek RTL8125B + Intel AX200
Audio Controller  Onboard Realtek ALC S1200A HD Audio
Cooling System  Heatsink and Fan
Color  Black
Memory Support
Type  DDR4 ECC
Maximum Speed  3200 MHz
Number of Slots  2
Maximum Size per Slot  32 GB
Maximum Amount Supported  64 GB
Onboard Video
Chipset Manufacturer  AMD
HDMI  1
HDMI Version  2.1
Notes:  Onboard Graphics Requires Supported CPU
External Connections
USB 2.0  2
USB 3.2 Gen 1 (USB 3.0)  2
USB 3.2 Gen 2 (USB 3.1)  1
USB 3.2 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  1 (providing 2 ports)
USB 3.2 Gen 1 (USB 3.0)  1
USB 3.2 Type C  1
SATA III 6.0Gbps  4
M.2 Connector  2
M.2 Support  x1 60-80mm NVMe (Gen4) + SATA, x1 80mm NVMe (Gen3)
SATA Controllers
SATA III 6.0Gbps Controller 1  AMD B550
Expansion Slots
Slot 1  PCI Express 4.0 x16
Additional Information
SLI Compatible  No
Crossfire Compatible  No
RAID Support  0,1,10
Bluetooth  Yes (5.0)
Integrated IO Shield  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
Dimensions
Height  170 mm (6.7 in)
Width  170 mm (6.7 in)
