Puget Systems C161-G

Motherboard

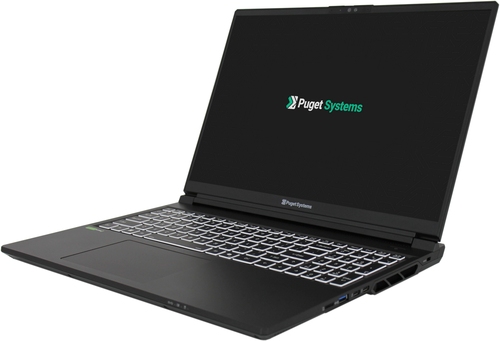

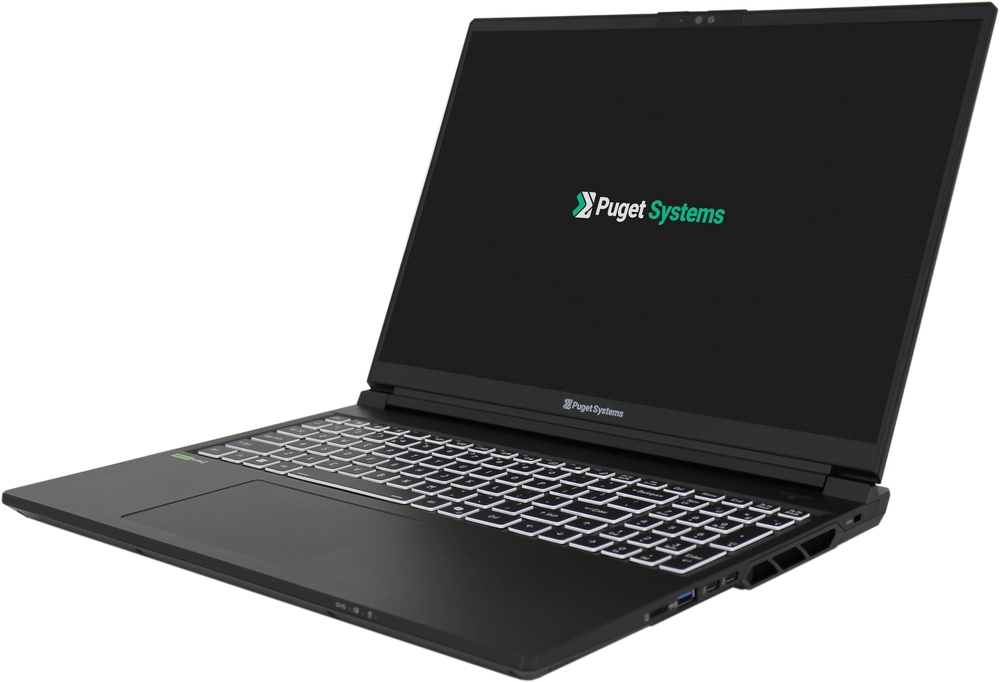

Puget Systems C161-G Main Picture

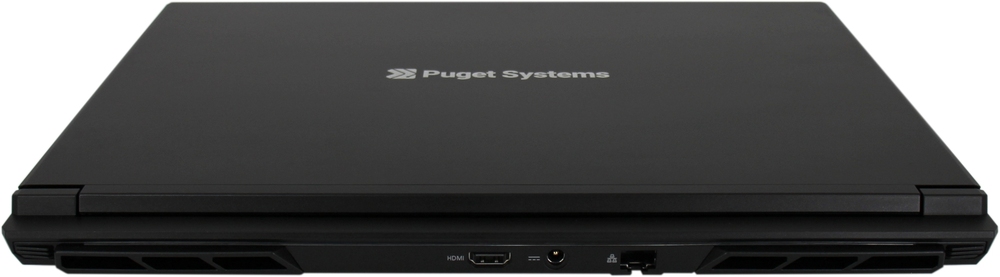

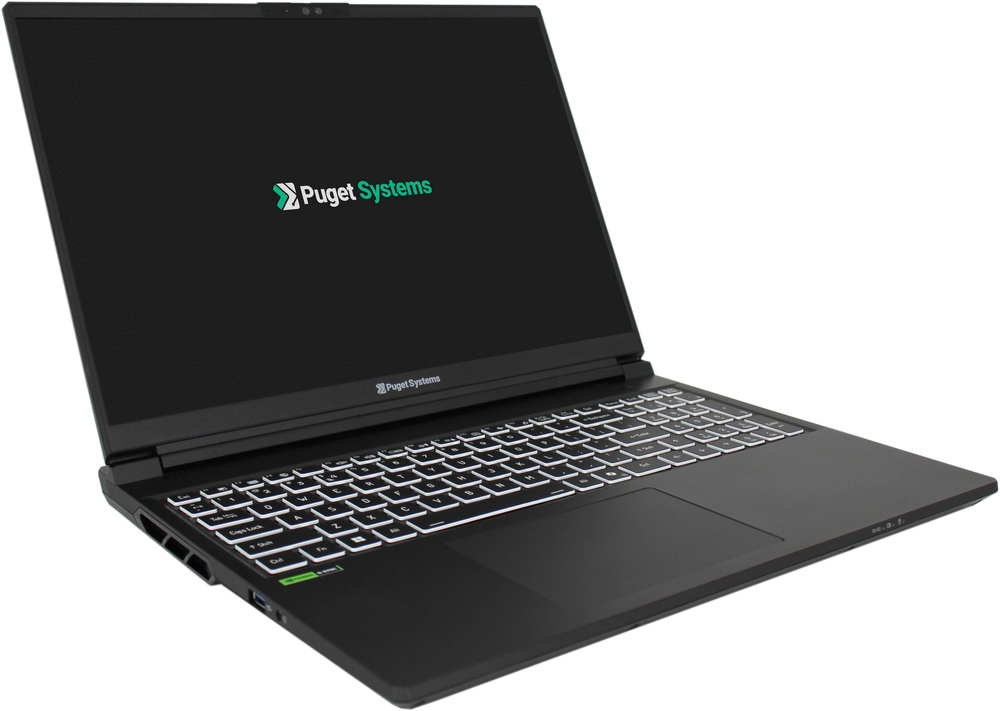

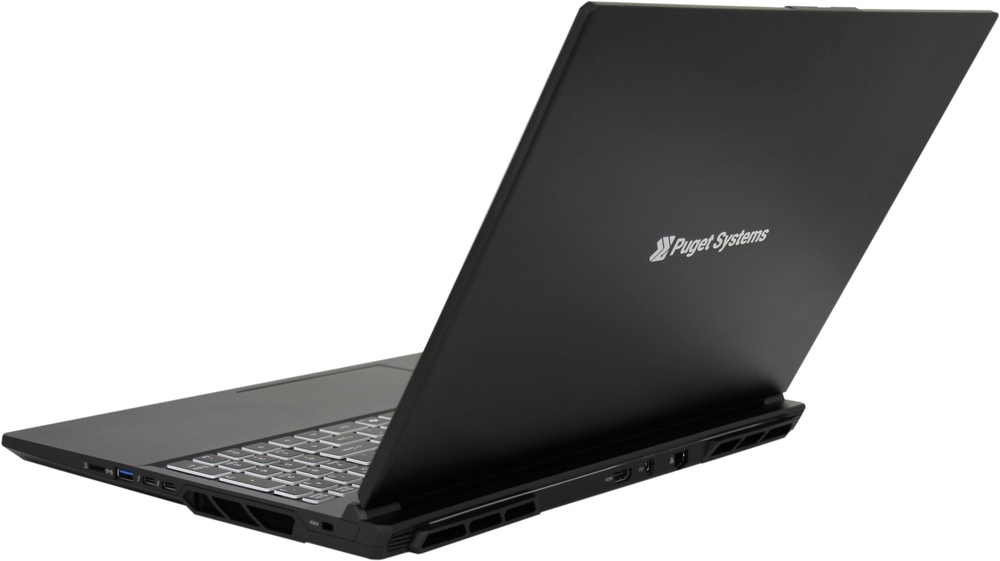

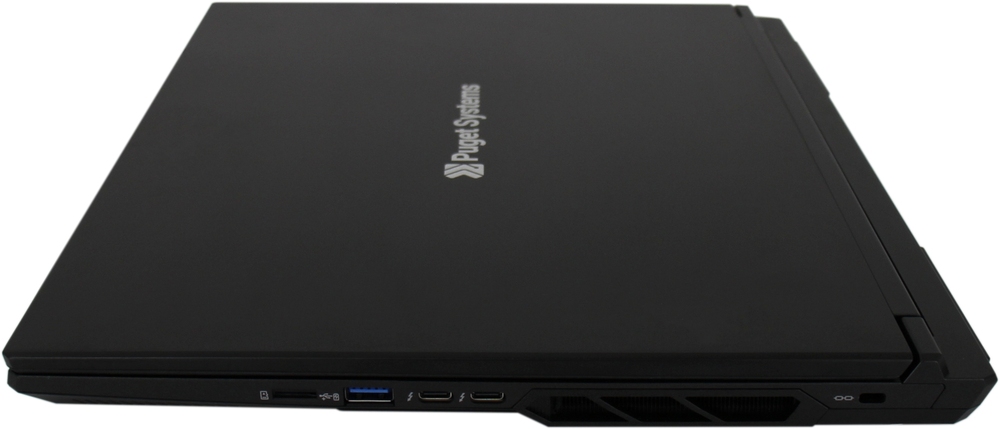

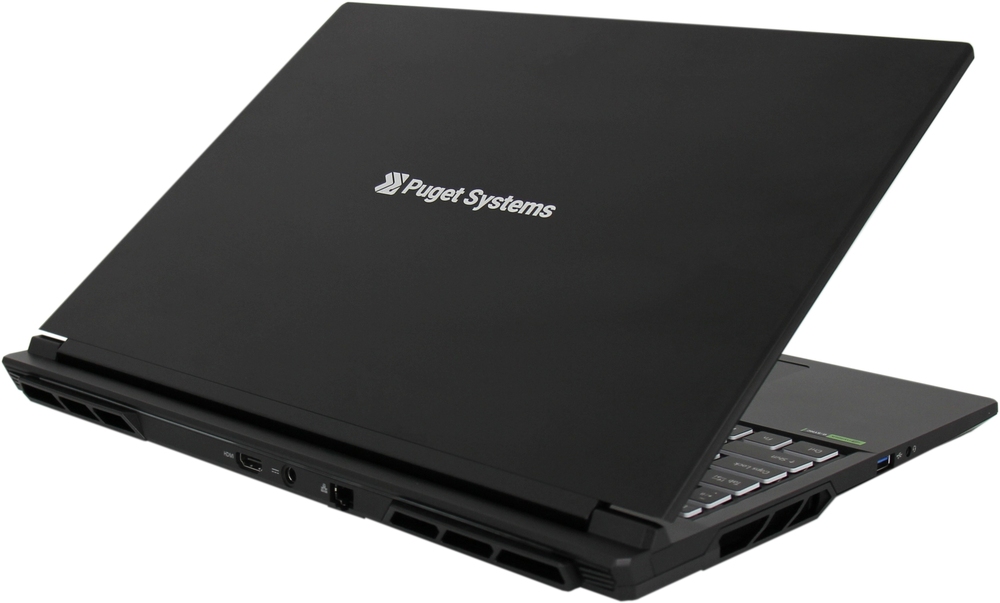

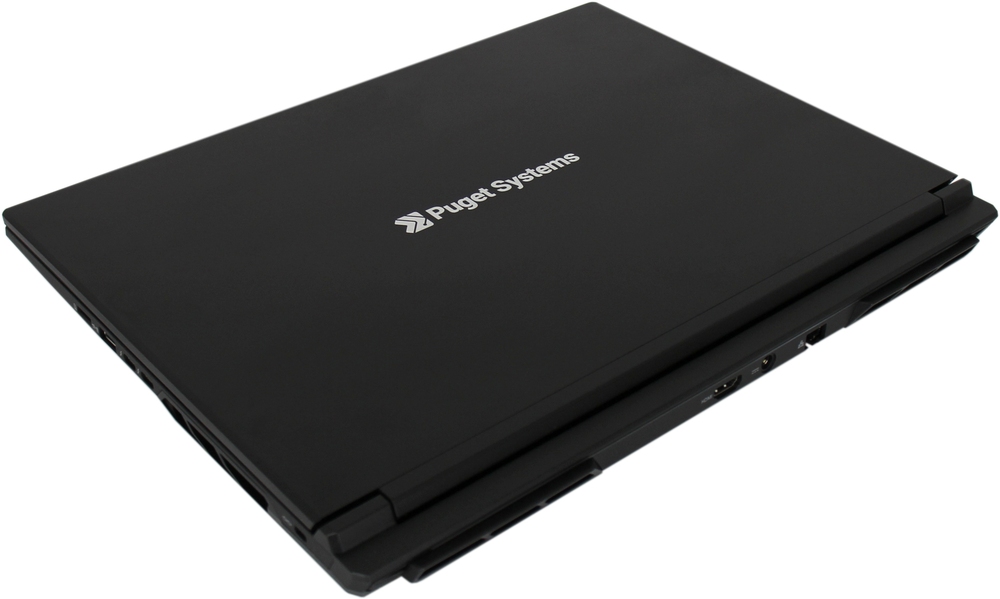

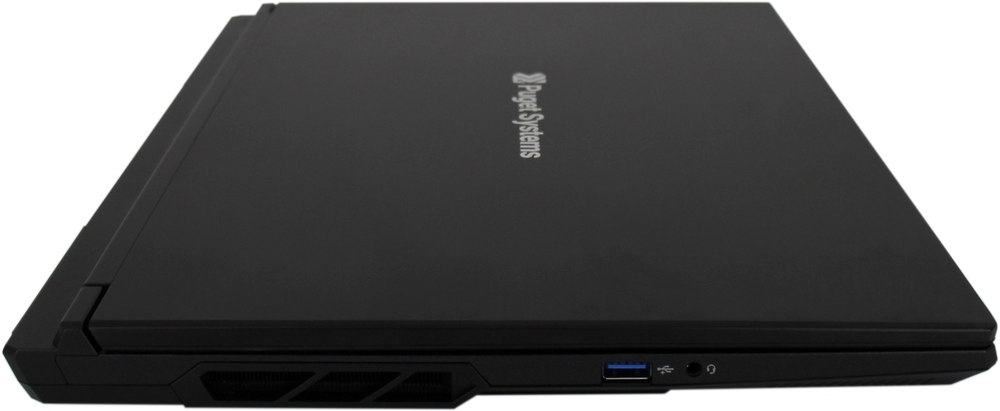

Puget Systems C161-G Picture 89128Puget Systems C161-G Picture 89129Puget Systems C161-G Picture 89130Puget Systems C161-G Picture 89131Puget Systems C161-G Picture 89132Puget Systems C161-G Picture 89133Puget Systems C161-G Picture 89134Puget Systems C161-G Picture 89135
This variant of the Puget Mobile 16″ workstation features high-performance hardware with the Intel Core Ultra 9 275HX CPU and the NVIDIA GeForce RTX 5080 Mobile GPU, all built into a notebook chassis. The 16-inch QHD+ screen has a high 240Hz refresh rate and good color accuracy. That combination of top-end specs makes this a great option for content creators who need to work on the go.

For connectivity, this laptop PC has two USB 3.2 and two Thunderbolt 4 ports, HDMI for an external monitors, a combined headphone and mic jack, as well as 2.5Gb Ethernet, WiFi 7, and Bluetooth 5.4 for networking. A pair of powerful cooling fans are built into the system, which will adjust speed based on the workload, power draw, and temperature.

Please note that running on battery will limit CPU and GPU speeds so, while this system is very portable, it must be plugged in for best performance.
William George (Go-To-Market (GTM) Manager)
William George (Go-To-Market (GTM) Manager) Says:
This is basically the same as our flagship 16-inch laptop, but with an NVIDIA GeForce RTX 5080 instead of the 5090. This saves some money for users who don't need the absolute maximum graphics performance. Compared to our previous 17-inch model, this new system is substantially lighter weight (5lbs vs 7.3lbs) and quieter under full load. It's definitely not silent at max power, but it is much more manageable to work around!

Specifications

CPU Compatibility Intel Core Ultra 9 275HX
Form Factor Notebook
Chipset Manufacturer Intel
Chipset HM870
Network Connectivity 2.5G Networking + WiFi 7
Audio Controller Onboard Realtek HD Audio
Cooling System Heatsink and Fan
Number of Fans 2
Color Black
Windows Support Windows 11
Linux Support No
Notebook-Display
Screen Size 16 Inch
Native Resolution WQXGA (2560x1600)
Surface Matte Finish
Memory Support
Type DDR5 SODIMM
Maximum Speed 6400 MHz
Number of Slots 2
Maximum Size per Slot 48 GB
Maximum Amount Supported 96 GB
Onboard Video
Chipset Manufacturer nVidia
Processor Type NVIDIA GeForce RTX 5080 Mobile
Onboard Memory 16,384 MB
Maximum HDMI Resolution  4096x3112
HDMI 1
HDMI Version 2.1
Thunderbolt 2
Notes: 2x Thunderbolt 4, Supports 4x Total Simultaneous Displays

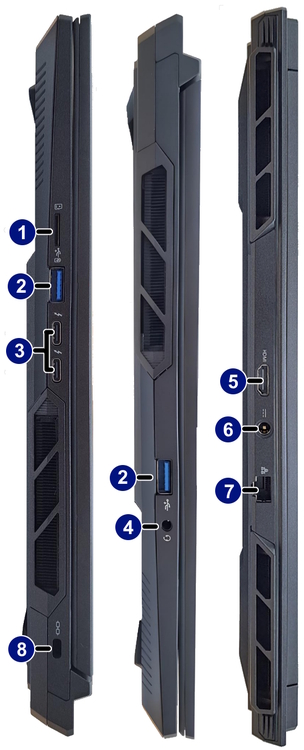

External Connections
USB 3.2 Gen 2 (USB 3.1) 2
Audio Out Stereo
Audio In Line-In/Microphone
LAN (RJ45) 1
Memory Card Reader SDXC w/ UHS-I
Thunderbolt Ports 2
Thunderbolt Version 4
Internal Connections
M.2 Connector 3
M.2 Support 1x 80mm PCIe 5.0, 2x 80mm PCIe 4.0
Additional Information
Built-in Webcam Yes
Built-in Microphone Yes
Bluetooth Yes (5.4)
BIOS Features
UEFI BIOS Yes
Dimensions
Height 19.9 mm (0.8 in)
Width 355.8 mm (14.0 in)
Depth 271 mm (10.7 in)
Net Weight 2.25 kg (5.0 lbs)
Power Supply
Input Voltage 100-240 Vac
Wattage at 120V 230 W
Wattage at 240V 230 W

Additional Specs


  • Aluminum Chassis
  • Multi Color Backlight Keyboard
  • Large Glass Touchpad
  • 2M FHD Hello Camera
  • Firmware TPM
  • Removable Wi-Fi / BT
  • 16-inch WQXGA 16x10 Display
    • 100% sRGB, 78% AdobeRGB, 73% NTSC
    • 600-nits
    • 240hz
    • WVA Panel
    • G-Sync
    • Wide View Angle
    • Matte Finished

  • 4 Cell Lithium-Polymer Battery 80Wh (5100mAh @ ~15.48V)
  • PD 3.0 Charging (100W)
      Full Performance available only when connected to 230W AC adapter

  • 230W AC ADAPTER (120V/220V, sent with USA 3-prong power cable)
    • Dimensions: 6x3x1 Inches
    • Weight: 1.5lbs / 0.68kg
