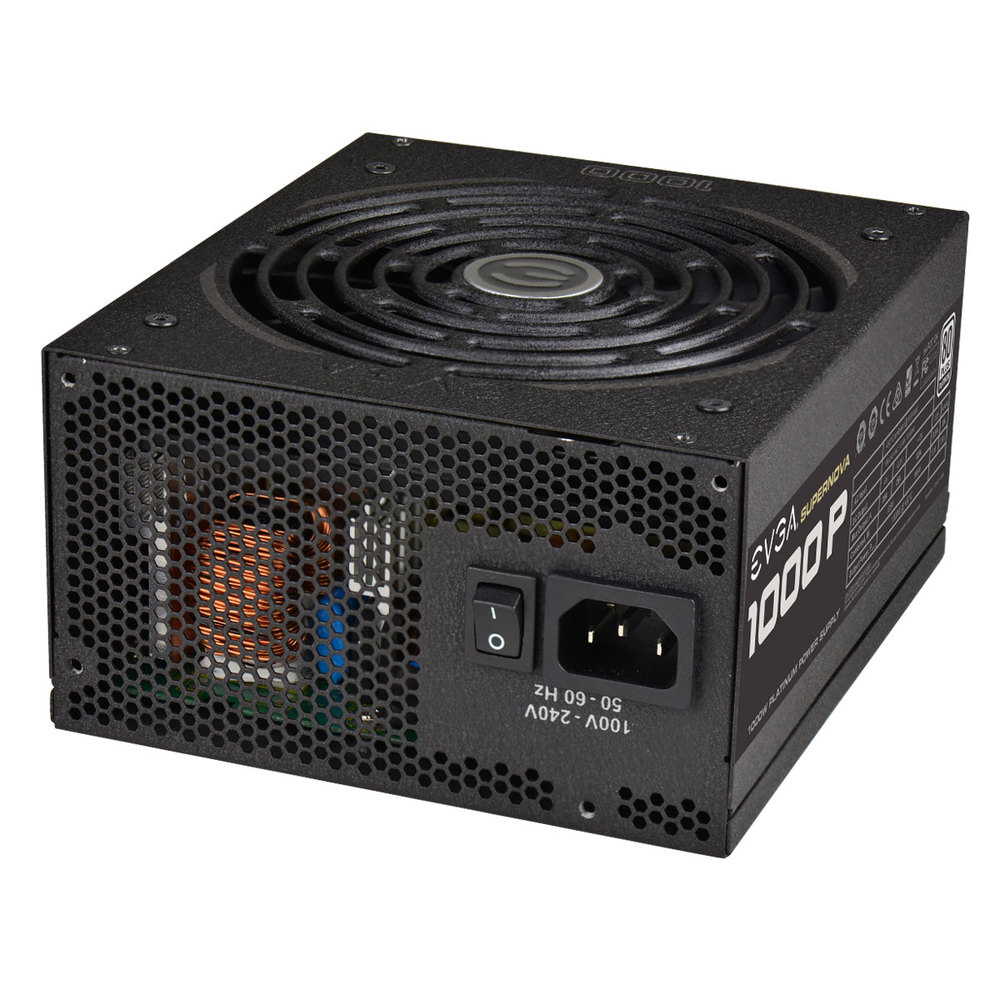

The EVGA SuperNOVA 1000W is a full-featured, 80 PLUS Platinum-certified power supply unit - complete with entirely modular wiring for clean assembly and a quiet 135mm fan for cooling.
William George (Go-To-Market (GTM) Manager) Says:
This is a great power supply, and an improvement over the previous 1000W model we carried in some small ways. Both are from EVGA, and have the same power and efficiency rating - but this one is slightly shorter, so it fits better in small cases like the SG10. It also has all-black cabling, unlike the red cables on the other model, so it looks better in windowed systems.
This is a great power supply, and an improvement over the previous 1000W model we carried in some small ways. Both are from EVGA, and have the same power and efficiency rating - but this one is slightly shorter, so it fits better in small cases like the SG10. It also has all-black cabling, unlike the red cables on the other model, so it looks better in windowed systems.
Model: EVGA 220-PS-1000-V1
Specifications
| Maximum Power | 1000 W |
| Standard Compliance | TUV, CB, CE, FCC, RCM, cTUVus |
| Peak Efficiency | 92 % |
| Efficiency Certification | 80 PLUS Platinum |
| Cooling System | 135mm Fan |
| Noise Level | 0-40 dB |
| Safety Compliance | OVP, UVP, OCP, OPP, SCP, OTP |
| Materials Compliance | WEEE, RoHS |
Power Distribution | |
| +3.3V rail | 25 amps |
| +5V rail | 25 amps |
| +12V1 rail | 83 amps |
| Combined +12V Maximum | 83 amps |
Connectors | |
| Molex | 5 |
| SATA | 16 |
| Floppy | 1 |
| PCIe 8-Pin | 10 |
| CPU Power 8/4 pin | 2 |
Dimensions | |
| Height | 86 mm (3.4 in) |
| Width | 150 mm (5.9 in) |
| Depth | 170 mm (6.7 in) |
| Net Weight | 3.6 kg (7.9 lbs) |
Input | |
| Voltage | 100-240 Vac |
| Frequency | 50/60 Hz |
Features
- ECO mode keeps the fan off when unneeded, and is only ran at the lowest speed needed to keep the internals cool.

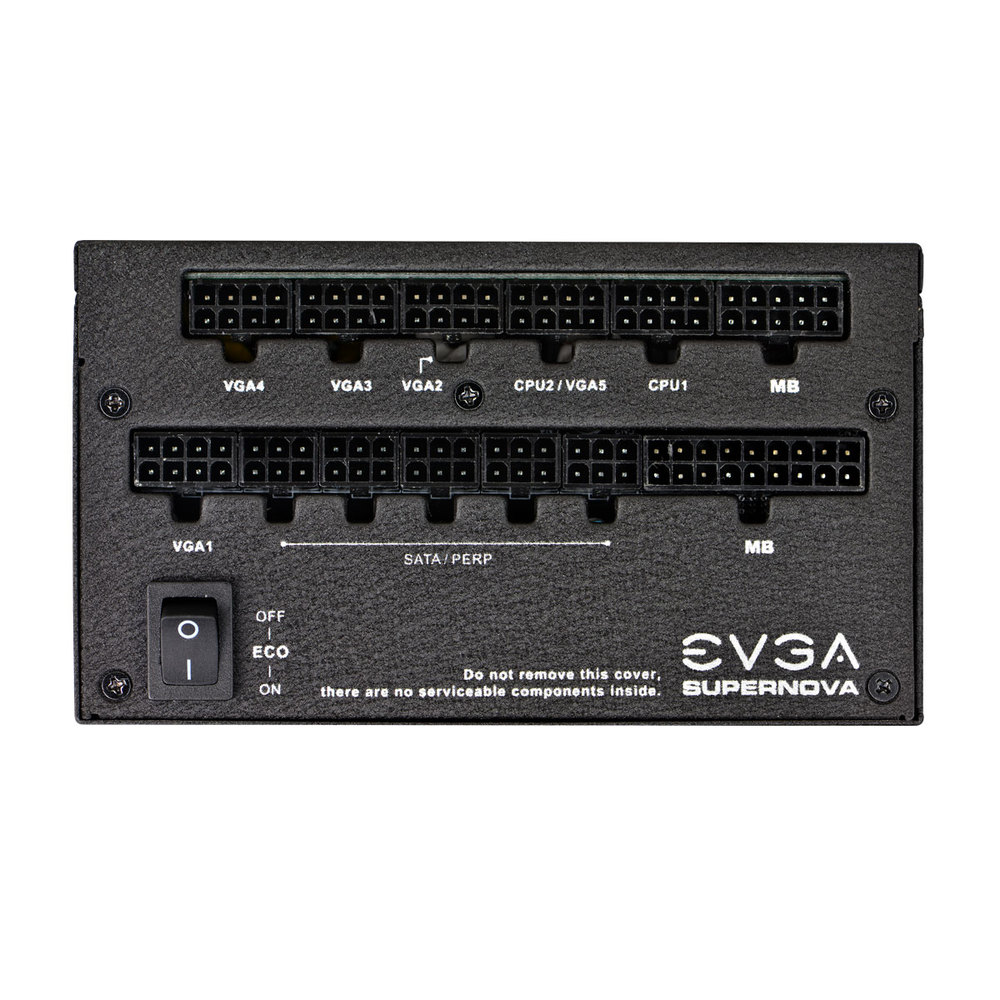

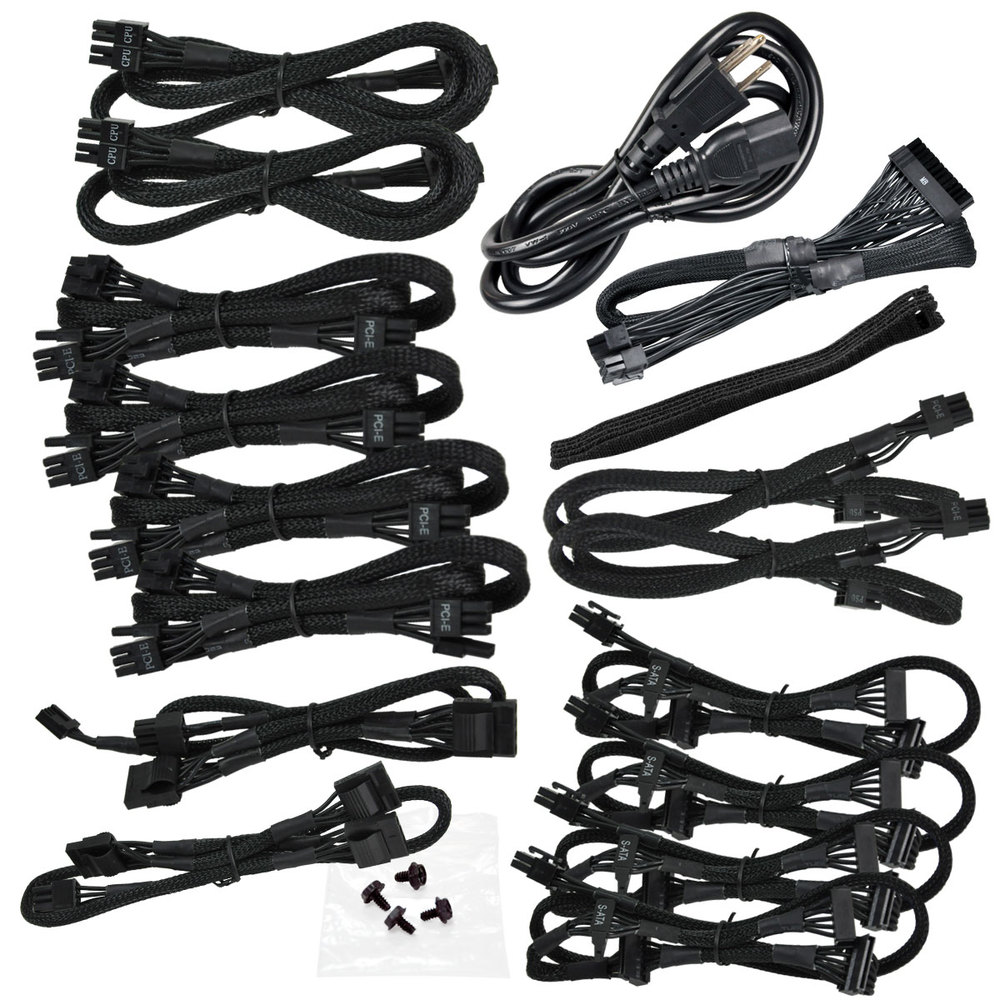

- Fully modular cables
Shorter depth 1000W power supply
