EVGA SuperNOVA 1200W P2 Power Supply

Power Supply

EVGA SuperNOVA 1200W P2 Power Supply Picture 32567EVGA SuperNOVA 1200W P2 Power Supply Picture 32568EVGA SuperNOVA 1200W P2 Power Supply Picture 32569EVGA SuperNOVA 1200W P2 Power Supply Picture 32570EVGA SuperNOVA 1200W P2 Power Supply Picture 32571
The EVGA SuperNOVA 1200W is a full-featured, 80 PLUS Platinum-certified power supply unit - complete with entirely modular wiring for clean assembly and a quiet 140mm fan for cooling.
Josh Raye (Research and Development Engineer)
Josh Raye (Research and Development Engineer) Says:
This is a beefy high performance PSU, and is only truly necessary if you have a very power hungry system. Now, the fan on this unit is louder than the seasonic power supplies we carry, but the eco feature (which we enable by default) allows the fan to turn itself off when the power supply is cool enough. There are a few other neat features like 80 Plus Platinum efficiency and fully modular design. All of this together makes for a very solid choice.

Model: EVGA 220-P2-1200-X1

Specifications

Maximum Power 1200 W
Standard Compliance TUV, CB, CE, FCC, RCM, cTUVus, BSMI
Peak Efficiency 92 %
Efficiency Certification 80 PLUS Platinum
Cooling System Quiet 140mm Fan
Safety Compliance OVP, UVP, OCP, OPP, SCP
Materials Compliance WEEE, RoHS

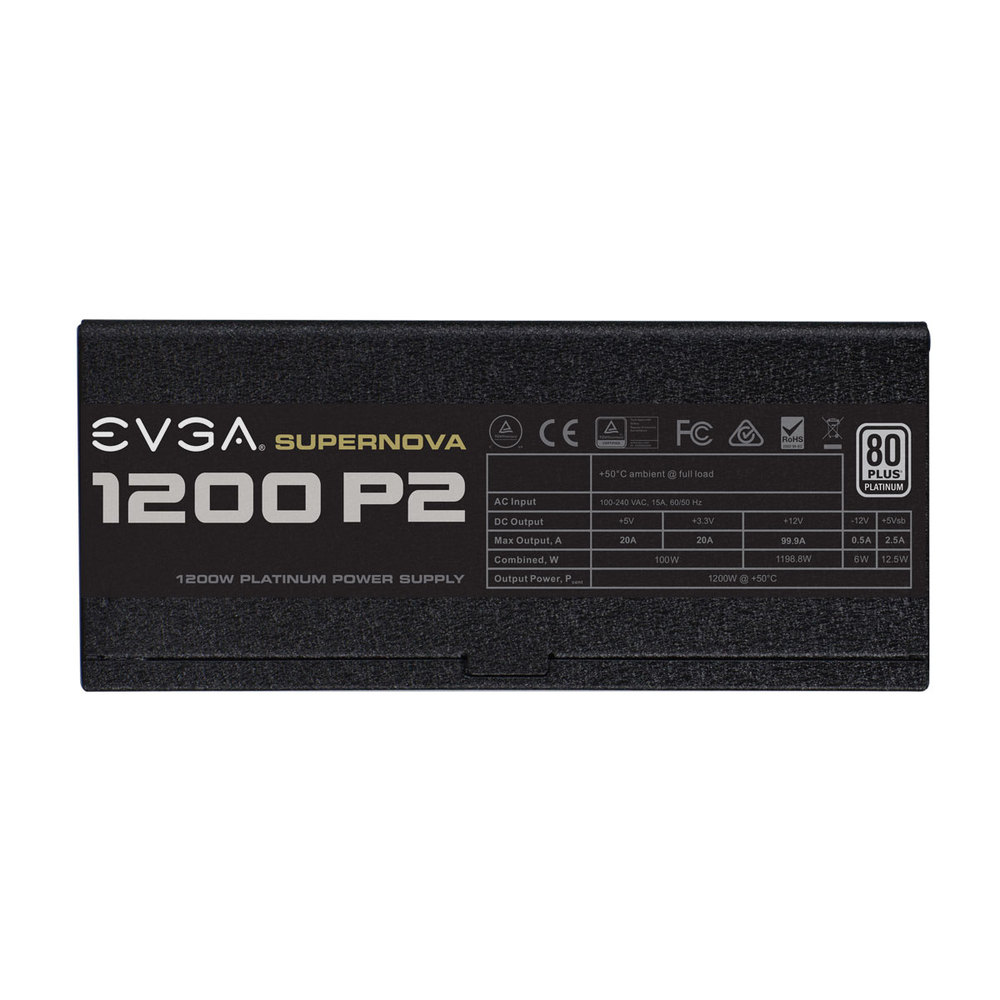

Power Distribution
+3.3V rail 20 amps
+5V rail 20 amps
+12V1 rail 99.9 amps
Combined +12V Maximum 99.9 amps
Connectors
Molex 5
SATA 12
Floppy 1
PCI Express 2
PCI Express 8-pin 6
CPU Power 8/4 pin 2
External Connector Type C13
Dimensions
Height 85 mm (3.3 in)
Width 150 mm (5.9 in)
Depth 200 mm (7.9 in)
Net Weight 3.6 kg (7.9 lbs)
Input
Voltage 100-240 Vac
Frequency 50/60 Hz

Features

  • Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
  • Highest quality Japanese brand capacitors ensure long-term reliability

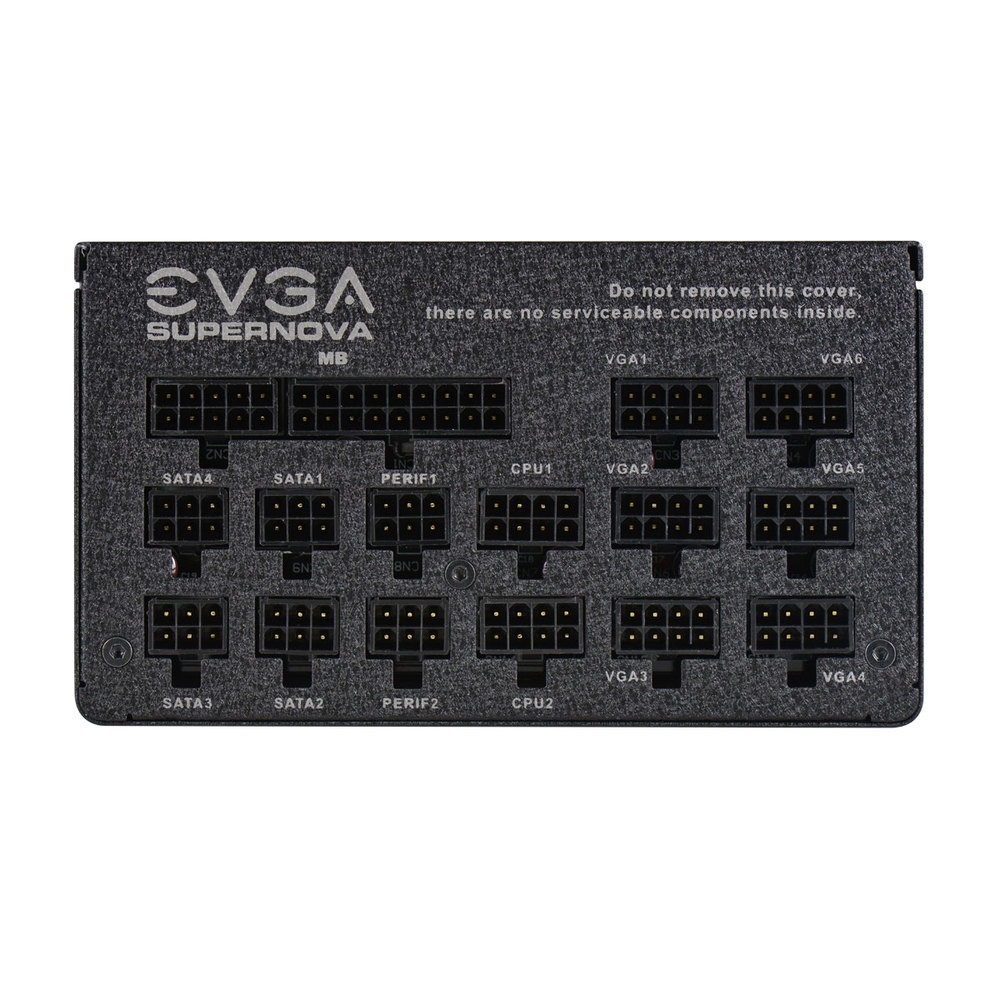

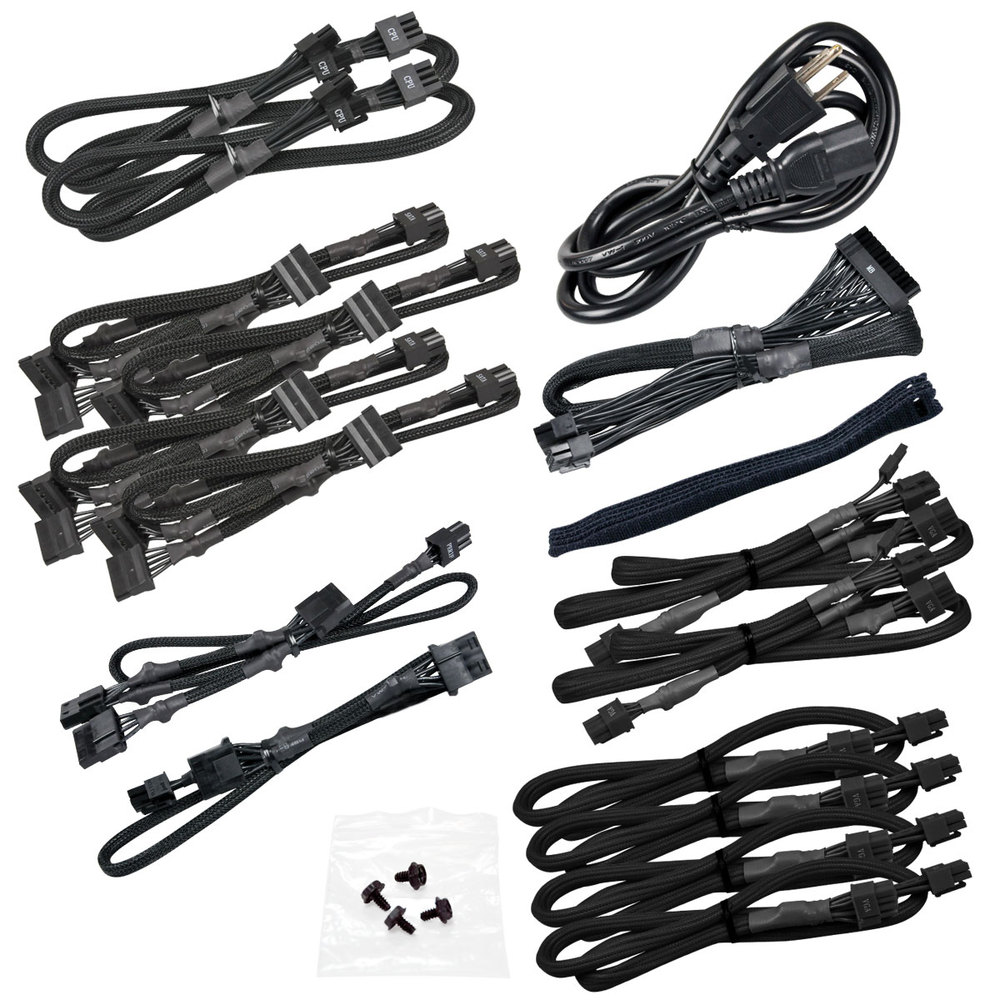

  • Fully Modular to reduce clutter and improve airflow
  • Double Ball Bearing fan for exceptional reliability and quiet operation
  • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
  • 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads

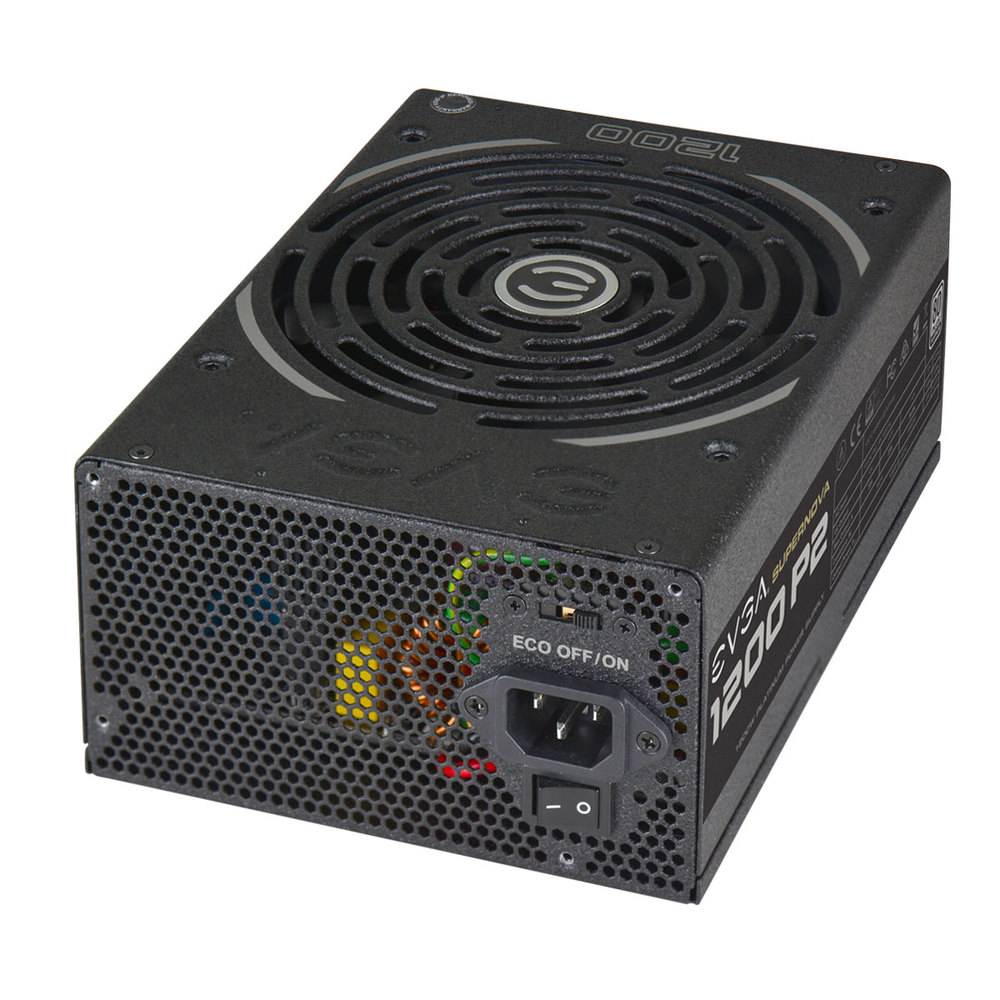

  • ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45*C)
