EVGA SuperNOVA 1300W G2 Power Supply

Power Supply

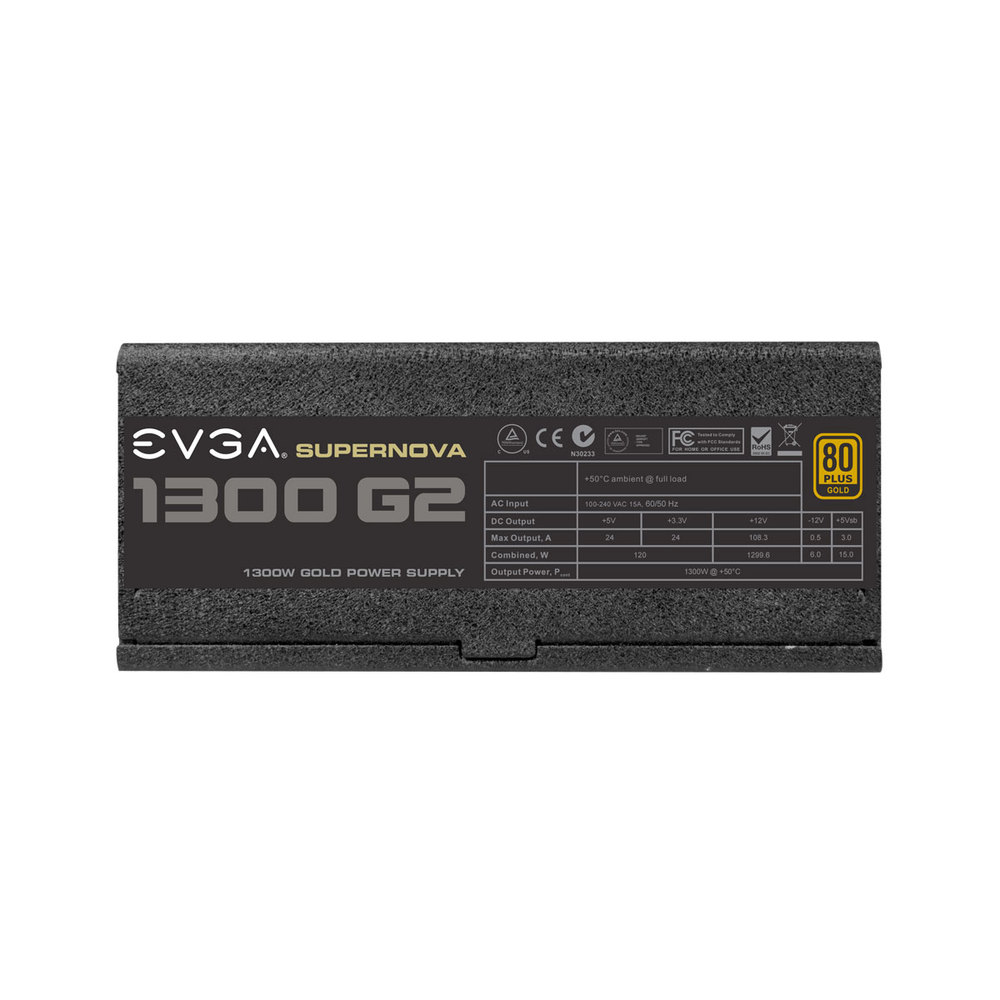

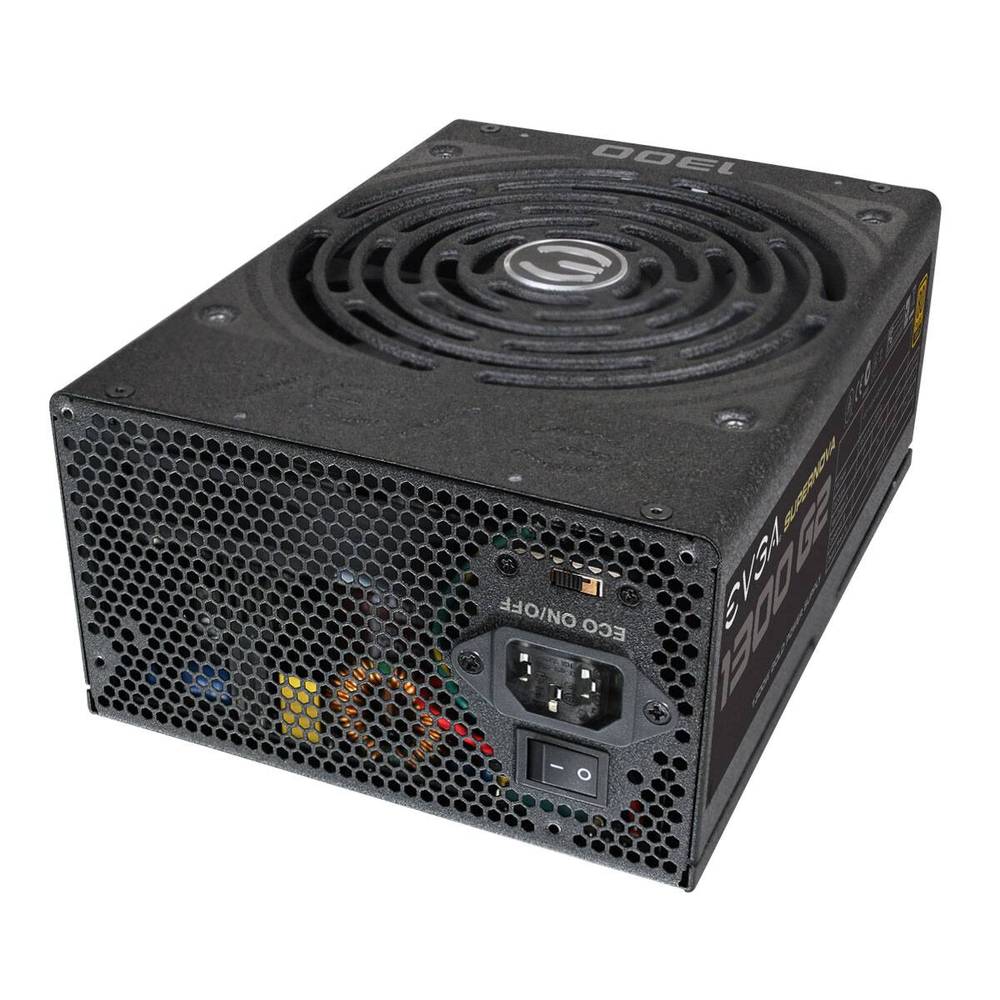

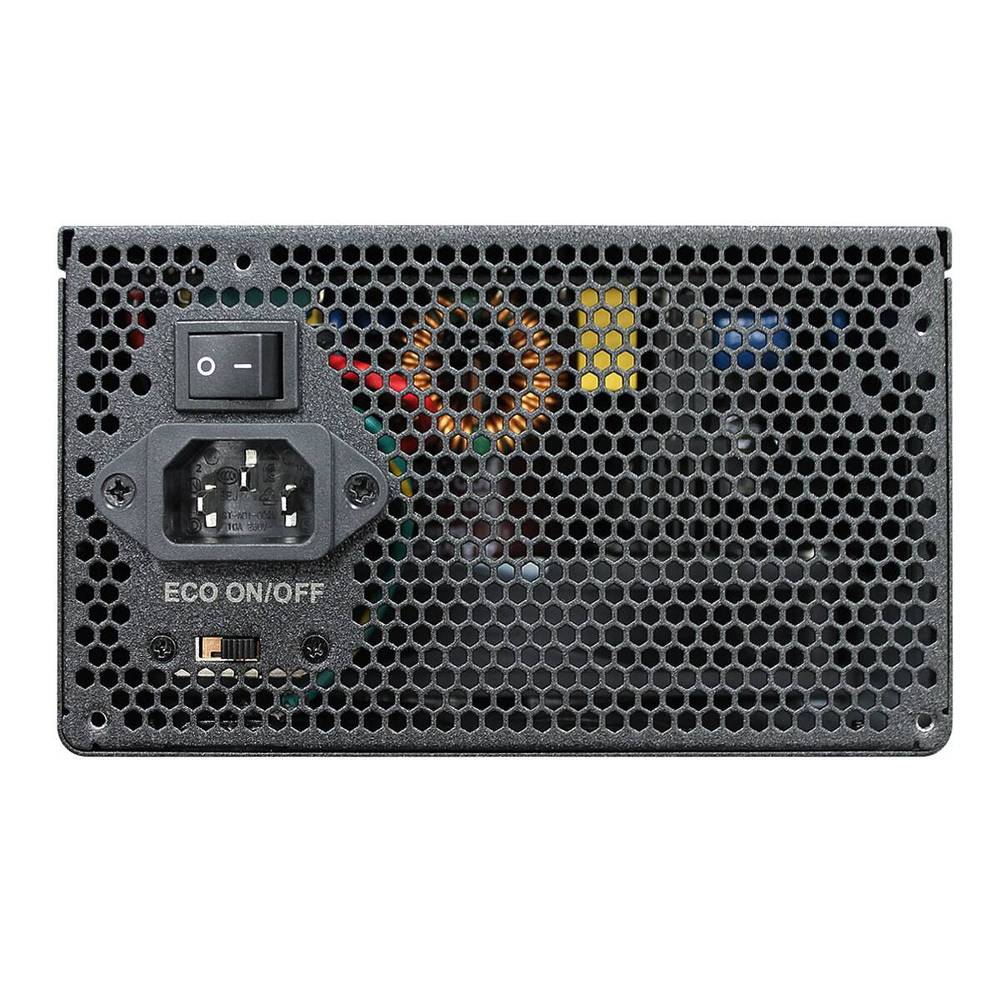

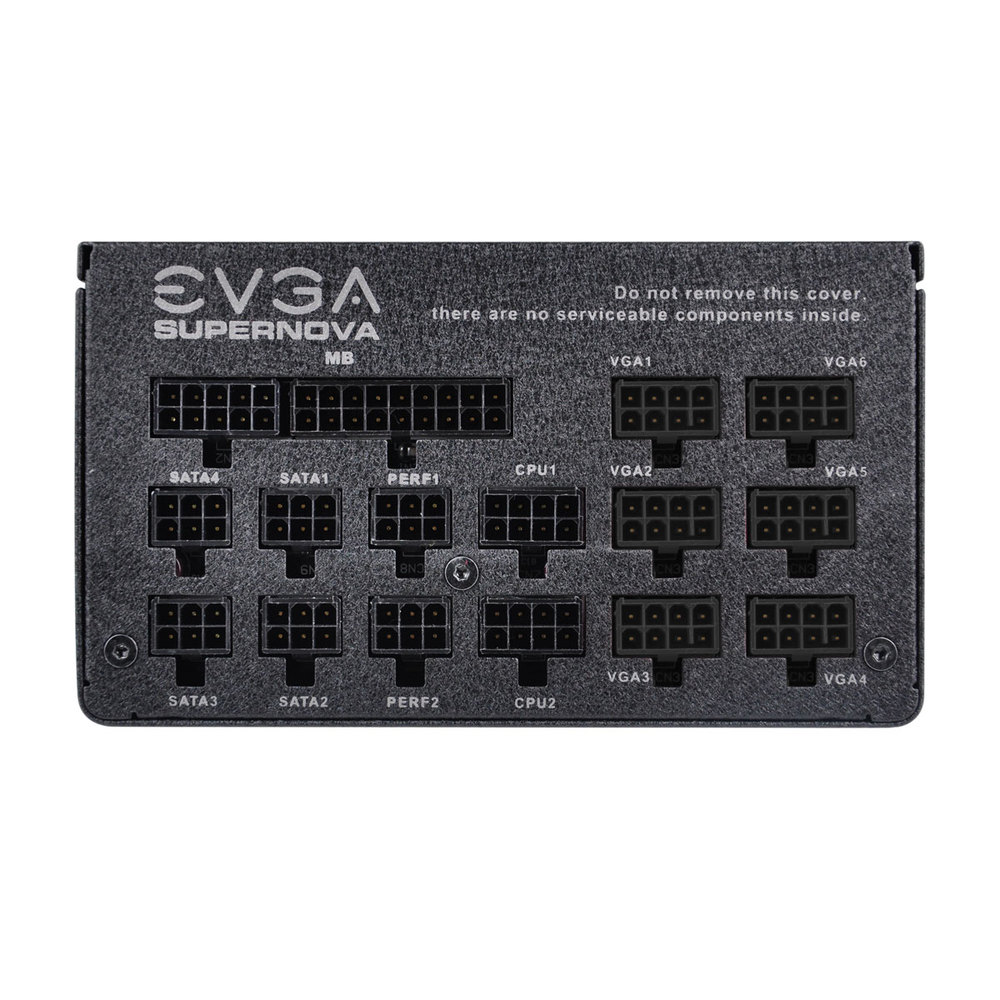

EVGA SuperNOVA 1300W G2 Power Supply Picture 58954EVGA SuperNOVA 1300W G2 Power Supply Picture 58955EVGA SuperNOVA 1300W G2 Power Supply Picture 58956EVGA SuperNOVA 1300W G2 Power Supply Picture 58957
The EVGA SuperNOVA 1300W G2 is a high-quality, 80 PLUS Gold-certified power supply unit - complete with entirely modular wiring for clean assembly and a 140mm fan for cooling. The fan is very quiet, ramping up or down in speed as needed to keep the unit cool and even turning off entirely at low power draw levels. In terms of physical size, this model is longer than the 1000W and lower versions - meaning it may not fit in some cases.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
The cabling used by this power supply is the same as most other SuperNOVA models, making it relatively easy to replace a failed PSU or upgrade to a higher wattage later on if needed.
Model: EVGA 120-G2-1300-XR

Specifications:
spacer
Maximum Power  1300 W
Standard Compliance  ATX
Peak Efficiency  >92 %
Efficiency Certification  80 PLUS Gold
Cooling System  140mm Fan
Safety Compliance  OVP, UVP, OPP, SCP, OCP, OTP
Industry Compliance  TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement
Power Distribution
+3.3V rail  24 amps
+5V rail  24 amps
+12V1 rail  108.3 amps
Connectors
Molex  5
SATA  12
Floppy  1
PCI Express  2
PCI Express 8-pin  6
CPU Power 8/4 pin  2
External Connector Type  C13
Dimensions
Height  85 mm (3.3 in)
Width  150 mm (5.9 in)
Depth  200 mm (7.9 in)
Net Weight  3.63 kg (8.0 lbs)
Input
Voltage  115 - 240 Vac
Frequency  50 - 60 Hz

Warranty:

10 years
